MBAL-0260CSP2

2-60 GHz Passive MMIC Chip Scale Package 2:1 Balun

The MBAL-0260CSP2 is a GaAs passive MMIC 1:2 balun that features excellent 33 dB common mode rejection over a 2 to 60 GHz operational bandwidth. This device is an ideal solution for digital beamforming and other higher-order Nyquist sampling applications, as well as clock distribution and balanced amplifier interfaces. Available in a lead-free, RoHS compliant 2.5 x 2.5 mm CSP2 package, it is compatible with standard pick-and-place assembly processes.

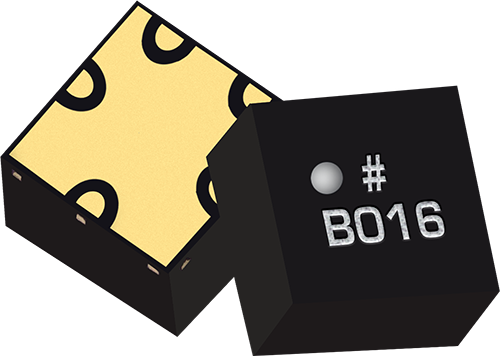

Product Variant : MBAL-0260CSP2
Sorted by: No sorting applied
MBAL-0260CSP2
Banded
2:12600.40.46.38332.50 x 2.50 mmReleased
EVB-MBAL-0260
Banded
2:1260------Released
