MBAL-0250CSP2

2-50 GHz Passive MMIC Chip Scale Package 1:2 Balun

The MBAL-0250CSP2 is a GaAs passive MMIC 2:1 balun that features excellent 35 dB common mode rejection over a 2 to 50 GHz operational bandwidth. This device is an ideal solution for digital beamforming and other higher-order Nyquist sampling applications, as well as clock distribution and balanced amplifier interfaces. Available in a lead-free, RoHS compliant 2.5 x 2.5 mm CSP2 package, it is compatible with standard pick-and-place assembly processes.

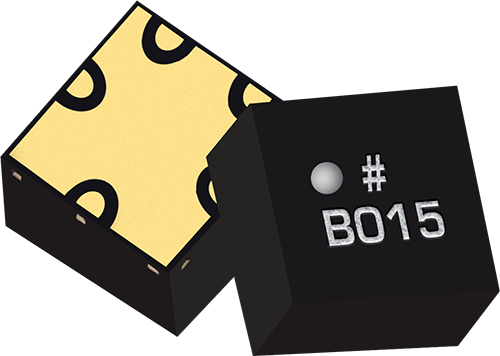

Product Variant : MBAL-0250CSP2
Sorted by: No sorting applied
EVB-MBAL-0250
Banded
2:1250------Released
MBAL-0250CSP2
Banded
2:12500.32.15.37352.50 x 2.50 mmReleased
