MBAL-0220CSP2-1

2-20 GHz Passive MMIC Chip Scale Package Balun

The MBAL-0220CSP2-1 is a GaAs passive MMIC balun featuring a frequency range of 2 to 20 GHz. This balun offers low 1.9 dB insertion loss as a mode converter, excellent balance and 27 dB common mode rejection in a compact 2.5 mm CSP2 chip scale package. The leadfree, RoHS compliant CSP2 package is compatible with standard pick and place assembly. It is an ideal solution to interface into dataconverters for S-K band digital beamforming and other higher order Nyquist sampling applications, clock distribution, and balanced amplifiers. The MBAL-0220CSP2-1 is the mirror image orientation of the MBAL-0220CSP2.

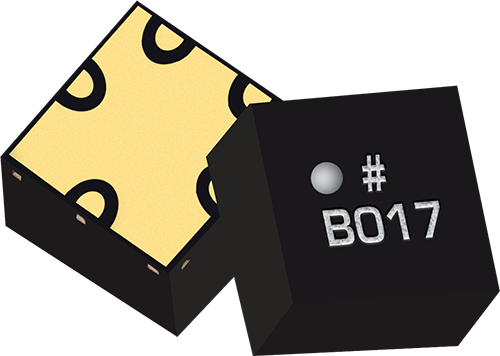

Product Variant : MBAL-0220CSP2-1
Sorted by: No sorting applied
MBAL-0220CSP2-1
Banded
2:12200.331.45272.50 x 2.50 mmReleased
EVB-MBAL-0220-1
Banded
2:1220------Released
