Port Diagram

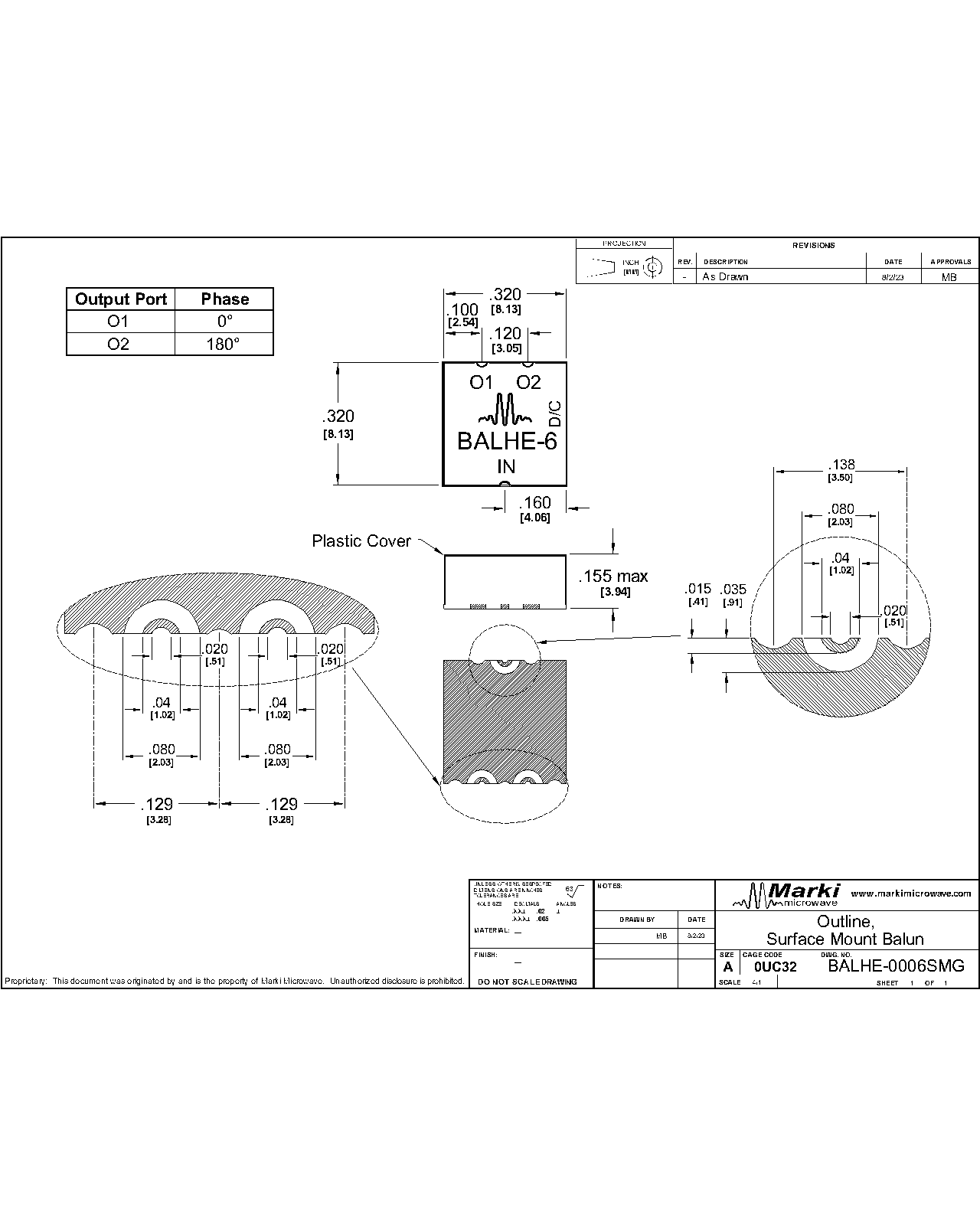

A top-down view of the BALHE-0006SMG package outline drawing is shown below. Marki baluns are passive reciprocal devices allowing either single ended to differential or differential to single ended conversion.
END OF LIFE
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description

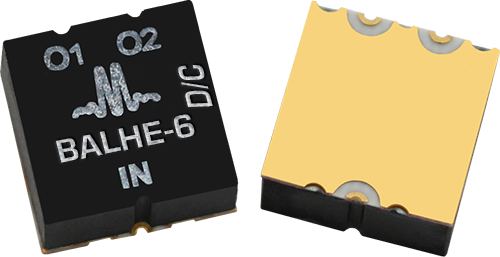

The BALHE-0006SMG is a surface-mount broadband balun, hand-tuned for optimal phase and amplitude balance over 10 MHz to 6 GHz bandwidth. Designed for high volume production with cost optimization in mind, it serves as an excellent choice for analog to digital converters, balanced receivers, baseband digital modulations, and signal integrity enhancement. If lower frequency operation is required, the BALH-0006SMG offers performance down to 500 kHz in the same package.
Features
▪ 10MHz to 6GHz 1:1 Balun (Balanced to Unbalanced Transformer)
▪ Transforms 50Ω to 50Ω Differential Output
▪ Tuned for Optimal Phase/Amplitude Balance
Applications
- Analog to Digital Converters
- Balanced Receivers
- Baseband Digital Modulation
- Signal Integrity
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|
| BALHE-0006SMG | HIGH POWER SURFACE MOUNT BROADBAND BALUN | SMG | REACH RoHS | End of Life | EAR99 | BALH-0006SMG |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|
| BALHE-0006SMG | HIGH POWER SURFACE MOUNT BROADBAND BALUN | SMG | REACH RoHS | End of Life | EAR99 | BALH-0006SMG |
BALHE-0006SMG
HIGH POWER SURFACE MOUNT BROADBAND BALUN
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Mechanical Data
- Footprint Image
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2023-08-30 | Datasheet Initial Release |
BALHE-0006SMG
HIGH POWER SURFACE MOUNT BROADBAND BALUN
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Common Port / In (Unbalanced) | RF Input | The common port is DC short to ground. |  |
| Out 1 / 0° Port (Balanced) | 0° Port | The 0 port is DC short to ground. | |
| Out 2 / 180° Port (Balanced) | 180° Port | The 180o port is DC short to ground. | |
BALHE-0006SMG
HIGH POWER SURFACE MOUNT BROADBAND BALUN
Specifications
Absolute Maximum Ratings
| Parameter | Maximum Rating | Unit |
|---|---|---|
| DC Current | 1 | A |
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling | 33 | dBm |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Weight | Package name: SMG | 0.24g |
| Dimensions | - | 8.13 x 8.13mm |
| Moisture Sensitivity Level | - | MSL 1 |
BALHE-0006SMG
HIGH POWER SURFACE MOUNT BROADBAND BALUN
Electrical Specifications
Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Impedance Ratio | - | 0.01 | 6 | - | 1:1 | - | |
| Amplitude Balance | - | 0.01 | 6 | - | 0.1 | 1.2 | dB |
| Common Mode Rejection | - | 0.01 | 6 | 17 | 35 | - | dB |
| Common Port Return Loss | - | 0.01 | 6 | - | 13 | - | dB |
| Impedance | - | 0.01 | 6 | - | 50 | - | Ω |
| Insertion Loss as a Mode Converter | - | 0.01 | 6 | - | 2.5 | 4 | dB |
| Isolation | - | 0.01 | 6 | - | 7 | - | dB |
| Nominal Phase Shift | - | 0.01 | 6 | - | 180 | - | ° |
| Output Return Loss | - | 0.01 | 6 | - | 15 | - | dB |
| Phase Balance | - | 0.01 | 6 | - | 2 | 10 | ° |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Impedance Ratio | - | 0.01 | 6 | - | 1:1 | - | |
| Amplitude Balance | - | 0.01 | 6 | - | 0.1 | 1.2 | dB |
| Common Mode Rejection | - | 0.01 | 6 | 17 | 35 | - | dB |
| Common Port Return Loss | - | 0.01 | 6 | - | 13 | - | dB |
| Impedance | - | 0.01 | 6 | - | 50 | - | Ω |
| Insertion Loss as a Mode Converter | - | 0.01 | 6 | - | 2.5 | 4 | dB |
| Isolation | - | 0.01 | 6 | - | 7 | - | dB |
| Nominal Phase Shift | - | 0.01 | 6 | - | 180 | - | ° |
| Output Return Loss | - | 0.01 | 6 | - | 15 | - | dB |
| Phase Balance | - | 0.01 | 6 | - | 2 | 10 | ° |
BALHE-0006SMG
HIGH POWER SURFACE MOUNT BROADBAND BALUN
Electrical Specifications - Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.
Mixed Mode Performance Plots
Mixed mode scattering parameters are used to characterize differential circuits. For baluns, this means that the 0° and 180° ports become a single 100Ω differential port and the common port remains the same 50Ω common port. The two-port s-parameters of the balun are then characterized based on differential (d), common mode (c), or single-ended (s) signals. Sds21 is the differential output response given a single ended input.
BALHE-0006SMG
HIGH POWER SURFACE MOUNT BROADBAND BALUN
Typical Performance Plots
Three port scattering parameters measured as three single-ended 50Ω ports showing relationship between any two ports.
BALHE-0006SMG
HIGH POWER SURFACE MOUNT BROADBAND BALUN
Mechanical Data
Outline Drawing
Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP
Substrate material is 8-mil thick Rogers 4003, 1 Oz Electrodeposited Cu. I/O Pads & Ground Plane Finish is Gold Flash, 5 to 10 µinches, over Electroplated Nickel, 100-200 µ-inches, over Cu.
BALHE-0006SMG
HIGH POWER SURFACE MOUNT BROADBAND BALUN
Footprint Image
Download : Footprint Drawing
