BALH-0009SMG
HIGH POWER SURFACE-MOUNT BALUN
The BALH-0009SMG is a broadband surface mount balun, hand-tuned for optimal phase and amplitude balance over a 500 kHz to 9 GHz bandwidth. It serves as an excellent choice for analog to digital converters, balanced receivers, baseband digital modulations, and signal integrity enhancement.
| Parameter | Typ | Unit |
|---|---|---|
| Frequency Range | 0.0005 to 9 | GHz |
| Insertion Loss as a Mode Converter | 1.9 | dB |
| Phase Balance | 2 | ° |
| Amplitude Balance | 0.2 | dB |
| Impedance Ratio | 1:1 | - |
| Common Mode Rejection | 32 | dB |
Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| BALH-0009SMG | HIGH POWER SURFACE-MOUNT BALUN | SMG | REACH RoHS | Released | EAR99 |
| EVAL-BALH-0009 | Evaluation Board, High Power Surface-Mount Balun | EVAL | Consult Factory | Released | EAR99 |

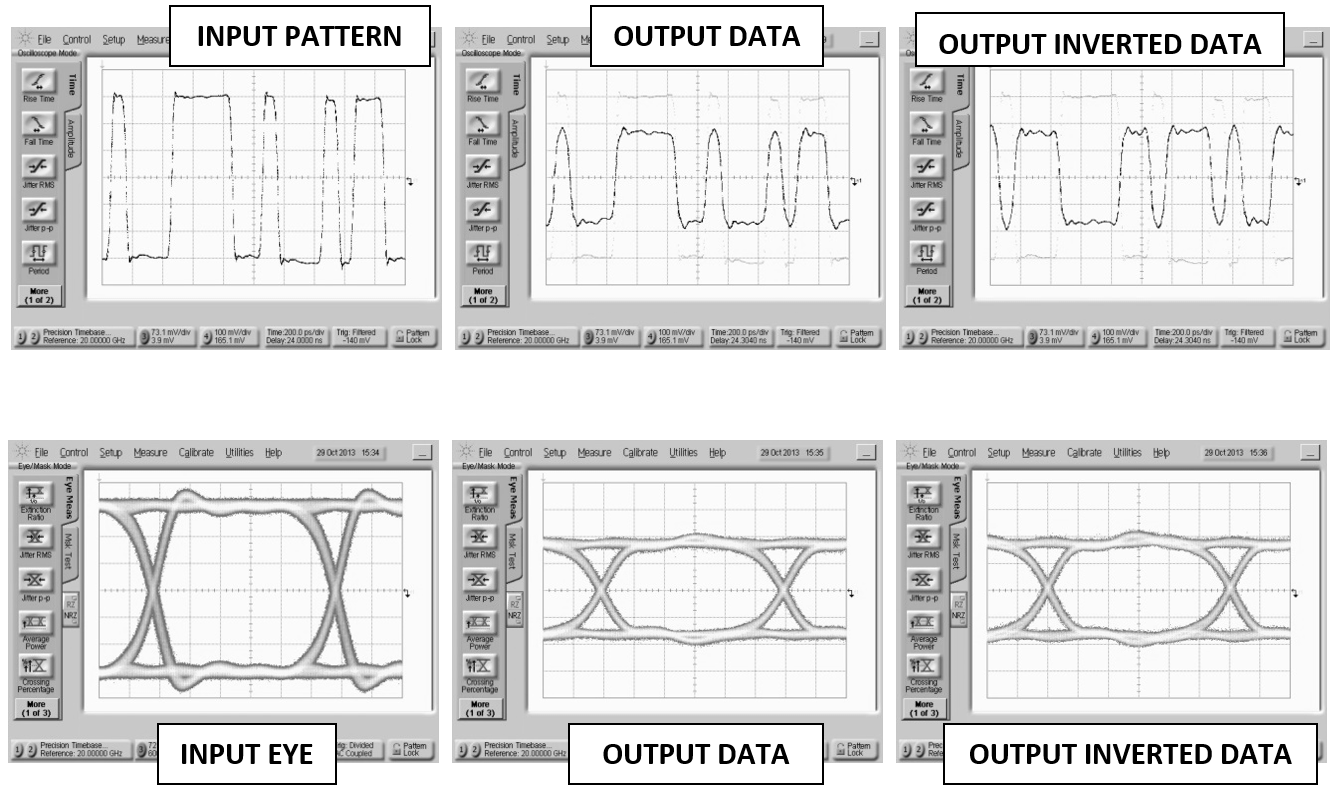

Oscilloscope measurements of the BALH-0009SMG with a 10 Gb/s PRBS pattern. Bit pattern is measured with a 27-1 PRBS input demonstrating extremely good pulse fidelity for both inverted and non-inverted output. Eye diagrams are taken with a 231-1 PRBS input demonstrating minimal eye distortion/closure afforded by the extremely low frequency operation of the balun (<500 kHz).
Mixed mode scattering parameters are used to characterize differential circuits. For baluns, this means that the 0° and 180° ports become a single 100Ω differential port and the common port remains the same 50Ω common port. The two-port s-parameters of the balun are then characterized based on differential (d), common mode (c), or single-ended (s) signals. For example: Sds12 is the differential output response given a single ended input.
Three port scattering parameters measured as three single-ended 50Ω ports showing relationship between any two ports. For example: S21 and S31, often referred to as insertion loss of a balun, is the output response on ports 2 and 3 with an input stimulus on port 1.
Measured as phase deviation from 180° between output 1 and output 2.
The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°C.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Frequency Range | - | 0.0005 | 9 | - | - | - | GHz |
| VSWR (Input) | - | 0.0005 | 3 | - | 1.6 | - | - |
| VSWR (Input) | - | 3 | 9 | - | 2.1 | - | - |
| VSWR (Output) | - | 0.0005 | 3 | - | 1.1 | - | - |
| VSWR (Output) | - | 3 | 6 | - | 1.2 | - | - |
| VSWR (Output) | - | 6 | 9 | - | 1.3 | - | - |
| Isolation | - | 0.0005 | 3 | - | 7 | - | dB |
| Isolation | - | 3 | 9 | - | 6 | - | dB |
| Input P1dB | - | 0.0005 | 9 | - | 37 | - | dBm |
| Impedance Ratio | - | - | - | - | 1:1 | - | - |
| Risetime/Falltime 1 | - | 0.0005 | 6 | - | 22 | - | ps |
| Risetime/Falltime 2 | - | 6 | 9 | - | 25 | - | ps |
| Nominal Phase Shift | - | 0.0005 | 9 | - | 180 | - | ° |
| Amplitude Balance | - | 0.0005 | 0.002 | - | 0.5 | - | dB |
| Amplitude Balance | - | 0.002 | 0.01 | - | 0.2 | 3.5 | dB |
| Amplitude Balance | - | 0.01 | 9 | - | 0.8 | 1.6 | dB |
| Phase Balance | - | 0.0005 | 0.002 | - | 2.5 | - | ° |
| Phase Balance | - | 0.002 | 0.01 | - | 2 | 14 | ° |
| Phase Balance | - | 0.01 | 9 | - | 5 | 12 | ° |
| Common Mode Rejection | - | 0.0005 | 0.002 | - | 30 | - | dB |
| Common Mode Rejection | - | 0.002 | 0.01 | 13 | 32 | - | dB |
| Common Mode Rejection | - | 0.01 | 9 | 17 | 25 | - | dB |
| Insertion Loss as a Mode Converter | - | 0.0005 | 0.002 | - | 2 | - | dB |
| Insertion Loss as a Mode Converter | - | 0.01 | 9 | - | 2 | 4 | dB |
| Insertion Loss as a Mode Converter | - | 0.002 | 0.01 | - | 1.9 | 4 | dB |
[1] Specified as 90%/10%. Calculated from Tau_balun² = (Tau_out² – Tau_in²).
[2] Specified as 90%/10%. Calculated from Tau_balun2 = (Tau_out2 – Tau_in2).
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Minimum Operating Temperature | -55 | °C |
| RF Power Handling | 33 | dBm |
| Maximum Operating Temperature | 100 | °C |
| Parameter | Details | Rating |
|---|---|---|
| Weight | Package name: SMG | 0.24g |
| Dimensions | - | 8.13 x 8.13 mm |
| Moisture Sensitivity Level | - | MSL 1 |
Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP
Substrate material is 8-mil thick Rogers 4003, 1 Oz Electrodeposited Cu. I/O Pads & Ground Plane Finish is Gold Flash, 5 to 10 µinches, over Electroplated Nickel, 100-200 µ-inches, over Cu.
Download : Footprint Drawing
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Frequency Range | - | - | - | - | - | - | GHz |
| Impedance Ratio | - | - | - | - | 1:1 | - | - |
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2013-02-01 | Datasheet Initial Release |
| A | 2019-03-01 | Evaluation Board Outline Added |
| B | 2019-10-01 | Mixed Mode Scattering Parameters added |
| C | 2020-04-01 | Unit Spread Graphs Added |
| D | 2020-07-01 | Specs Table Update |
| E | 2020-10-01 | Specs Table Update |
| F | 2022-05-01 | Max DC current update, Ground Plane Finish Update |
| G | 2022-08-01 | Over Temperature Performance Plots Added |
| H | 2022-11-01 | Banded Electrical Specifications Added |
| I | 2024-03-06 | Updated specs table to add frequency resolution to insertion loss, balance and rejection specs. |
