ABSD-10168PSM

30 GHz Single Ended to Differential Active Balun

The ABSD-10168PSM is a GaAs active MMIC balun in a 3mm QFN surface mount package. Its frequency ranges from DC to 30 GHz and offers 3 dB single ended to differential gain (low end limited by DC block). The 3mm QFN package is a lead free, RoHS compliant package compatible with standard leaded and lead-free solder reflows. Connectorized evaluation packages are available. The ABSD-10168PSM is an excellent choice for active single ended to differential mode conversion and higher order Nyquist sampling in analog to digital converters.

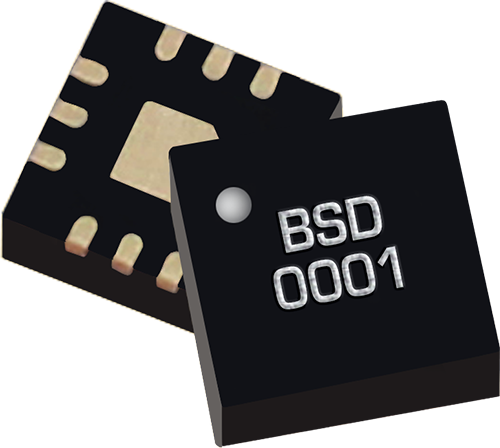

Product Variant : ABSD-10168PSM
Sorted by: No sorting applied
ABSD-10168PSM
Active
2:10300.13--333 x 3 mmReleased
EVB-ABSD-10168P
Active
-030------Released
