ATN10-0070CSP1
Chip Scale Package MMIC DC - 70 GHz 10dB Attenuator
The ATN10-0070CSP1 is a surface mount GaAs MMIC attenuator in a chip scale package (CSP). This attenuator is an ideal solution for attenuating a signal and can be used in a wide range of applications. The ATN10-0070CSP1 features a typical 10.2 dB attenuation with 0.2 dB attenuation flatness and 23 dB return loss across the DC-70 GHz bandwidth. The CSP allows for extreme miniaturization of SMT footprint while providing die-level performance. GaAs MMIC technology provides consistent unit-to-unit performance in a small, low-cost form factor. A 50-ohm match is maintained over the entire operating frequency range.
| Parameter | Typ | Unit |
|---|---|---|
| Frequency Range | 0 to 70 | GHz |
| Attenuation | 10.2 | dB |
| Return Loss | 23 | dB |
| Attenuation Flatness | 0.7 | dB |
Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ATN10-0070CSP1 | Chip Scale Package MMIC DC - 70 GHz 10dB Attenuator | CSP1 | REACH RoHS | Released | EAR99 |
| EVB-ATN10-0070 | Evaluation Board, Chip Scale Package MMIC DC - 70 GHz 10dB Attenuator | EVB | REACH RoHS | Released | EAR99 |
Electrical performance data is de-embedded to the CSP package ports.

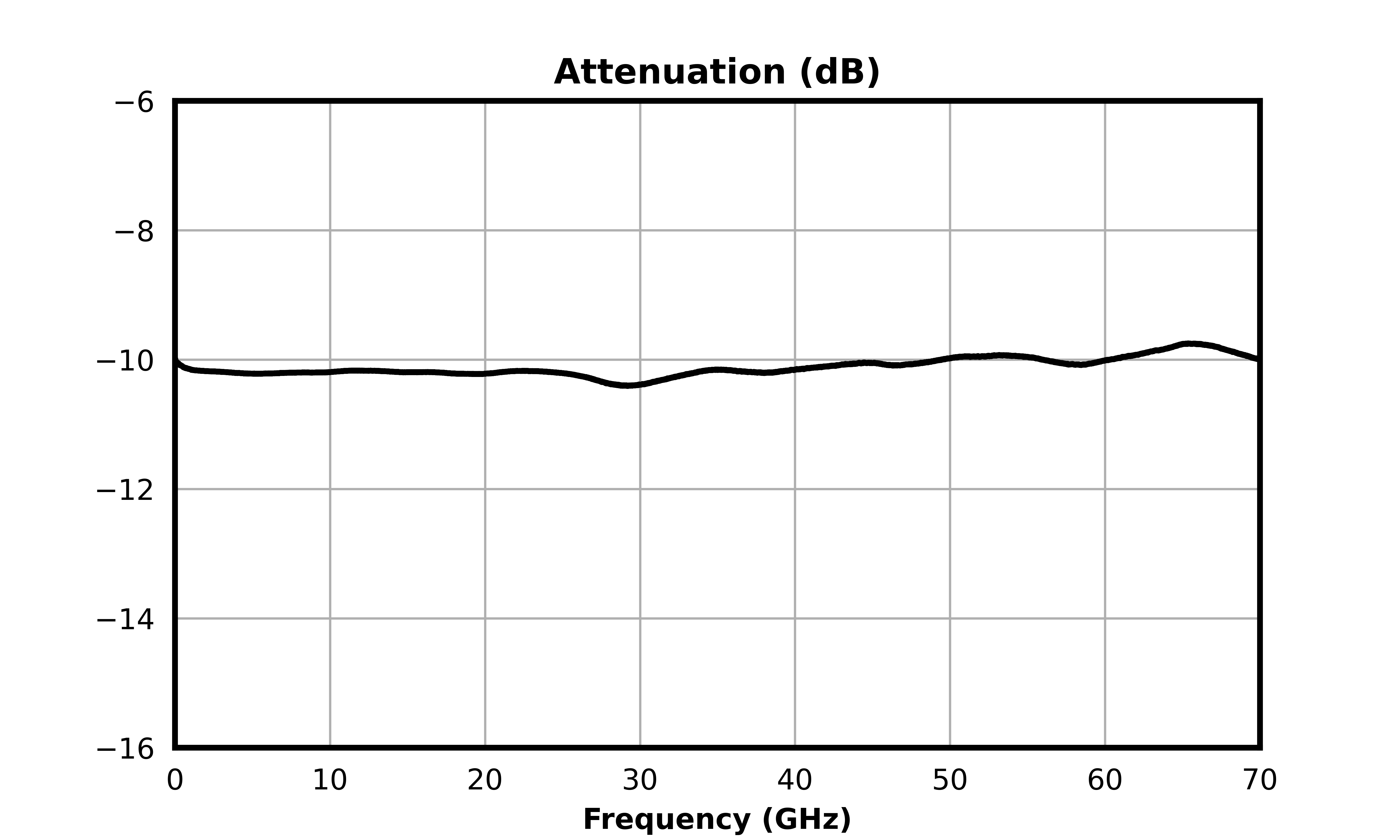

.png)

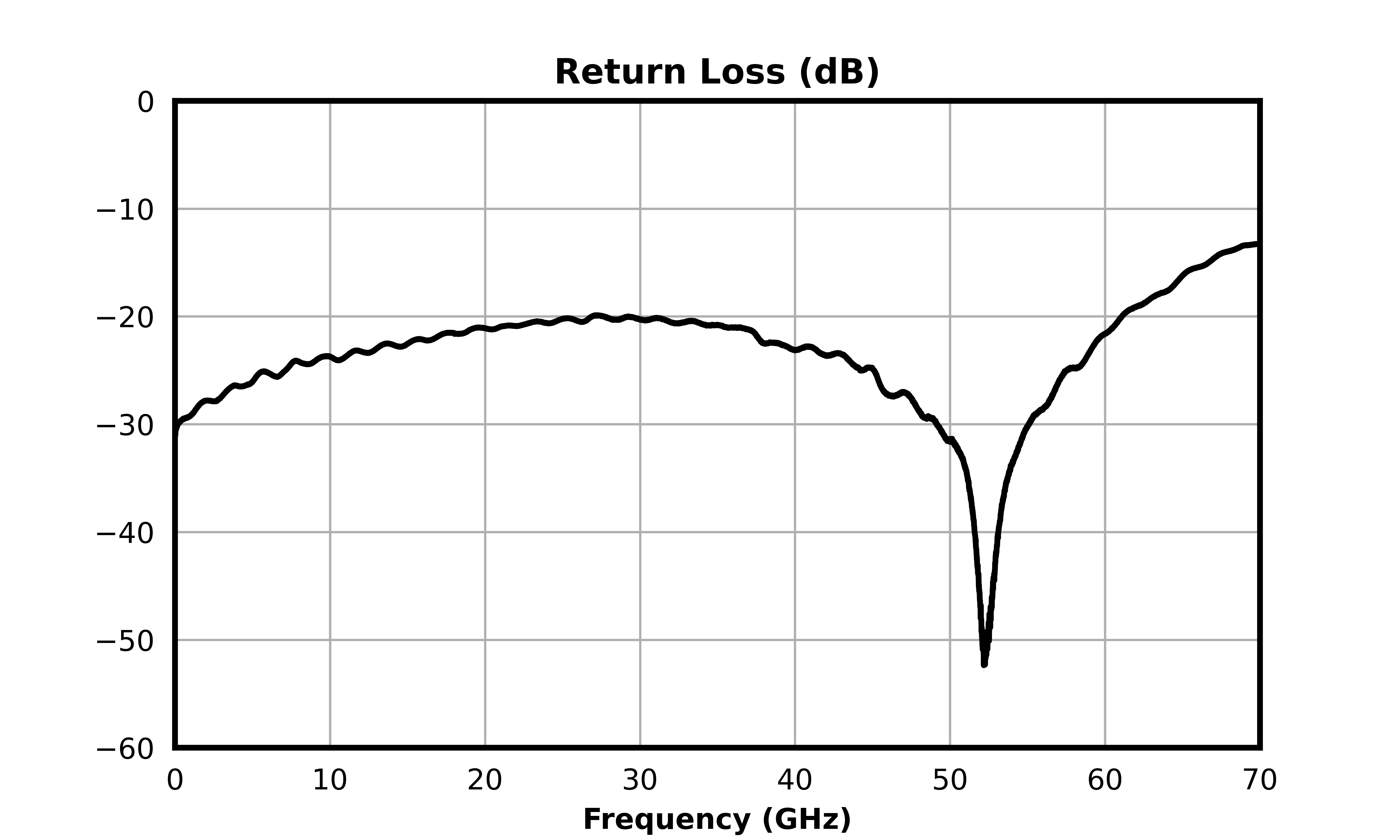

.png)
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the attenuator in a CSP1 package with a sine wave input applied to port 1.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Frequency Range | - | 0 | 70 | - | - | - | GHz |
| Attenuation | Configuration A, Temp = 25°C | 0 | 70 | - | 10.2 | - | dB |
| Return Loss | Configuration A, Temp = 25°C | 0 | 70 | - | 23 | - | dB |
| Attenuation Flatness 1 | Configuration A, Temp = 25°C | 0 | 70 | - | 0.7 | - | dB |
| Impedance | - | 0 | 70 | - | 50 | - | Ω |
[1] Attenuation Flatness = Max(Insertion Loss) - Min(Insertion Loss)
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling | 1 | W |
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 1.5 x 1.5 mm |
| Moisture Sensitivity Level | - | MSL 3 |
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Ground Paddle | Ground | CSP package ground path is provided through the ground paddle. |  |
| Pin 1 | Input/Output | Pin 1 and Pin 2 are DC connected to each other and ground through a T-network of resistors. |  |
| Pin 2 | Input/Output | Pin 1 and Pin 2 are DC connected to each other and ground through a T-network of resistors. | |

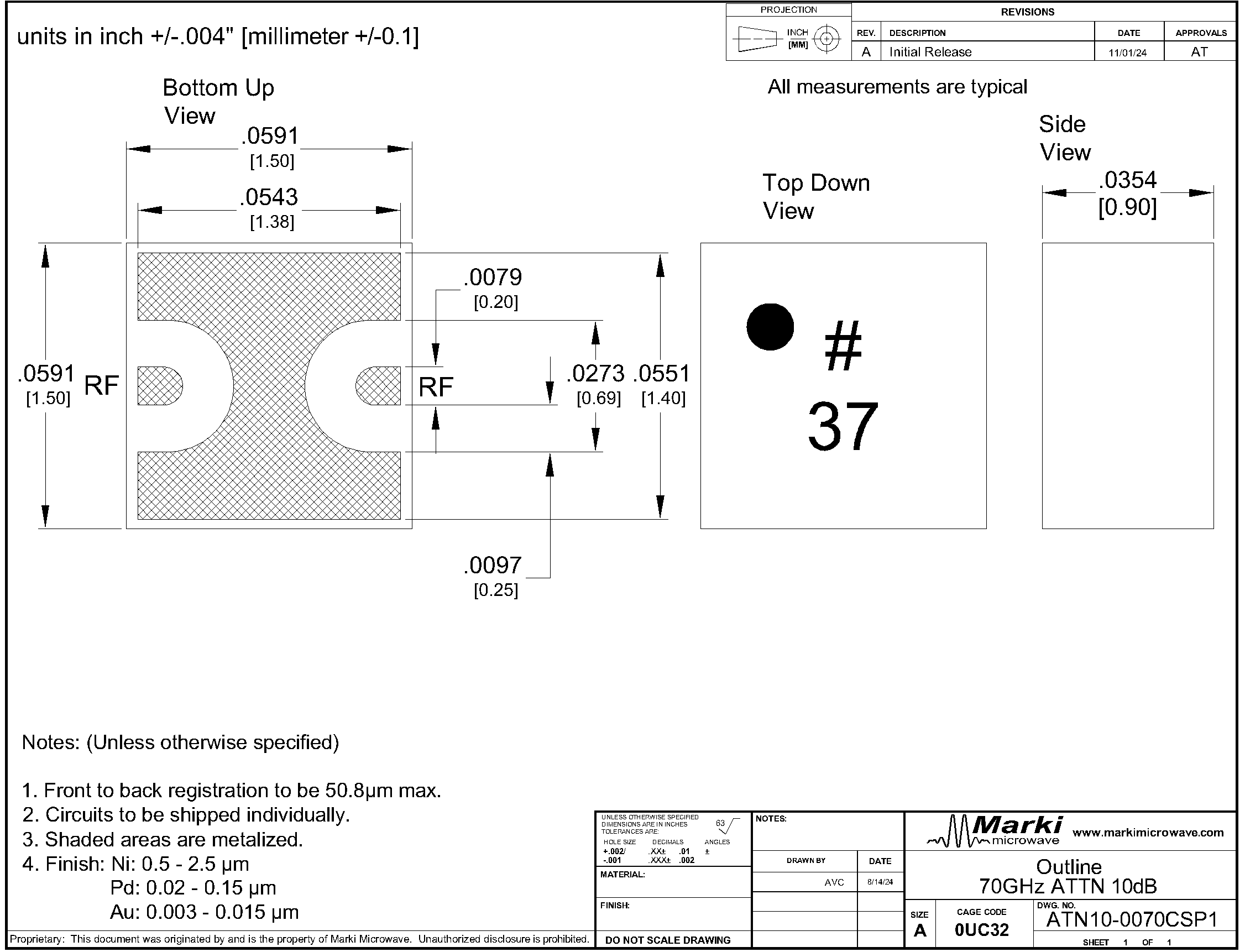

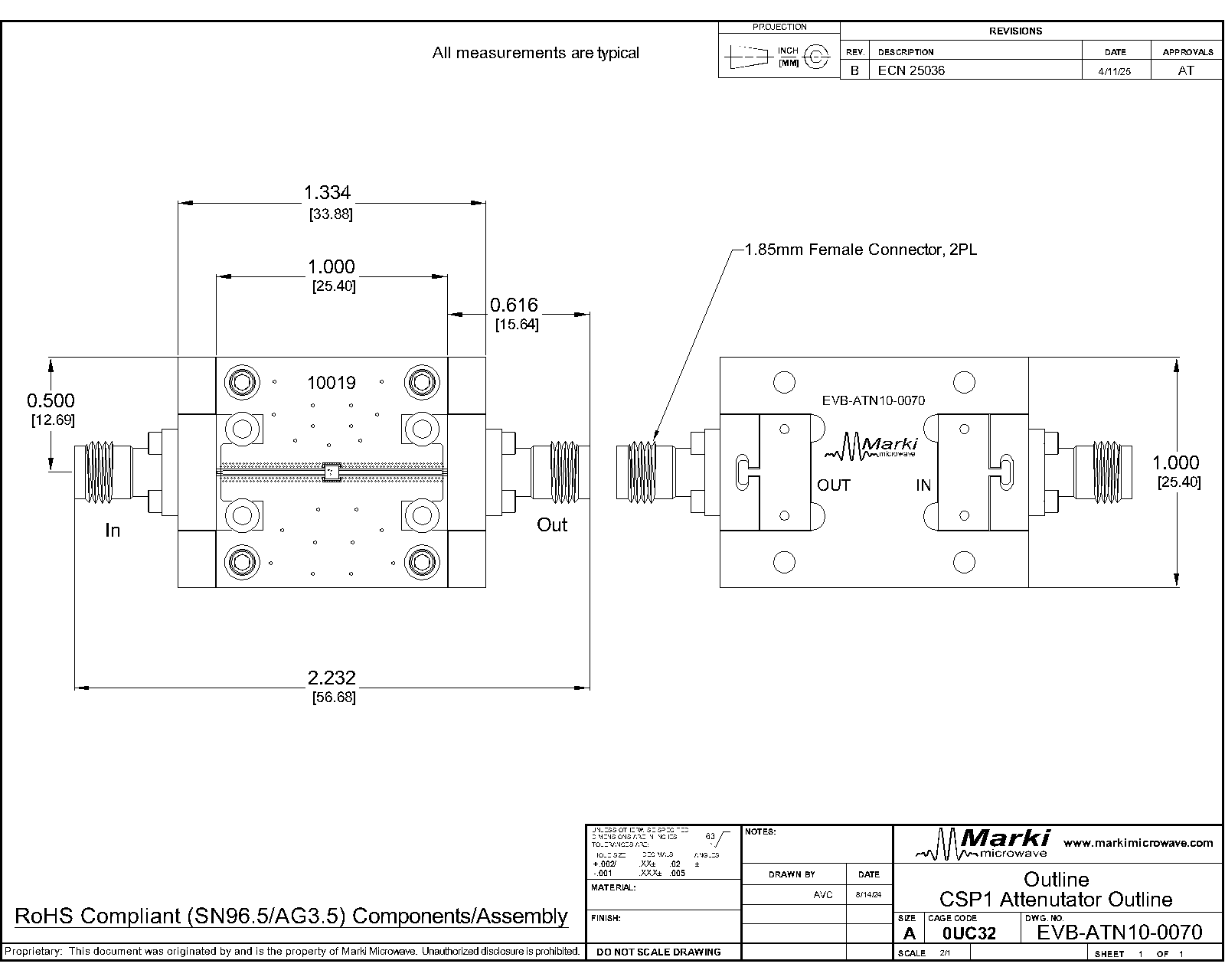

Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP

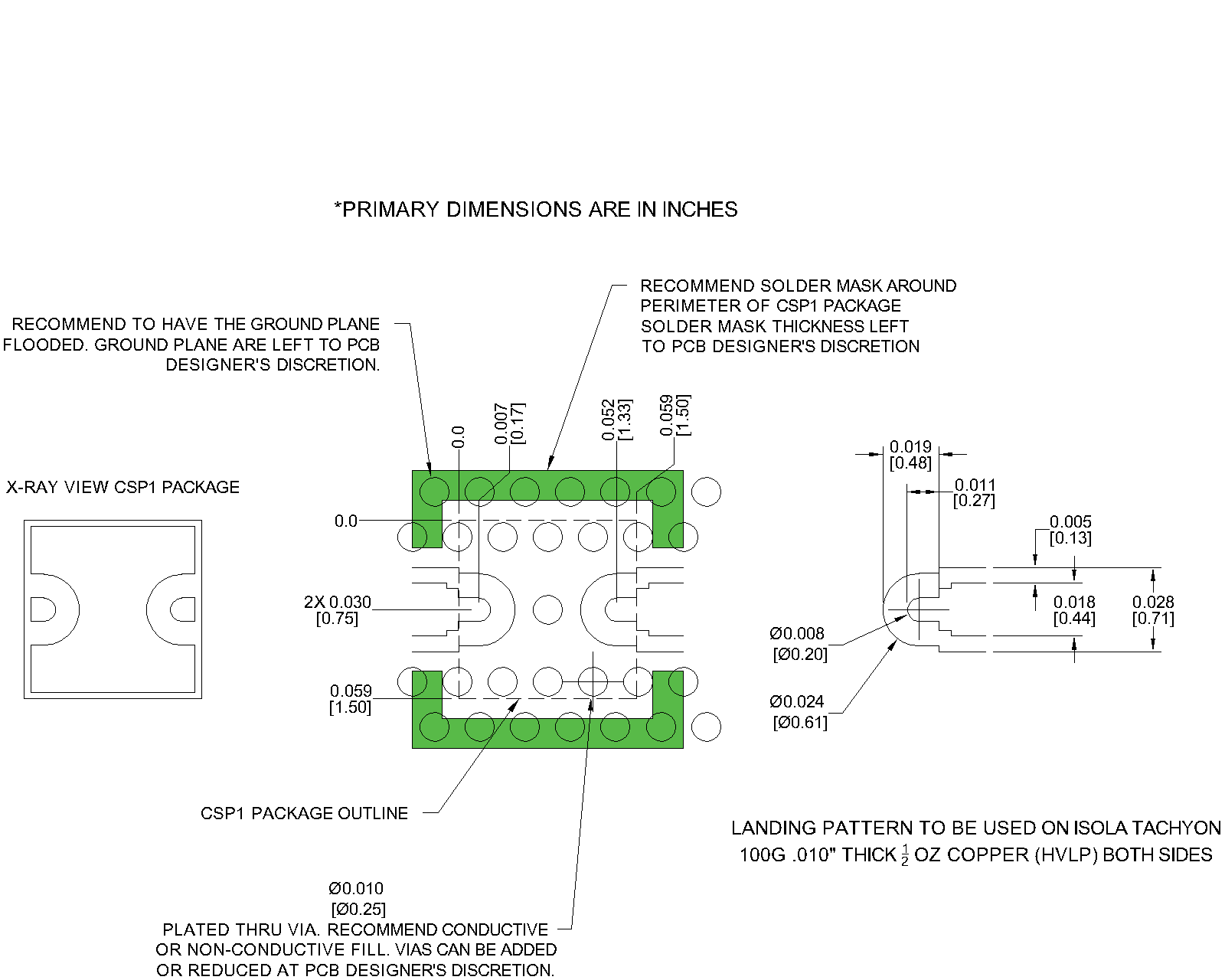

Download : Footprint Drawing
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-10-31 | Initial Release |
