Port Diagram
A top-down x-ray view of the package outline drawing is shown below.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description

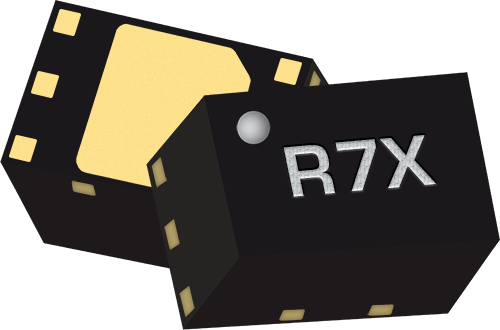

The ATN07-0040PSM is a surface mount GaAs MMIC 7dB attenuator in a DFN package. This attenuator is an ideal solution for attenuating a signal and can be used in a wide range of applications. The compact DFN package allows for extreme miniaturization of SMT footprint making this attenuator suitable for low SWaP applications. GaAs MMIC technology provides consistent unit-to-unit performance in a small, low-cost form factor. A 50-ohm match is maintained over the entire operating frequency range.
Features
- Small 1.3 x 2.0 mm package size
- 7dB attenuation from DC to 40 GHz
- 21dB typical return loss over operating band
- Low SWaP
Applications
- 5G
- Test Equipment
- Precision Characterization
- Airborne Applications
- Amplitude Matching
- High Channel Count Systems
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ATN07-0040PSM | 7dB DC-40GHz MMIC Attenuator | DFN | RoHS REACH | Released | EAR99 |
| EVB-ATN07-0040P | Evaluation Board, 7dB DC-40 GHz Attenuator | EVB | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ATN07-0040PSM | 7dB DC-40GHz MMIC Attenuator | DFN | RoHS REACH | Released | EAR99 |
| EVB-ATN07-0040P | Evaluation Board, 7dB DC-40 GHz Attenuator | EVB | REACH RoHS | Released | EAR99 |
ATN07-0040PSM
7dB DC-40GHz MMIC Attenuator
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Mechanical Data
- Footprint Image
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-02-29 | Datasheet Initial Release |
| A | 2026-03-02 | ESD Class Added |
ATN07-0040PSM
7dB DC-40GHz MMIC Attenuator
Port Configuration and Functions
ATN07-0040PSM
7dB DC-40GHz MMIC Attenuator
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | DFN package ground path is provided through the ground paddle. |  |
| Pin 1 | Non-connect (NC) | Pin 1 is not connected internally and can be tied to RF ground. | |
| Pin 2 | Input/Output | Pin 2 and Pin 5 are DC connected to each other and ground through a T-network of resistors. |  |
| Pin 3 | Non-connect (NC) | Pin 3 is not connected internally and can be tied to RF ground. | |
| Pin 4 | Non-connect (NC) | Pin 4 is not connected internally and can be tied to RF ground. | |
| Pin 5 | Input/Output | Pin 2 and Pin 5 are DC connected to each other and ground through a T-network of resistors. | |
| Pin 6 | Non-connect (NC) | Pin 6 is not connected internally and can be tied to RF ground. | |
ATN07-0040PSM
7dB DC-40GHz MMIC Attenuator
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| DC Current | 100 | mA |
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling | 2 | W |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | 1000 to < 2000 Volts | HBM Class 1C |
| Dimensions | - | 2.0 x 1.3 mm |
| Moisture Sensitivity Level | - | MSL 1 |
ATN07-0040PSM
7dB DC-40GHz MMIC Attenuator
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the attenuator in a PSM package with a sine wave input applied to pin 2.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Attenuation | - | 0 | 40 | - | 7 | - | dB |
| Attenuation Flatness | - | 0 | 40 | - | 0.3 | - | dB |
| Impedance | - | 0 | 40 | - | 50 | - | Ω |
| Return Loss | - | 0 | 40 | 12 | 21 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Attenuation | - | 0 | 40 | - | 7 | - | dB |
| Attenuation Flatness | - | 0 | 40 | - | 0.3 | - | dB |
| Impedance | - | 0 | 40 | - | 50 | - | Ω |
| Return Loss | - | 0 | 40 | 12 | 21 | - | dB |
ATN07-0040PSM
7dB DC-40GHz MMIC Attenuator
Typical Performance Plots
Measured data is de-embedded from evaluation fixture using AFR.
ATN07-0040PSM
7dB DC-40GHz MMIC Attenuator

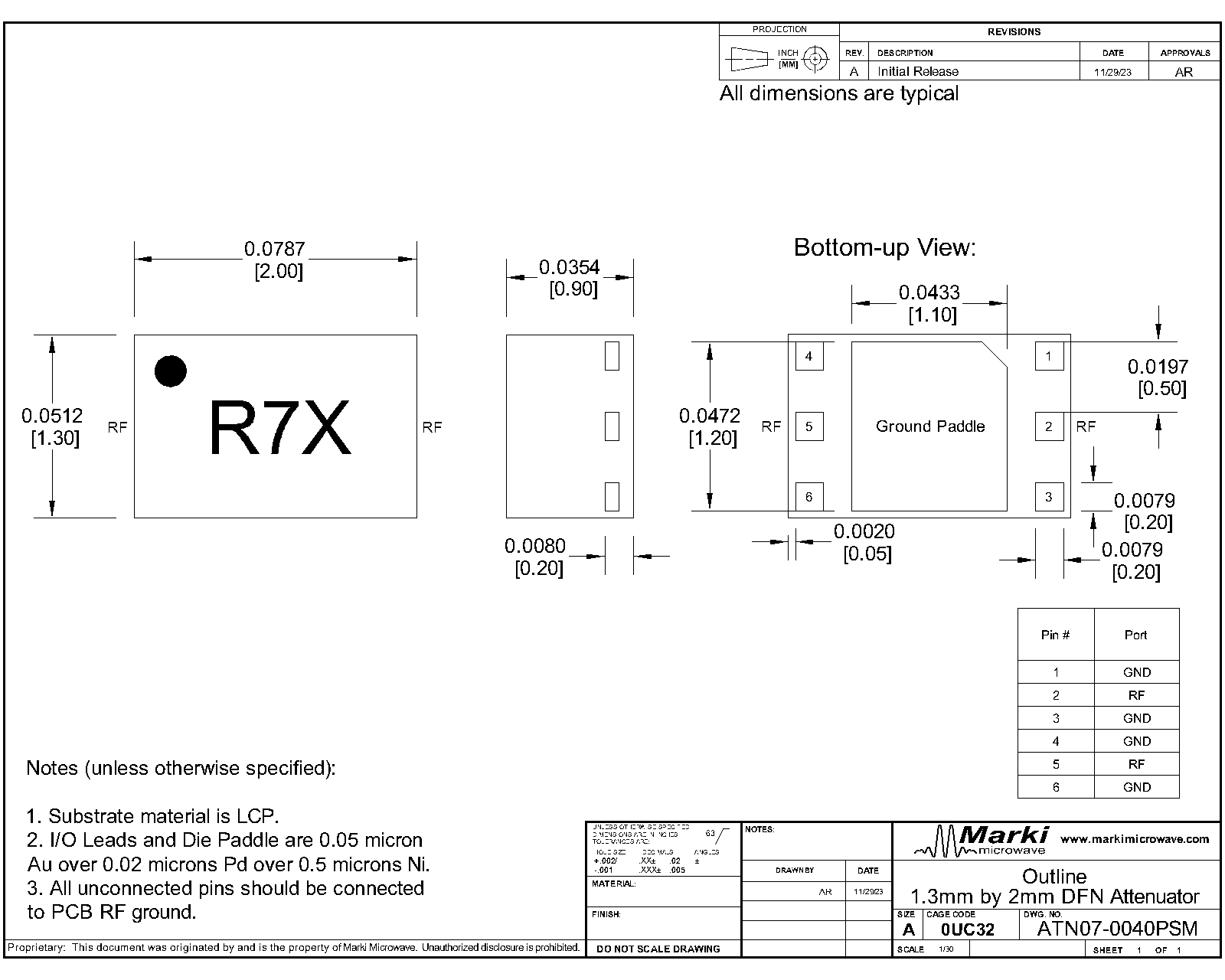

Mechanical Data
ATN07-0040PSM
7dB DC-40GHz MMIC Attenuator
Footprint Image
Download : Footprint Drawing
ATN07-0040PSM
7dB DC-40GHz MMIC Attenuator
Evaluation Board - Outline Drawing
