Device Overview

General Description

The ATN03-0070CSP1 is a surface mount GaAs MMIC attenuator in a chip scale package (CSP). This attenuator is an ideal solution for attenuating a signal and can be used in a wide range of applications. The ATN03-0070CSP1 features a typical 3.2 dB attenuation with 0.1 dB attenuation flatness and 22 dB return loss across the DC-70 GHz bandwidth. The CSP allows for extreme miniaturization of SMT footprint while providing die-level performance. GaAs MMIC technology provides consistent unit-to-unit performance in a small, low-cost form factor. A 50-ohm match is maintained over the entire operating frequency range.

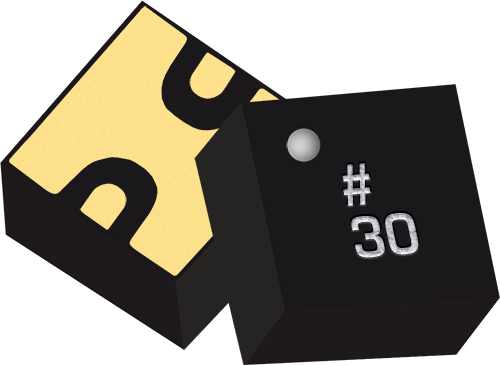

Photo of ATN03-0070CSP1

Features

  • 1.5 x 1.5 mm chip scale package
  • 3.2 dB attenuation
  • 0.1 dB attenuation flatness
  • 22 dB return loss
  • 1 W RF Power Handling
  • This product embodies Marki Microwave's U.S. Pat. 11,869,858.

Applications

  • 5G
  • Test Equipment
  • Precision Characterization
  • Airborne Applications
  • Amplitude Matching
  • High Channel Count Systems

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageGreen StatusProduct LifecycleExport Classification
ATN03-0070CSP1Chip Scale Package MMIC DC - 70 GHz 3dB AttenuatorCSP1

REACH

RoHS

ReleasedEAR99
EVB-ATN03-0070Evaluation Board, Chip Scale Package MMIC DC - 70 GHz 3dB AttenuatorEVB

REACH

RoHS

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2024-10-31Initial Release

Rev: - | Copyright © 2024 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

Diagram of the port configuration for ATN03-0070CSP1

Port Functions

PortFunctionDescriptionDC Equivalent
Circuit
Ground PaddleGround CSP package ground path is provided through the ground paddle.Equivalent circuit for the Ground
Pin 1Input/Output Pin 1 and Pin 2 are DC connected to each other and ground through a T-network of resistors.Equivalent circuit for the Input/Output
Pin 2Input/Output Pin 1 and Pin 2 are DC connected to each other and ground through a T-network of resistors.Equivalent circuit for the Input/Output

Rev: - | Copyright © 2024 Marki Microwave LLC.

3

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

ParameterMaximum RatingUnit
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C
RF Power Handling 1W

Package Information

ParameterDetailsRating
ESD250 to < 500 VoltsHBM Class 1A
Dimensions-1.5 x 1.5 mm
Moisture Sensitivity Level-MSL 3

Rev: - | Copyright © 2024 Marki Microwave LLC.

4

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the attenuator in a CSP1 package with a sine wave input applied to port 1.

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
Attenuation Temp = 25°C
0 70-3.2-dB
Return Loss Temp = 25°C
0 70-22-dB
Attenuation Flatness 1Temp = 25°C
0 70-0.7-dB
Impedance -0 70-50-Ω

[1] Attenuation Flatness = Max(Insertion Loss) - Min(Insertion Loss)

Rev: - | Copyright © 2024 Marki Microwave LLC.

5

Typical Performance Plots

Electrical performance data is de-embedded to the CSP package ports.

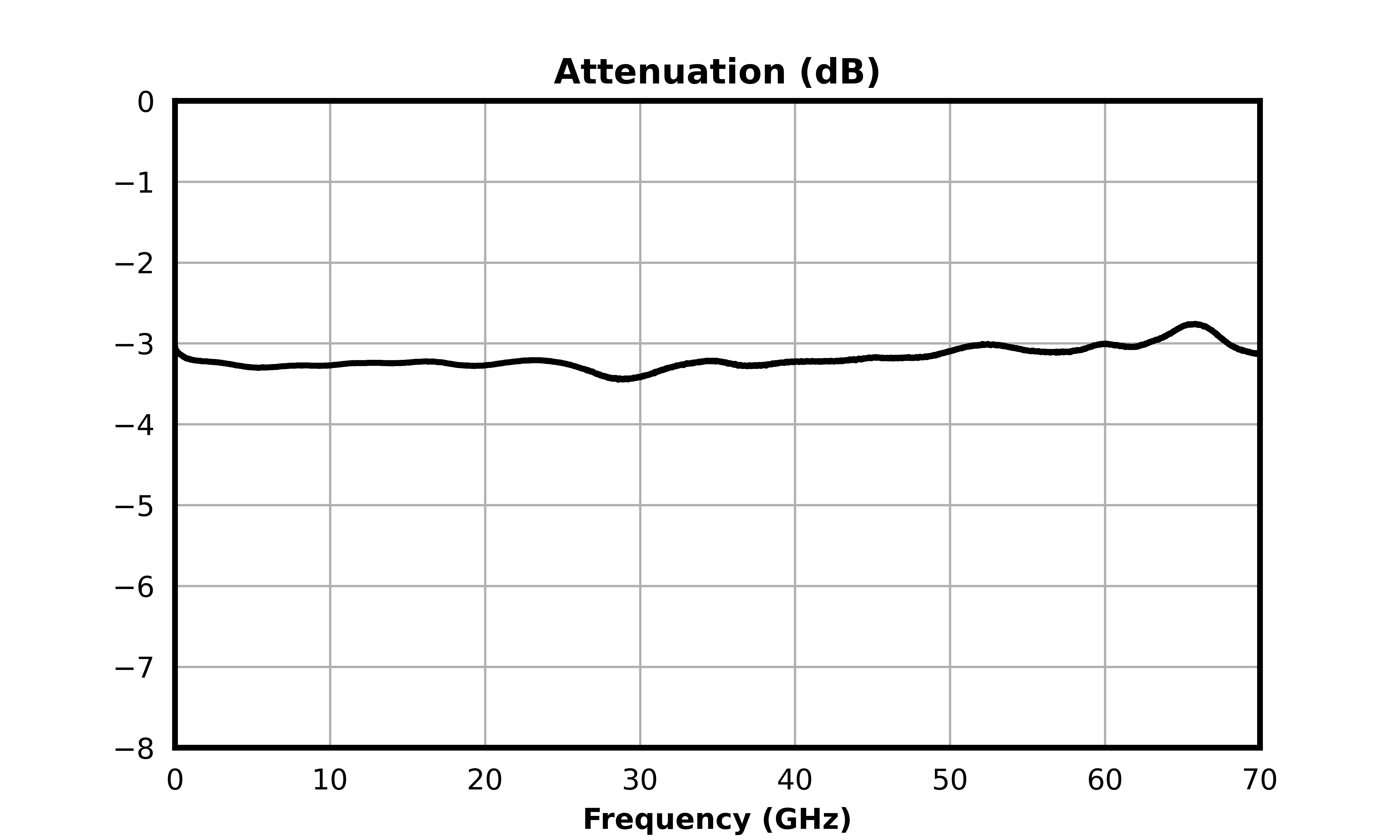

Attenuation (dB) graph for ATN03-0070CSP1

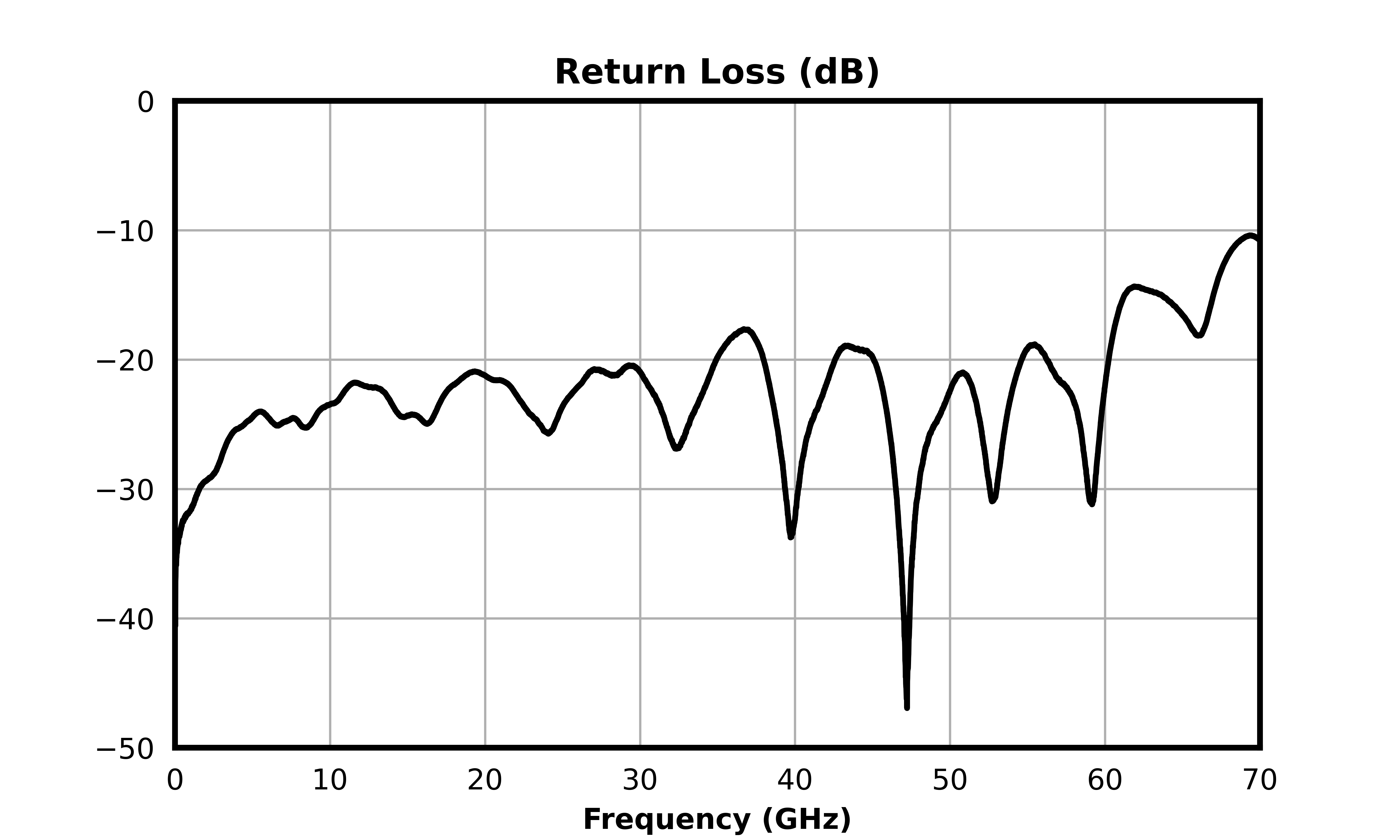

Return Loss (dB) graph for ATN03-0070CSP1

Rev: - | Copyright © 2024 Marki Microwave LLC.

6

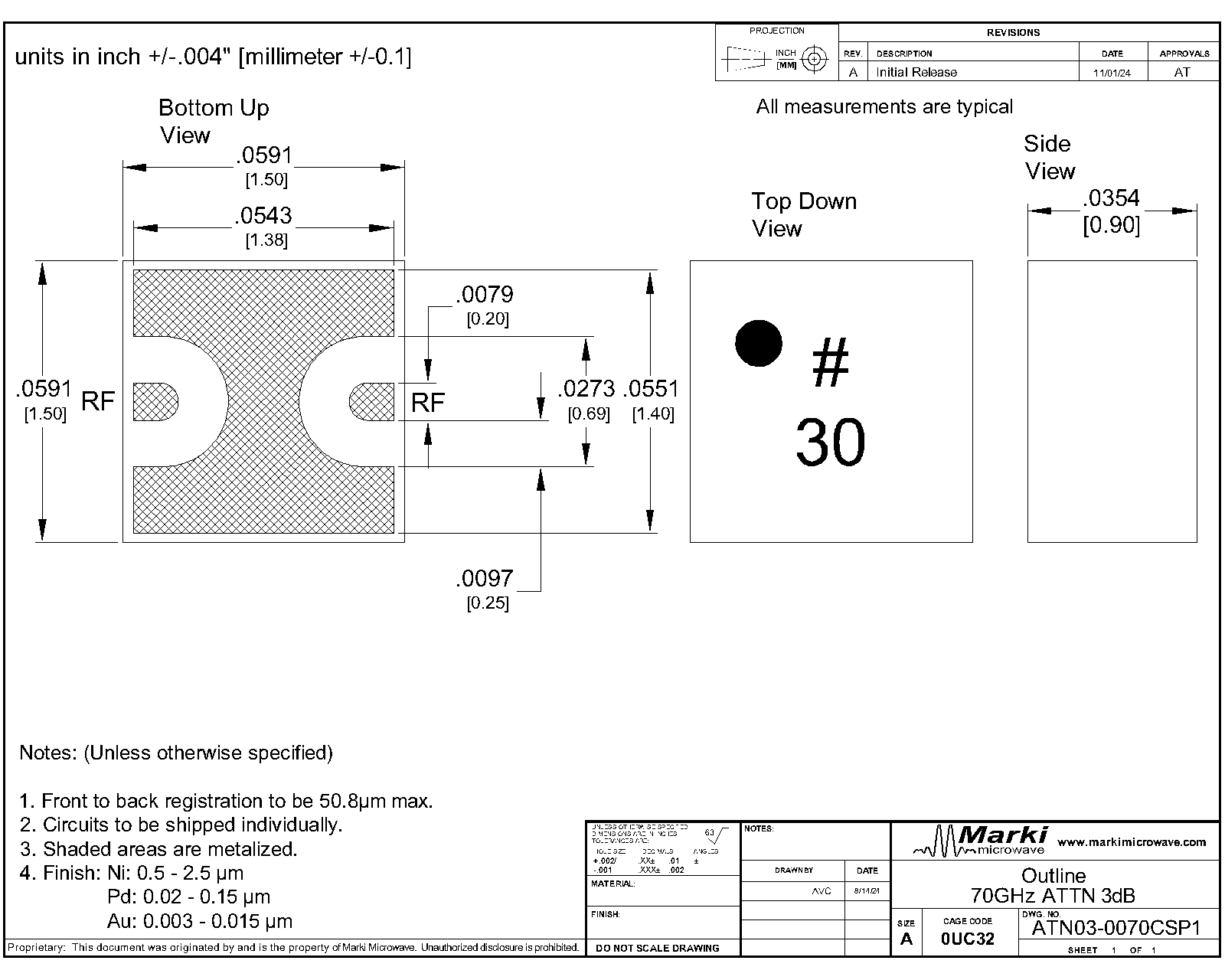

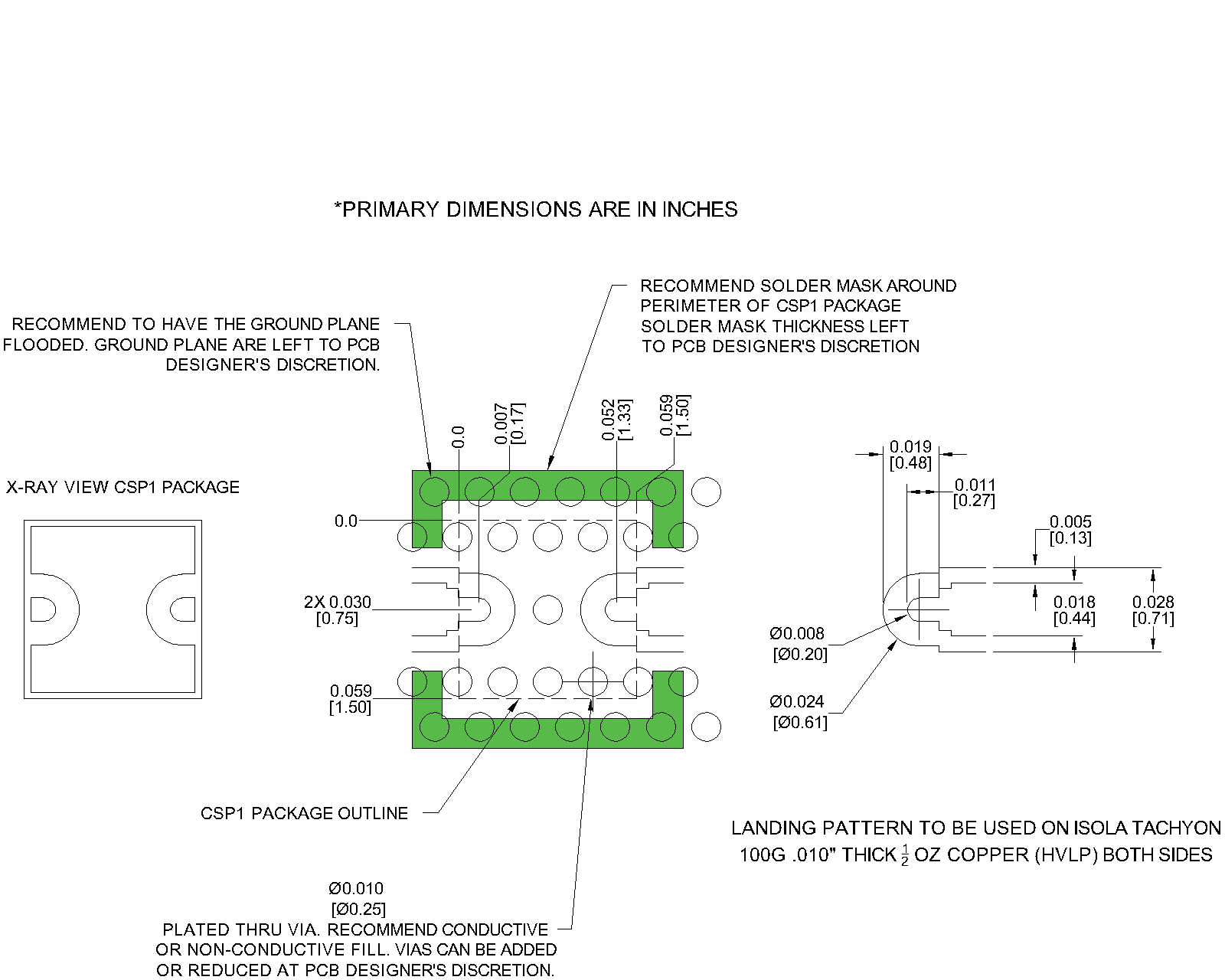

Mechanical Data

Rev: - | Copyright © 2024 Marki Microwave LLC.

7

Rev: - | Copyright © 2024 Marki Microwave LLC.

8

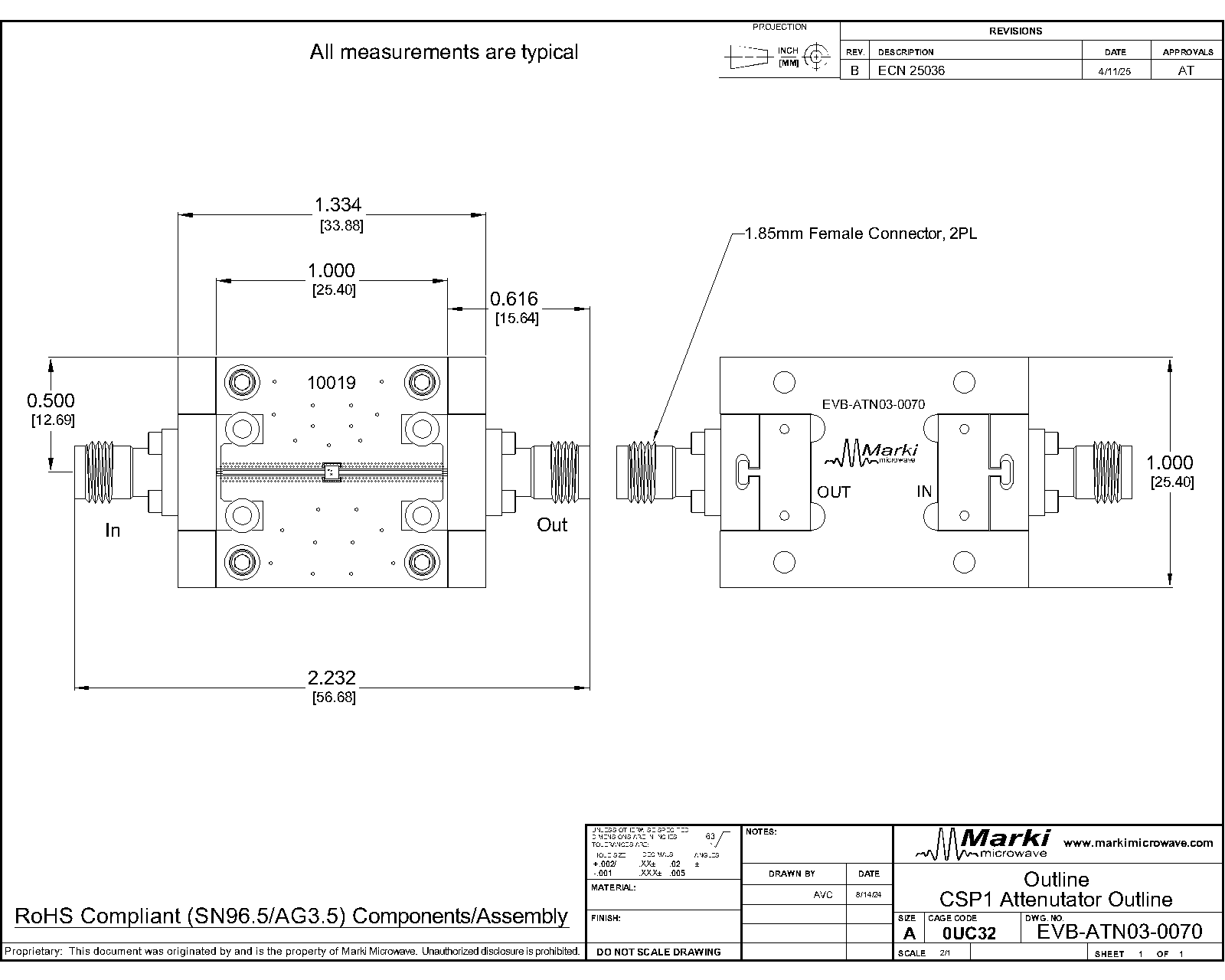

Evaluation Board - Outline Drawing

Outline Drawing

Rev: - | Copyright © 2024 Marki Microwave LLC.

9
