General Description

The ATN03-0040PSM is a surface mount GaAs MMIC 3dB attenuator in a DFN package. This attenuator is an ideal solution for attenuating a signal and can be used in a wide range of applications. The compact DFN package allows for extreme miniaturization of SMT footprint making this attenuator suitable for low SWaP applications. GaAs MMIC technology provides consistent unit-to-unit performance in a small, low-cost form factor. A 50-ohm match is maintained over the entire operating frequency range.

Features

  • Small 1.3 x 2.0 mm package size
  • 3dB attenuation from DC to 40 GHz
  • 25dB typical return loss over operating band
  • Low SWaP

Functional Block Diagram

Block Diagram
Photo of ATN03-0040PSM

Electrical Performance Summary

ParameterTypUnit
Frequency Range0 to 40GHz
Attenuation 3dB
Return Loss 25dB
Attenuation Flatness 0.3dB

Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.

Part Ordering Options

Part NumberDescriptionPackageGreen StatusProduct LifecycleExport Classification
ATN03-0040PSM3dB DC-40GHz MMIC AttenuatorDFN

RoHS

REACH

ReleasedEAR99
EVB-ATN03-0040PEvaluation Board, 3dB DC-40 GHz AttenuatorEVB

REACH

RoHS

ReleasedEAR99

Table Of Contents

Typical Performance Plots

Measured data is de-embedded from evaluation fixture using AFR.

Insertion Loss (dB) graph for ATN03-0040PSM
Return Loss (dB) graph for ATN03-0040PSM

Electrical Performance Over Temperature

Evaluation board performance is shown as a proxy for device performance due to fixturing variability over temperature

Eval Insertion Loss graph for ATN03-0040PSM
Eval Return Loss graph for ATN03-0040PSM

Specifications

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the attenuator in a PSM package with a sine wave input applied to pin 2.

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
Frequency Range-0 40---GHz
Attenuation -0 40-3-dB
Attenuation Flatness -0 40-0.3-dB
Impedance -0 40-50-Ω
Return Loss -0 401525-dB

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

ParameterMaximum RatingUnit
DC Current 100mA
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C
RF Power Handling 2W

Package Information

ParameterDetailsRating
ESD1000 to < 2000 VoltsHBM Class 1C
Dimensions-2.0 x 1.3 mm
Moisture Sensitivity Level-MSL 1

Port Configuration and Functions

Port Diagram

A top-down x-ray view of the package outline drawing is shown below.

Diagram of the port configuration for ATN03-0040PSM

Port Functions

PortFunctionDescriptionDC Equivalent
Circuit
GNDGround DFN package ground path is provided through the ground paddle.Equivalent circuit for the Ground
Pin 1Non-connect (NC) Pin 1 is not connected internally and can be tied to RF ground.Equivalent circuit for the Non-connect (NC)
Pin 2Input/Output Pin 2 and Pin 5 are DC connected to each other and ground through a T-network of resistors.Equivalent circuit for the Input/Output
Pin 3Non-connect (NC) Pin 3 is not connected internally and can be tied to RF ground.Equivalent circuit for the Non-connect (NC)
Pin 4Non-connect (NC) Pin 4 is not connected internally and can be tied to RF ground.Equivalent circuit for the Non-connect (NC)
Pin 5Input/Output Pin 2 and Pin 5 are DC connected to each other and ground through a T-network of resistors.Equivalent circuit for the Input/Output
Pin 6Non-connect (NC) Pin 6 is not connected internally and can be tied to RF ground.Equivalent circuit for the Non-connect (NC)

Mechanical Data

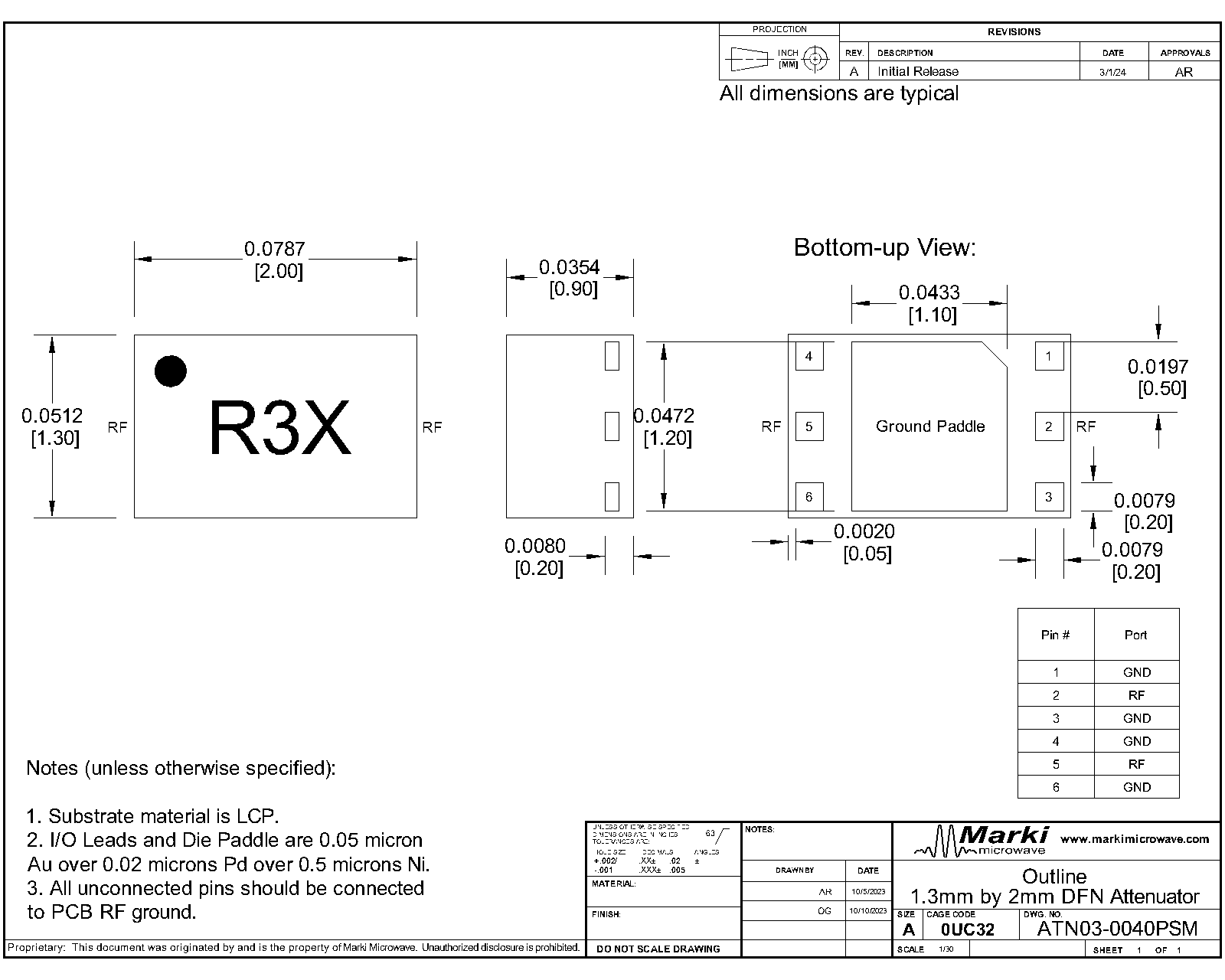

Outline Drawing

Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP

Outline Drawing

Evaluation Board

Evaluation Board - Outline Drawing

Outline Drawing

Revision History

Revision CodeRevision DateComment
-2023-10-30Datasheet Initial Release
A2025-08-06ESD information
