Device Overview
General Description
The ATN00-0070CSP1 is a surface mount GaAs MMIC attenuator in a chip scale package (CSP). This attenuator is an ideal solution for attenuating a signal and can be used in a wide range of applications. The ATN00-0070CSP1 features a typical 0.3 dB attenuation with 0.1 dB attenuation flatness and 20 dB return loss across the DC-70 GHz bandwidth. The CSP allows for extreme miniaturization of SMT footprint while providing die-level performance. GaAs MMIC technology provides consistent unit-to-unit performance in a small, low-cost form factor. A 50-ohm match is maintained over the entire operating frequency range.
Features
- 1.5 x 1.5 mm chip scale package
- 0.3 dB attenuation
- 0.1 dB attenuation flatness
- 20 dB return loss
- 1 W RF Power Handling
- This product embodies Marki Microwave's U.S. Pat. 11,869,858.
Applications
- 5G
- Test Equipment
- Precision Characterization
- Airborne Applications
- Amplitude Matching
- High Channel Count Systems
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ATN00-0070CSP1 | Chip Scale Package MMIC DC - 70 GHz 0dB Attenuator | CSP1 | REACH RoHS | Released | EAR99 |
| EVB-ATN00-0070 | Evaluation Board, Chip Scale Package MMIC DC - 70 GHz 0dB Attenuator | EVB | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ATN00-0070CSP1 | Chip Scale Package MMIC DC - 70 GHz 0dB Attenuator | CSP1 | REACH RoHS | Released | EAR99 |
| EVB-ATN00-0070 | Evaluation Board, Chip Scale Package MMIC DC - 70 GHz 0dB Attenuator | EVB | REACH RoHS | Released | EAR99 |
ATN00-0070CSP1
Chip Scale Package MMIC DC - 70 GHz 0dB Attenuator
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Mechanical Data
- Footprint Image
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-10-31 | Initial Release |
ATN00-0070CSP1
Chip Scale Package MMIC DC - 70 GHz 0dB Attenuator
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Ground Paddle | Ground | CSP package ground path is provided through the ground paddle. |  |
| Pin 1 | Input/Output | Pin 1 and Pin 2 are DC connected to each other and ground through a T-network of resistors. |  |
| Pin 2 | Input/Output | Pin 1 and Pin 2 are DC connected to each other and ground through a T-network of resistors. | |
ATN00-0070CSP1
Chip Scale Package MMIC DC - 70 GHz 0dB Attenuator
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling | 1 | W |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 1.5 x 1.5 mm |
| Moisture Sensitivity Level | - | MSL 3 |
ATN00-0070CSP1
Chip Scale Package MMIC DC - 70 GHz 0dB Attenuator
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the attenuator in a CSP1 package with a sine wave input applied to port 1.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Attenuation | Temp = 25°C | 0 | 70 | - | 0.3 | - | dB |
| Return Loss | Temp = 25°C | 0 | 70 | - | 20 | - | dB |
| Attenuation Flatness 1 | Temp = 25°C | 0 | 70 | - | 0.5 | - | dB |
| Impedance | - | 0 | 70 | - | 50 | - | Ω |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Attenuation | Temp = 25°C | 0 | 70 | - | 0.3 | - | dB |
| Return Loss | Temp = 25°C | 0 | 70 | - | 20 | - | dB |
| Attenuation Flatness 1 | Temp = 25°C | 0 | 70 | - | 0.5 | - | dB |
| Impedance | - | 0 | 70 | - | 50 | - | Ω |
[1] Attenuation Flatness = Max(Insertion Loss) - Min(Insertion Loss)
ATN00-0070CSP1
Chip Scale Package MMIC DC - 70 GHz 0dB Attenuator

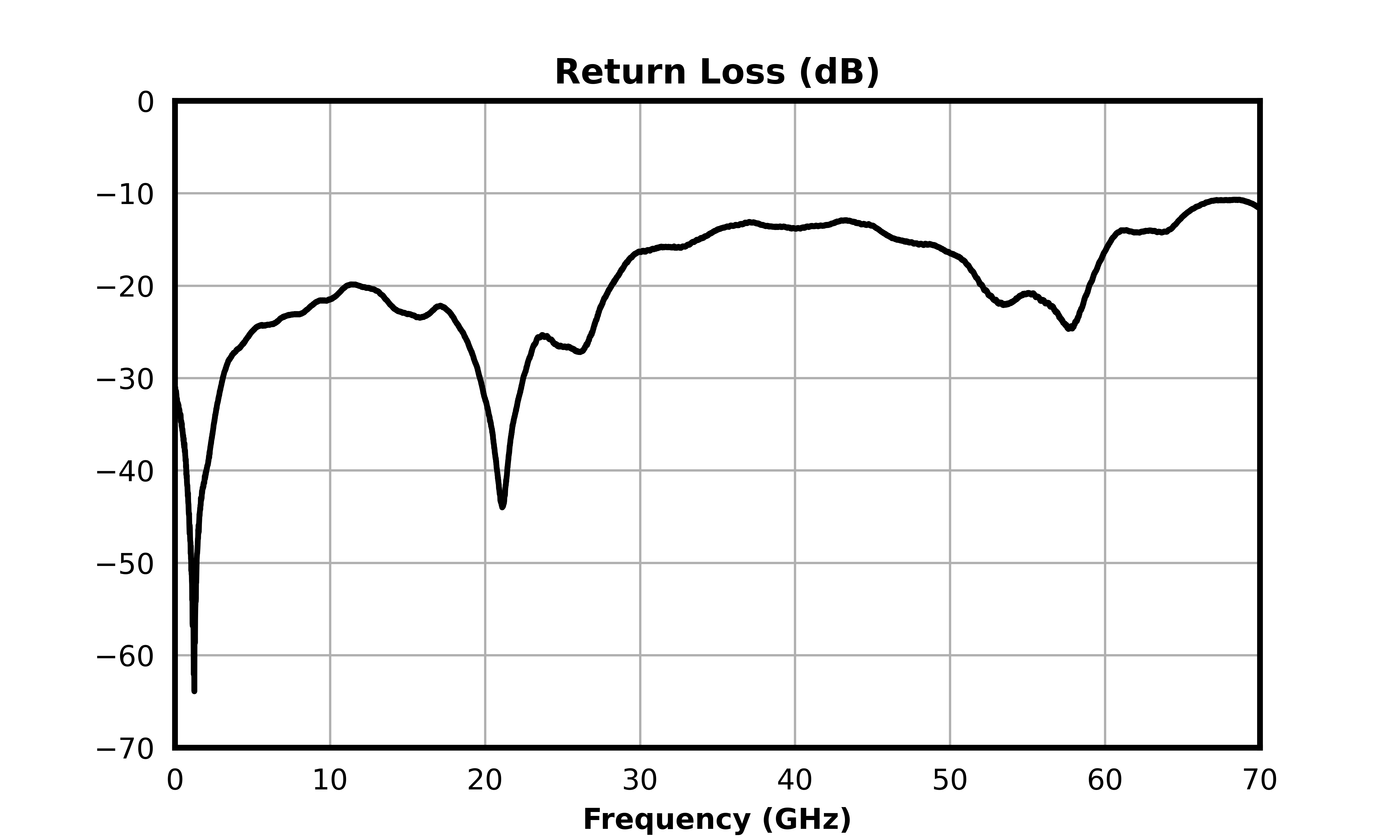

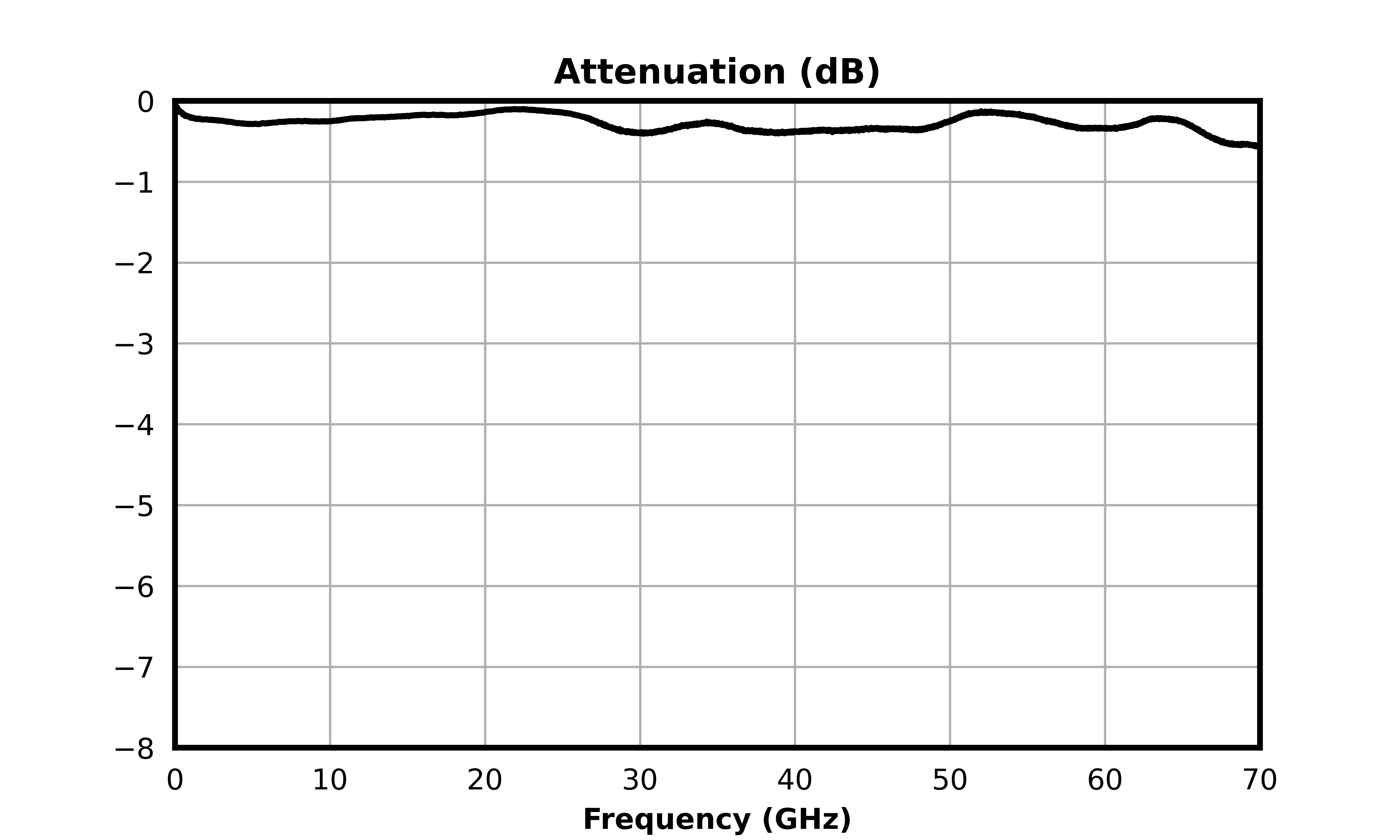

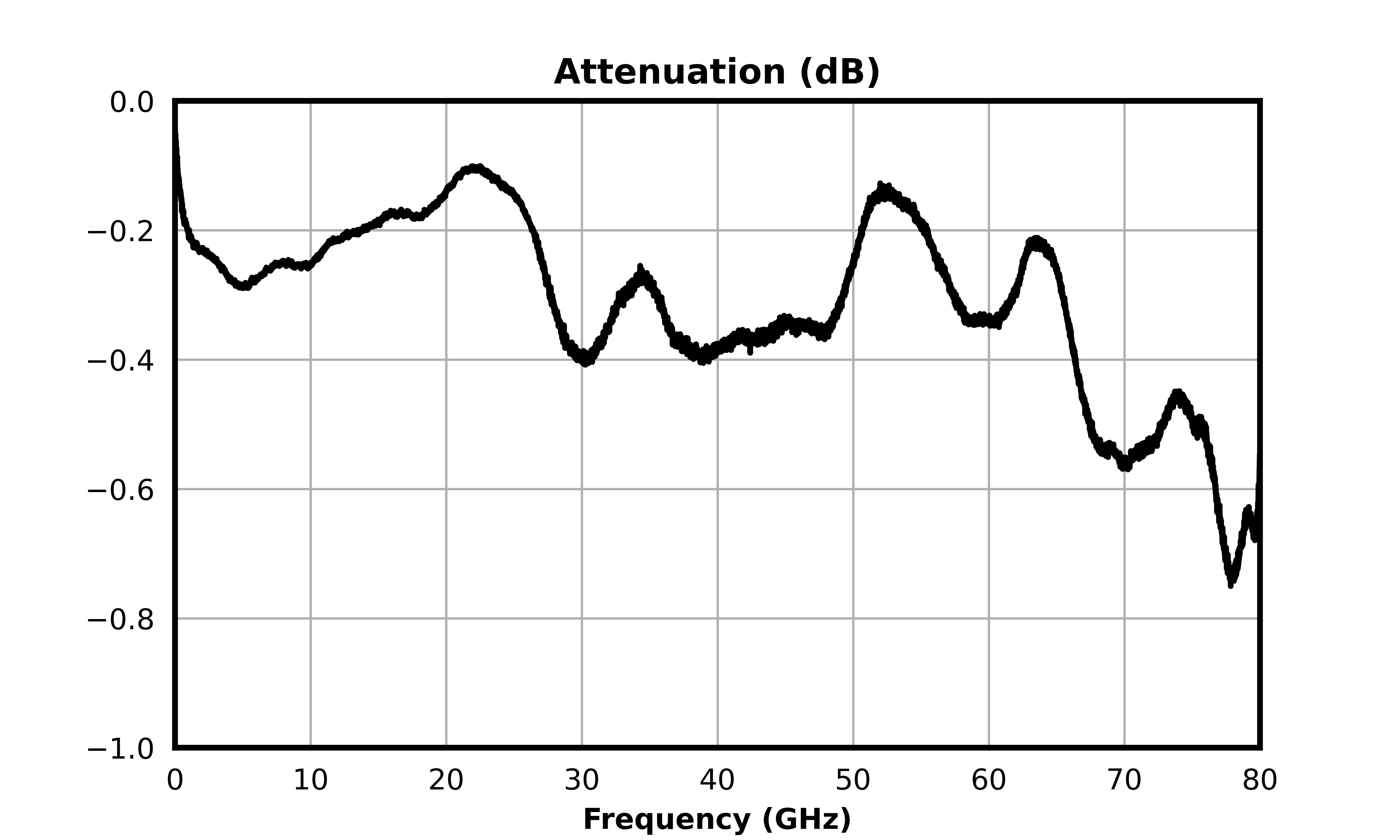

Typical Performance Plots
Electrical performance data is de-embedded to the CSP package ports.
.png)
.png)
.png)
ATN00-0070CSP1
Chip Scale Package MMIC DC - 70 GHz 0dB Attenuator

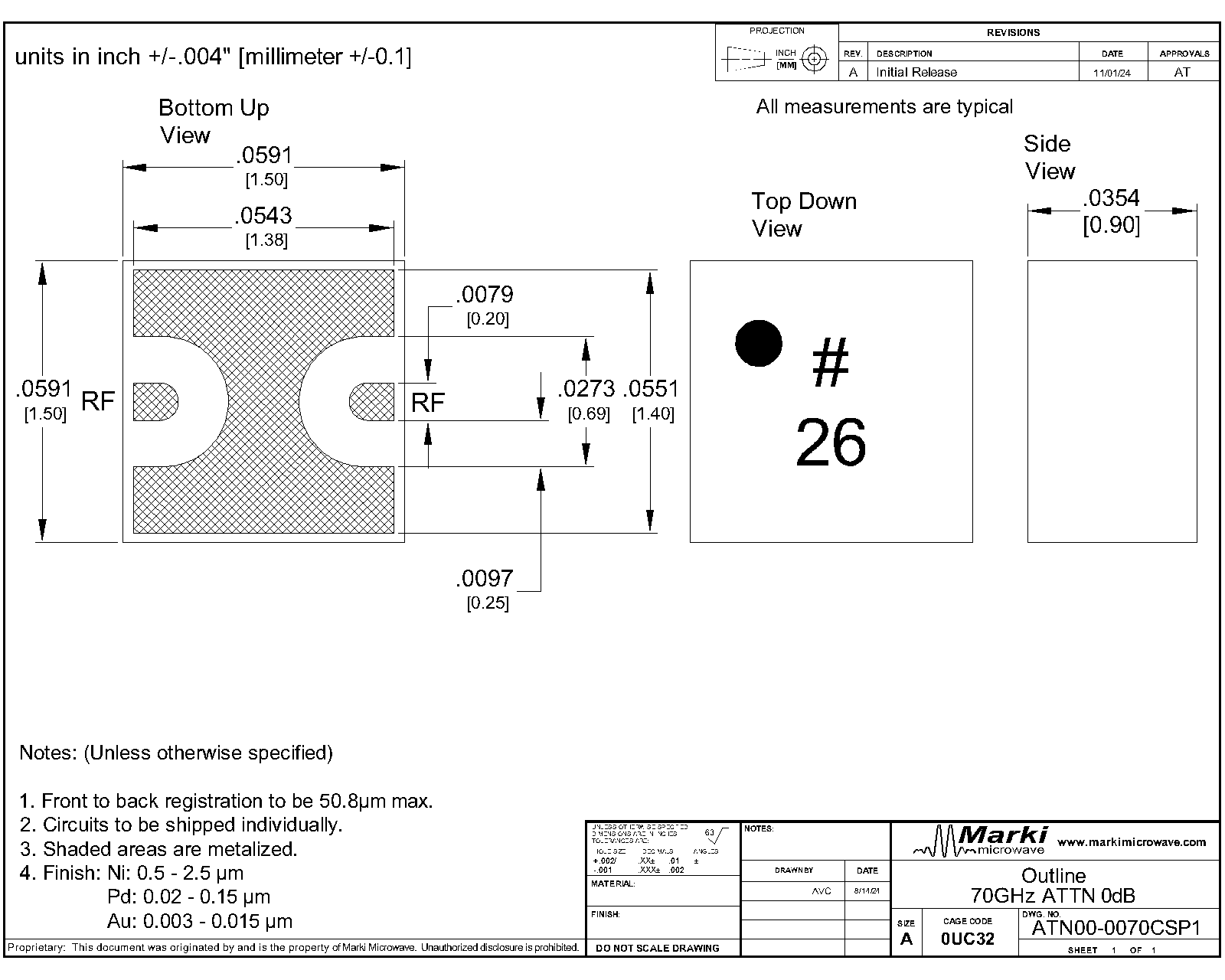

Mechanical Data
ATN00-0070CSP1
Chip Scale Package MMIC DC - 70 GHz 0dB Attenuator

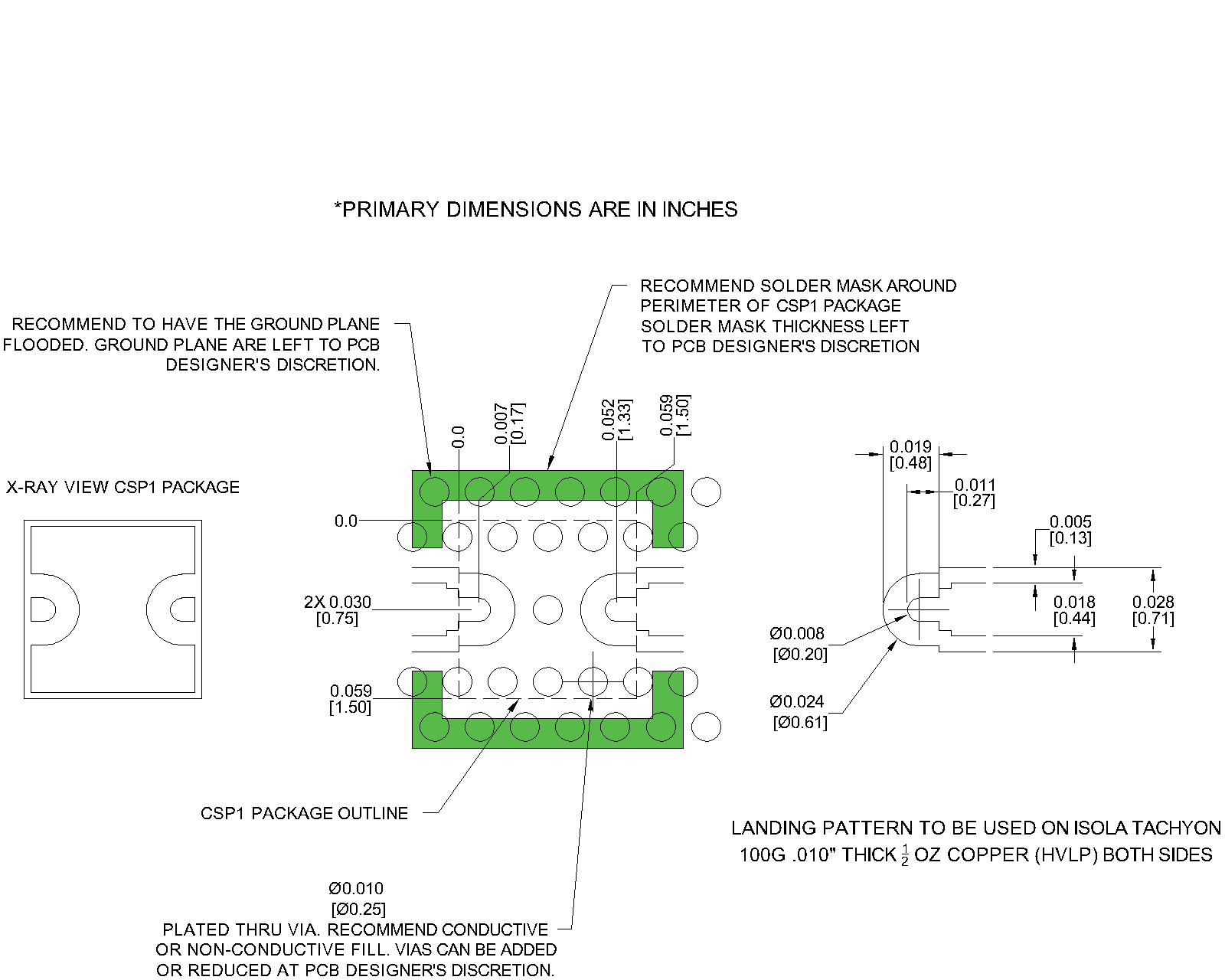

Footprint Image
Download : Footprint Drawing
ATN00-0070CSP1
Chip Scale Package MMIC DC - 70 GHz 0dB Attenuator

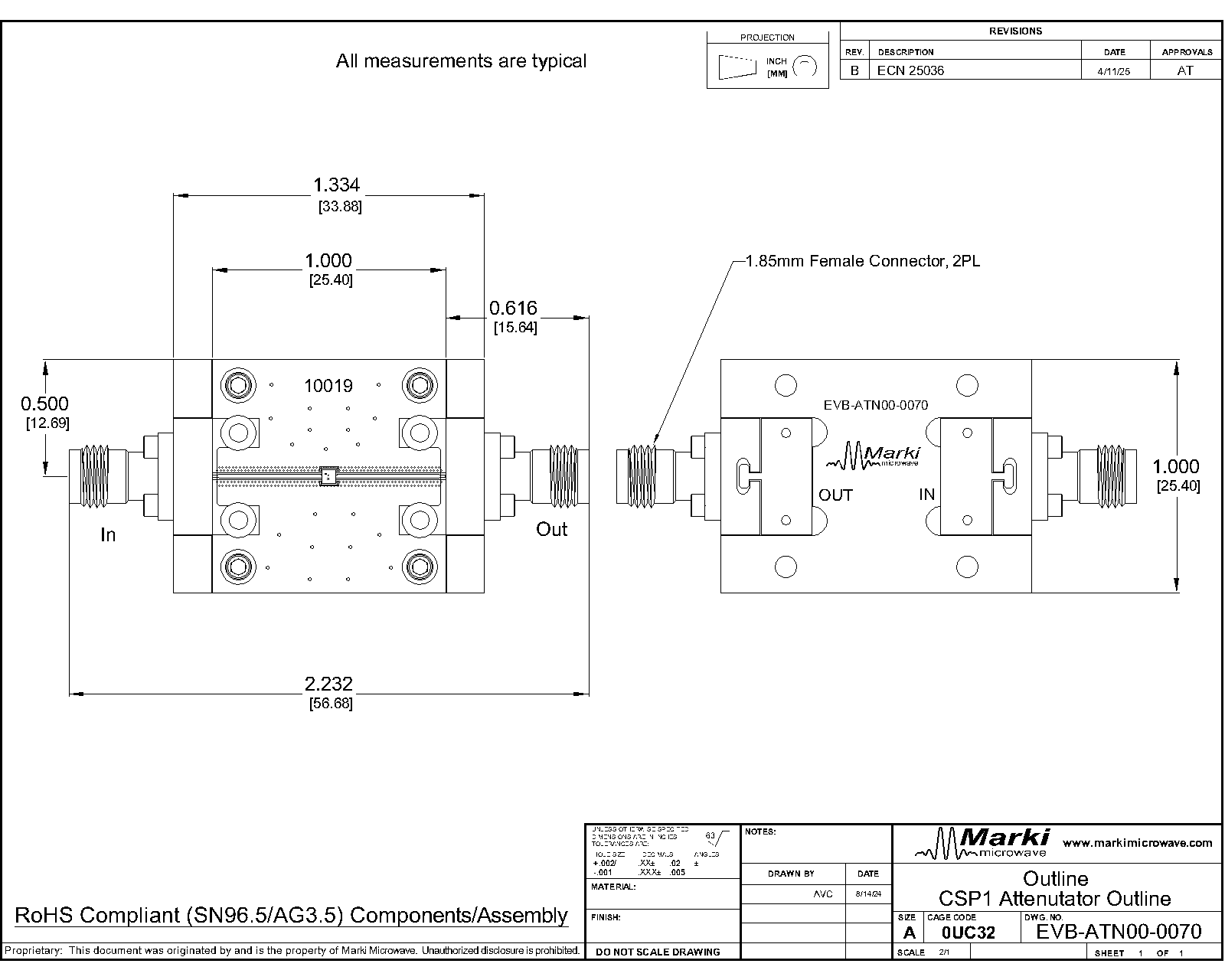

Evaluation Board - Outline Drawing
