Port Diagram
A port diagram of the APM-7098SM is shown below.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The APM-7098SM is a broadband low phase noise LO driver amplifier designed to provide a saturated +23 dBm output power with low DC power consumption. This amplifier uses GaAs HBT technology for low phase noise, and is optimized to provide enough power to drive the LO port of an S-diode mixer from 100 MHz to 20 GHz or of an H or L-diode mixer from 100 MHz to 30 GHz. This amplifier can be operated with a variety of bias conditions for both low and high-power applications. The APM-7098SM is packaged in a compact 4 mm QFN for surface mount integration on circuit board-based systems.
Features
- -165 dBc/Hz phase noise at 10 kHz offset frequency
- +23 dBm output power
- Low DC power consumption
- Positive-only biasing
- No sequencing required
- Unconditionally stable
Applications
- Mobile test and measurement equipment
- Radar and satellite communications
- 5G transceivers
- Driver amplifier L,H,S – diode mixers
- NLTL Driver
- Suitable as a T3 mixer driver
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| APM-7098SM | 0.1-22 GHz Surface Mount Low Phase Noise Amplifier | QFN | REACH RoHS | Released | EAR99 |
| EVAL-APM-7098SM | Evaluation Board, 0.1-22 GHz Surface Mount Low Phase Noise Amplifier | EVAL | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| APM-7098SM | 0.1-22 GHz Surface Mount Low Phase Noise Amplifier | QFN | REACH RoHS | Released | EAR99 |
| EVAL-APM-7098SM | Evaluation Board, 0.1-22 GHz Surface Mount Low Phase Noise Amplifier | EVAL | REACH RoHS | Released | EAR99 |
APM-7098SM
0.1-22 GHz Surface Mount Low Phase Noise Amplifier
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Operation
- Mechanical Data
- Footprint Image
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2020-09-01 | Datasheet Initial Release |
| A | 2021-01-01 | Updated Thermal Resistance and Max Input Power Spec, updated Min Spec table |
| B | 2023-03-01 | Updated Application Circuit |
| C | 2024-07-31 | Corrected Errors in Reliability Limits |
APM-7098SM
0.1-22 GHz Surface Mount Low Phase Noise Amplifier

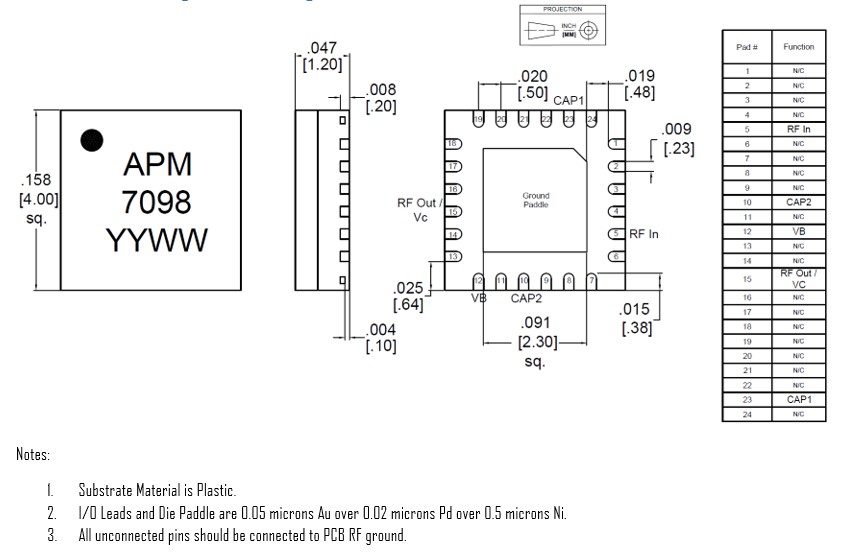

Port Configuration and Functions
APM-7098SM
0.1-22 GHz Surface Mount Low Phase Noise Amplifier
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| 10 | Off-Chip Cap Port 2 | Port 10 allows the user to attach additional off chip bypass capacitance to provide adequate low frequency AC grounding termination to the input matching network. The value should be at least 100nF. |  |
| 12 | Current Mirror Bias Port | Port 12 is the DC voltage bias pad for the current mirror that controls the collector current supplied to the amplifier. See section 3.6 for performance at different bias conditions |  |
| 15 | RF Output and Collector Supply Port | This is the amplifier’s RF Output and positive VC supply voltage pin. It is RF matched to 50 Ω and is DC coupled. Must have less than 7:1 VSWR when operating. |  |
| 23 | Off-Chip Cap Port 1 | Port 23 allows the user to attach additional off chip bypass capacitance to provide adequate low frequency AC grounding termination to the input matching network. The value should be at least 100nF. |  |
| 5 | RF Input | This is the RF input port of the device, and is RF matched to 50 Ω. This port is DC-coupled, and requires a blocking capacitor. | |
| GND | Ground | IC backside must be connected to a DC/RF ground with high thermal and electrical conductivity. |  |
APM-7098SM
0.1-22 GHz Surface Mount Low Phase Noise Amplifier
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may become inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Bias (Current Mirror) Voltage (VB) | 9 | V |
| Maximum Operating Temperature | 85 | °C |
| Maximum Storage Temperature | 150 | °C |
| Max Junction Temperature for MTTF> 1E6 hours | 125 | °C |
| Max Power Dissipation for MTTF of 1E6 hours at 85˚C Baseplate Temperature | 630 | mW |
| Minimum Operating Temperature | -40 | °C |
| Minimum Storage Temperature | -65 | °C |
| Output Load VSWR | 7 | - |
| Power Supply (Collector) Current (Ic) 1 | 150 | mA |
| Power Supply (Collector) Current (Ic) 2 | 120 | mA |
| Power Supply (Collector) Voltage (VC) | 9 | V |
| RF Input Power | 16 | dBm |
| θJC, Junction to Case Thermal Resistance | 63 | ºC/W |
[1] Instantaneous Limit
[2] Limit for lifetime degradation
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 4 x 4 mm |
| Moisture Sensitivity Level | - | MSL 1 |
Recommended Operating Conditions
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| DC Current with RF Input (Ic) 1 | - | - | 120 | mA |
| Positive DC Current Mirror Voltage (VB) | 5 | 7 | 9 | V |
| Quiescent DC Current (Ic) | 26 | 44 | 65 | mA |
| Positive DC Voltage (VC) | 5 | 8 | 9 | V |
| Ambient Temperature | -40 | 25 | 85 | °C |
| Input Power for Saturation | 7 | 8 | 10 | dBm |
[1] RF input power causes current drive up, operating above this limit will degrade operating life. Please see typical performance plots on page 9 for relationship between RF input power and DC current draw.
APM-7098SM
0.1-22 GHz Surface Mount Low Phase Noise Amplifier
Electrical Specifications
The electrical specifications apply at TA=+25 °C in a 50 Ω system. QFNs are 100% RF tested.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Current Consumption 1 | 8 V/6 V | - | - | - | 33 | - | mA |
| Current Consumption | 8 V/7 V | - | - | - | 42 | - | mA |
| Current Mirror, Ib | 8 V/6 V | - | - | - | 3 | - | mA |
| Current Mirror, Ib | 8 V/7 V | - | - | - | 4 | - | mA |
| Input IP3 | 8 V/7 V bias, -20 dBm Input Power | 0.1 | 22 | - | 8 | - | dBm |
| Input Power for Saturation | 8 V/7 V bias | 0.1 | 22 | - | 10 | - | dBm |
| Input Return Loss | 8 V/7 V bias, -25 dBm Input Power | 0.1 | 22 | - | 11 | - | dBm |
| Noise Figure | 8 V/7 V bias, -25 dBm Input Power | 0.1 | 22 | - | 4.8 | - | dB |
| Output IP3 | 8 V/7 V bias, -20 dBm Input Power | 0.1 | 22 | - | 21 | - | dBm |
| Output P1dB | 8 V/7 V bias | 0.1 | 22 | - | 19 | - | dBm |
| Output Return Loss | 8 V/7 V bias, -25 dBm Input Power | 0.1 | 22 | - | 10 | - | dB |
| Phase Noise @ 10 kHz Offset | 8 V/7 V bias, +10 dBm Input power | 1 | - | - | -165 | - | dBc/Hz |
| Reverse Isolation | 8 V/7 V bias, -25 dBm Input Power | 0.1 | 22 | - | 38 | - | dB |
| Saturated Output Power 2 | 8 V/7 V bias | 0.015 | 22 | - | 12 | - | dBm |
| Saturated Output Power 3 | 8 V/7 V bias | 0.1 | 15 | 17 | 23 | - | dBm |
| Small Signal Gain | 8 V/7 V bias, -25 dBm Input Power | 0.1 | 15 | 11 | 15 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Current Consumption 1 | 8 V/6 V | - | - | - | 33 | - | mA |
| Current Consumption | 8 V/7 V | - | - | - | 42 | - | mA |
| Current Mirror, Ib | 8 V/6 V | - | - | - | 3 | - | mA |
| Current Mirror, Ib | 8 V/7 V | - | - | - | 4 | - | mA |
| Input IP3 | 8 V/7 V bias, -20 dBm Input Power | 0.1 | 22 | - | 8 | - | dBm |
| Input Power for Saturation | 8 V/7 V bias | 0.1 | 22 | - | 10 | - | dBm |
| Input Return Loss | 8 V/7 V bias, -25 dBm Input Power | 0.1 | 22 | - | 11 | - | dBm |
| Noise Figure | 8 V/7 V bias, -25 dBm Input Power | 0.1 | 22 | - | 4.8 | - | dB |
| Output IP3 | 8 V/7 V bias, -20 dBm Input Power | 0.1 | 22 | - | 21 | - | dBm |
| Output P1dB | 8 V/7 V bias | 0.1 | 22 | - | 19 | - | dBm |
| Output Return Loss | 8 V/7 V bias, -25 dBm Input Power | 0.1 | 22 | - | 10 | - | dB |
| Phase Noise @ 10 kHz Offset | 8 V/7 V bias, +10 dBm Input power | 1 | - | - | -165 | - | dBc/Hz |
| Reverse Isolation | 8 V/7 V bias, -25 dBm Input Power | 0.1 | 22 | - | 38 | - | dB |
| Saturated Output Power 2 | 8 V/7 V bias | 0.015 | 22 | - | 12 | - | dBm |
| Saturated Output Power 3 | 8 V/7 V bias | 0.1 | 15 | 17 | 23 | - | dBm |
| Small Signal Gain | 8 V/7 V bias, -25 dBm Input Power | 0.1 | 15 | 11 | 15 | - | dB |
[1] Bias conditions for Ic and Ib tested with no RF input power. See section 3.6 for DC current vs. RF power. Bias conditions presented as VC/VB.
[2][3] Saturated output power specification defined using the EVAL-APM-7098SM P7dB compression curve shown in section 3.6
APM-7098SM
0.1-22 GHz Surface Mount Low Phase Noise Amplifier
Typical Performance Plots
APM-7098SM measurements taken in EVAL-APM-7098SM evaluation board.
APM-7098SM
0.1-22 GHz Surface Mount Low Phase Noise Amplifier
APM-7098SM
0.1-22 GHz Surface Mount Low Phase Noise Amplifier
APM-7098SM
0.1-22 GHz Surface Mount Low Phase Noise Amplifier
Phase Noise from Module Data
APM-7098SM
0.1-22 GHz Surface Mount Low Phase Noise Amplifier
Typical Performance Plots of Marki MT3H-0113H Driven With APM-7098SM
APM-7098SM
0.1-22 GHz Surface Mount Low Phase Noise Amplifier
Application Circuit
APM-7098SM
0.1-22 GHz Surface Mount Low Phase Noise Amplifier
Mechanical Data
APM-7098SM
0.1-22 GHz Surface Mount Low Phase Noise Amplifier

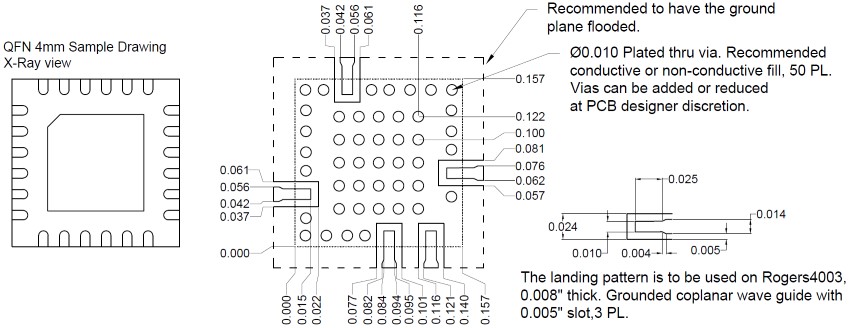

Footprint Image
APM-7098SM
0.1-22 GHz Surface Mount Low Phase Noise Amplifier

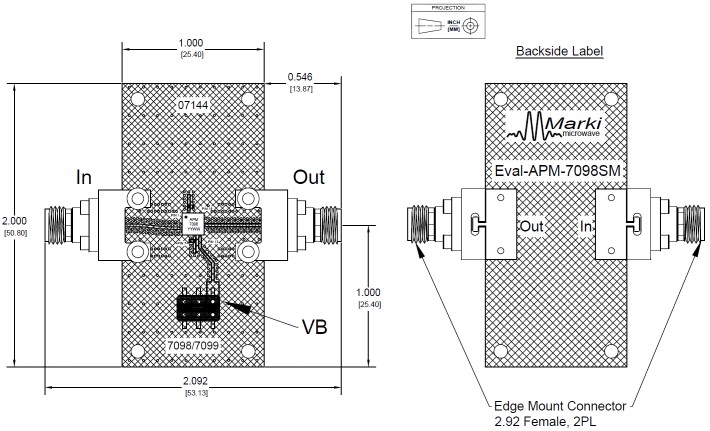

Evaluation Board - Outline Drawing
