Port Diagram
A port diagram of the AMM-9860PSM is shown below.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The AMM-9860PSM is a wideband low noise amplifier capable of providing 13.5 dB gain and +28 dBm OIP3 with a low 2.7 dB typical noise figure. The AMM-9860PSM is an ideal linear signal amplifier for applications requiring low power consumption and small form-factors. This amplifier has exceptionally flat response across its entire operating bandwidth.
Features
- Broadband 3 to 30GHz Operation
- Low Noise Figure
- Exceptionally Flat RF Performance Across Frequency
- Excellent Return Losses
Applications
- Communication Systems
- Test and Measurement Equipment
- Satellite Communications
- Electronic Warfare
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| AMM-9860PSM | 3 - 30 GHz Wideband Low Noise Amplifier | QFN | RoHS REACH | Released | EAR99 |
| EVB-AMM-9860P | Evaluation Board, AMM-9860PSM Wideband Low Noise Amplifier | - | REACH RoHS | Released | - |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| AMM-9860PSM | 3 - 30 GHz Wideband Low Noise Amplifier | QFN | RoHS REACH | Released | EAR99 |
| EVB-AMM-9860P | Evaluation Board, AMM-9860PSM Wideband Low Noise Amplifier | - | REACH RoHS | Released | - |
AMM-9860PSM
3 - 30 GHz Wideband Low Noise Amplifier
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Operation
- Mechanical Data
- Footprint Image
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-03-19 | Initial Release |
| A | 2026-02-13 | MTTF Table Added. |
AMM-9860PSM
3 - 30 GHz Wideband Low Noise Amplifier
Port Configuration and Functions
AMM-9860PSM
3 - 30 GHz Wideband Low Noise Amplifier
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Paddle | Ground | DC and RF Ground are provided through the QFN paddle. The paddle should be attached to a DC/RF ground with high thermal and electrical conductivity. |  |
| Pin 11 | Vd | This is the positive DC supply voltage for the amplifier IC. This pin is nominally set to +5V. This part requires an off-chip bypass capacitor of 0.1uF installed at this pin as close to the IC as possible. See applications circuit. |  |
| Pin 2 | RF Input | This is the amplifiers RF input port. This port is internally matched to 50 Ohms and is internally DC shorted to GND. This pin may be left floating if no DC is present on the line but should be DC blocked otherwise. |  |
| Pin 5 | Vg | This is the negative DC bias voltage for the amplifier IC. The voltage at this pin controls the current draw Id of the part. Higher voltage results in higher current. For normal operation, the voltage at this pin is adjusted to produce an Id of 51mA when Vd=5V. This part requires an off-chip bypass capacitor in series with a 10 Ohm resistor installed at this pin as close to the IC as possible. See applications circuit. |  |
| Pin 8 | RF Output | This is the amplifiers RF output port. This port is internally matched to 50 Ohms and is internally DC shorted to GND. This pin may be left floating if no DC is present on the line but should be DC blocked otherwise. |  |
| Pins 1,3,4,6,7,9,10 and 12 | Non-connect (NC) | These pins are not internally connected. Datasheet performance is measured with these pins connected to ground. | - |
AMM-9860PSM
3 - 30 GHz Wideband Low Noise Amplifier
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If any one of these limits are exceeded, the device may become inoperable or have a reduced lifetime. Reliability limits are individual, instantaneous catastrophic limits only. Functional operation limits are indicated below. Operation of the device at multiple absolute maximum limits or for extended periods at a single limit can cause degradation and damage to the device.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Drain Current (Id) (No RF Applied) | 84 | mA |
| Maximum Operating Temperature for MTTF > 1E6 hours | 85 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature for MTTF > 1E6 hours | -40 | °C |
| Minimum Storage Temperature | -65 | °C |
| Negative Bias Voltage | -2 | V |
| Positive Drain Supply Voltage (Vd) | 8 | V |
| RF Input Power | 10 | dBm |
FIT and MTTF Table
| T (°C) | λ (TIF) | MTTF (hr) | MTTF (yr) |
|---|---|---|---|
| 105 | 2,441.45 | 4.10E+05 | 47 |
| 85 | 310.48 | 3.22E+06 | 368 |
| 55 | 8.79 | 1.14E+08 | 12,992 |
| 25 | 0.12 | 8.24E+09 | 941,063 |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 3 x 3 mm |
| Moisture Sensitivity Level | - | MSL 1 |
Recommended Operating Conditions
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Positive DC Voltage (Vd) | 5 | 5 | 5 | V |
| Negative Bias Voltage (Vg) | -0.4 | -0.3 | -0.2 | V |
| Positive DC Current (Id) (No RF Input) | 25 | 38 | 51 | mA |
| Ambient Temperature | -40 | 25 | 85 | °C |
AMM-9860PSM
3 - 30 GHz Wideband Low Noise Amplifier
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. QFNs are 100% RF tested.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Small Signal Gain | Ta=25°C, Input Power = -20.00 dBm, Vd1=5V, Vb1=-0.2V, Id1=51mA | 3 | 30 | - | 13.5 | - | dB |
| Input Return Loss | Ta=25°C, Input Power = -20.00 dBm, Vd1=5V, Vb1=-0.2V, Id1=51mA | 3 | 30 | - | 14 | - | dB |
| Output Return Loss | Ta=25°C, Input Power = -20.00 dBm, Vd1=5V, Vb1=-0.2V, Id1=51mA | 3 | 30 | - | 13 | - | dB |
| Reverse Isolation | Ta=25°C, Input Power = -20.00 dBm, Vd1=5V, Vb1=-0.2V, Id1=51mA | 3 | 30 | - | 19 | - | dB |
| Noise Figure | Ta=25°C, Input Power=-20.00 dBm, Vd1=5V, Vb1=-0.2V, Id1=51mA | 3 | 30 | - | 2.7 | - | dB |
| Output IP3 | Ta=25°C, 5V/-0.2 bias, 20MHz tone spacing, Input Power = -10dBm | 3 | 30 | - | 28 | - | dBm |
| Output IP2 | Ta=25°C, 5V/-0.2 bias, 20MHz tone spacing, Input Power = -10dBm | 1.5 | 15 | - | 33 | - | dBm |
| Output P1dB | Ta=25°C, Vd1=5V, Vb1=-0.2V, Id1=51mA | 3 | 30 | - | 15.5 | - | dBm |
| Current Consumption 1 | 5V/-0.2V bias, No RF Applied | - | - | - | 51 | - | mA |
| Saturated Output Power | - | 5 | 24 | - | 18 | - | dBm |
| Saturated Output Power | - | 2 | 24 | - | 16 | - | dBm |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Small Signal Gain | Ta=25°C, Input Power = -20.00 dBm, Vd1=5V, Vb1=-0.2V, Id1=51mA | 3 | 30 | - | 13.5 | - | dB |
| Input Return Loss | Ta=25°C, Input Power = -20.00 dBm, Vd1=5V, Vb1=-0.2V, Id1=51mA | 3 | 30 | - | 14 | - | dB |
| Output Return Loss | Ta=25°C, Input Power = -20.00 dBm, Vd1=5V, Vb1=-0.2V, Id1=51mA | 3 | 30 | - | 13 | - | dB |
| Reverse Isolation | Ta=25°C, Input Power = -20.00 dBm, Vd1=5V, Vb1=-0.2V, Id1=51mA | 3 | 30 | - | 19 | - | dB |
| Noise Figure | Ta=25°C, Input Power=-20.00 dBm, Vd1=5V, Vb1=-0.2V, Id1=51mA | 3 | 30 | - | 2.7 | - | dB |
| Output IP3 | Ta=25°C, 5V/-0.2 bias, 20MHz tone spacing, Input Power = -10dBm | 3 | 30 | - | 28 | - | dBm |
| Output IP2 | Ta=25°C, 5V/-0.2 bias, 20MHz tone spacing, Input Power = -10dBm | 1.5 | 15 | - | 33 | - | dBm |
| Output P1dB | Ta=25°C, Vd1=5V, Vb1=-0.2V, Id1=51mA | 3 | 30 | - | 15.5 | - | dBm |
| Current Consumption 1 | 5V/-0.2V bias, No RF Applied | - | - | - | 51 | - | mA |
| Saturated Output Power | - | 5 | 24 | - | 18 | - | dBm |
| Saturated Output Power | - | 2 | 24 | - | 16 | - | dBm |
[1] Bias conditions for Id tested with no RF input power. Bias conditions presented as Vd/Vg.
AMM-9860PSM
3 - 30 GHz Wideband Low Noise Amplifier

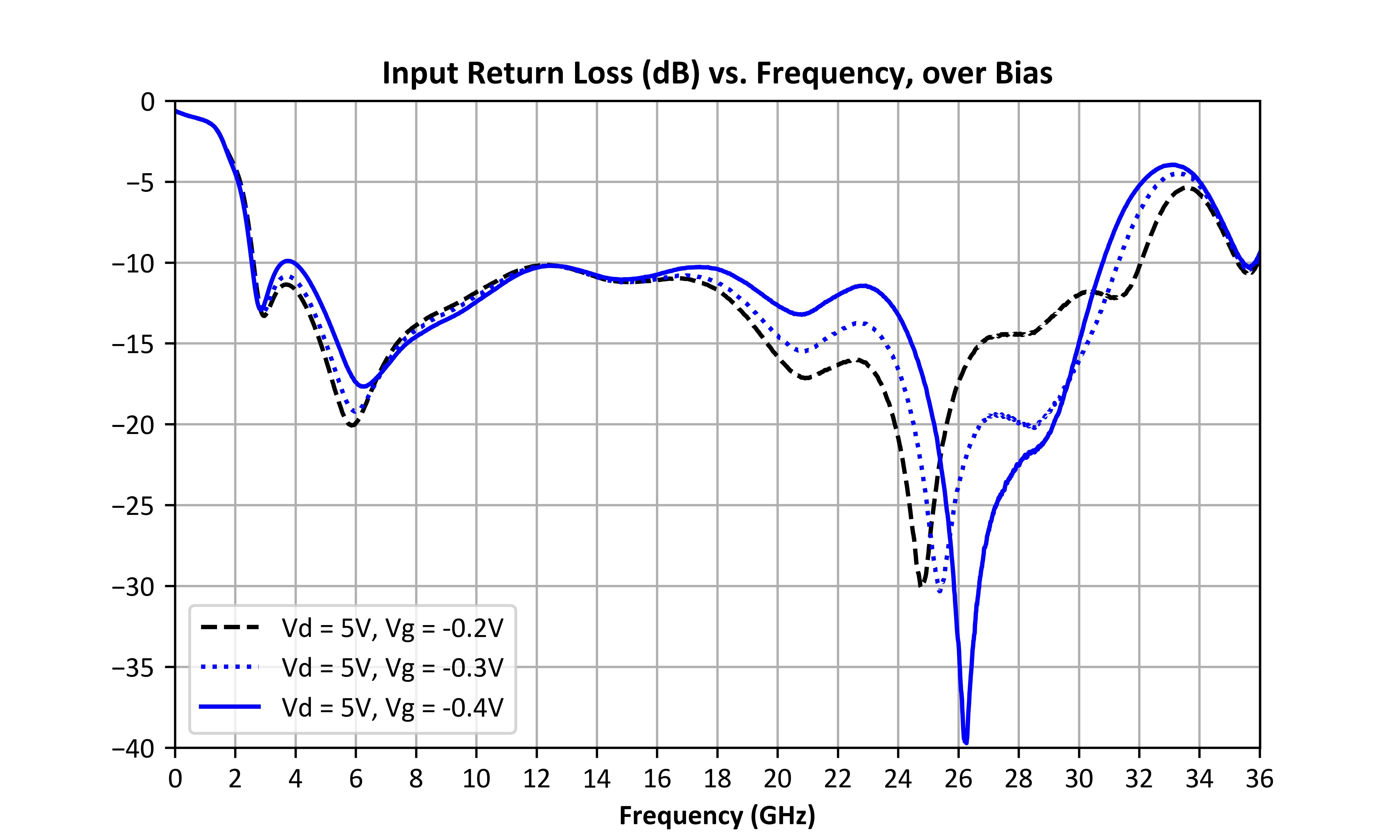

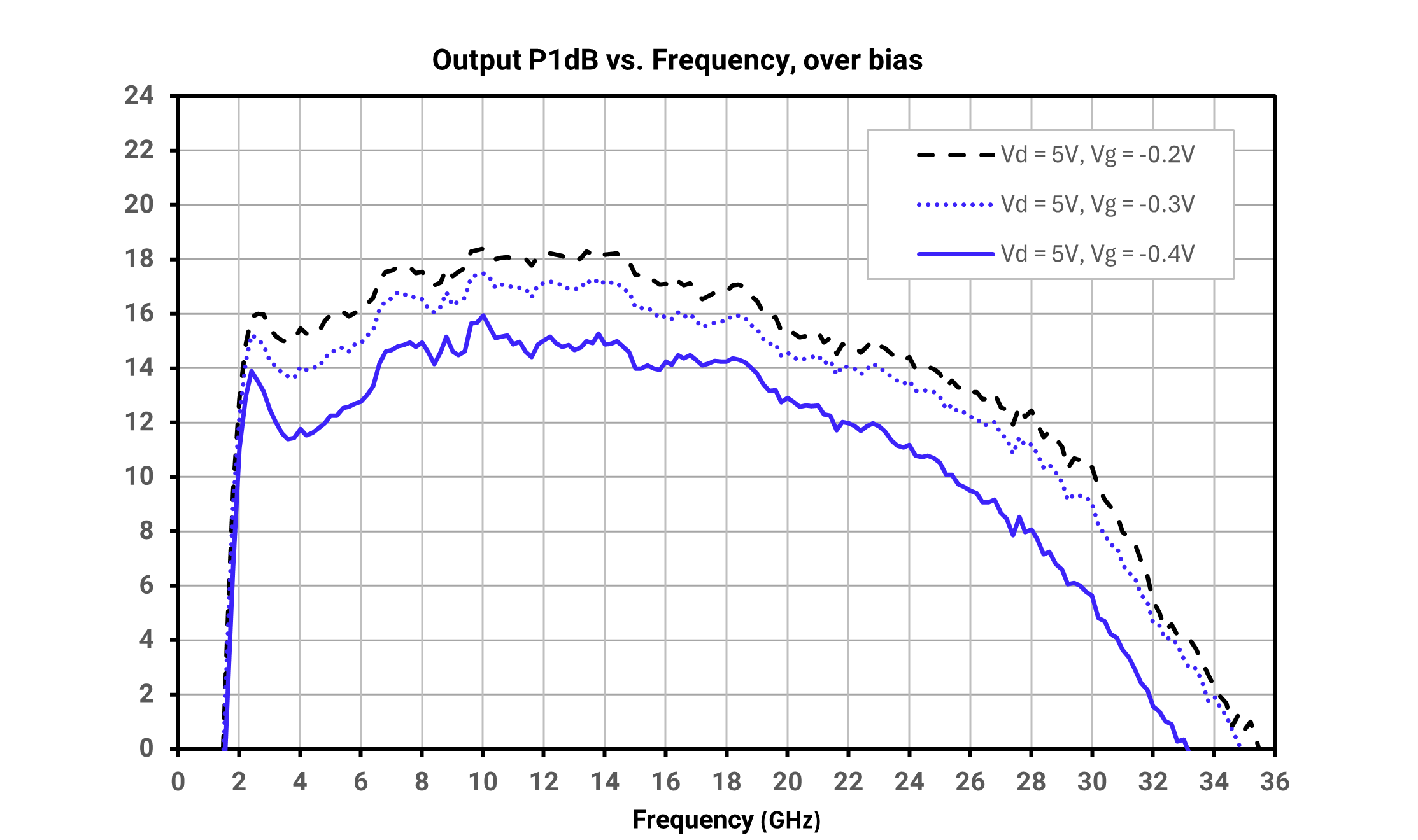

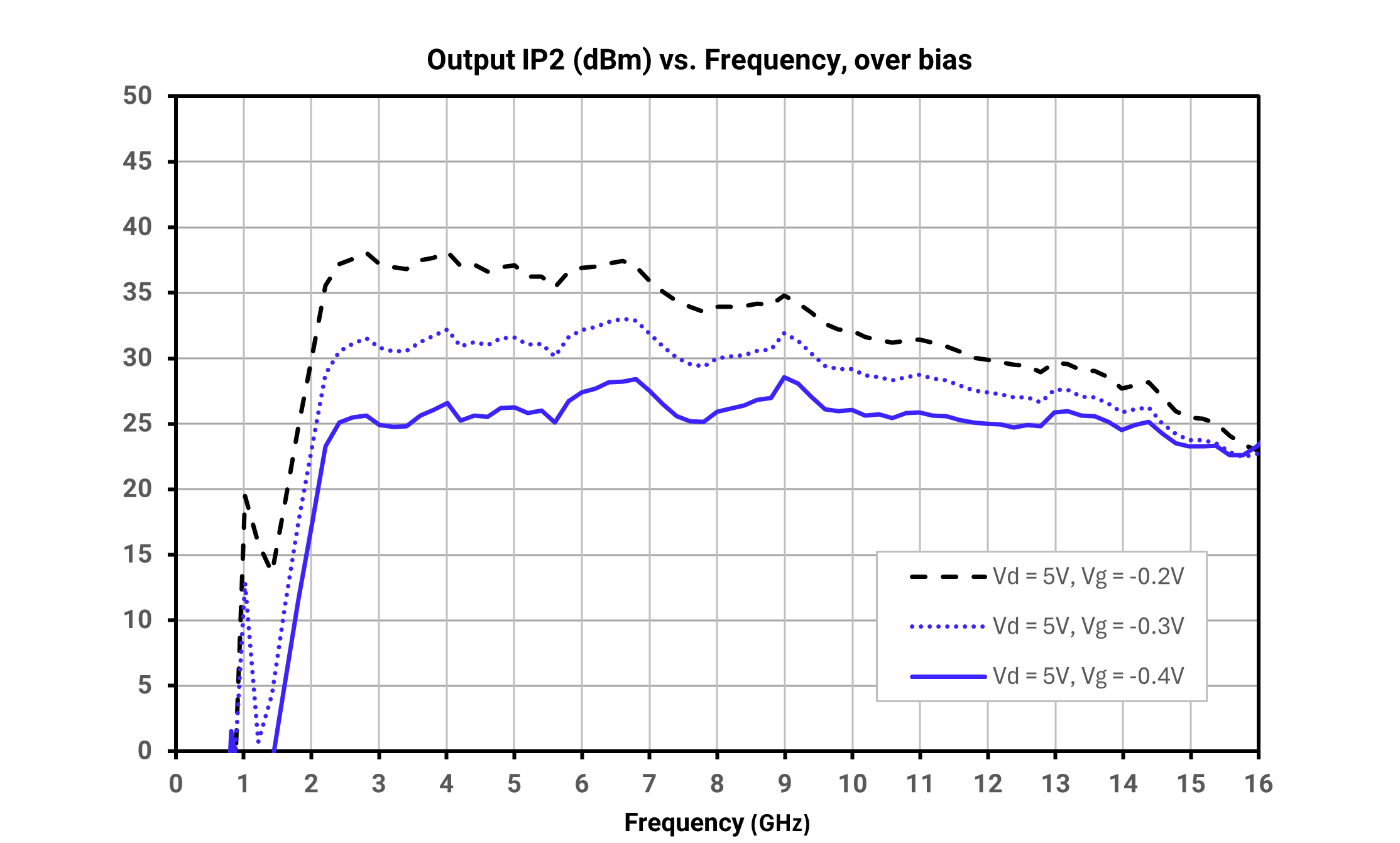

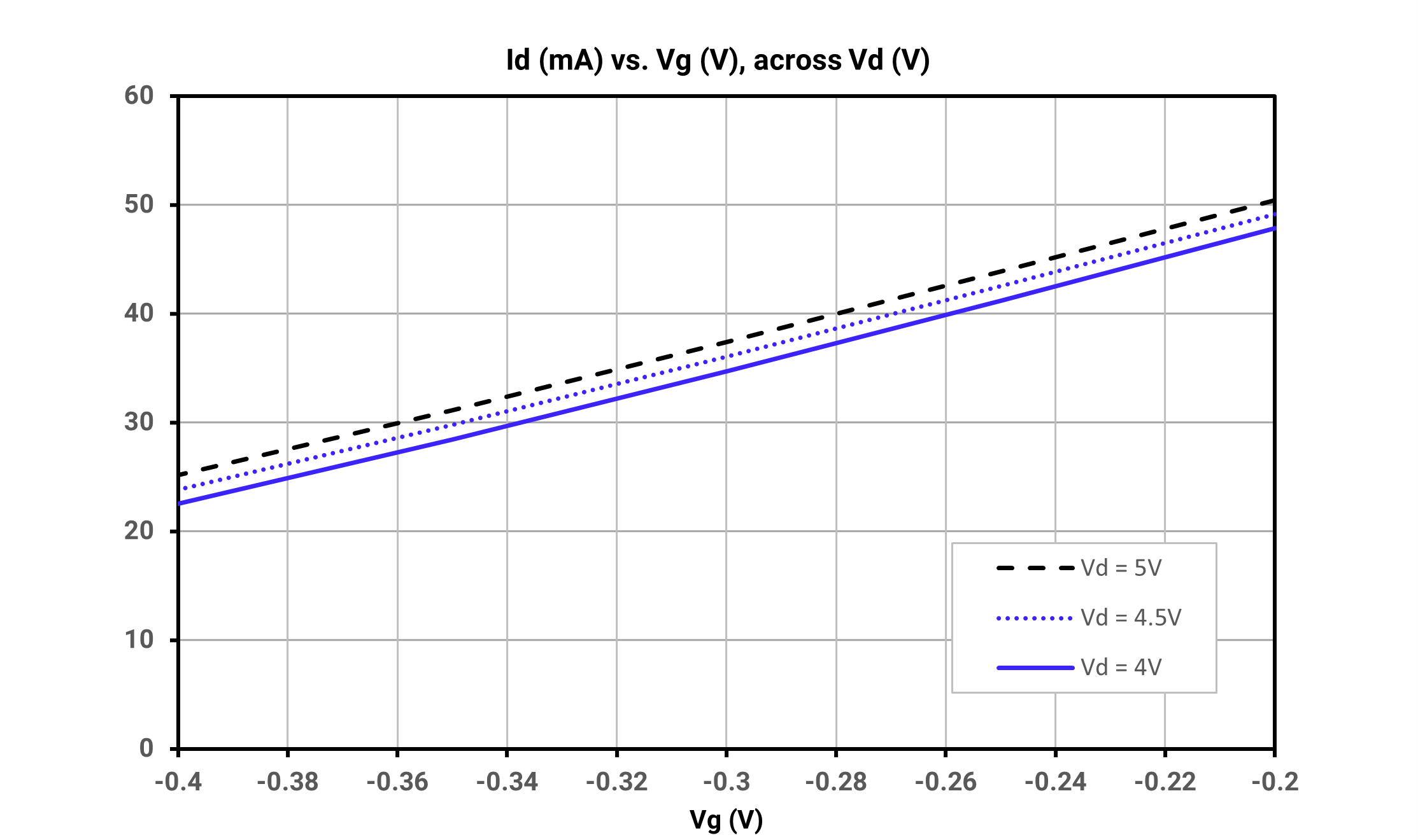

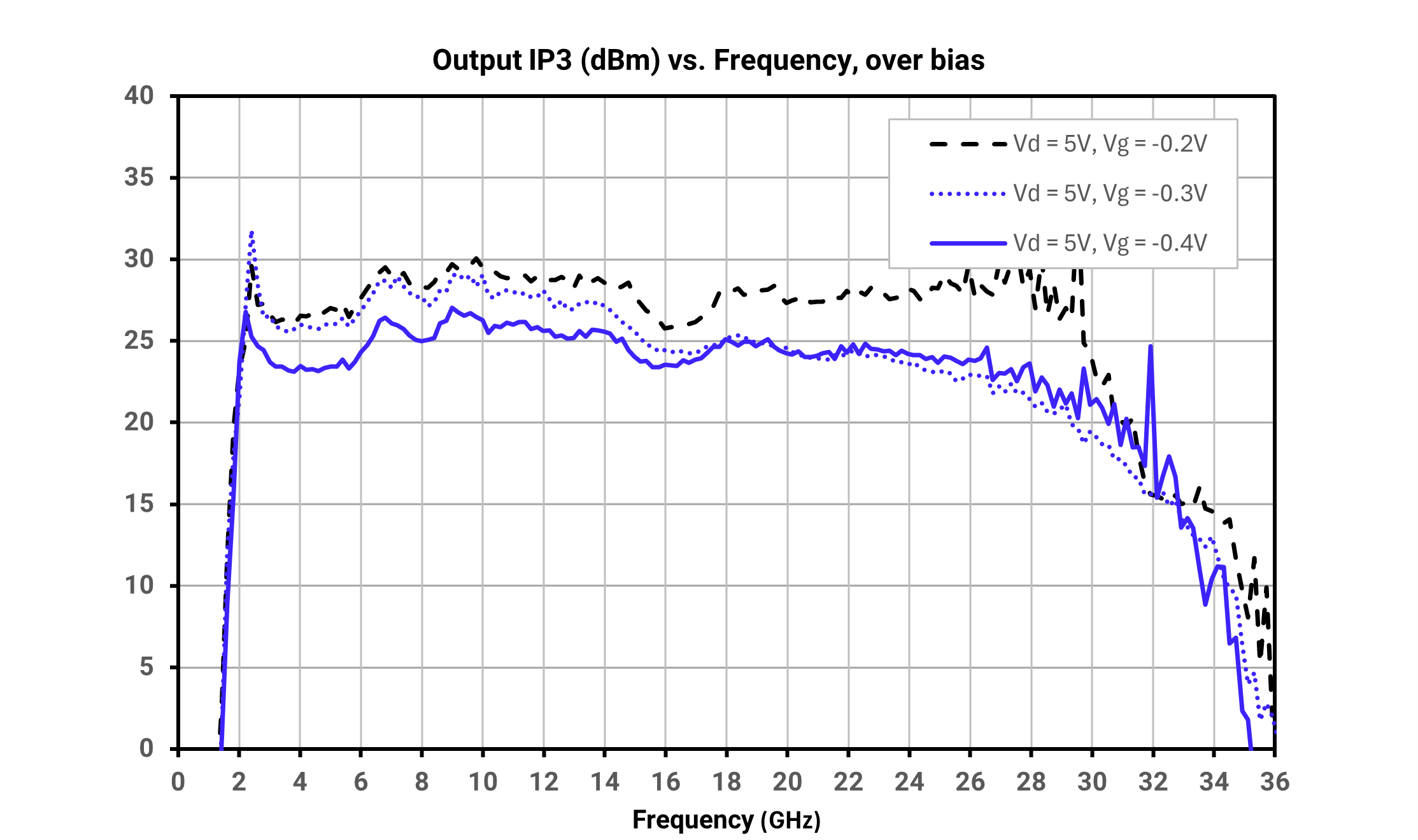

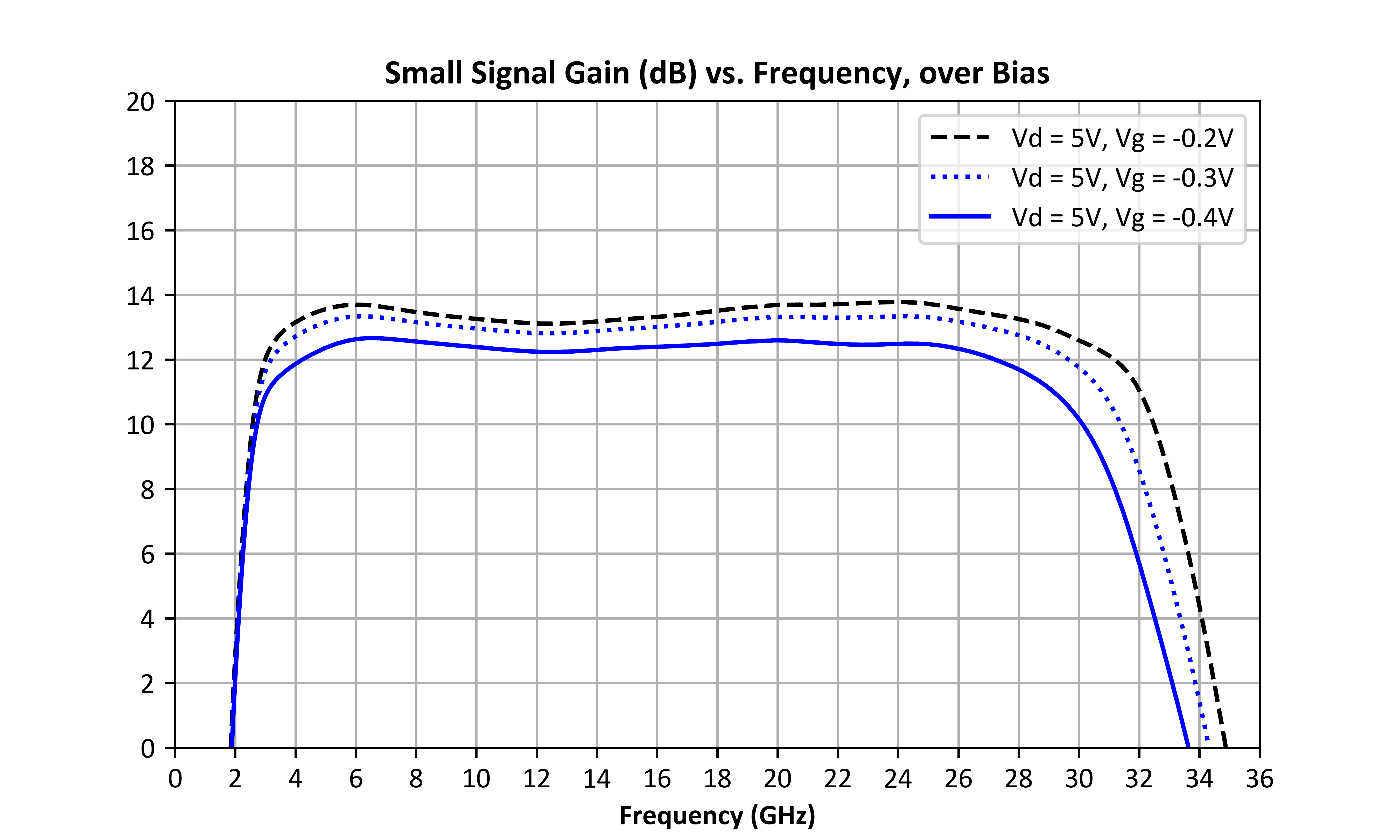

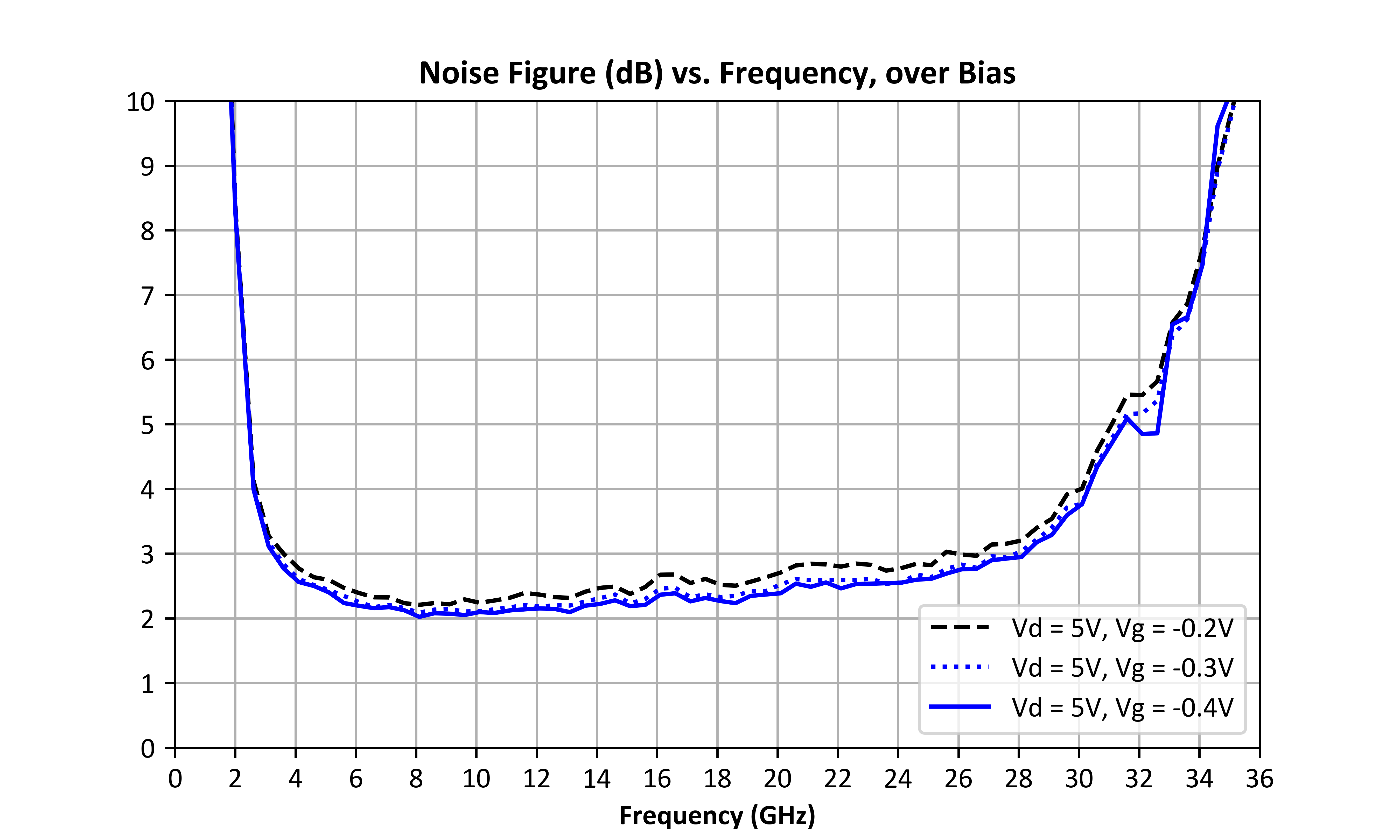

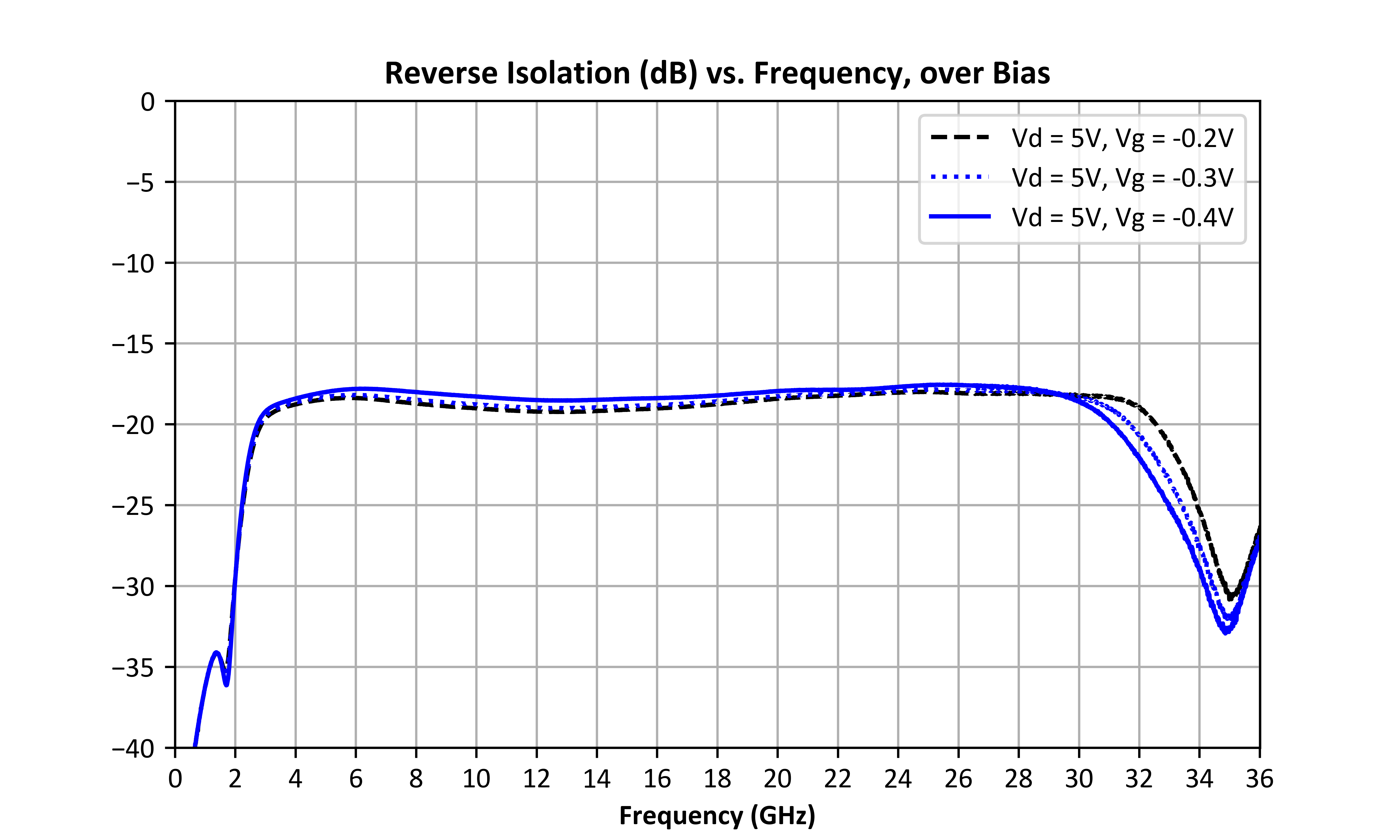

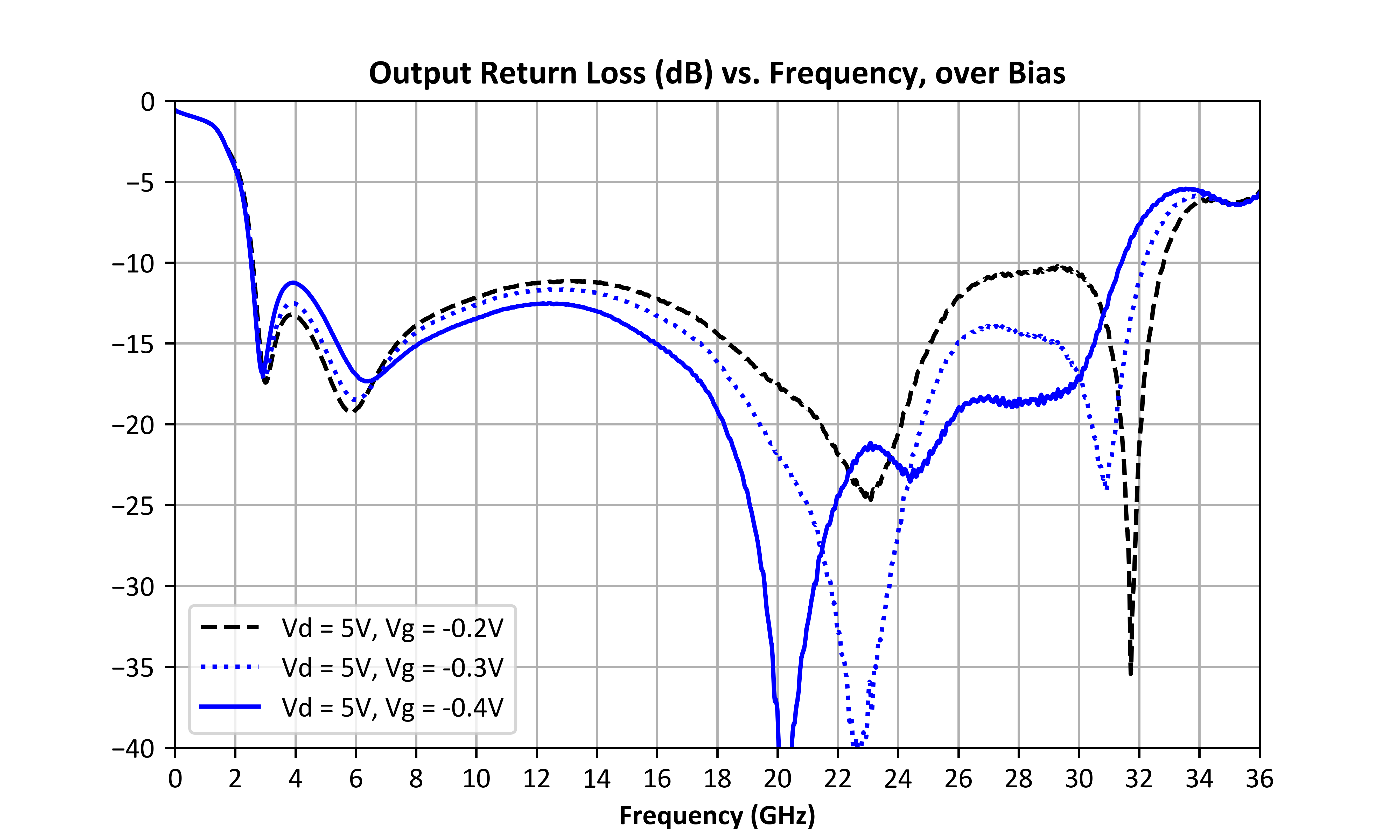

Typical Performance Plots (vs Bias)
%20vs.%20Frequency,%20over%20Bias.png)
%20vs.%20Frequency,%20over%20Bias.png)
%20vs.%20Frequency,%20over%20Bias.png)
%20vs.%20Frequency,%20over%20Bias.png)
%20vs.%20Frequency,%20over%20Bias.png)
AMM-9860PSM
3 - 30 GHz Wideband Low Noise Amplifier
AMM-9860PSM
3 - 30 GHz Wideband Low Noise Amplifier

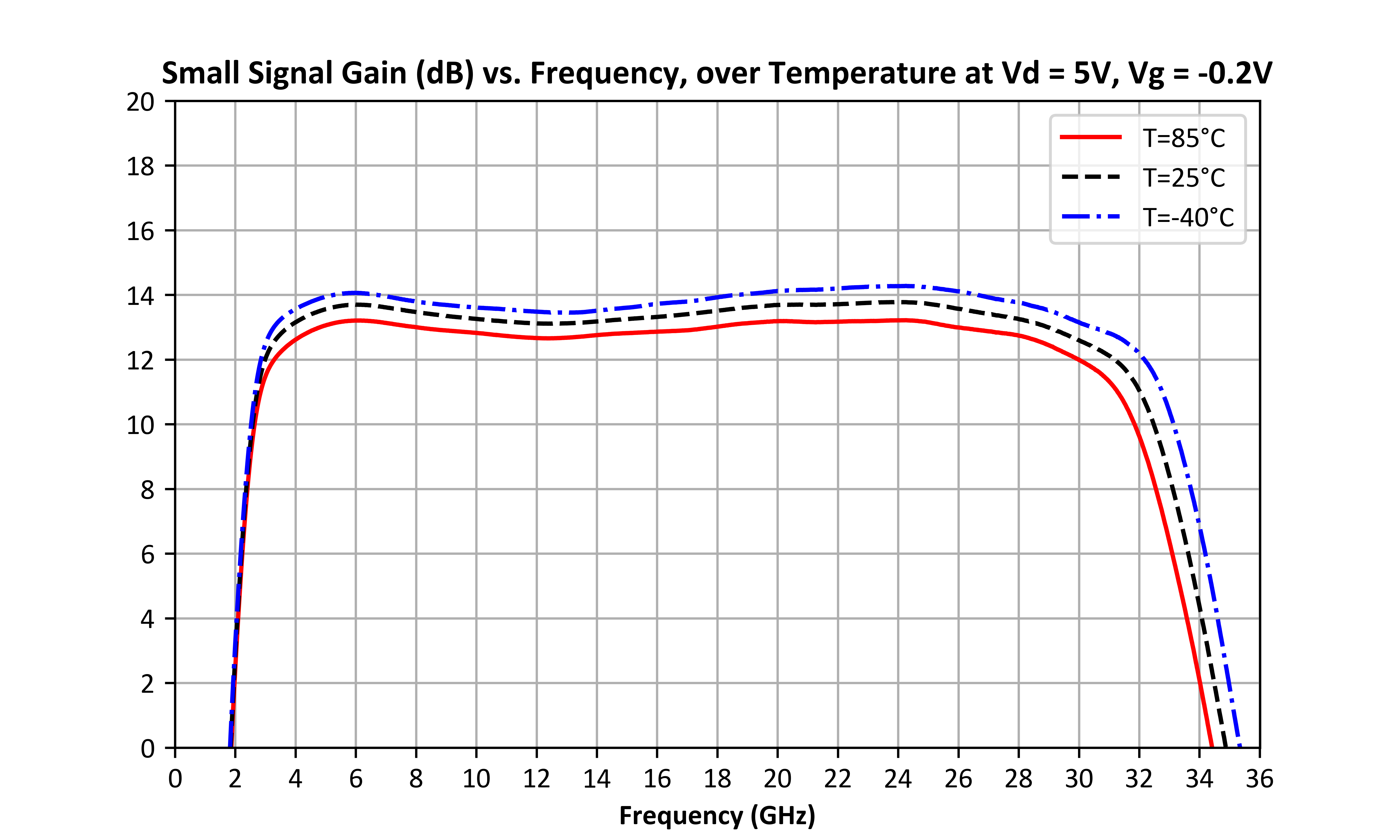

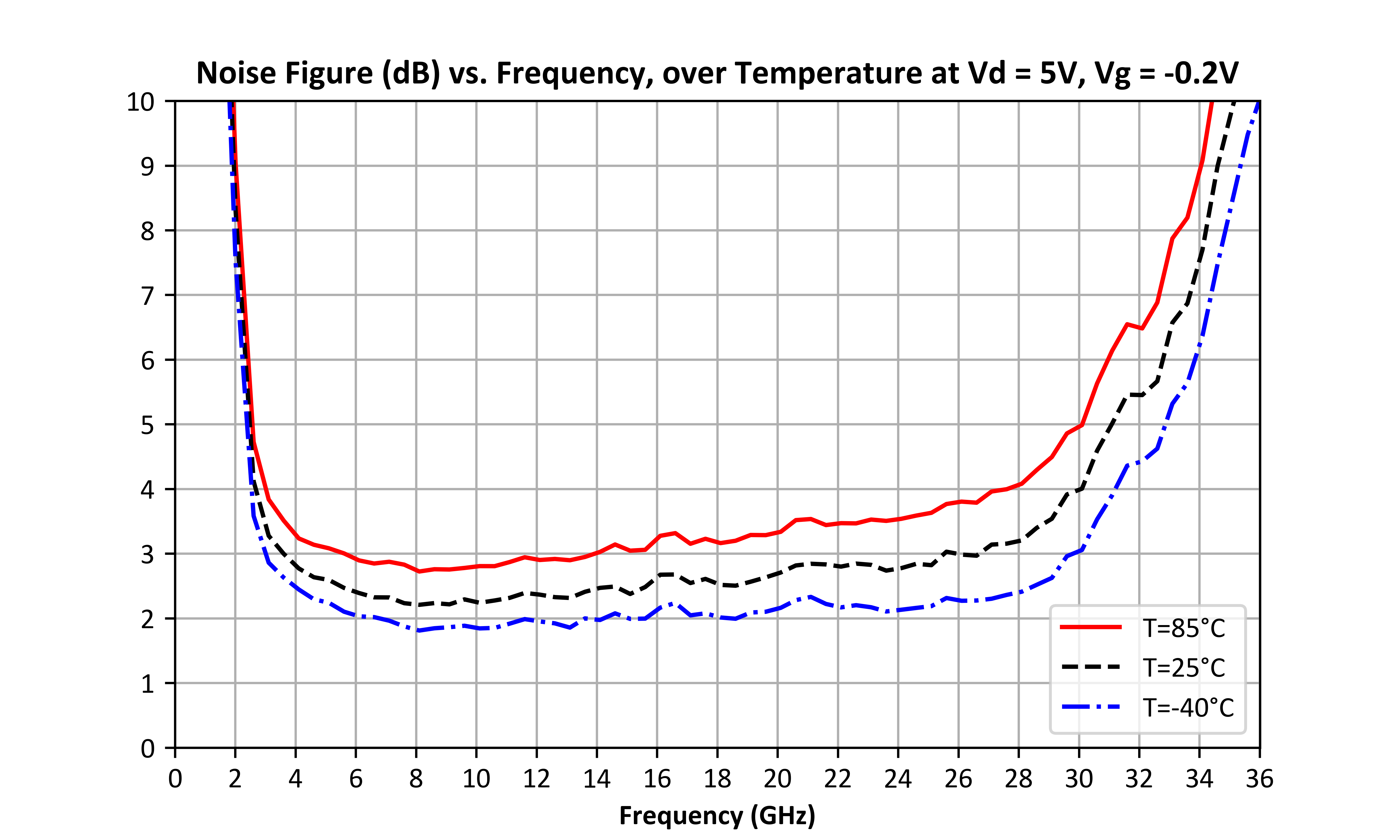

Typical Performance Plots (vs Temperature)
%20vs.%20Frequency,%20over%20Temperature%20at%20Vd%20=%205V,%20Vg%20=%20-0.2V.png)
%20vs.%20Frequency,%20over%20Temperature%20at%20Vd%20=%205V,%20Vg%20=%20-0.2V.png)
AMM-9860PSM
3 - 30 GHz Wideband Low Noise Amplifier

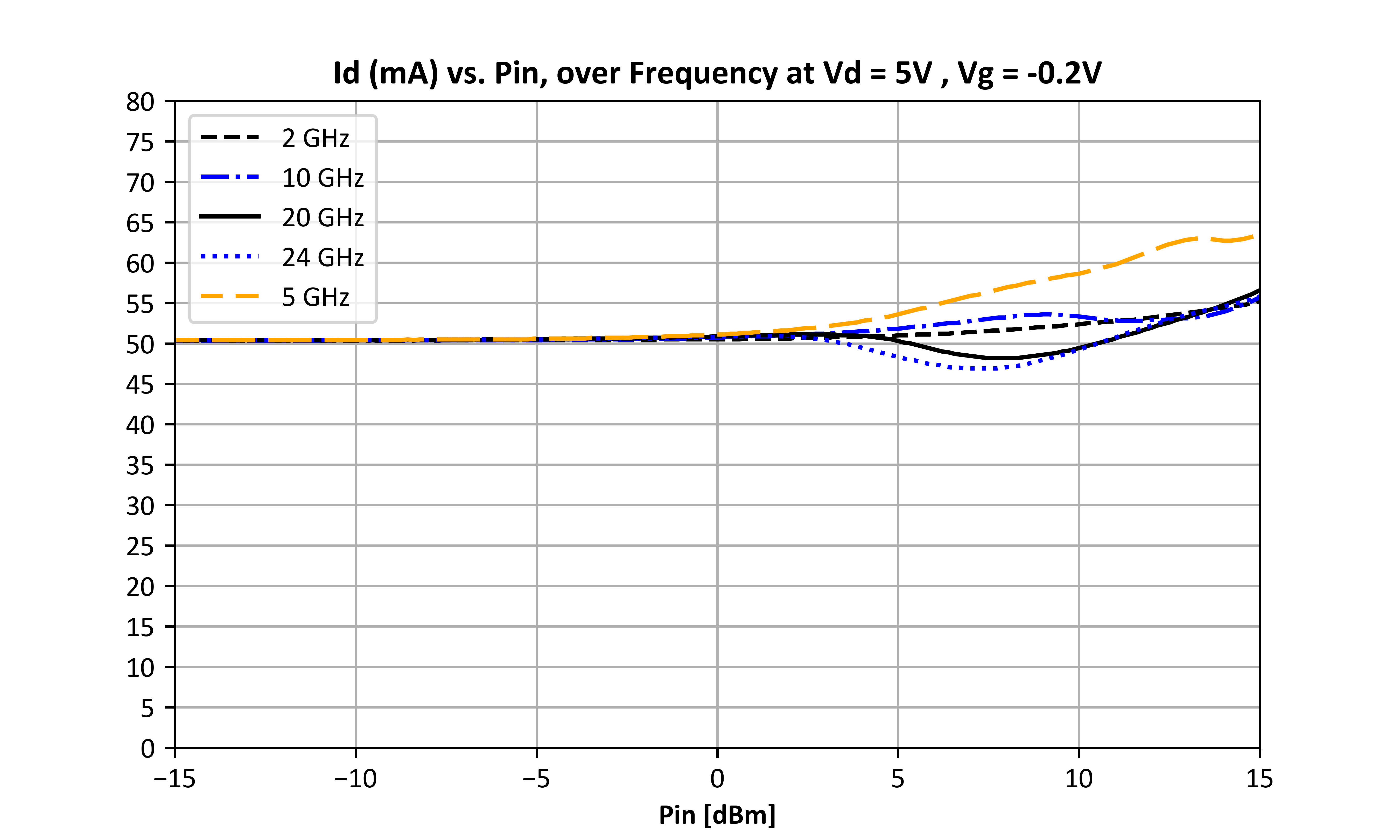

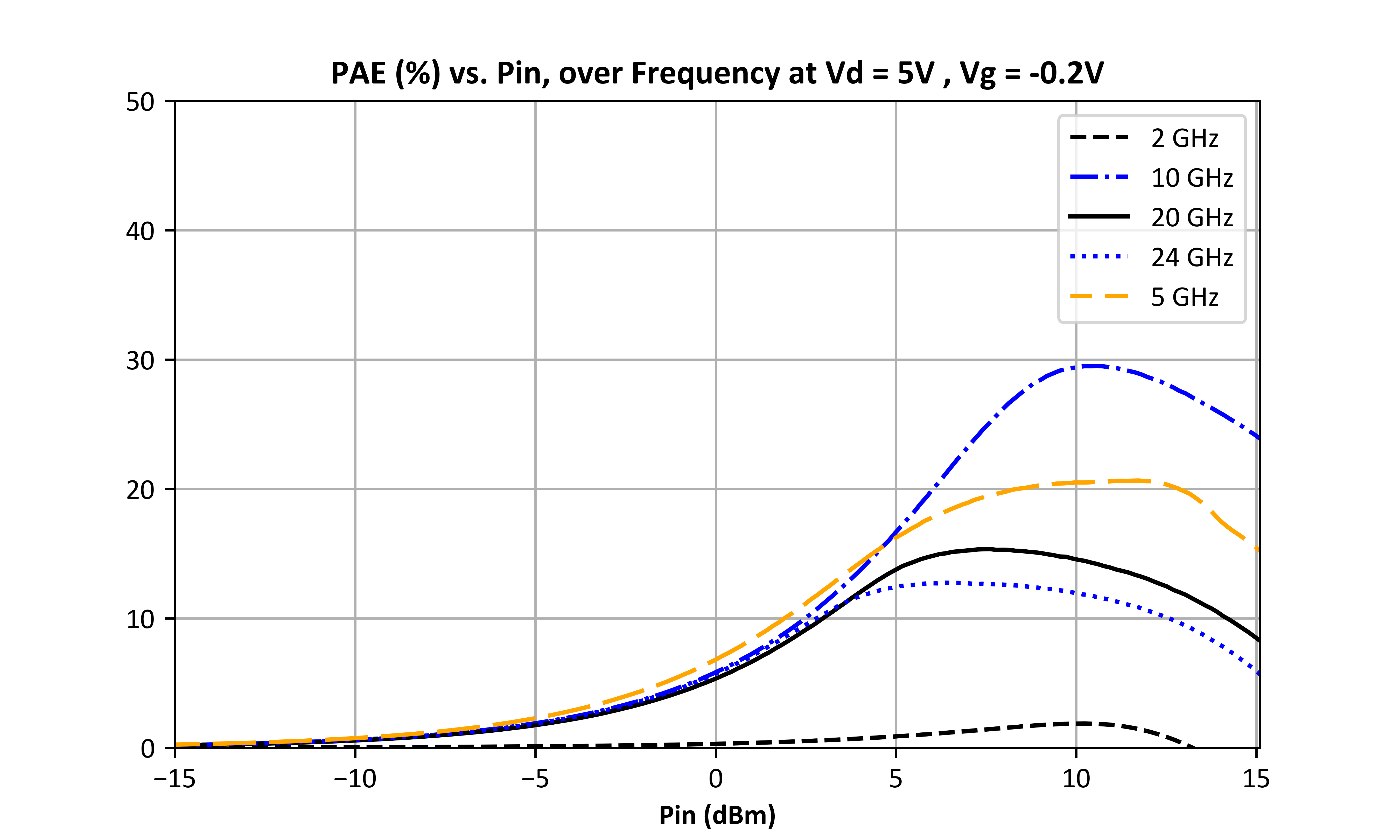

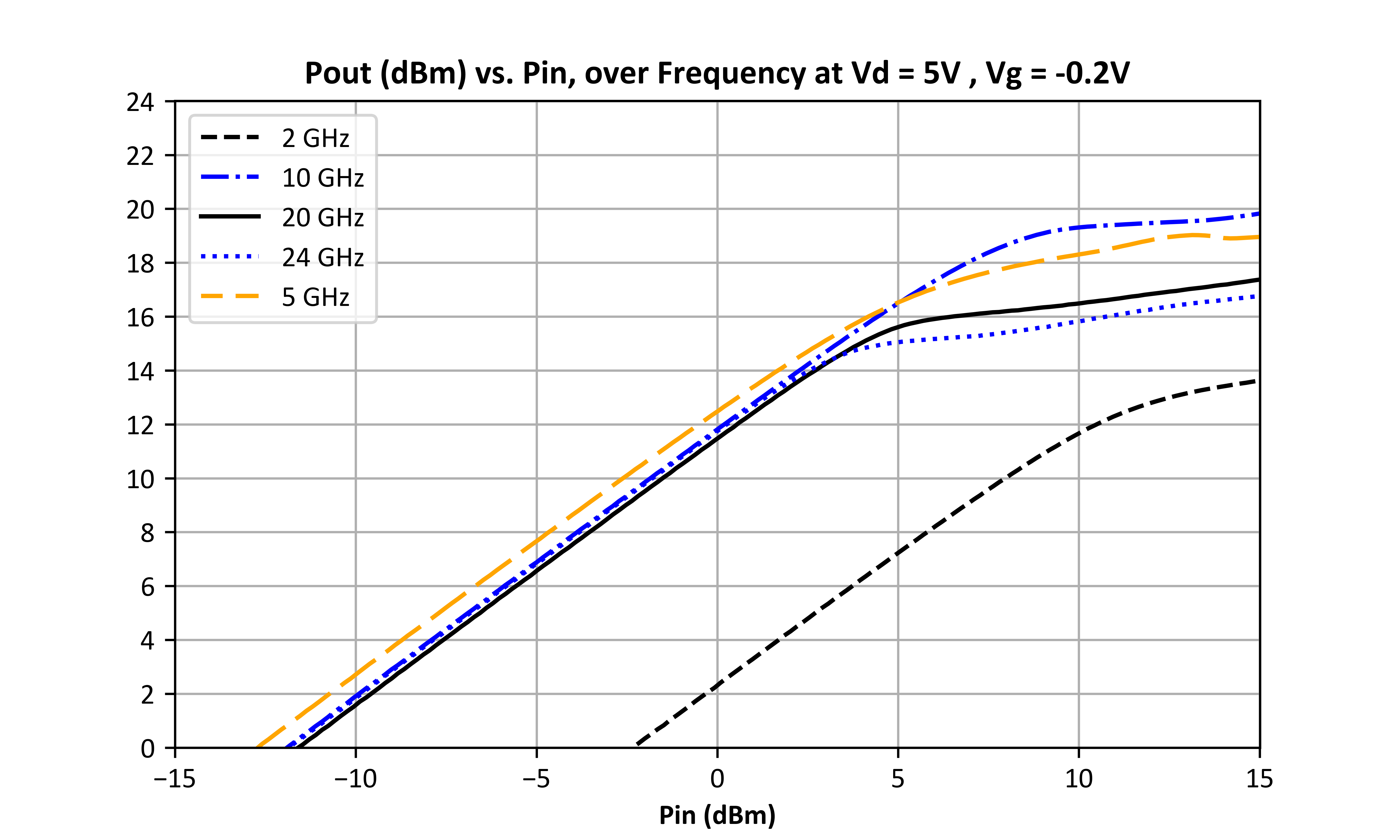

Typical Performance Plots (vs Input Power)
%20vs.%20Pin,%20over%20Frequency%20at%20Vd%20=%205V%20,%20Vg%20=%20-0.2V.png)
%20vs.%20Pin,%20over%20Frequency%20at%20Vd%20=%205V%20,%20Vg%20=%20-0.2V.png)
%20vs.%20Pin,%20over%20Frequency%20at%20Vd%20=%205V%20,%20Vg%20=%20-0.2V.png)
AMM-9860PSM
3 - 30 GHz Wideband Low Noise Amplifier
Application Circuit
AMM-9860PSM
3 - 30 GHz Wideband Low Noise Amplifier
Mechanical Data
AMM-9860PSM
3 - 30 GHz Wideband Low Noise Amplifier
Footprint Image
Download : Footprint Drawing
AMM-9860PSM
3 - 30 GHz Wideband Low Noise Amplifier
Evaluation Board - Outline Drawing
