Port Diagram
A port diagram of the AMM-9854PSM’s QFN package is shown below. The diagram is shown as a top down x-ray view.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The AMM-9854PSM is a wideband low noise amplifier capable of providing 14 dB gain and +25 dBm OIP3 with a low 2.5 dB typical noise figure. The AMM-9854PSM is an ideal linear signal amplifier for applications requiring low power consumption and small form-factors. This amplifier has exceptionally flat response across its entire operating bandwidth.
Features
- Broadband DC to 30GHz Operation
- Low Noise Figure
- Exceptionally Flat RF Performance Across Frequency
- Excellent Return Losses
Applications
- Mobile test and measurement equipment
- Radar and satellite communications
- 5G transceivers
- LO driver for Marki L-, H-, and S-diode mixers
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| AMM-9854PSM | DC - 30 GHz Wideband Low Noise Amplifier | QFN | REACH RoHS | Released | EAR99 |
| EVB-AMM-9854P-1 | Evaluation Board, DC-30GHz GaAs Surface Mount Driver Amplifier | EVB | RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| AMM-9854PSM | DC - 30 GHz Wideband Low Noise Amplifier | QFN | REACH RoHS | Released | EAR99 |
| EVB-AMM-9854P-1 | Evaluation Board, DC-30GHz GaAs Surface Mount Driver Amplifier | EVB | RoHS | Released | EAR99 |
AMM-9854PSM
DC - 30 GHz Wideband Low Noise Amplifier
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Operation
- Mechanical Data
- Footprint Image
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-03-06 | Initial Release |
| A | 2026-02-13 | MTTF Table Added. |
AMM-9854PSM
DC - 30 GHz Wideband Low Noise Amplifier
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | Ground paddle and non-connected pins must be connected to a DC/RF ground potential with high thermal and electrical conductivity, and low inductance. |  |
| Pin 11 | Vd | Pin 11 is the DC bias supply for the amplifier. This pin should be connected to the same supply voltage being used to supply the pin 8 "RF Out / Vd" bias-tee. |  |
| Pin 2 | RF In / Vg | Pin 2 is the RF input of the amplifier and also provides DC bias to the amplifier. This input in internally RF matched to 50 Ohms and requires a bias-tee to a negative DC bias voltage. The bias voltage applied to this pin directly controls the drain current (Id into pin 8) of the amplifier. As the voltage on this pin becomes more negative, drain current decreases. Voltage should be applied to pin 2 before pin 11 "Vd" and pin 8 "RF Out/Vd". See the section on Sequencing Requirements for more details. Current Ig will flow out of this port. The -Vg supply should be capable of sinking current up to 30mA. |  |
| Pin 8 | RF Out / Vd | Pin 8 is the RF output and primary DC power supply of the amplifier. This pin is internally RF matched to 50 ohms and requires an external bias-tee connected to a positive DC supply voltage. Voltage should be applied to pin 2 "RF In/Vg" before applying voltage to pin 8 and pin 11. See the section on Sequencing Requirements for more details. | |
| Pins 1,3,4,5,6,7,9,10,12 | Non-connect (NC) | These pins are not internally connected to the amplifier die. It is recommended to connect these pins to ground to provide RF isolation and mechanical stability. See the recommended landing pattern for details. Datasheet performance was measured with these pins connected to GND. | - |
AMM-9854PSM
DC - 30 GHz Wideband Low Noise Amplifier
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime. This amplifier is designed and characterized in a 50Ω system, and operation in a reflective environment can cause performance degradation.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Drain-to-Gate Voltage Differential (Vd-Vg) | 6.7 | V |
| Maximum Operating Temperature | 85 | °C |
| Maximum Storage Temperature | 150 | °C |
| Max Junction Temperature for MTTF > 1E6 hours | 175 | °C |
| Minimum Operating Temperature | -40 | °C |
| Minimum Storage Temperature | -65 | °C |
| Negative Bias Voltage (Pin 2) | -2 | V |
| Positive Drain Supply Current (with RF Input) | 80 | mA |
| Positive Drain Supply Voltage (Pin 8, 11) | 8 | V |
| RF Input Power | 10 | dBm |
| Thermal Resistance, θJC | 120 | ºC/W |
FIT and MTTF Table
| T (°C) | λ (TIF) | MTTF (hr) | MTTF (yr) |
|---|---|---|---|
| 105 | 2,441.45 | 4.10E+05 | 47 |
| 85 | 310.48 | 3.22E+06 | 368 |
| 55 | 8.79 | 1.14E+08 | 12,992 |
| 25 | 0.12 | 8.24E+09 | 941,063 |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 3 x 3 mm |
| Moisture Sensitivity Level | - | MSL 1 |
Recommended Operating Conditions
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications. Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the Electrical Specifications. For limits, above which damage may occur, see Absolute Maximum Ratings .
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Gate Bias DC Voltage | -0.4 | -0.2 | -0.2 | V |
| Power Supply DC Voltage | 5 | 5 | 5 | V |
| Ambient Temperature | -40 | 25 | 85 | °C |
| Power Supply DC Current | 40 | 67 | 67 | mA |
| Gate DC Current (Ig) | -17.2 | -16 | -16 | mA |
AMM-9854PSM
DC - 30 GHz Wideband Low Noise Amplifier
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. QFNs are 100% RF tested.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Saturated Output Power | - | 2 | 20 | - | 19 | - | dBm |
| Saturated Output Power | - | 2 | 24 | - | 17 | - | dBm |
| Current Consumption 1 | 5V/-0.2V bias | - | - | - | 67 | - | mA |
| Gate Current, Ig 2 | 5V/-0.2V bias | - | - | - | -16 | - | mA |
| Input Return Loss | 5V/-0.2V bias, -20 dBm Input Power | 0 | 30 | - | 14 | - | dB |
| Noise Figure | 5V/-0.2V bias, -20 dBm Input Power | 0 | 30 | - | 2.5 | - | dB |
| Output IP3 | 5V/-0.2V bias, -20 dBm Input Power | 0 | 30 | - | 25 | - | dBm |
| Output P1dB | 5V/-0.2V bias | 0 | 16 | - | 17 | - | dBm |
| Output P1dB | 5V/-0.2V bias | 16 | 30 | - | 14 | - | dBm |
| Output Return Loss | 5V/-0.2V bias, -20 dBm Input Power | 0 | 30 | - | 18 | - | dB |
| Reverse Isolation | 5V/-0.2V bias, -20 dBm Input Power | 0 | 30 | - | 18 | - | dB |
| Small Signal Gain | 5V/-0.2V bias, -20 dBm Input Power | 0 | 30 | - | 14 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Saturated Output Power | - | 2 | 20 | - | 19 | - | dBm |
| Saturated Output Power | - | 2 | 24 | - | 17 | - | dBm |
| Current Consumption 1 | 5V/-0.2V bias | - | - | - | 67 | - | mA |
| Gate Current, Ig 2 | 5V/-0.2V bias | - | - | - | -16 | - | mA |
| Input Return Loss | 5V/-0.2V bias, -20 dBm Input Power | 0 | 30 | - | 14 | - | dB |
| Noise Figure | 5V/-0.2V bias, -20 dBm Input Power | 0 | 30 | - | 2.5 | - | dB |
| Output IP3 | 5V/-0.2V bias, -20 dBm Input Power | 0 | 30 | - | 25 | - | dBm |
| Output P1dB | 5V/-0.2V bias | 0 | 16 | - | 17 | - | dBm |
| Output P1dB | 5V/-0.2V bias | 16 | 30 | - | 14 | - | dBm |
| Output Return Loss | 5V/-0.2V bias, -20 dBm Input Power | 0 | 30 | - | 18 | - | dB |
| Reverse Isolation | 5V/-0.2V bias, -20 dBm Input Power | 0 | 30 | - | 18 | - | dB |
| Small Signal Gain | 5V/-0.2V bias, -20 dBm Input Power | 0 | 30 | - | 14 | - | dB |
[1] Bias conditions for Id tested with no RF input power. Bias conditions presented as Vd/Vg.
[2] Gate current Ig is shown as a negative value representing it's direction of flow out of Pin 2 when -Vg is applied.
AMM-9854PSM
DC - 30 GHz Wideband Low Noise Amplifier
Typical Performance Plots (vs Bias)
Measurement data de-embedded using standard evaluation board and external wideband test equipment bias tees.

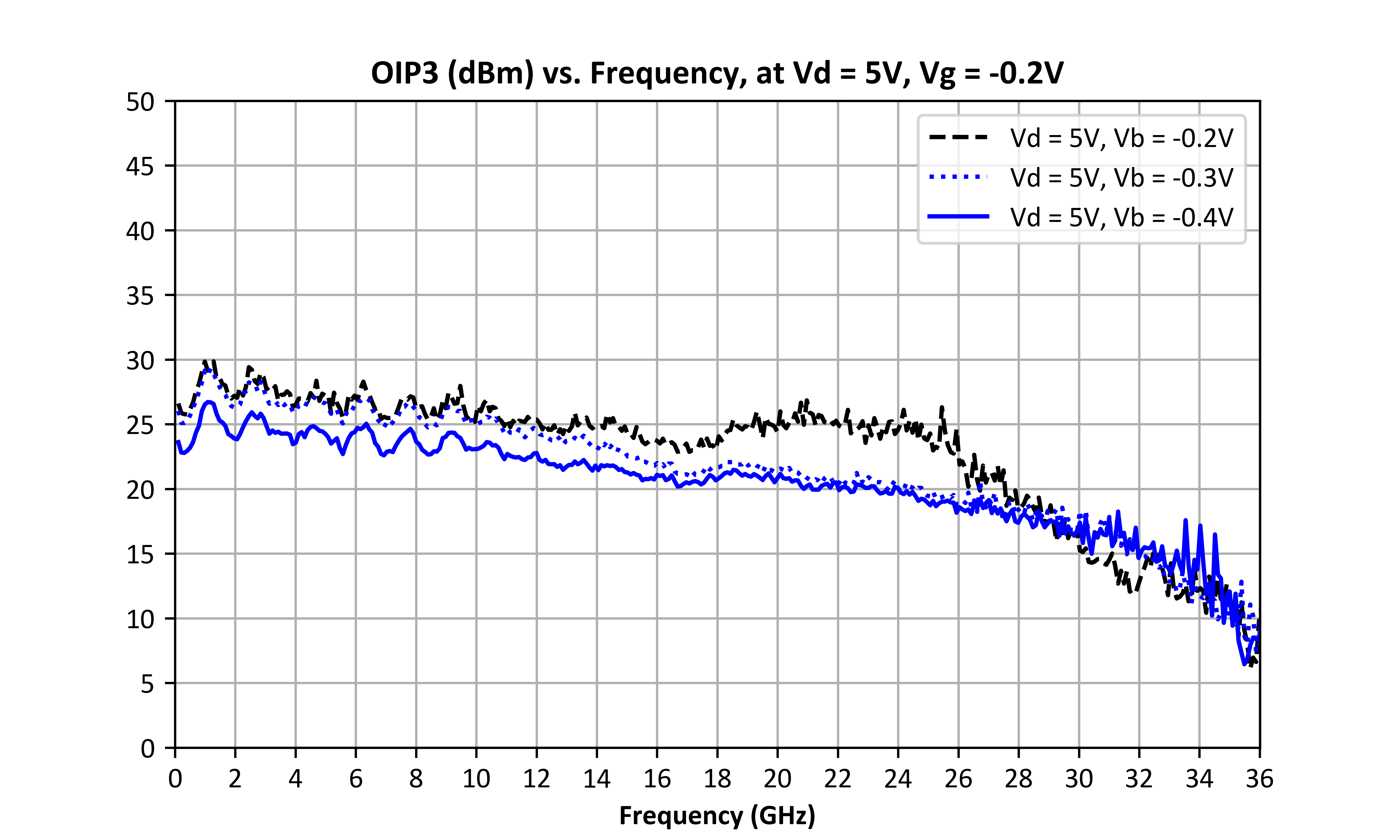

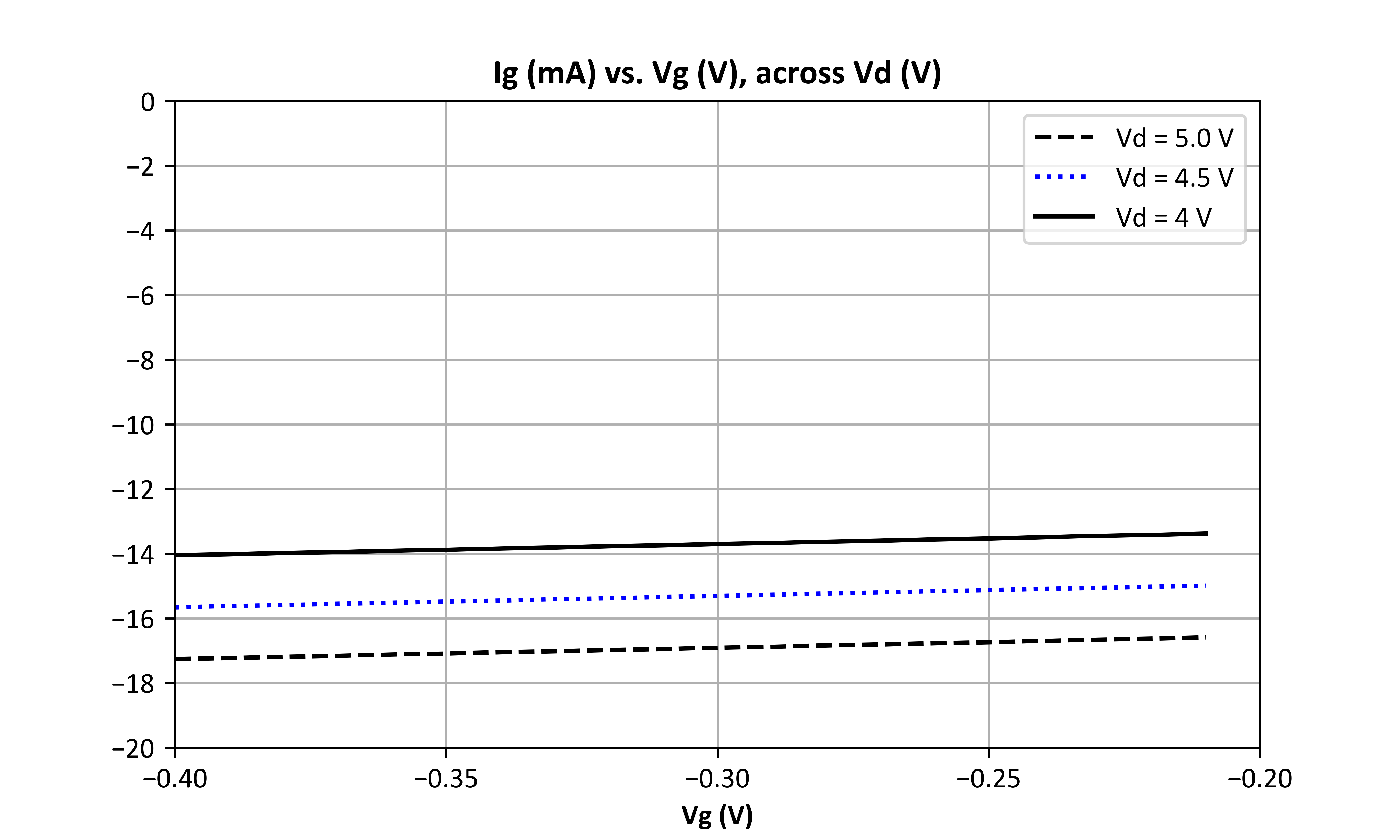

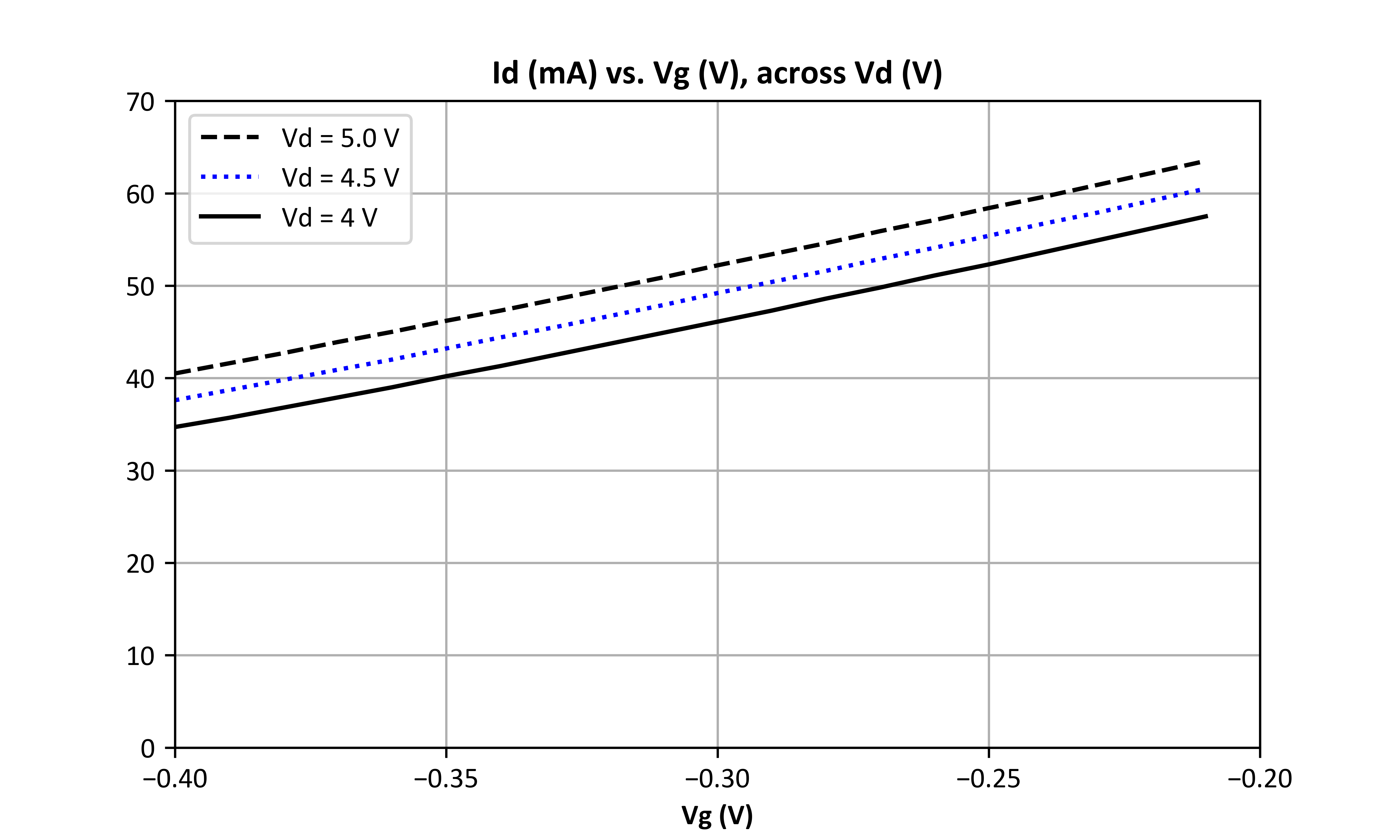

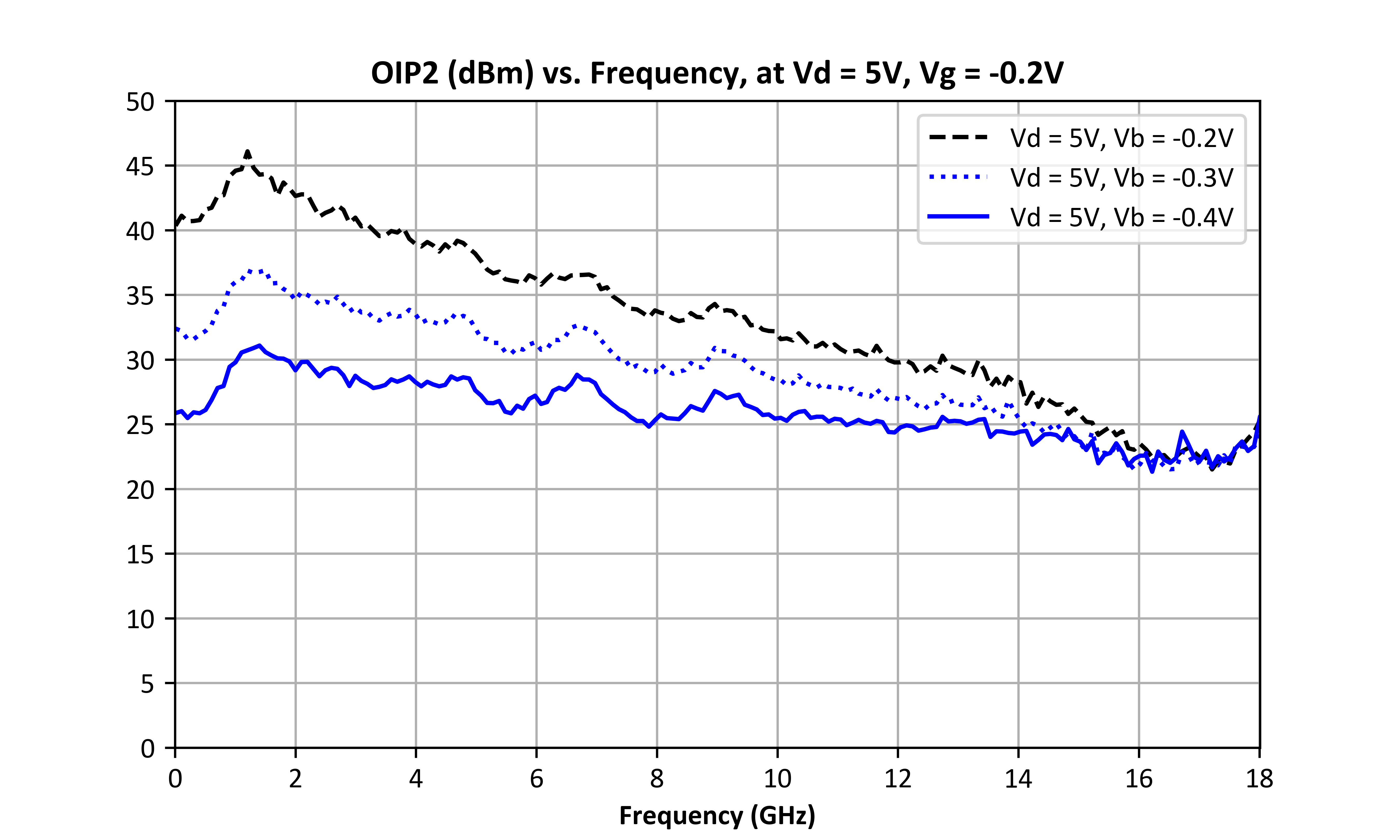

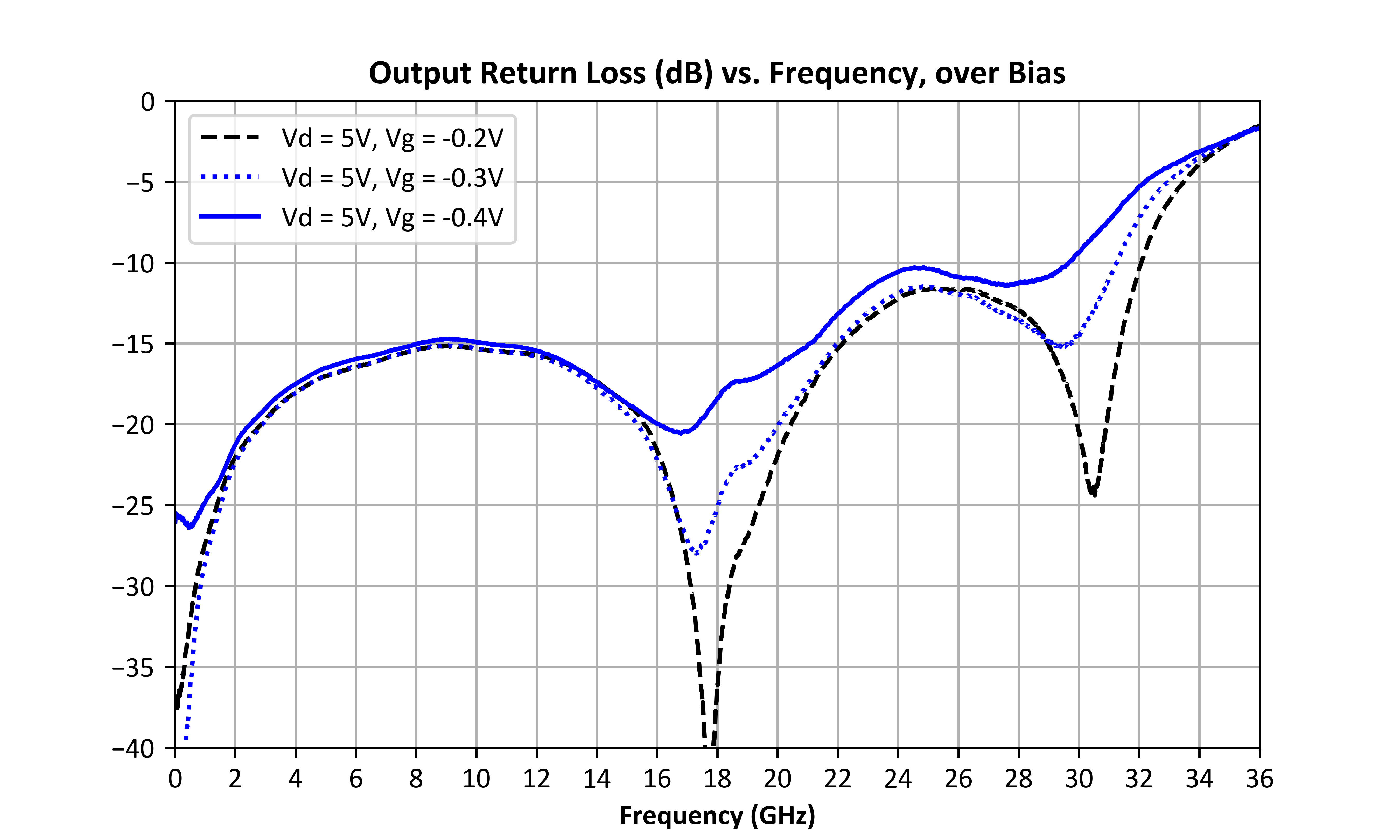

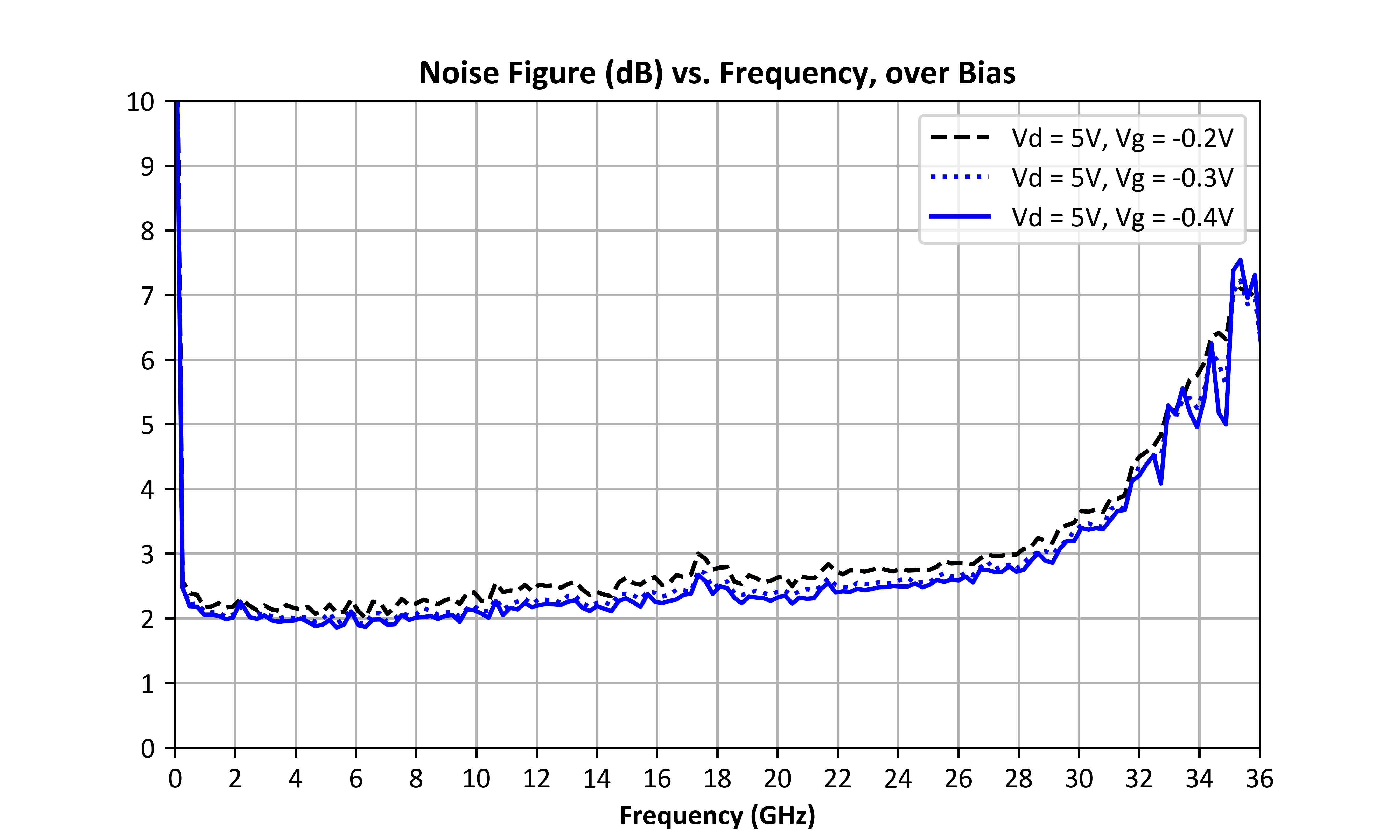

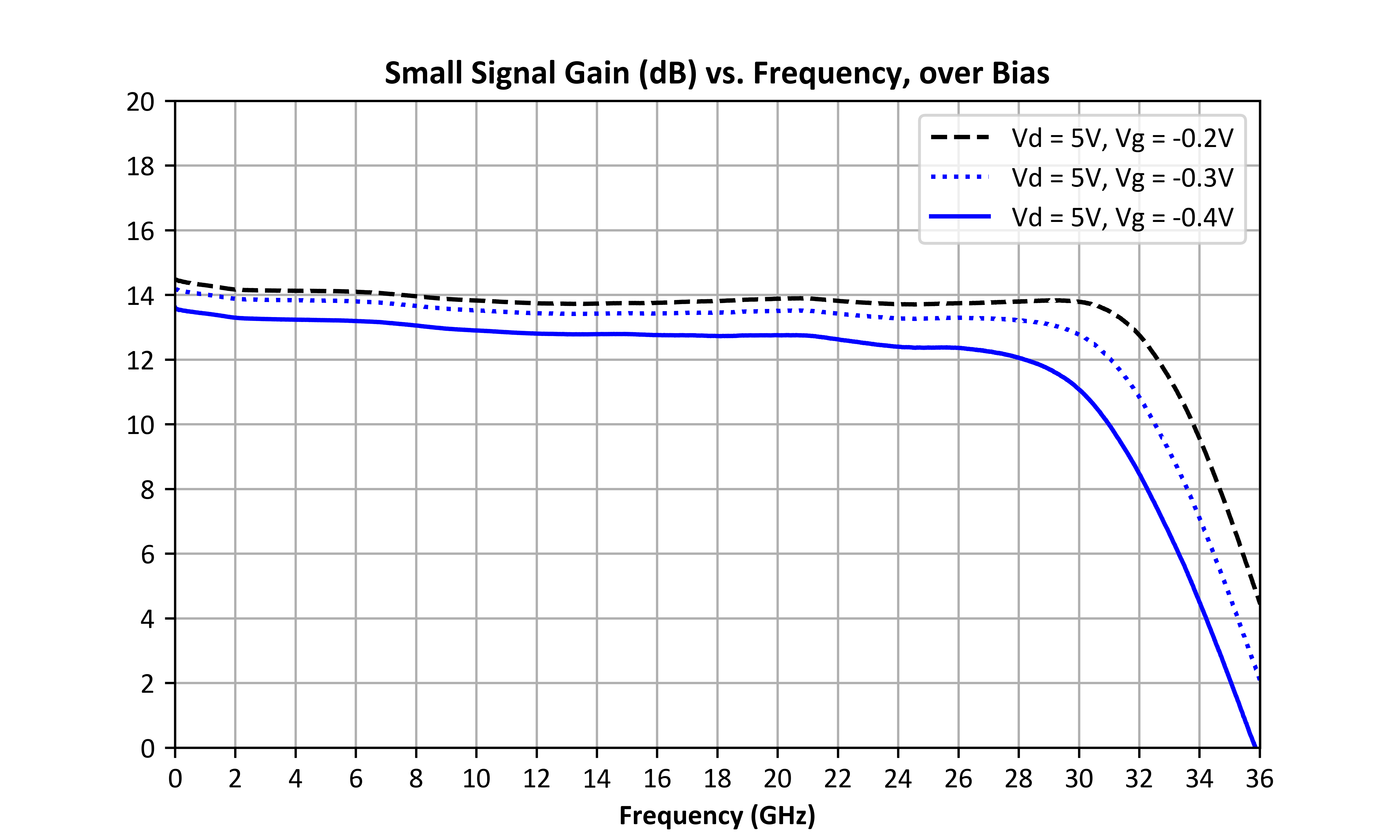

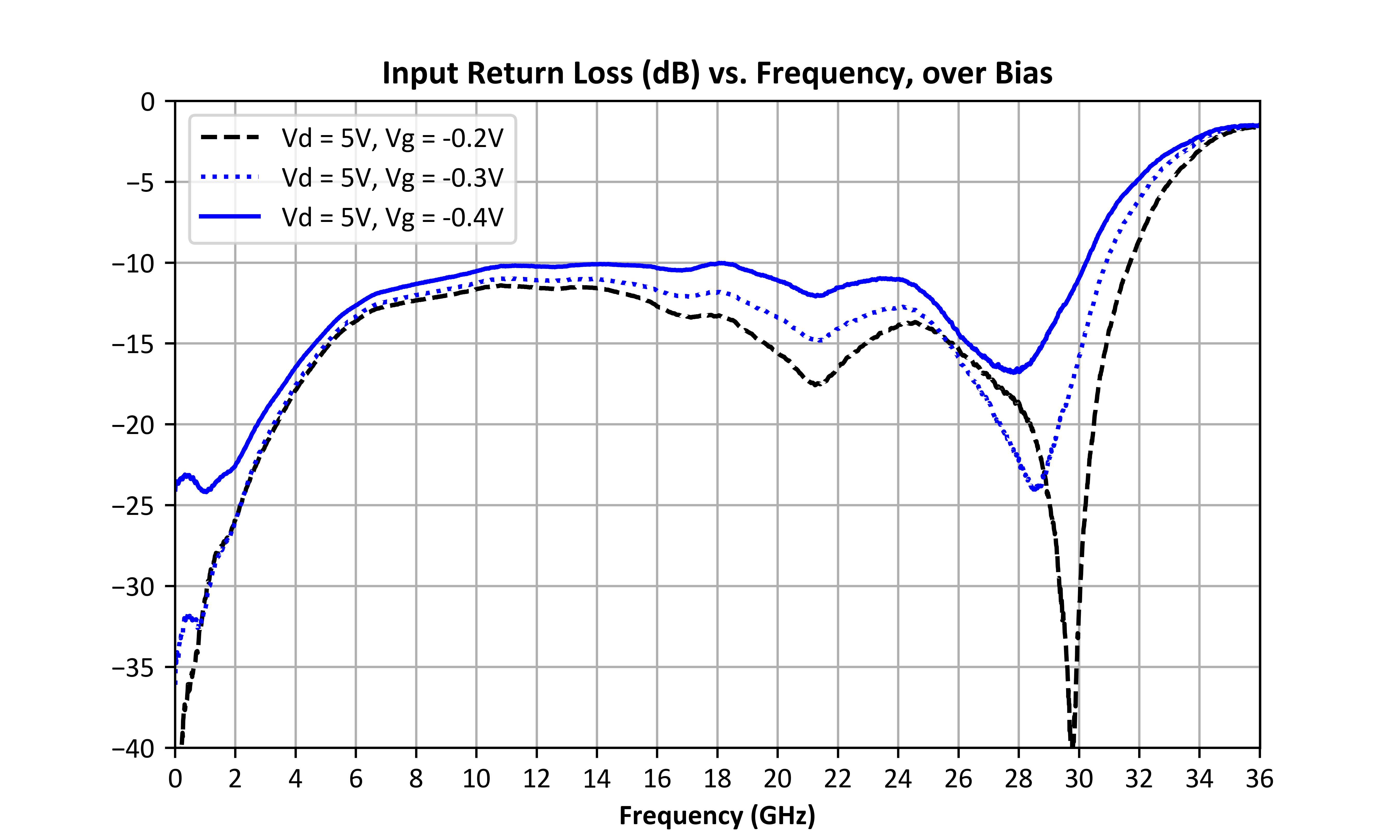

%20vs.%20Frequency,%20over%20Bias.png)
%20vs.%20Frequency,%20over%20Bias.png)
%20vs.%20Frequency,%20over%20Bias.png)
%20vs.%20Frequency,%20over%20Bias.png)

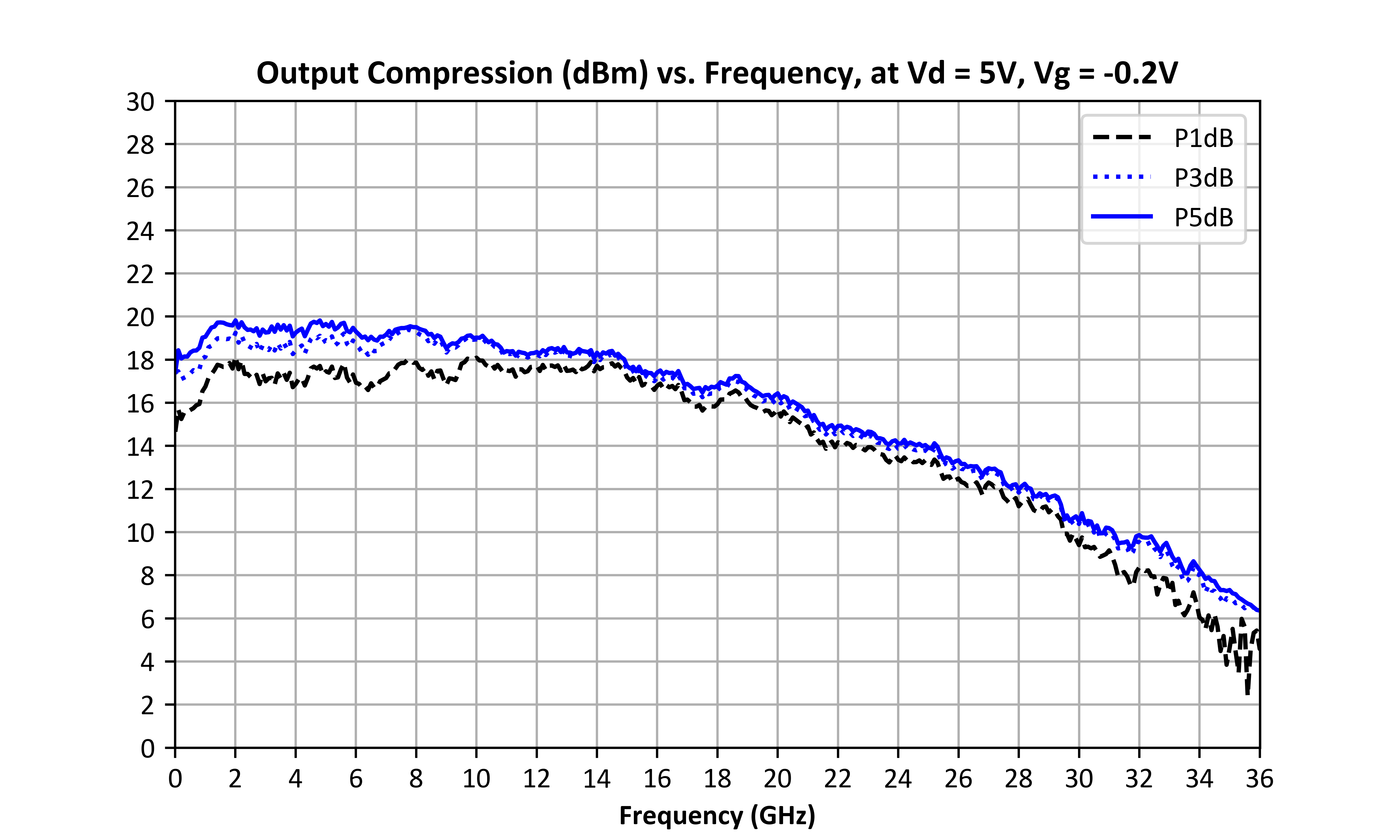

%20vs.%20Frequency,%20at%20Vd%20=%205V,%20Vg%20=%20-0.2V.png)

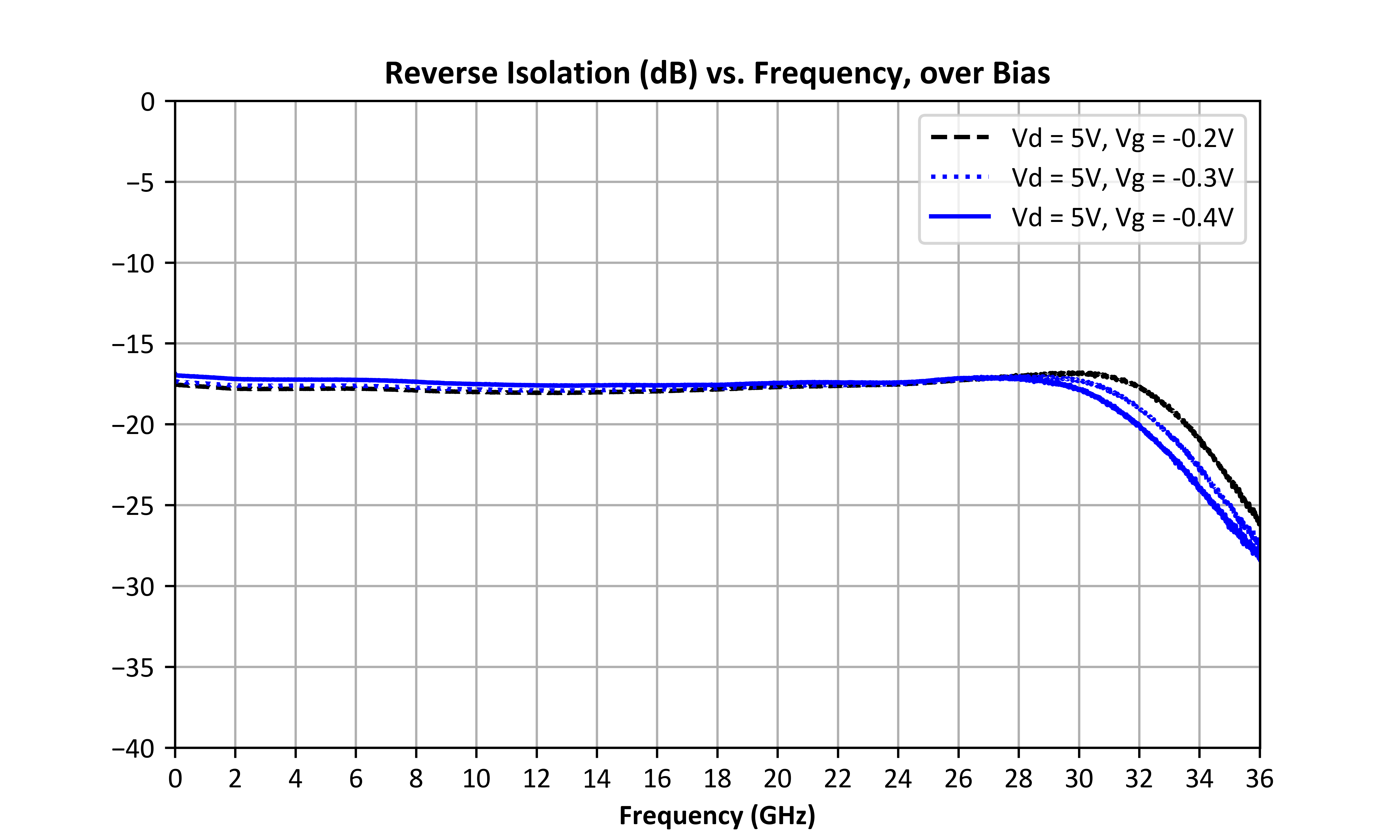

%20vs.%20Frequency,%20over%20Bias.png)
%20vs.%20Frequency,%20at%20Vd%20=%205V,%20Vg%20=%20-0.2V.png)
%20vs.%20Frequency,%20at%20Vd%20=%205V,%20Vg%20=%20-0.2V.png)
AMM-9854PSM
DC - 30 GHz Wideband Low Noise Amplifier
AMM-9854PSM
DC - 30 GHz Wideband Low Noise Amplifier
Typical Performance Plots (vs Temperature)

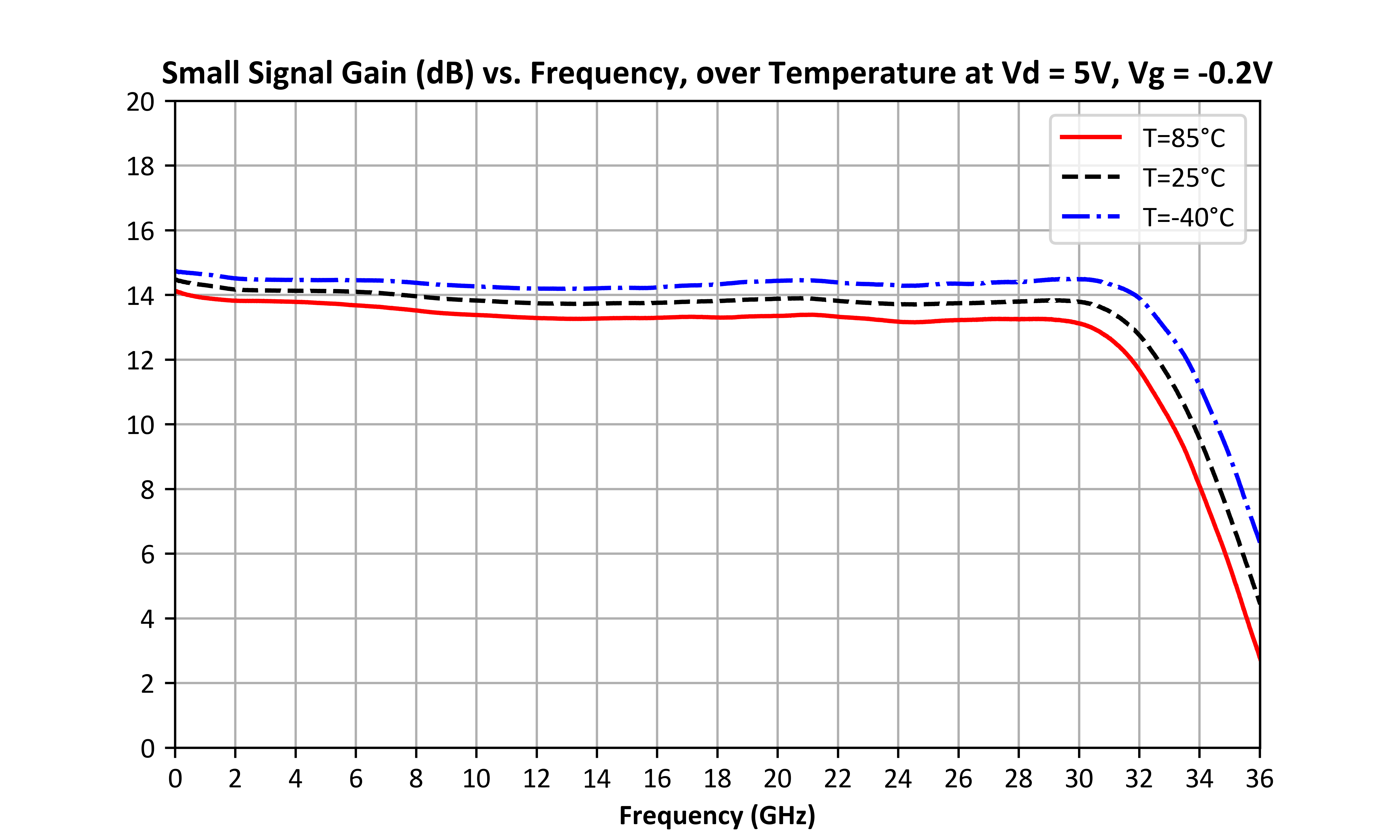

%20vs.%20Frequency,%20over%20Temperature%20at%20Vd%20=%205V,%20Vg%20=%20-0.2V.png)

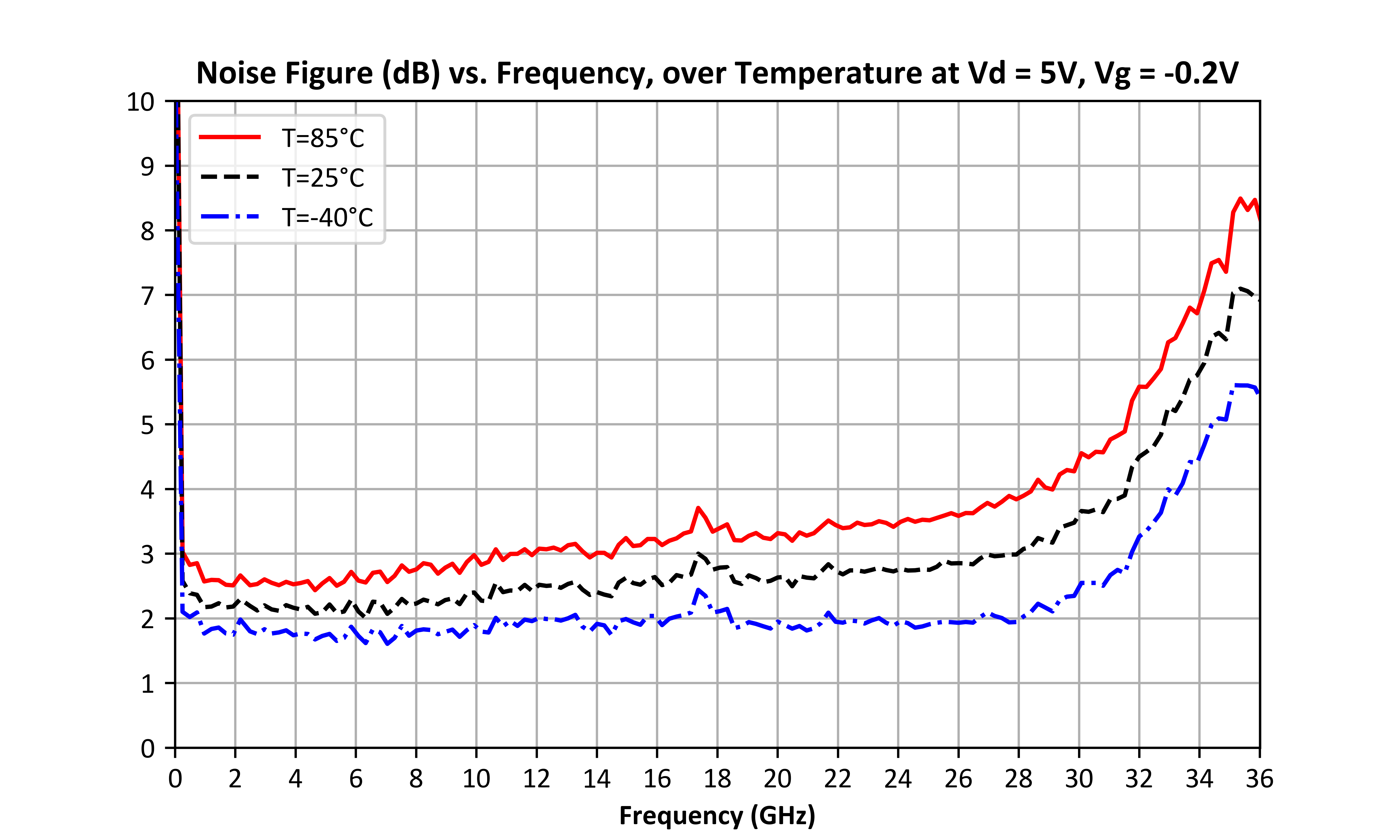

%20vs.%20Frequency,%20over%20Temperature%20at%20Vd%20=%205V,%20Vg%20=%20-0.2V.png)
AMM-9854PSM
DC - 30 GHz Wideband Low Noise Amplifier
Typical Performance Plots (vs Input Power)

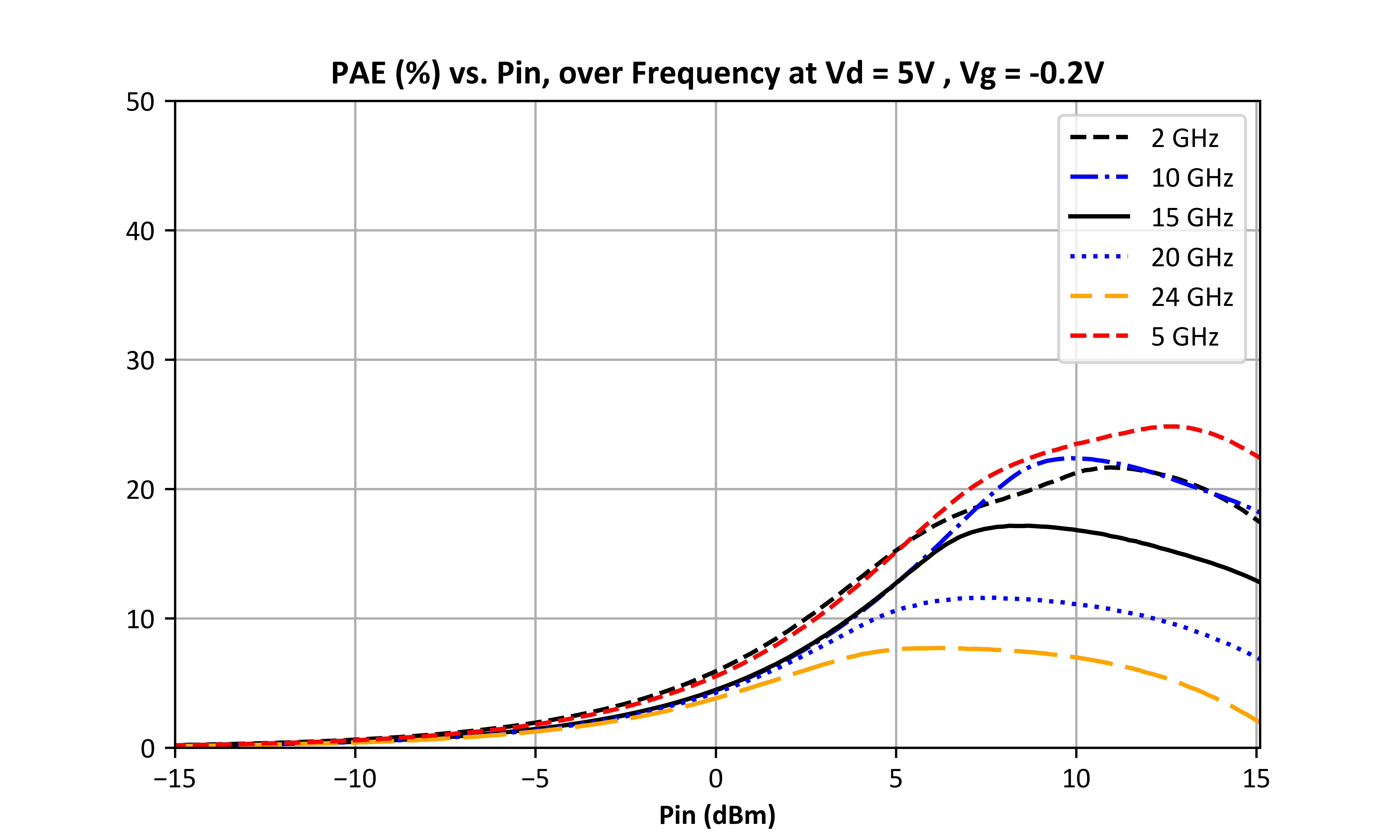

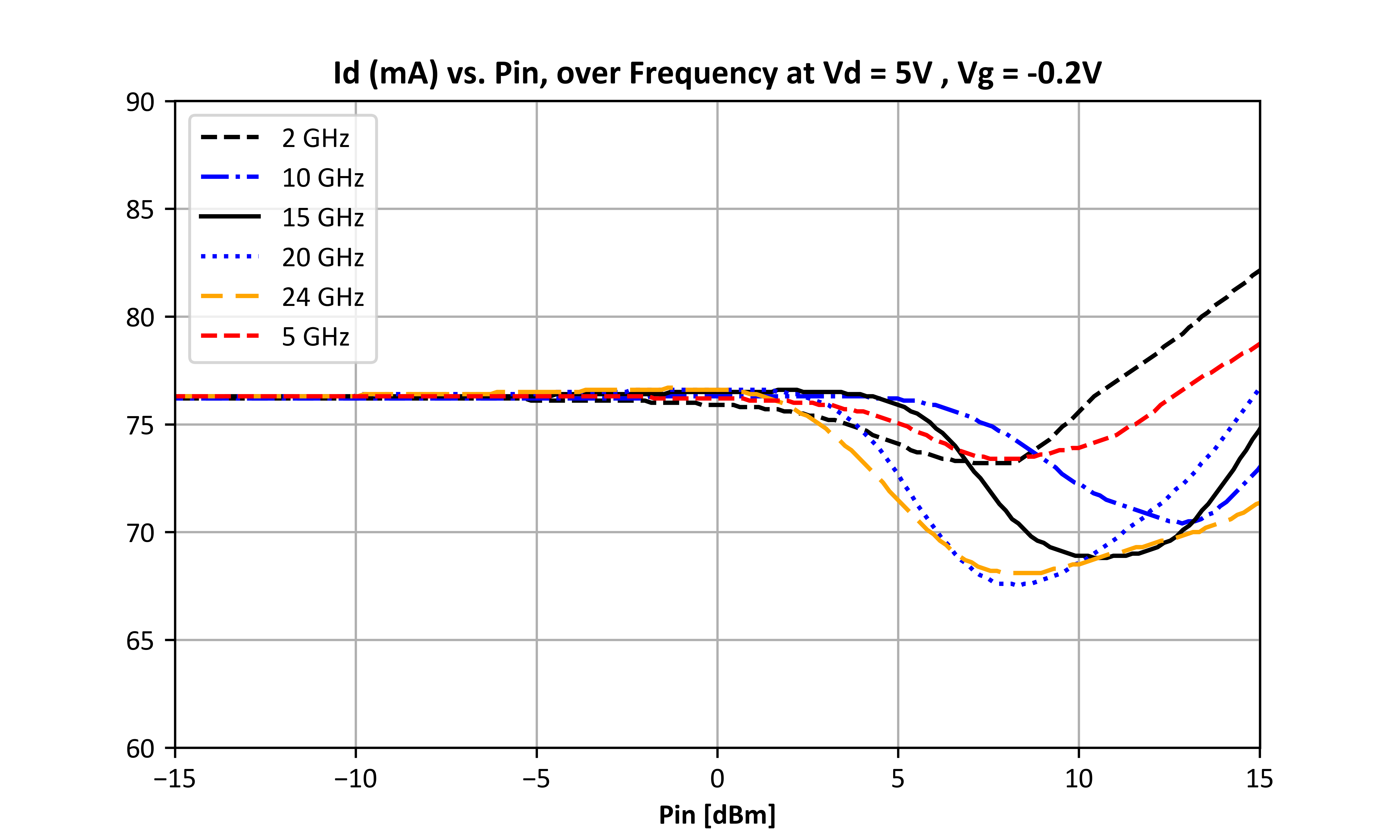

%20vs.%20Pin,%20over%20Frequency%20at%20Vd%20=%205V%20,%20Vg%20=%20-0.2V.png)

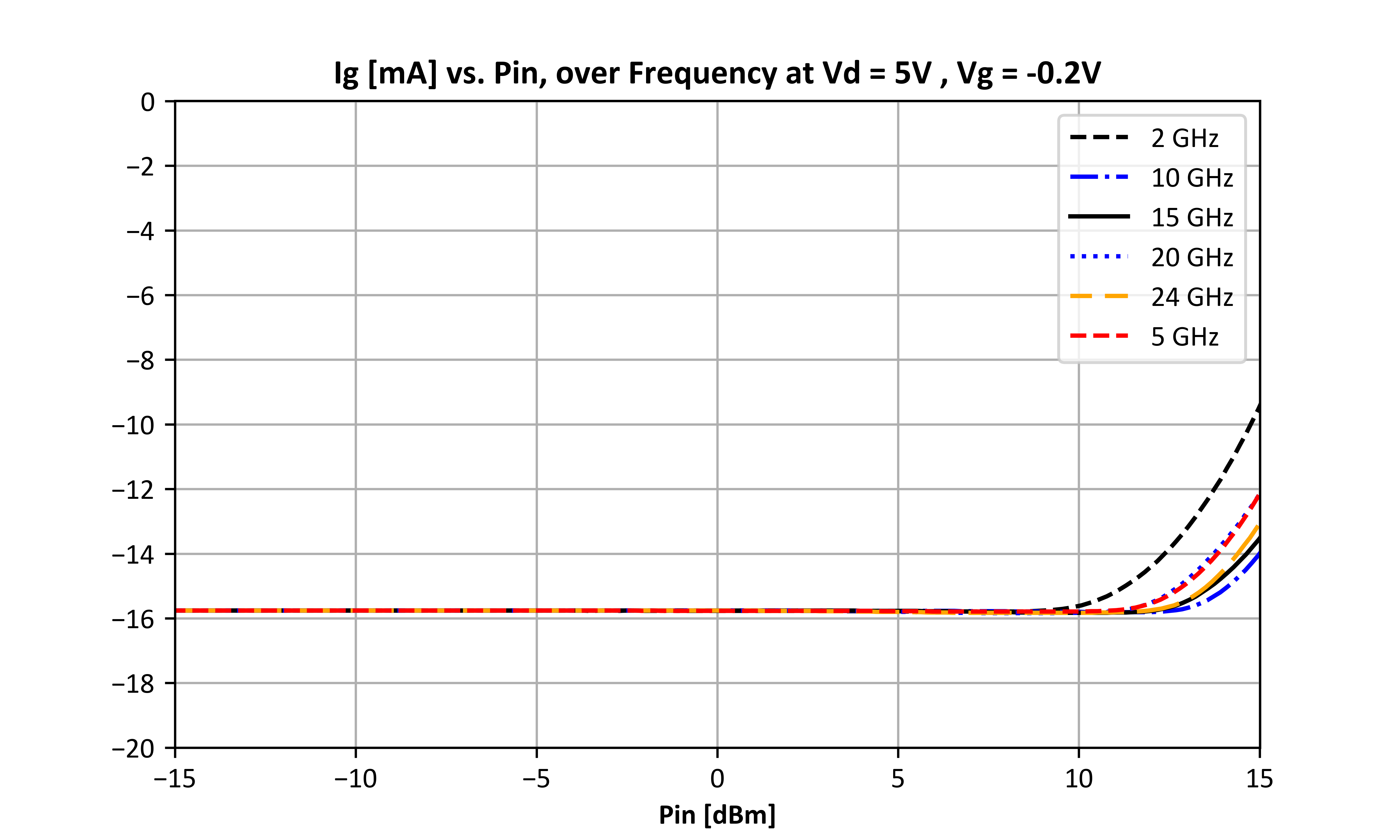

%20vs.%20Pin,%20over%20Frequency%20at%20Vd%20=%205V%20,%20Vg%20=%20-0.2V.png)

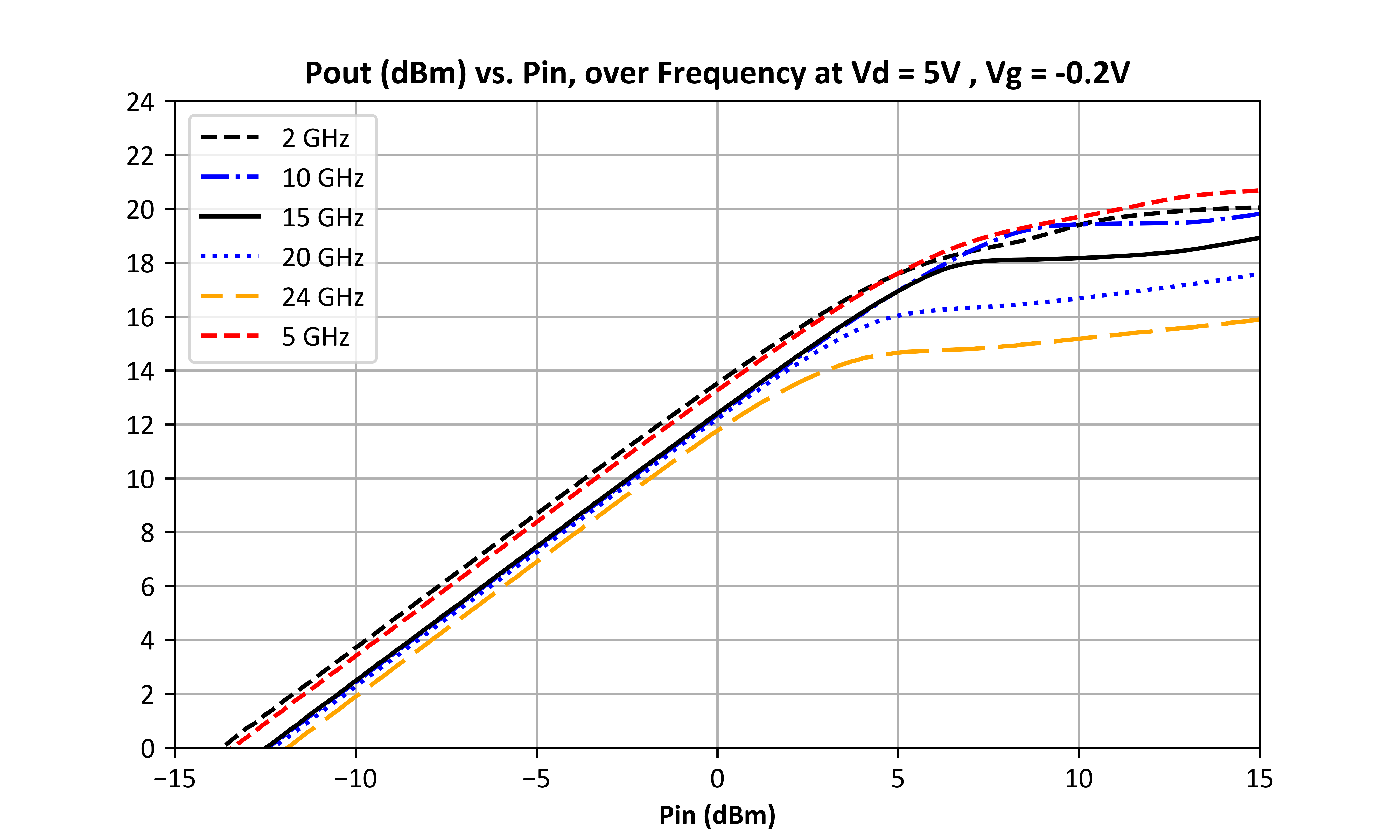

%20vs.%20Pin,%20over%20Frequency%20at%20Vd%20=%205V%20,%20Vg%20=%20-0.2V.png)
AMM-9854PSM
DC - 30 GHz Wideband Low Noise Amplifier
Application Circuit
AMM-9854PSM
DC - 30 GHz Wideband Low Noise Amplifier
Mechanical Data
AMM-9854PSM
DC - 30 GHz Wideband Low Noise Amplifier
Footprint Image
Download : Footprint Drawing
AMM-9854PSM
DC - 30 GHz Wideband Low Noise Amplifier
Evaluation Board - Outline Drawing
