Device Overview

General Description

The AMM-9024PSM is a surface-mount amplifier suitable for use as a single tone driver or general-purpose gain block. This amplifier is optimized for excellent gain flatness in-band. The AMM-9024PSM is packaged in a compact 3mm QFN for surface mount integration onto printed circuit boards

Photo of AMM-9024PSM

Features

  • +11 dB Small Signal Gain
  • +14 dBm saturated output power
  • Excellent gain flatness
  • Compact 3mm QFN package

Applications

  • Mobile test and measurement equipment
  • Radar and satellite communications
  • 5G transceivers
  • LO driver for Marki L-, H-, and S-diode mixers

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageGreen StatusProduct LifecycleExport Classification
AMM-9024PSMDC-50 GHz GaAs Surface Mount Low Noise Amplifier QFN

REACH

RoHS

Released3A001.b.2.d
EVB-AMM-9024PEVB-AMM-9024PEVBReleased-

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2025-11-18Initial Release

Rev: - | Copyright © 2025 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

A port diagram of the AMM-9024PSM’s QFN package is shown below. The diagram is shown as a top down x-ray view.

Diagram of the port configuration for AMM-9024PSM

Rev: - | Copyright © 2025 Marki Microwave LLC.

3

Port Functions

PortFunctionDescriptionDC Equivalent
Circuit
GNDGround Ground paddle and non-connected pins must be connected to a DC/RF ground potential with high thermal and electrical conductivity, and low inductance.Equivalent circuit for the Ground
Pin 11Vd Pin 11 is the DC bias supply for the amplifier. Equivalent circuit for the Vd
Pin 2RF Input Pin 2 is the RF input of the amplifier. This input is internally RF matched to 50 Ohms. Equivalent circuit for the RF Input
Pin 5Vg This pin provides DC bias to the gate of the amplifier. This pin requires a negative bias voltage for normal operation. The drain current Id of the amplifier will be controlled by the voltage applied to this pin. As this voltage becomes more positive, drain current will increase. For normal operation, the voltage on this pin should be set to produce a drain current of 45mA.Equivalent circuit for the Vg
Pin 8RF Output Pin 8 is the RF output. This pin is internally RF matched to 50 ohms. Equivalent circuit for the RF Output

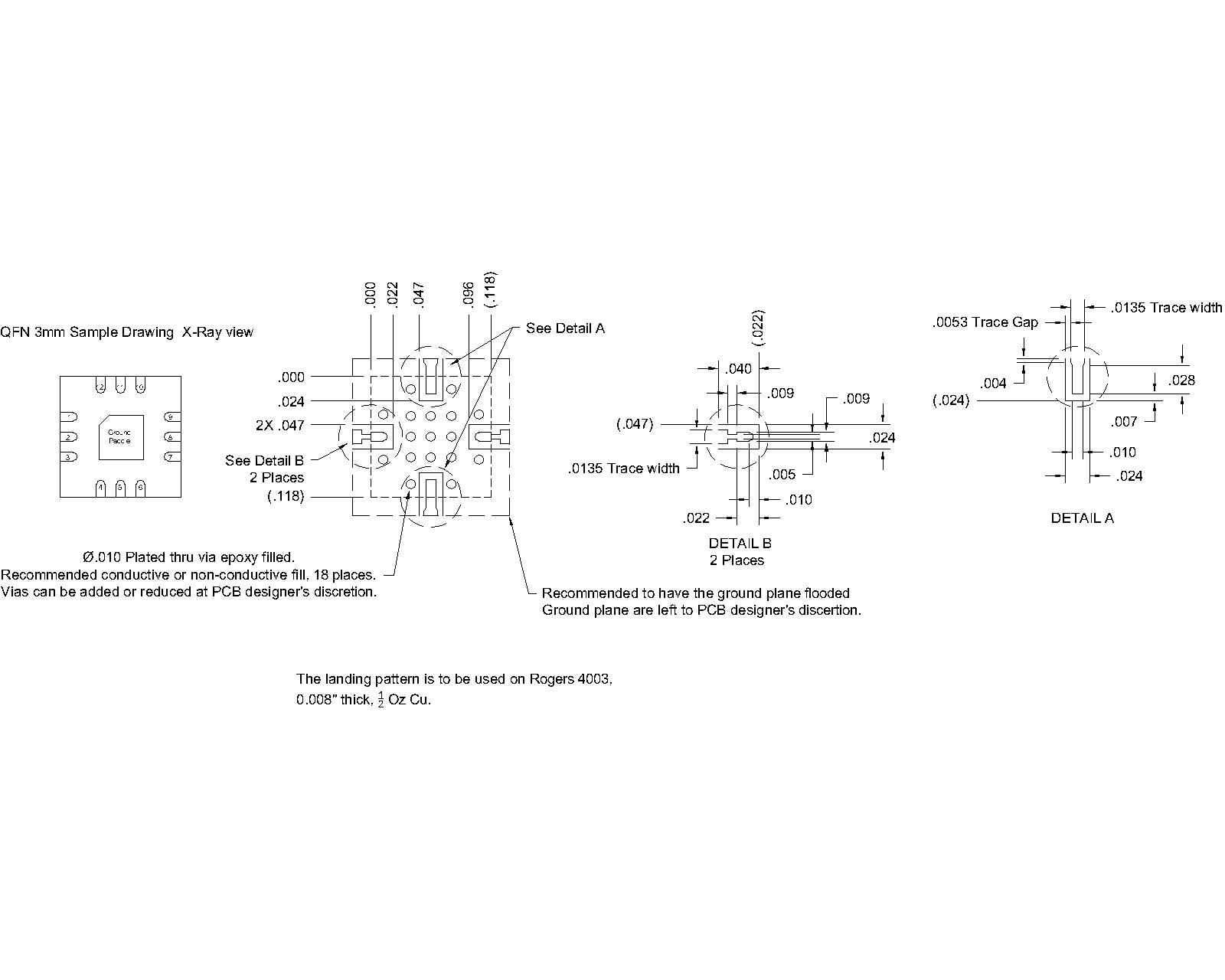

Pins 1,3,4,6,7,9,10,12Non-connect (NC) These pins are not internally connected to the amplifier die. It is recommended to connect these pins to ground to provide RF isolation and mechanical stability. See the recommended landing pattern for details. Datasheet performance was measured with these pins connected to GND. -

Rev: - | Copyright © 2025 Marki Microwave LLC.

4

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime. This amplifier is designed and characterized in a 50Ω system, and operation in a reflective environment can cause performance degradation.

ParameterMaximum RatingUnit
Drain Supply Voltage 7V
Gate Supply Voltage (Vg) -1.5V
Maximum Operating Temperature 85°C
Maximum Storage Temperature 125°C
Max Junction Temperature for MTTF > 1E6 hours 175°C
Minimum Operating Temperature -40°C
Minimum Storage Temperature -65°C
Positive Drain Supply Current (with RF Input) 70mA
RF Input Power 20dBm
Thermal Resistance, θJC 120ºC/W

Package Information

ParameterDetailsRating
Dimensions-3 x 3 mm
Moisture Sensitivity Level-MSL 1

The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications. Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the Electrical Specifications. For limits, above which damage may occur, see Absolute Maximum Ratings .

ParameterMinNominalMaxUnit
Ambient Temperature -402585°C
Power Supply DC Current -45-mA
Power Supply DC Voltage -5-V
Gate Bias DC Voltage --0.25-V

Rev: - | Copyright © 2025 Marki Microwave LLC.

5

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. QFNs are 100% RF tested.

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
Small Signal Gain Vd=5V, Id=45mA, Pin=-20dBm
0 50-11.0-dB
Input Return Loss Vd=5V, Id=45mA, Pin=-20dBm
0 50-21-dB
Output Return Loss Vd=5V, Id=45mA, Pin=-20dBm
0 50-24-dB
Reverse Isolation Vd=5V, Id=45mA, Pin=-20dBm
0 50-48-dB
Saturated Output Power Vd=5V, Id=45mA
0 50-14-dBm
Input P1dB Vd=5V, Id=45mA
0 50-1.5-dBm
Output P1dB Vd=5V, Id=45mA
0 50-11.5-dBm
Input IP3 Vd=5V, Id=45mA, Pin=-18dBm
0 50-12-dBm
Output IP3 Vd=5V, Id=45mA, Pin=-18dBm
0 50-23-dBm
Input IP2 Vd=5V, Id=45mA, Pin=-18dBm
0 50-13-dBm
Output IP2 Vd=5V, Id=45mA, Pin=-18dBm
0 50-24-dBm
Noise Figure Vd=5V, Id=45mA
0 50-3.3-dB

Rev: - | Copyright © 2025 Marki Microwave LLC.

6

Typical Performance Plot

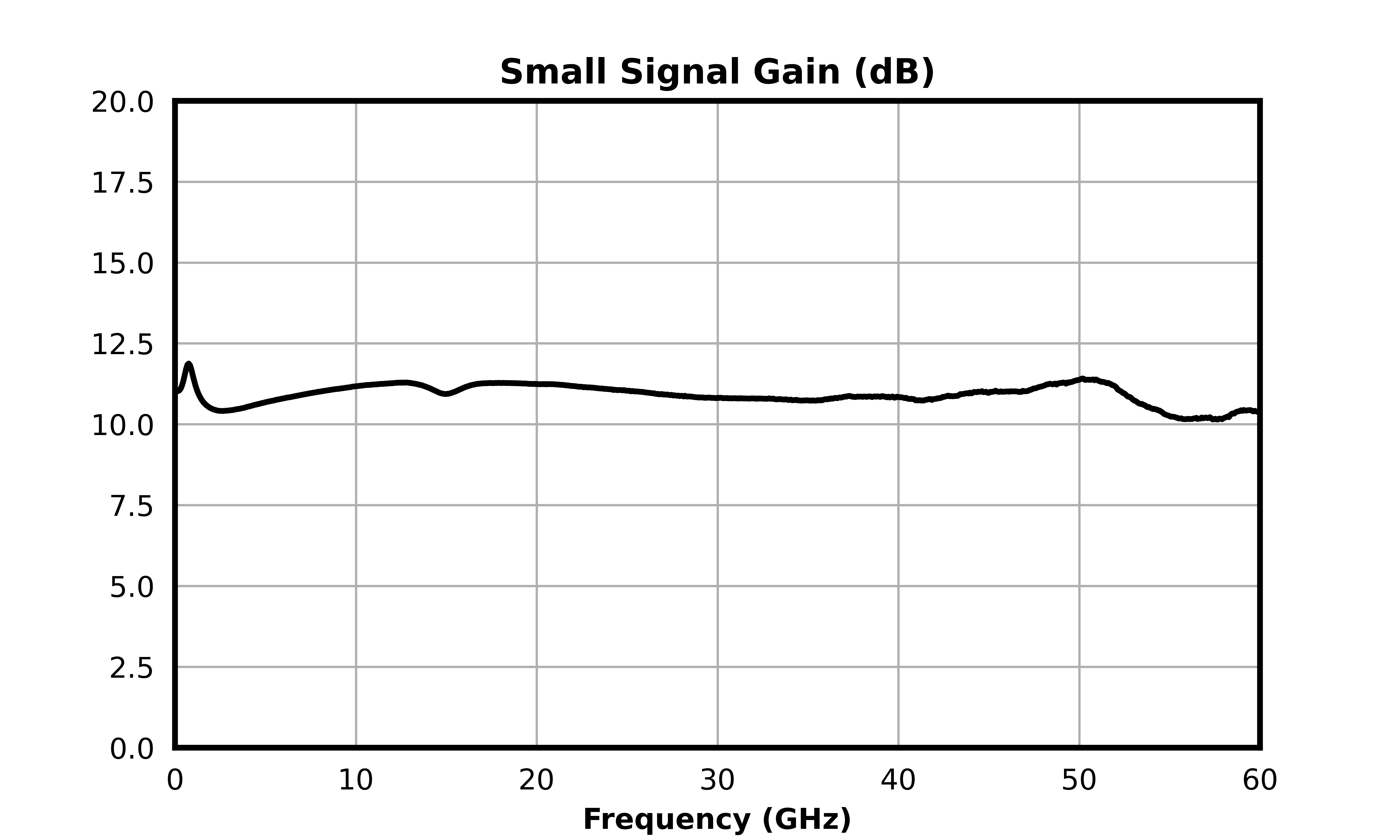

Small Signal Gain (dB) graph for AMM-9024PSM

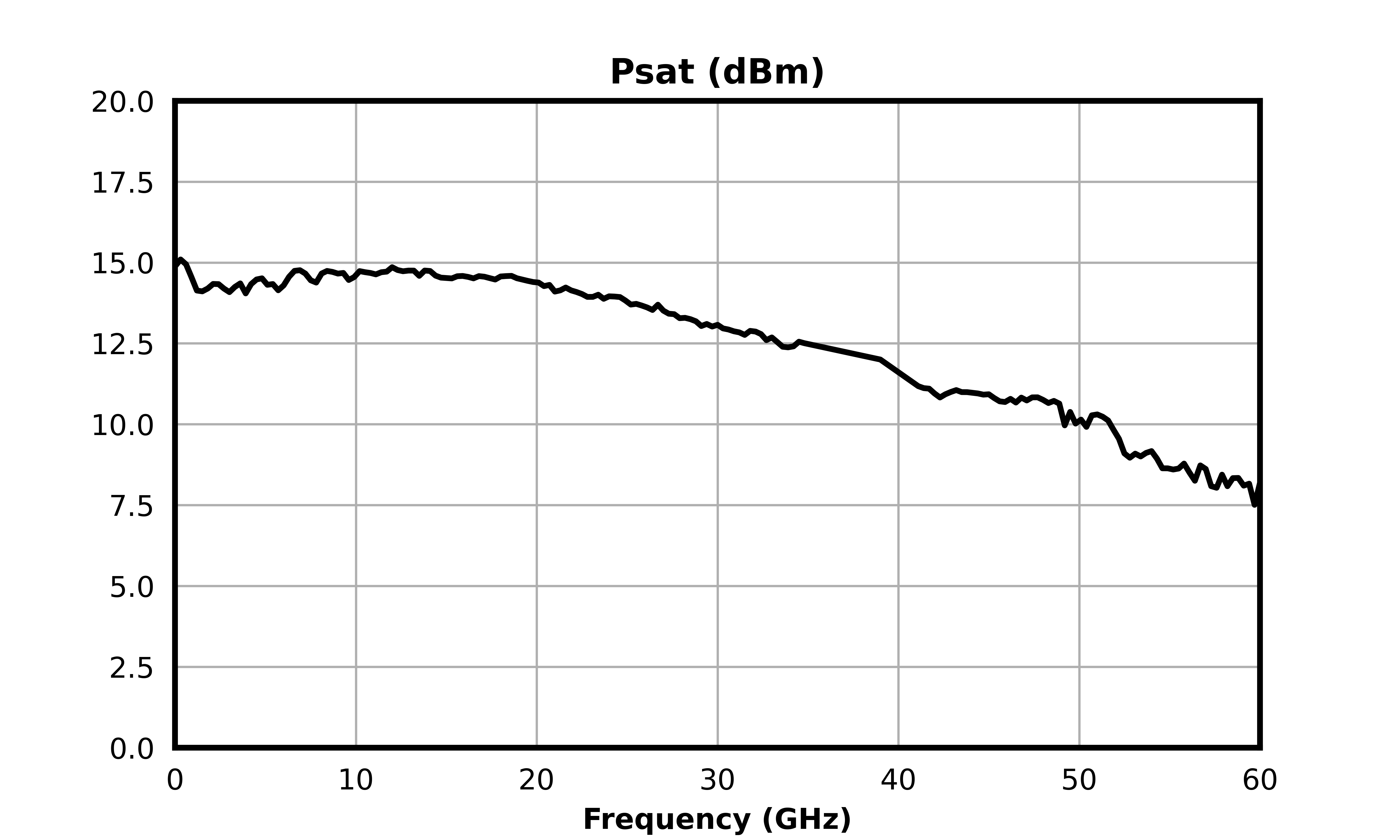

Psat (dBm) graph for AMM-9024PSM

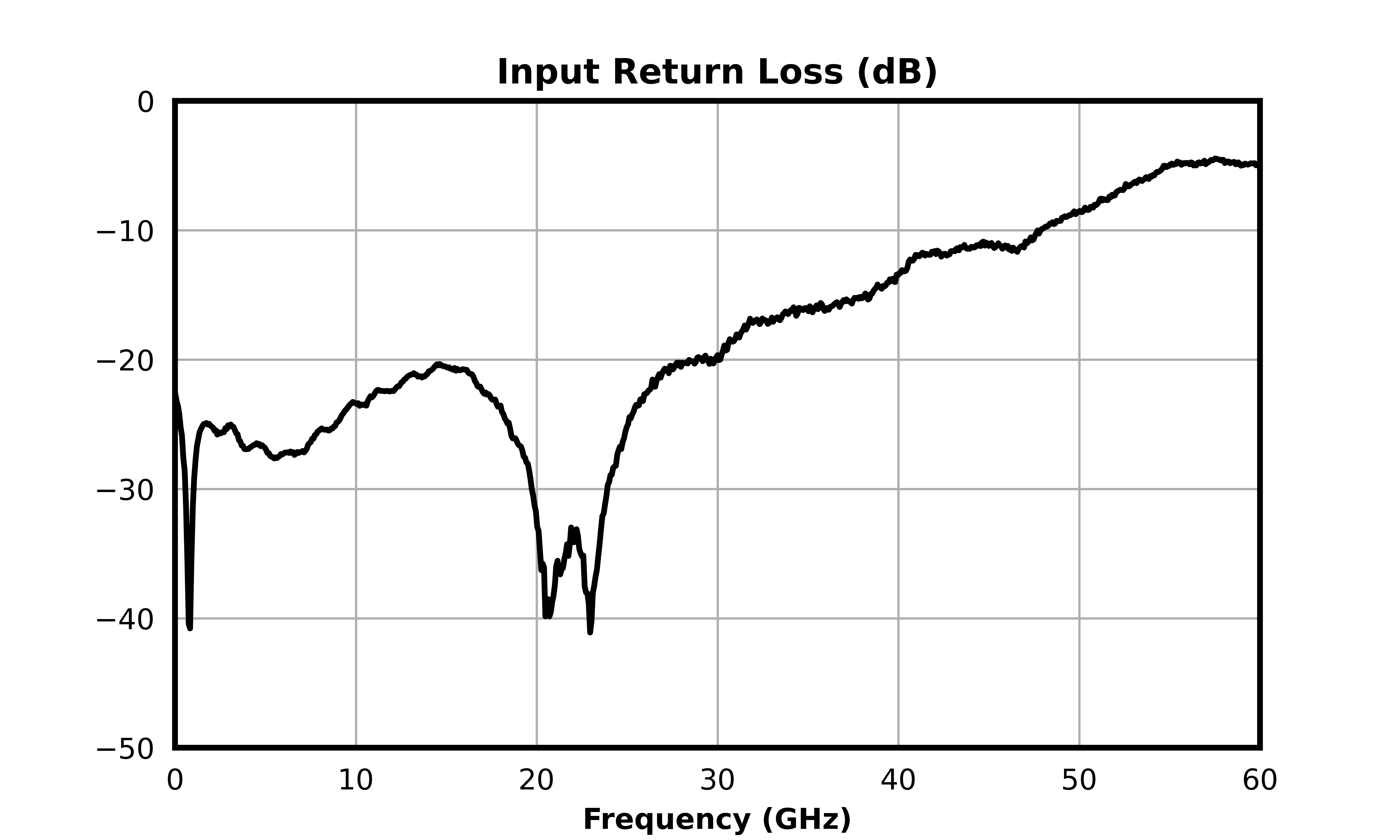

Input Return Loss (dB) graph for AMM-9024PSM

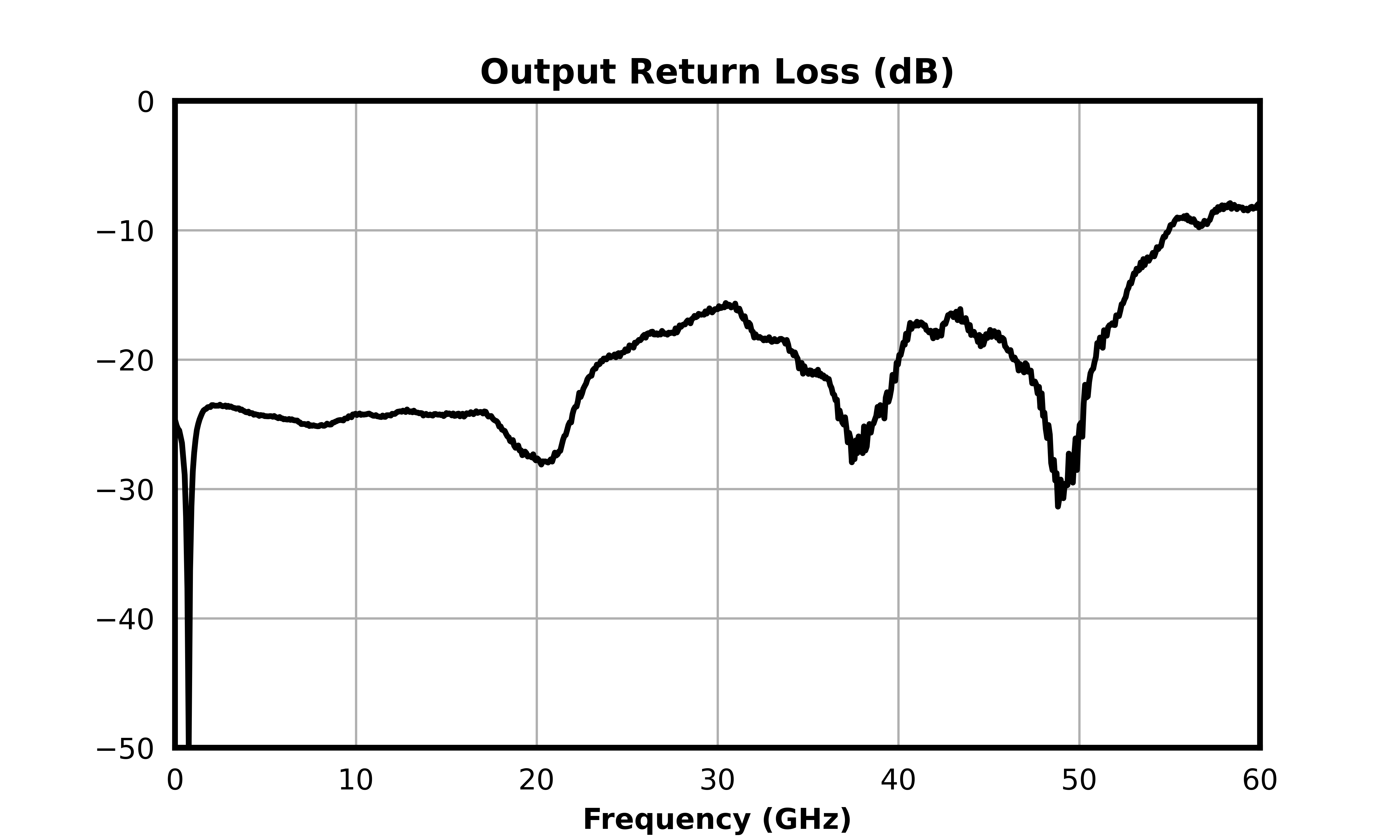

Output Return Loss (dB) graph for AMM-9024PSM

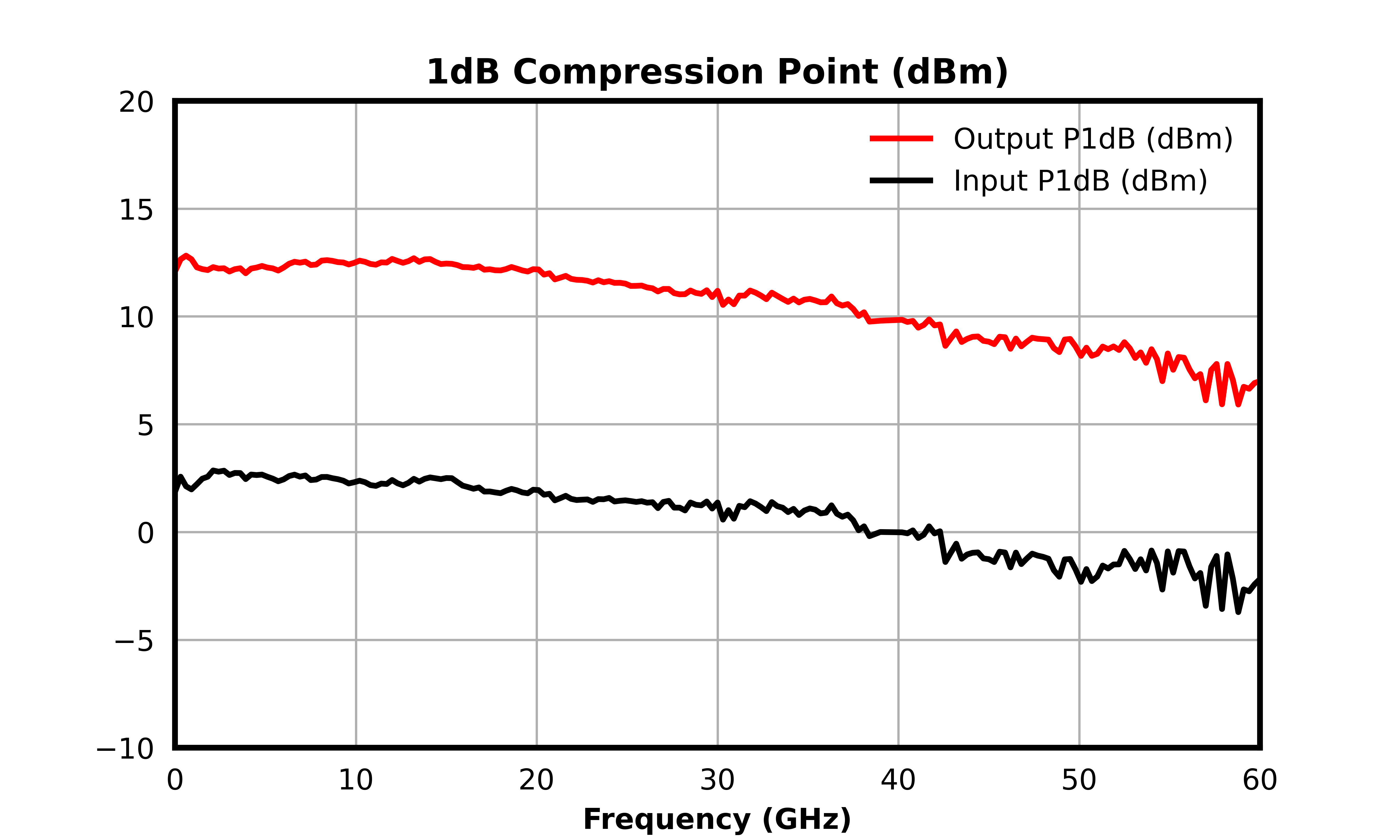

1dB Compression Point (dBm) graph for AMM-9024PSM

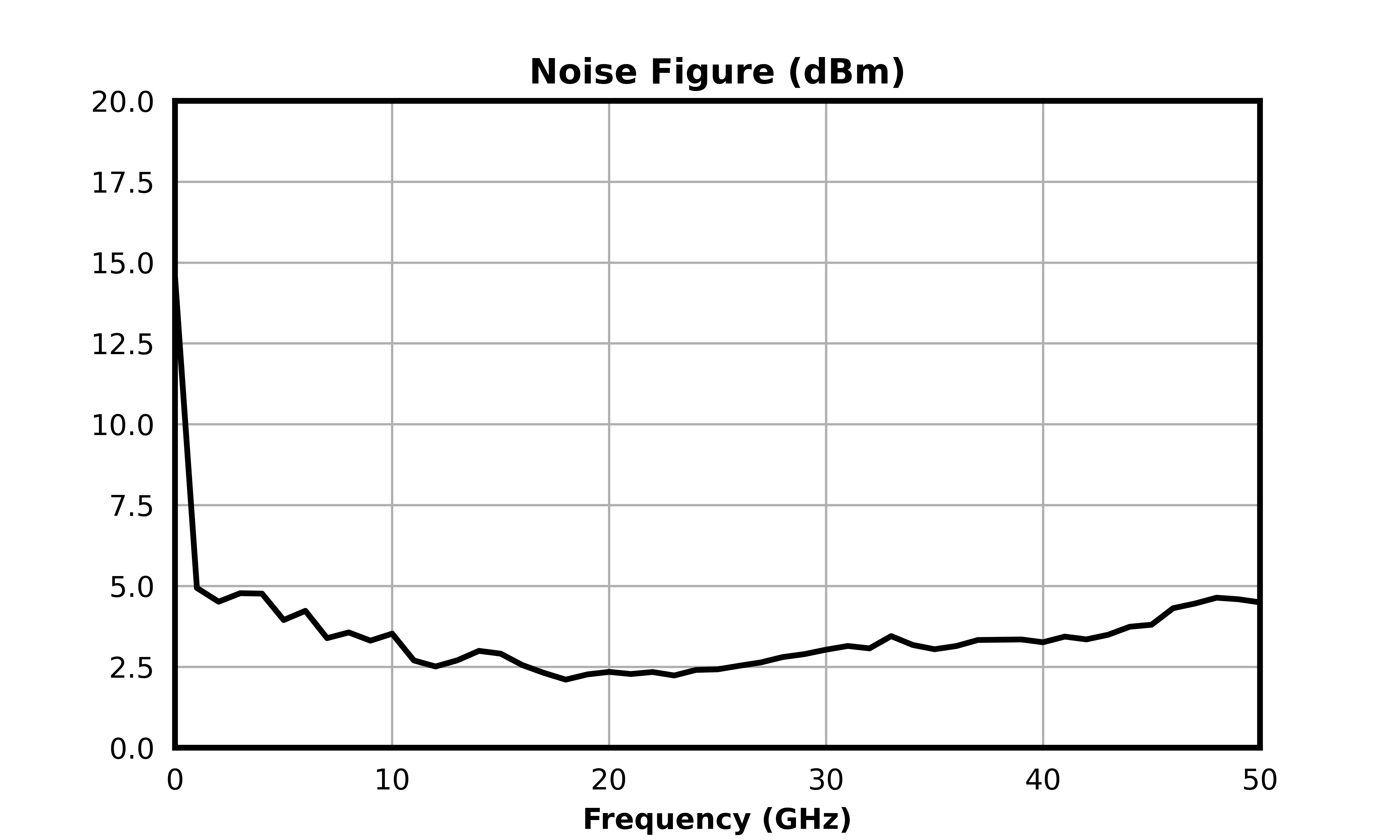

Noise Figure (dBm) graph for AMM-9024PSM

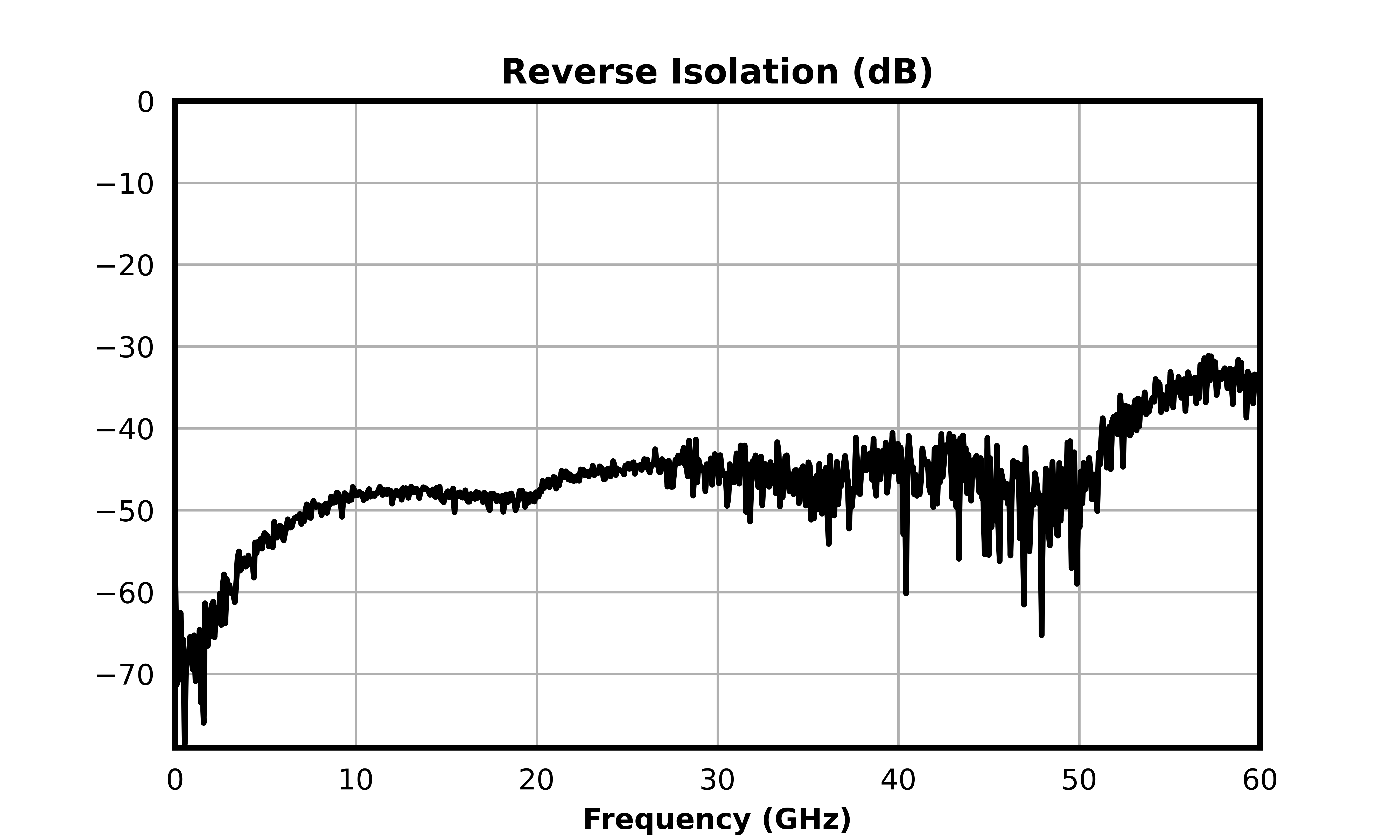

Reverse Isolation (dB) graph for AMM-9024PSM

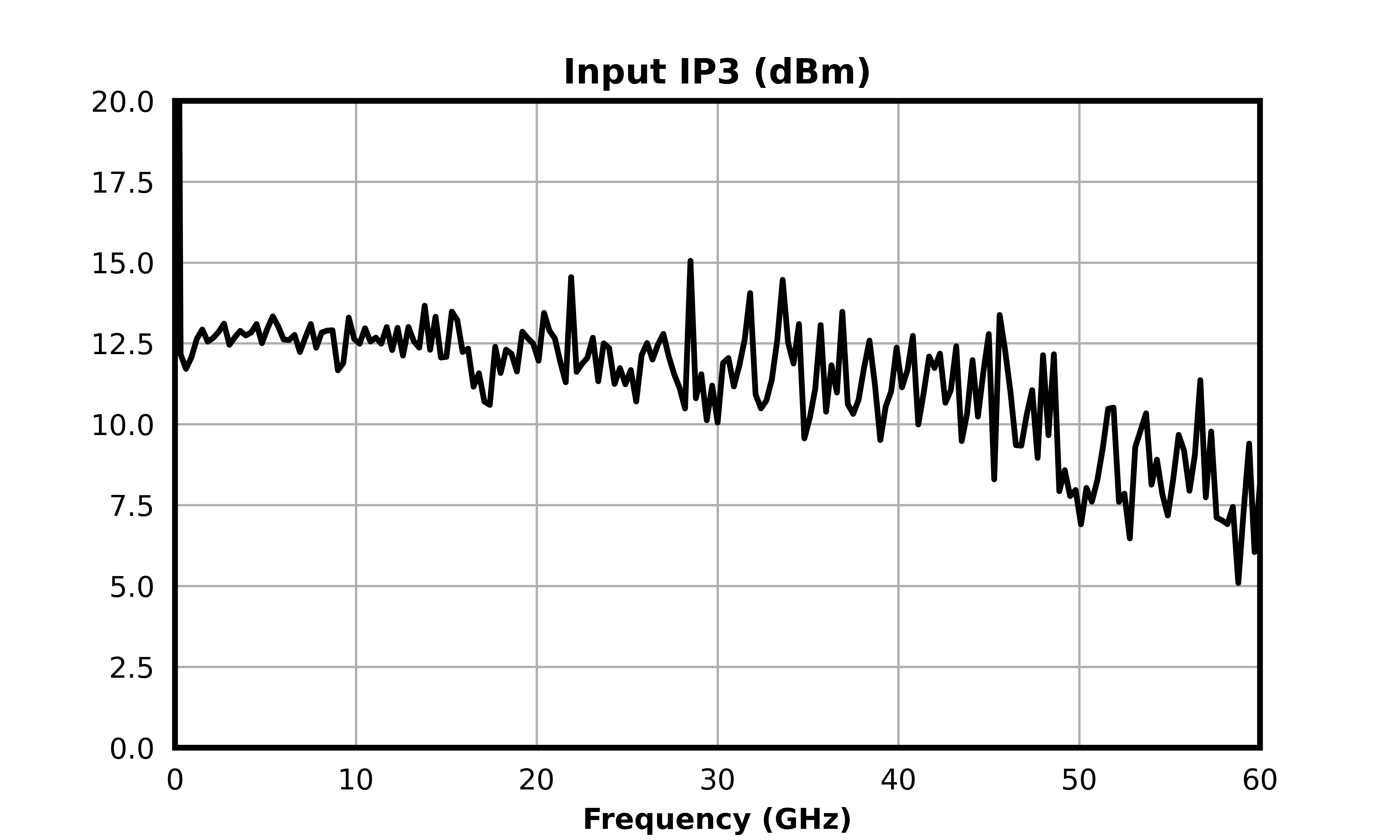

Input IP3 (dBm) graph for AMM-9024PSM

Rev: - | Copyright © 2025 Marki Microwave LLC.

7

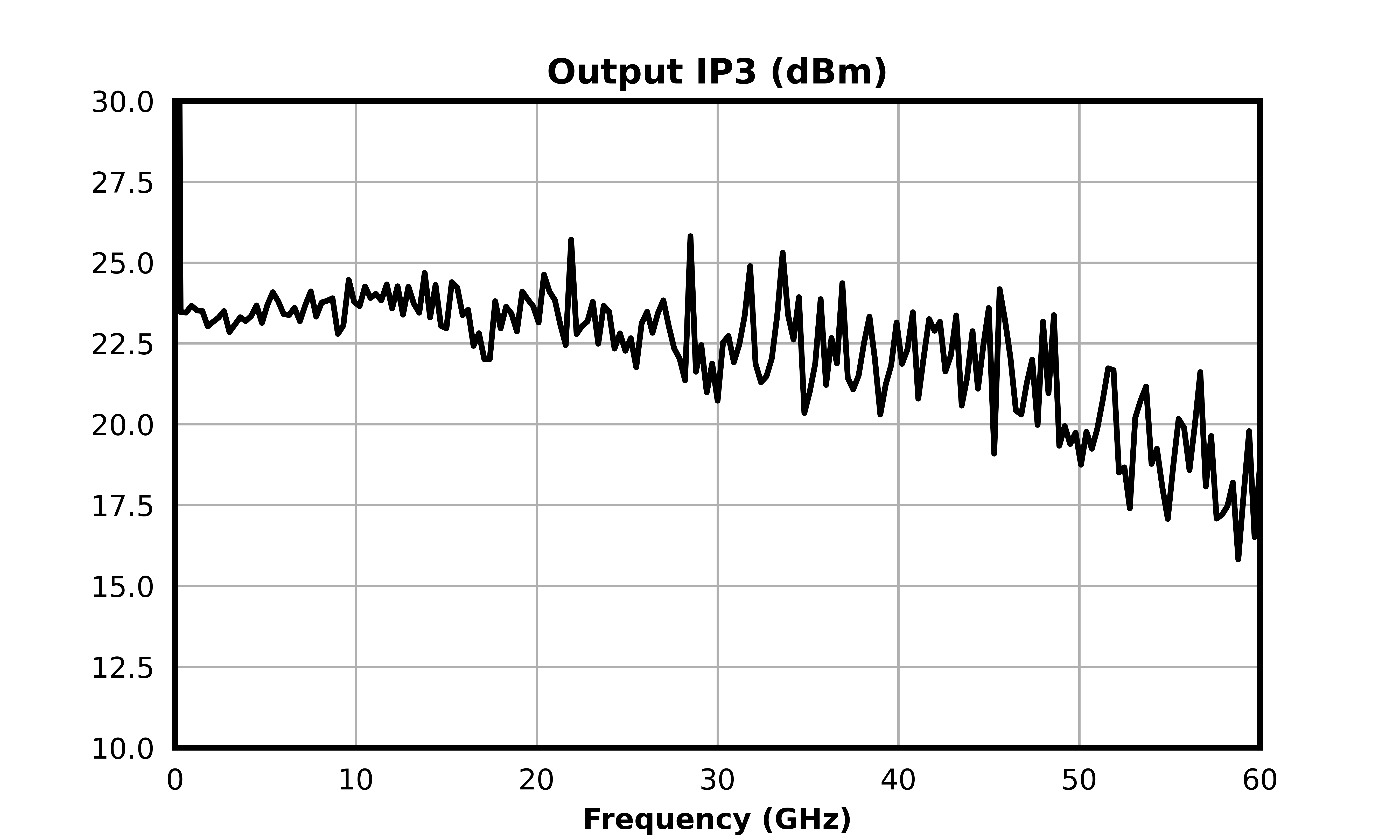

Output IP3 (dBm) graph for AMM-9024PSM

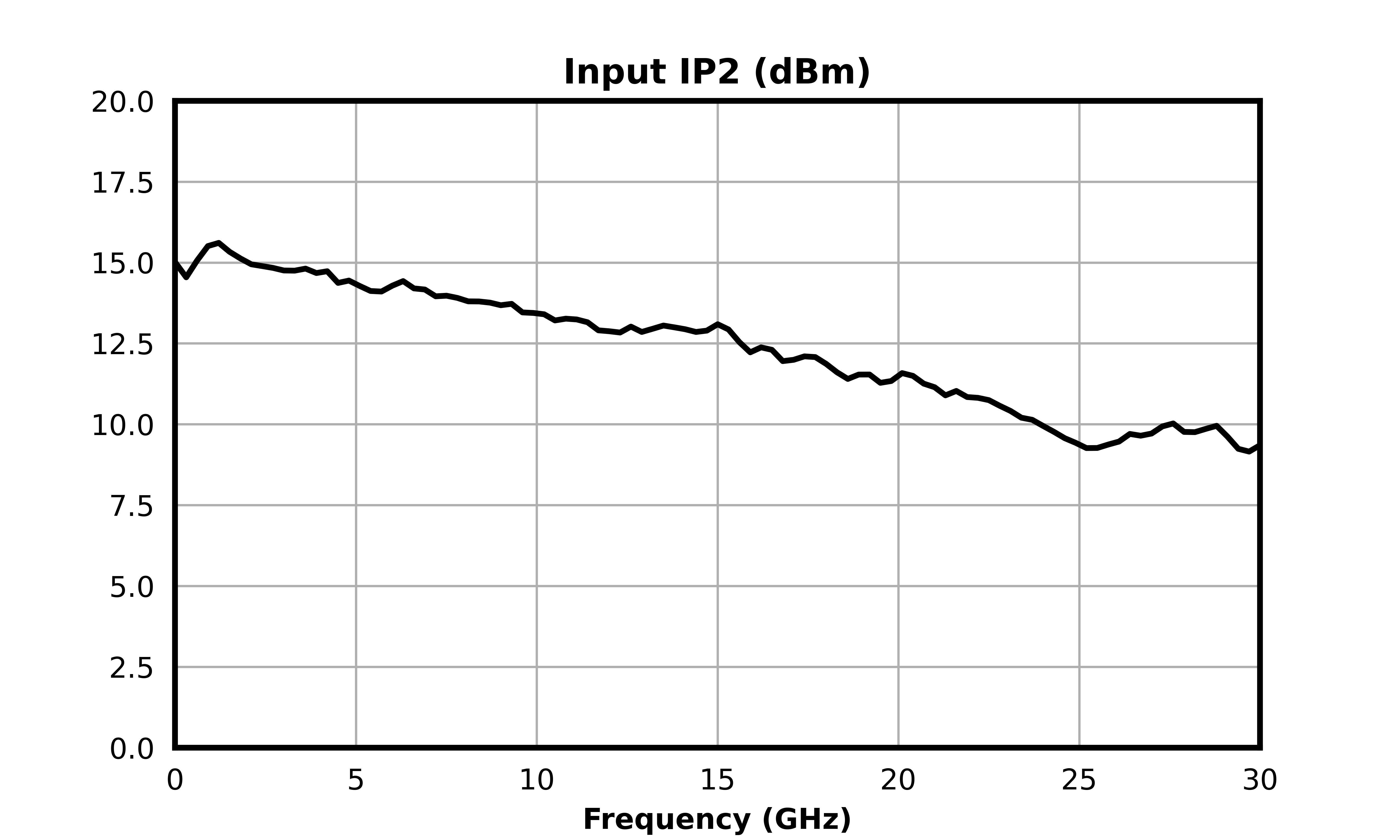

Input IP2 (dBm) graph for AMM-9024PSM

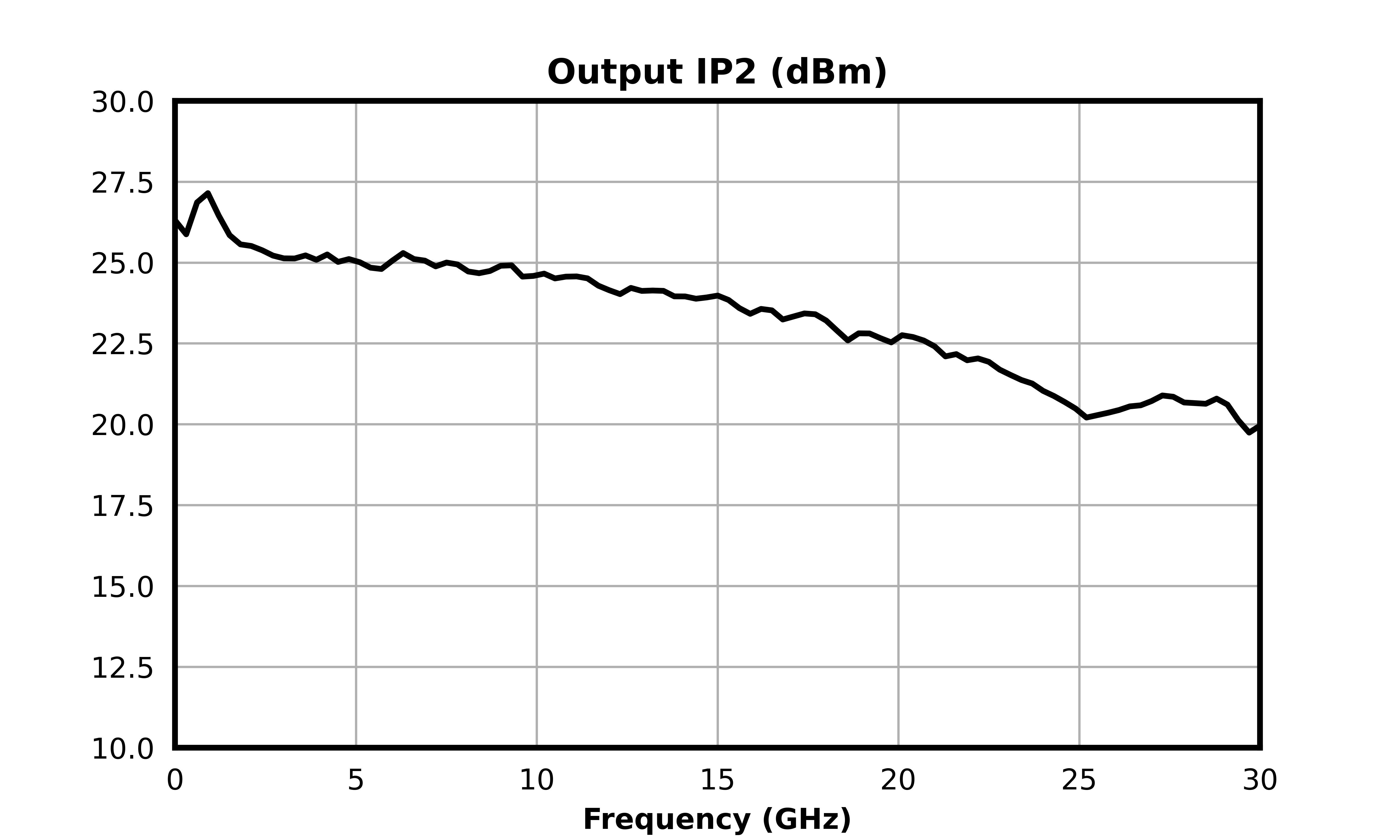

Output IP2 (dBm) graph for AMM-9024PSM

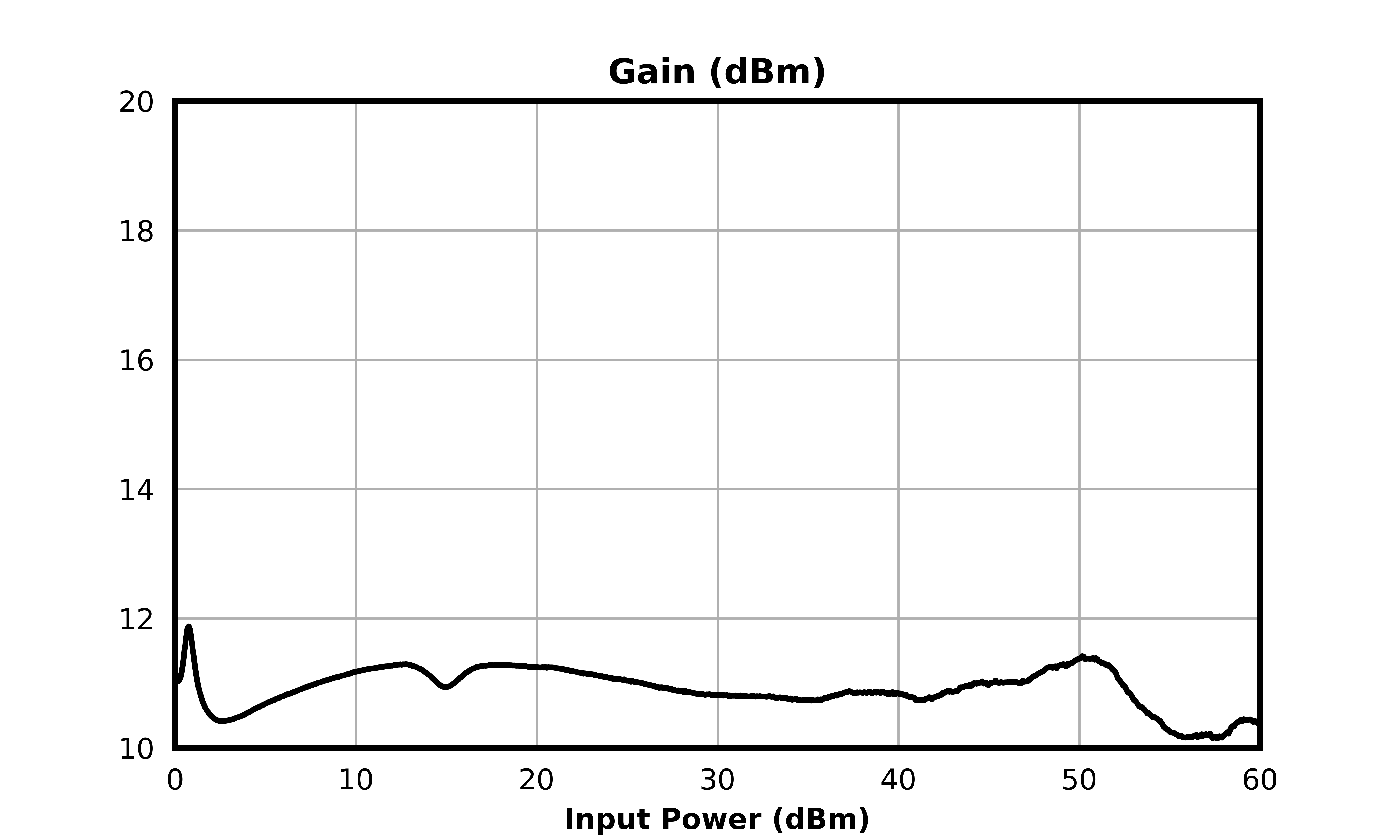

Gain (dBm) graph for AMM-9024PSM

Rev: - | Copyright © 2025 Marki Microwave LLC.

8

Application Circuit

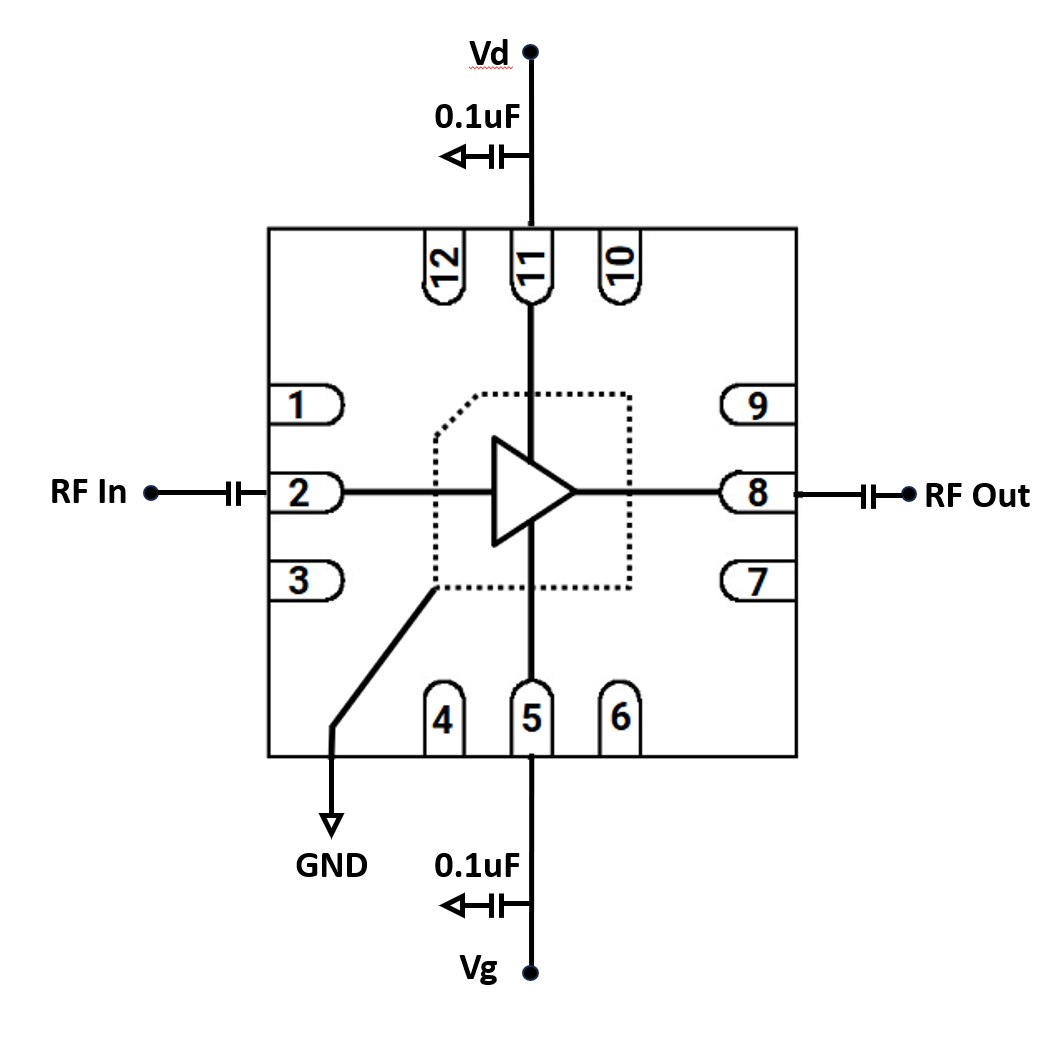

Application Circuit for AMM-9024PSM

Rev: - | Copyright © 2025 Marki Microwave LLC.

9

Mechanical Data

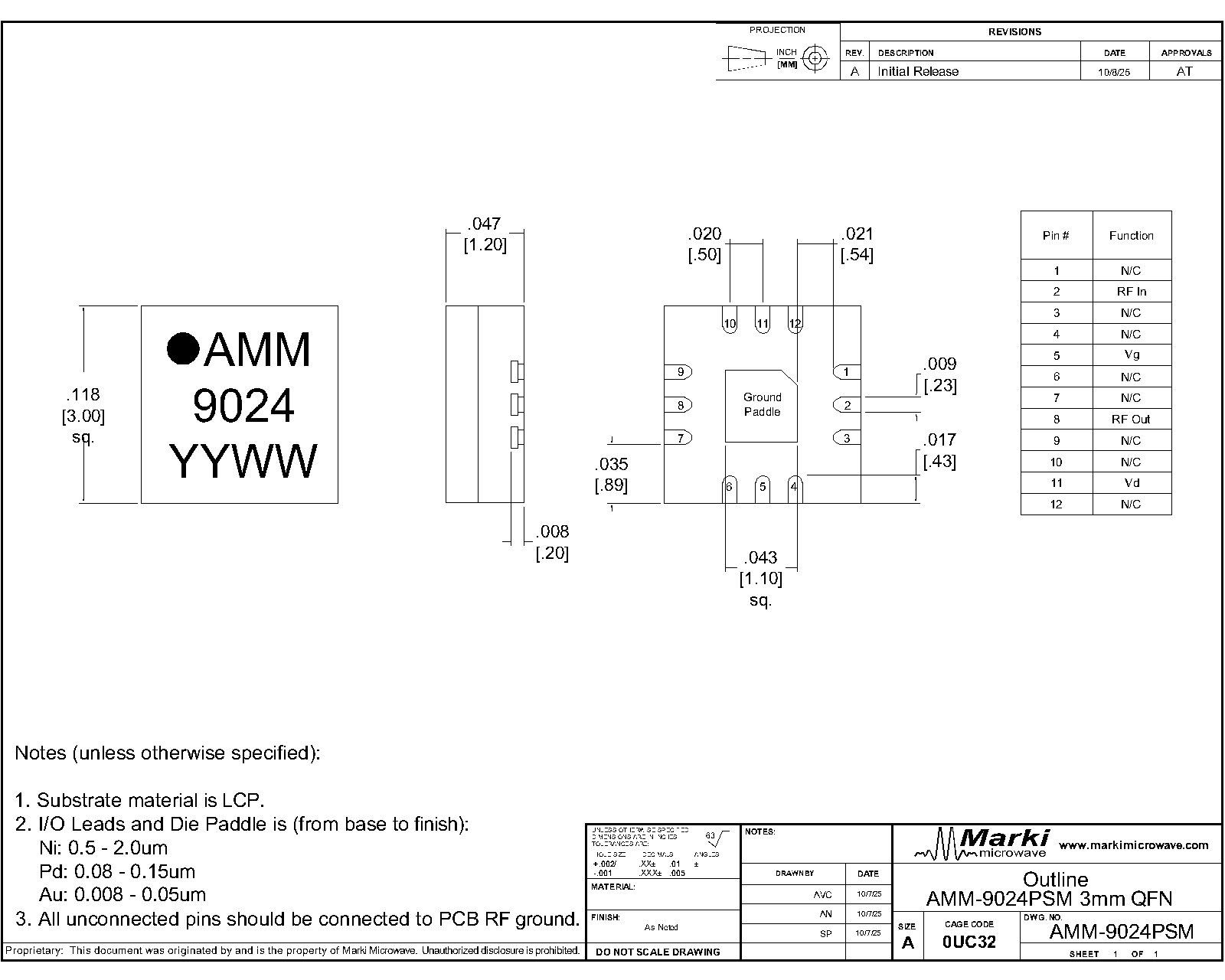

Outline Drawing

Download : Outline 2D Drawing

Outline Drawing

Rev: - | Copyright © 2025 Marki Microwave LLC.

10

Rev: - | Copyright © 2025 Marki Microwave LLC.

11

Evaluation Board - Outline Drawing

Outline Drawing
