AMM-8211PSM_22 - 57 GHz GaAs Driver Amplifier

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
AMM-8211PSM	22 - 57 GHz GaAs Driver Amplifier	PSM	REACH RoHS	Released	3A001.b.2.d
EVB-AMM-8211P	Evaluation Board, 22-57 GHz GaAs LO driver amplifier	EVB	REACH RoHS	Released	EAR99

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
AMM-8211PSM	22 - 57 GHz GaAs Driver Amplifier	PSM	REACH RoHS	Released	3A001.b.2.d
EVB-AMM-8211P	Evaluation Board, 22-57 GHz GaAs LO driver amplifier	EVB	REACH RoHS	Released	EAR99

Revision History

Revision Code	Revision Date	Comment
-	2024-09-12	Initial Release
A	2026-01-14	Added Sequencing Section
B	2026-02-13	MTTF Table Added.

Port Configuration and Functions

Port Diagram

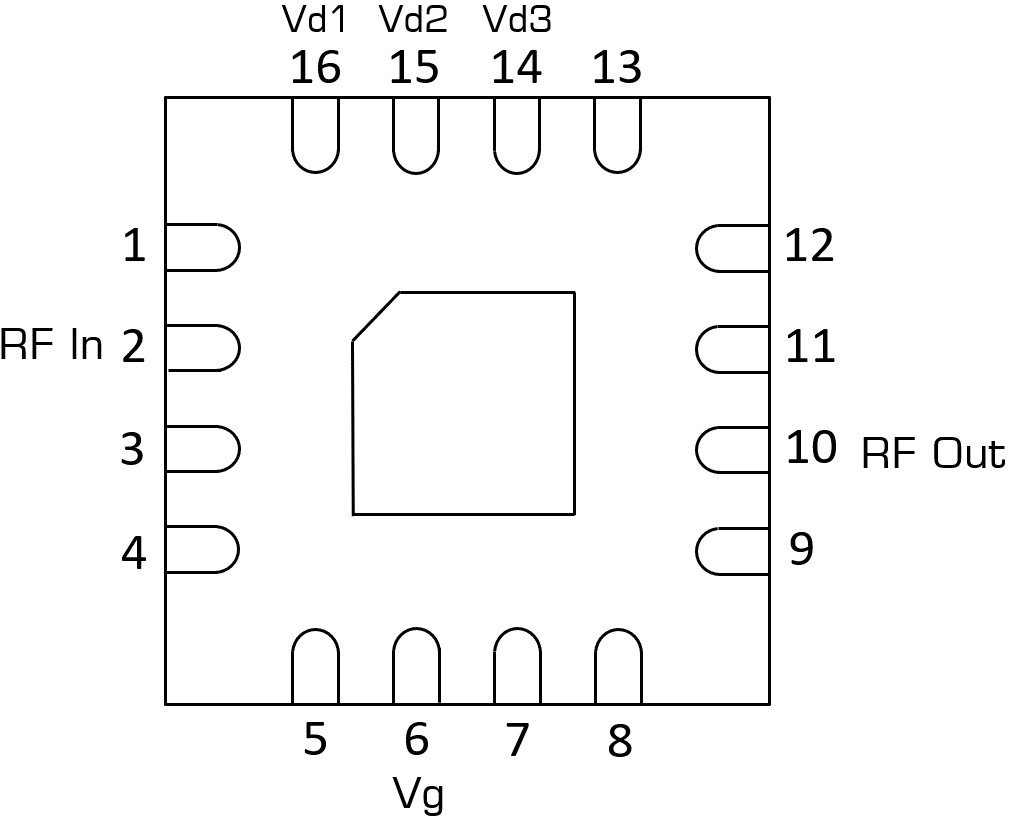

A port diagram of the AMM-8211PSM is shown below. (Top down x-ray view)

Diagram of the port configuration for AMM-8211PSM

Port Functions

Port	Function	Description	DC Equivalent Circuit
Paddle	Ground	Ground paddle and non-connected pins must be connected to a DC/RF ground potential with high thermal and electrical conductivity, and low inductance.
Pin 10	RF Output	Pin 10 is the RF output of the amplifier, and is matched to 50 ohms. It is internally DC blocked.
Pin 14	Positive DC Supply Vd3	Pin 14 provides DC voltage to the amplifier’s third stage. Negative voltage must be supplied to Pin 6 before turning on the positive supply voltage.
Pin 15	Positive DC Supply Vd2	Pin 15 provides DC voltage to the amplifier’s second stage. Negative voltage must be supplied to Pin 6 before turning on the positive supply voltage.
Pin 16	Positive DC Supply Vd1	Pin 16 provides DC voltage to the amplifier’s first stage. Negative voltage must be supplied to Pin 6 before turning on the positive supply voltage.
Pin 2	RF Input	Pin 2 is the RF input of the amplifier, and is matched to 50 ohms. It is internally DC blocked.
Pin 6	Negative DC Supply Vg	Pin 6 provides -0.4V to -0.6V of DC voltage. This must be turned on before turning on the positive supply voltage to Pins 14-16.
Pins 1, 3, 4, 5, 7, 8, 9, 11, 12, 13	Non-connect (NC)	These pins are not internally connected to the amplifier. They should be connected to ground for increased RF isolation and mechanical stability. Datasheet RF performance was measured with these pins connected to ground.	-

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If any one of these limits are exceeded, the device may become inoperable or have a reduced lifetime. Reliability limits are individual, instantaneous catastrophic limits only. Functional operation limits are indicated below. Operation of the device at multiple absolute maximum limits or for extended periods at a single limit can cause degradation and damage to the device.

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	85	°C
Maximum Storage Temperature	150	°C
Max Junction Temperature for MTTF of > 1E6 hours	175	°C
Minimum Operating Temperature	-40	°C
Minimum Storage Temperature	-65	°C
Positive Bias Current (Id)	450	mA
Positive Bias Voltage (VB)	5.5	V
RF Input Power	20	dBm
Thermal Resistance, θJC	94	ºC/W

FIT and MTTF Table

T (°C)	λ (TIF)	MTTF (hr)	MTTF (yr)
105	2,441.45	4.10E+05	47
85	310.48	3.22E+06	368
55	8.79	1.14E+08	12,992
25	0.12	8.24E+09	941,063

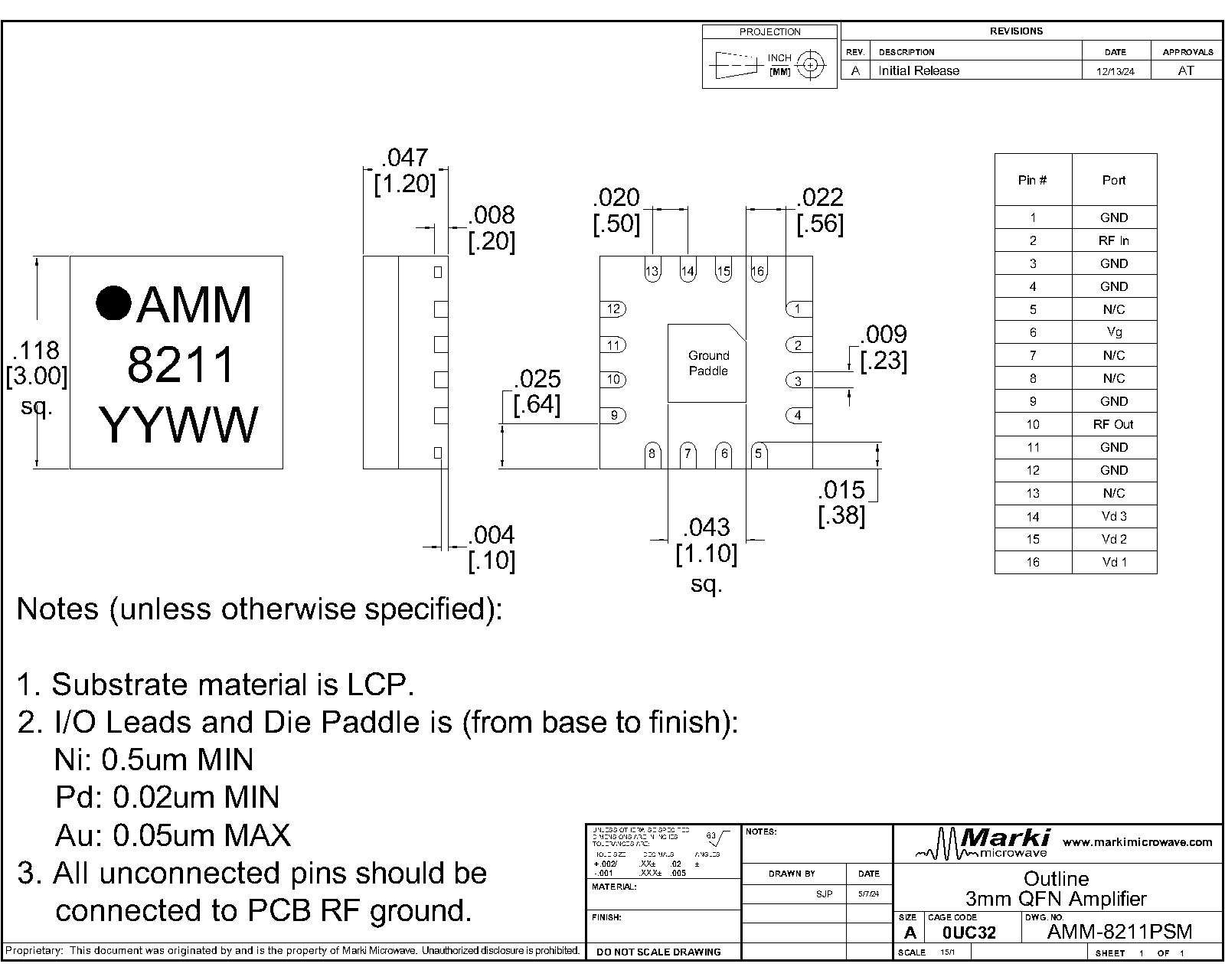

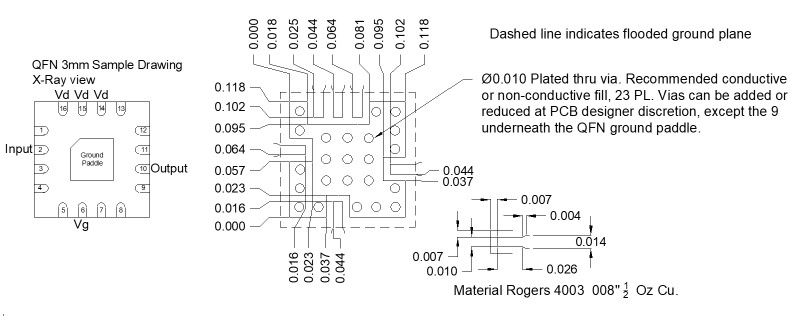

Package Information

Parameter	Details	Rating
Dimensions	-	3 x 3 mm
Moisture Sensitivity Level	-	MSL 1

Recommended Operating Conditions

The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.

Parameter	Min	Nominal	Max	Unit
Positive DC Current (Id) (No RF Input)	125	175	225	mA
Gate Bias DC Voltage (Vg)	-0.6	-0.5	-0.4	V
Input Power for Saturation	8	11	13	dBm
Positive DC Voltage (Vd)	2.5	3	3	V
Ambient Temperature	-55	25	85	°C

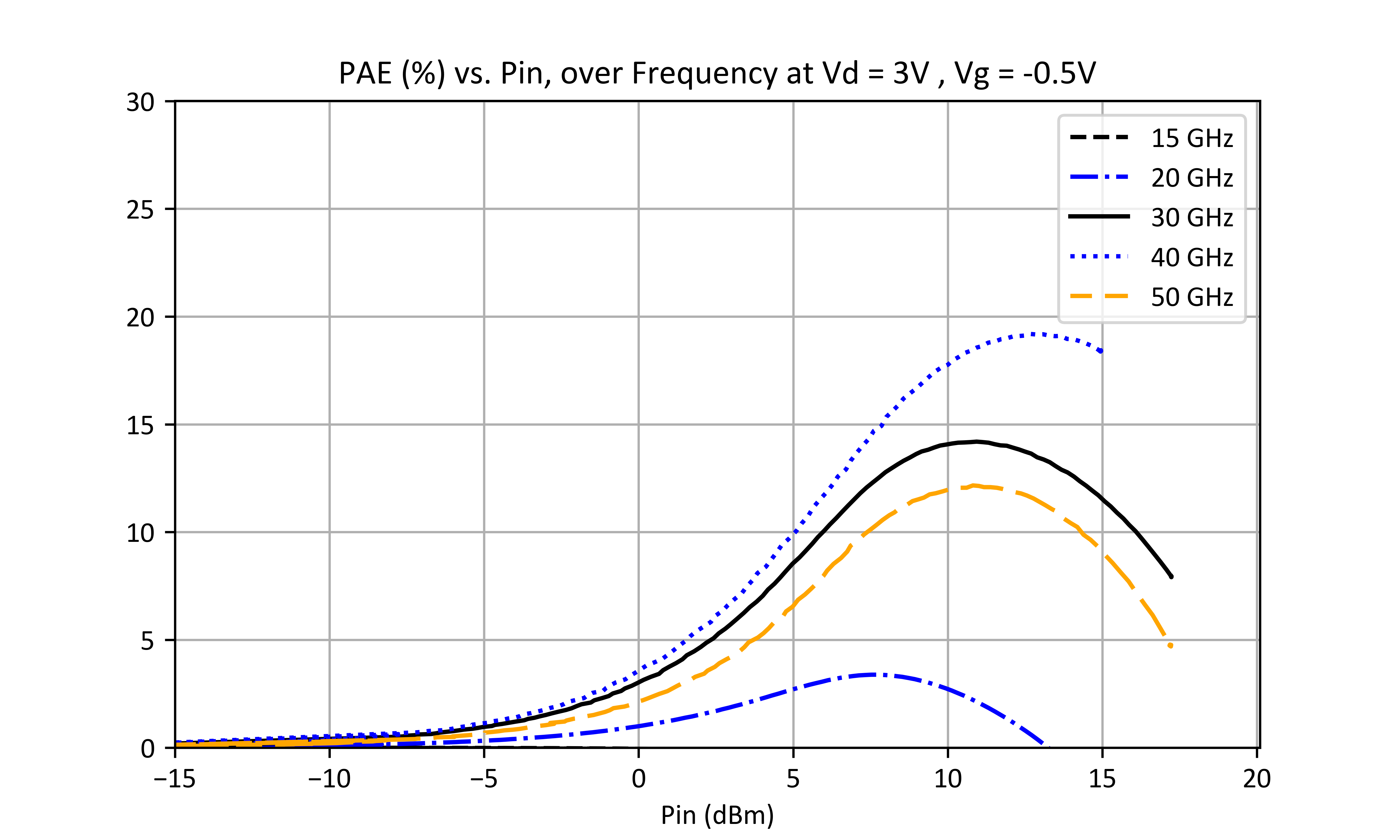

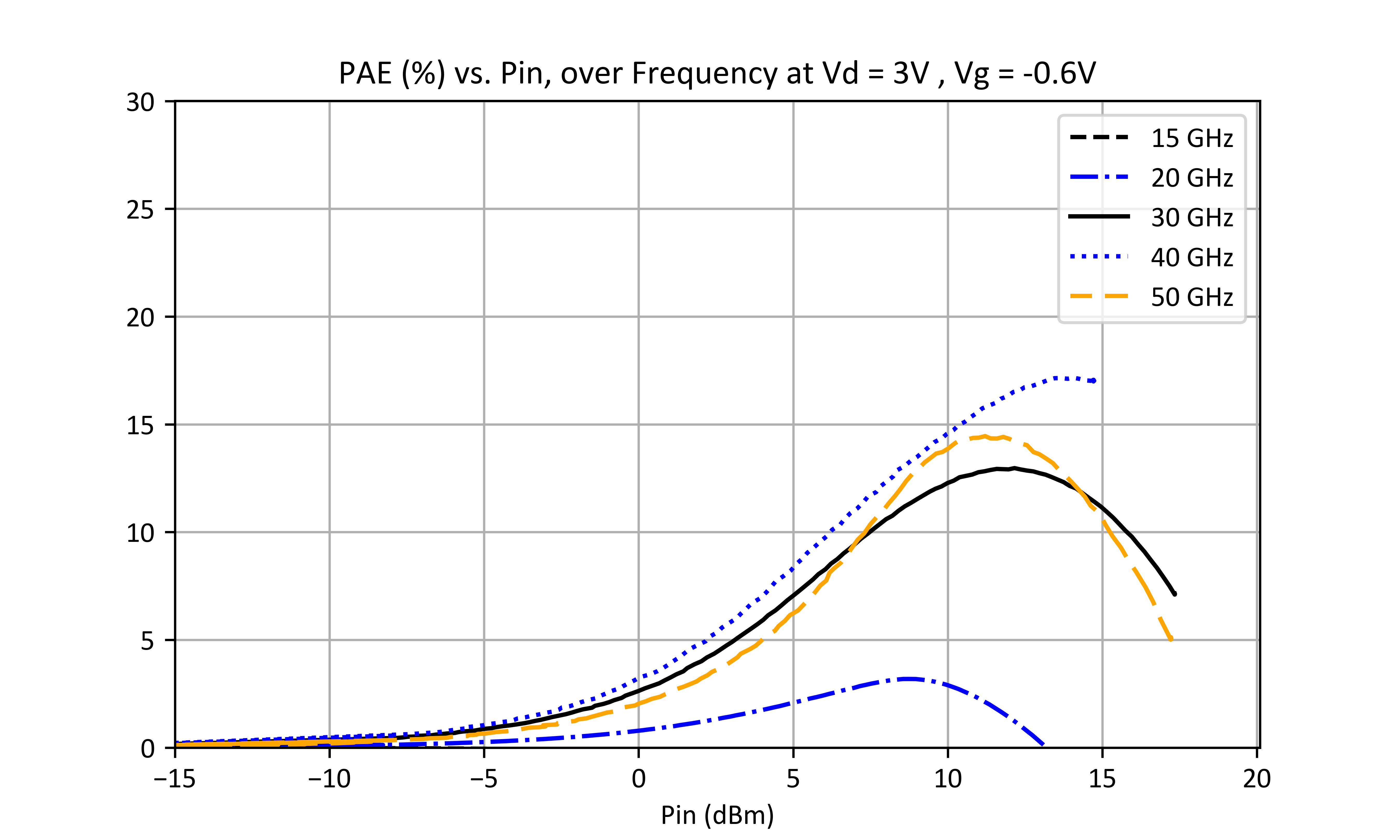

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Unless otherwise specified, performance is measured with Vd=3V and Vg=-0.5V.

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit

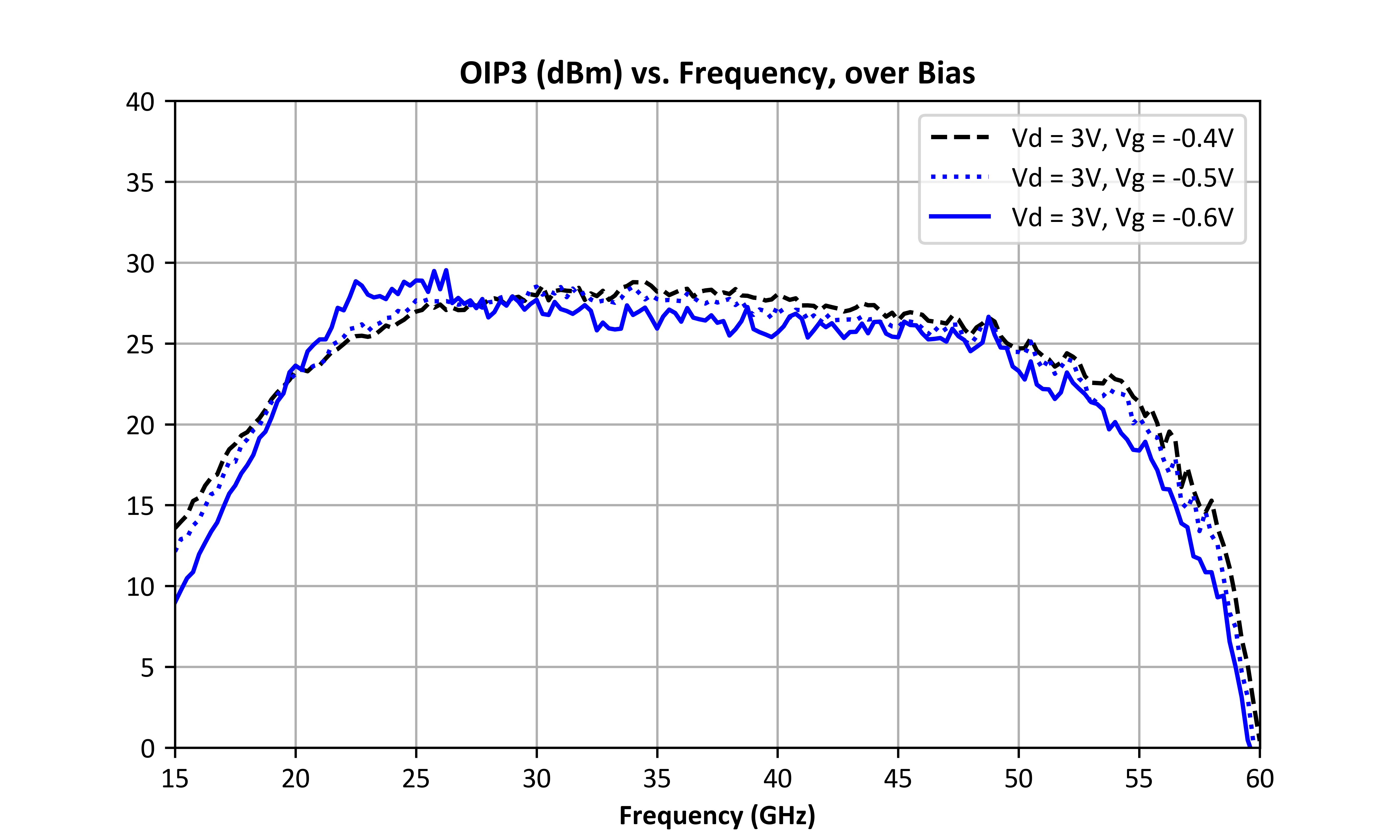

Output IP3	Vd = 3V, Vg = -0.5V, -12dBm Input Power, 10MHz tone spacing	50	57	-	20	-	dBm

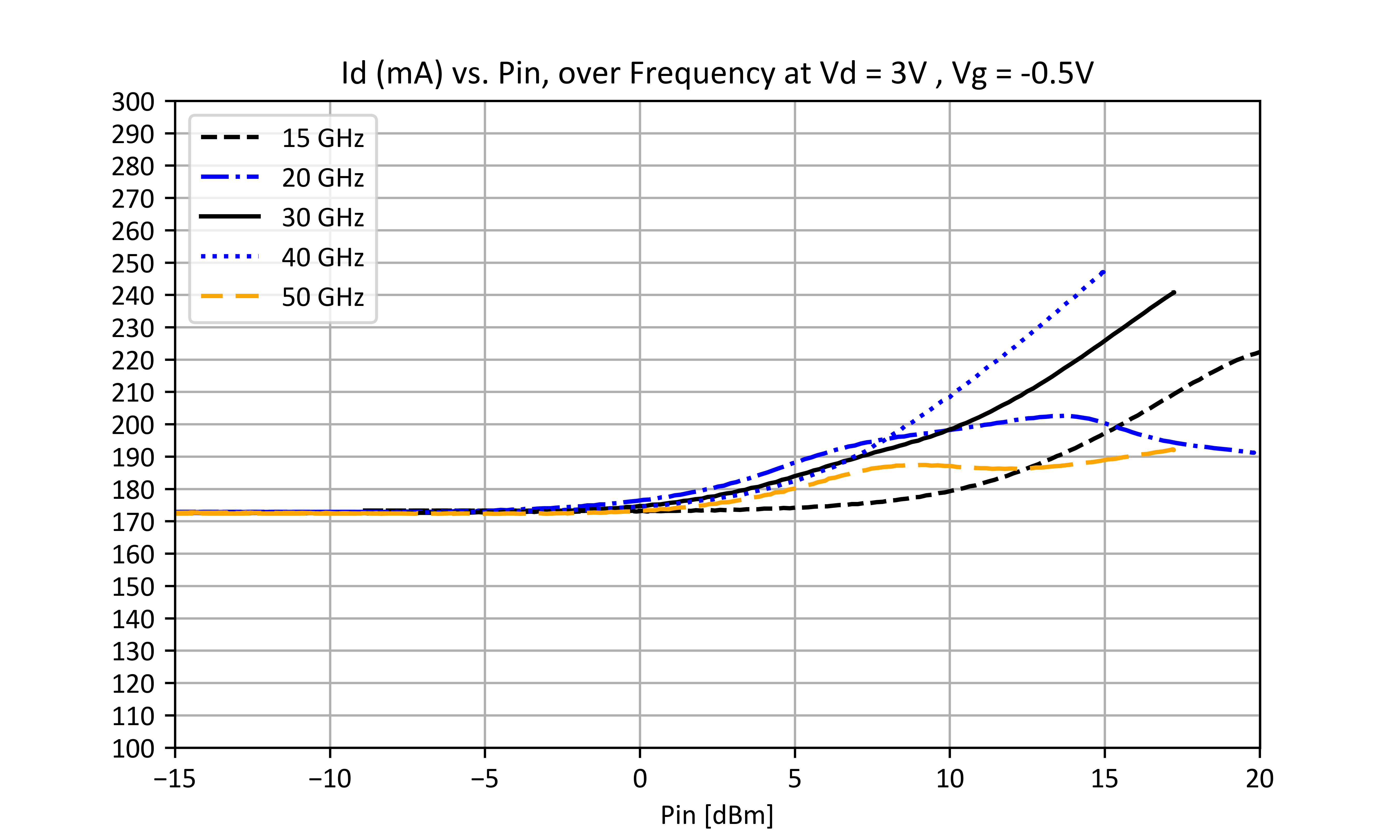

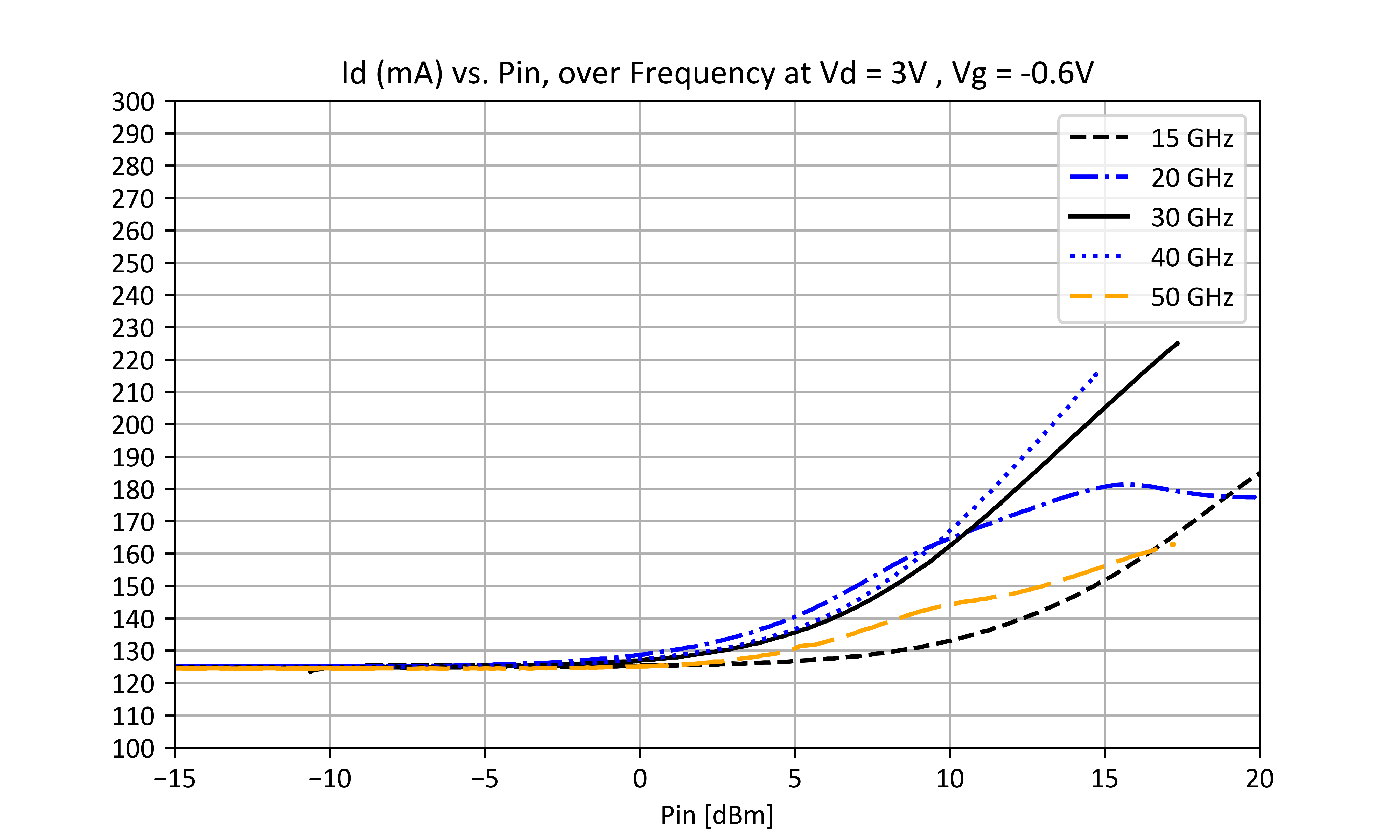

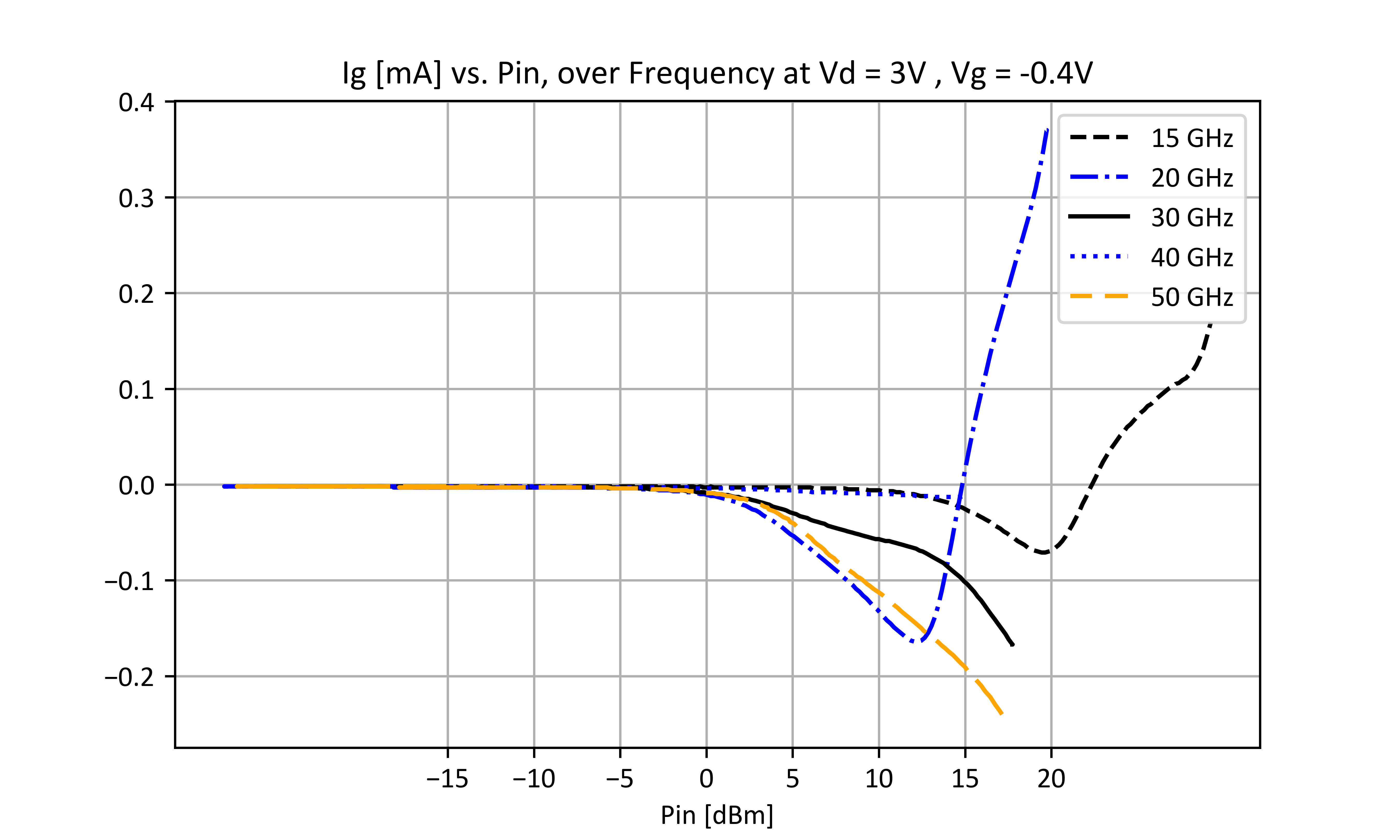

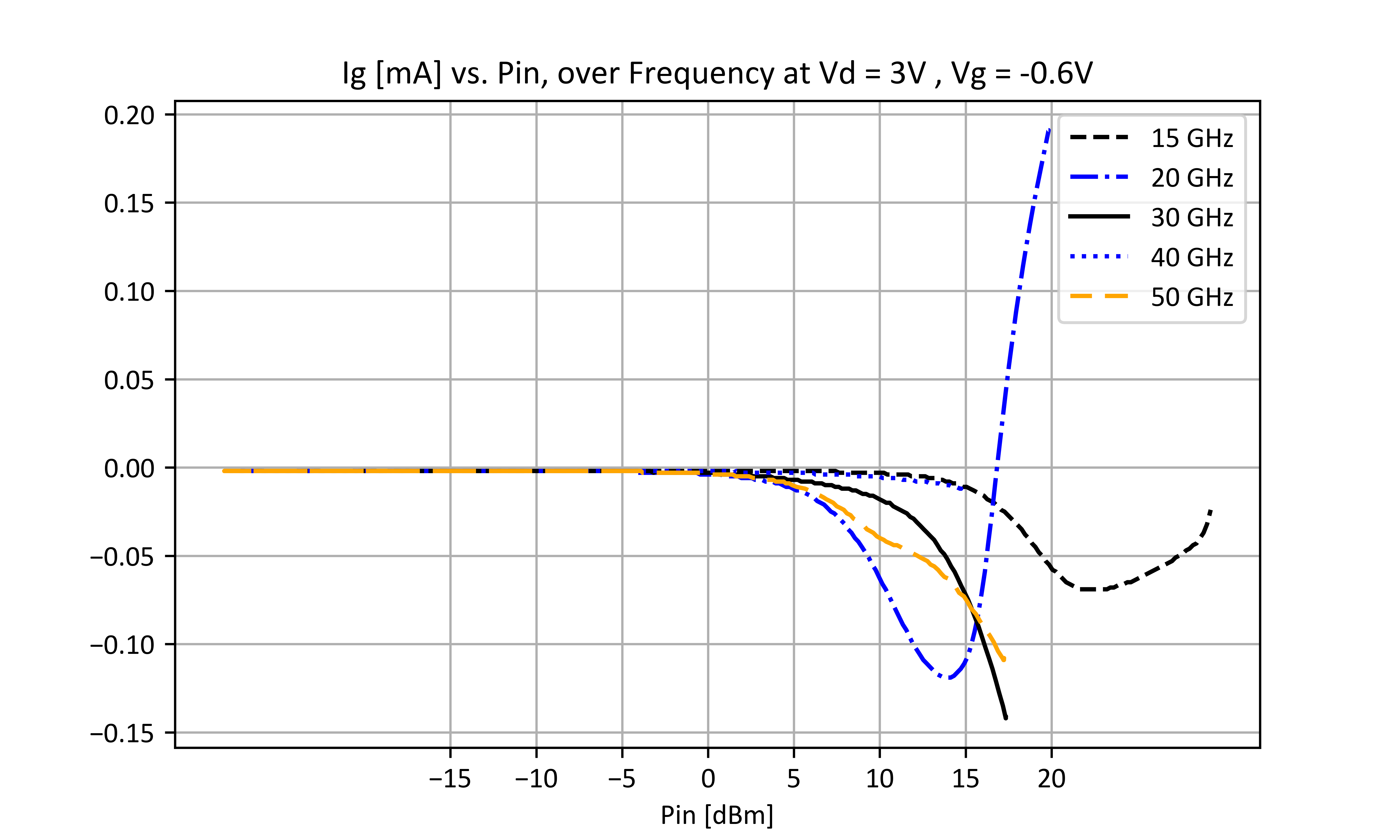

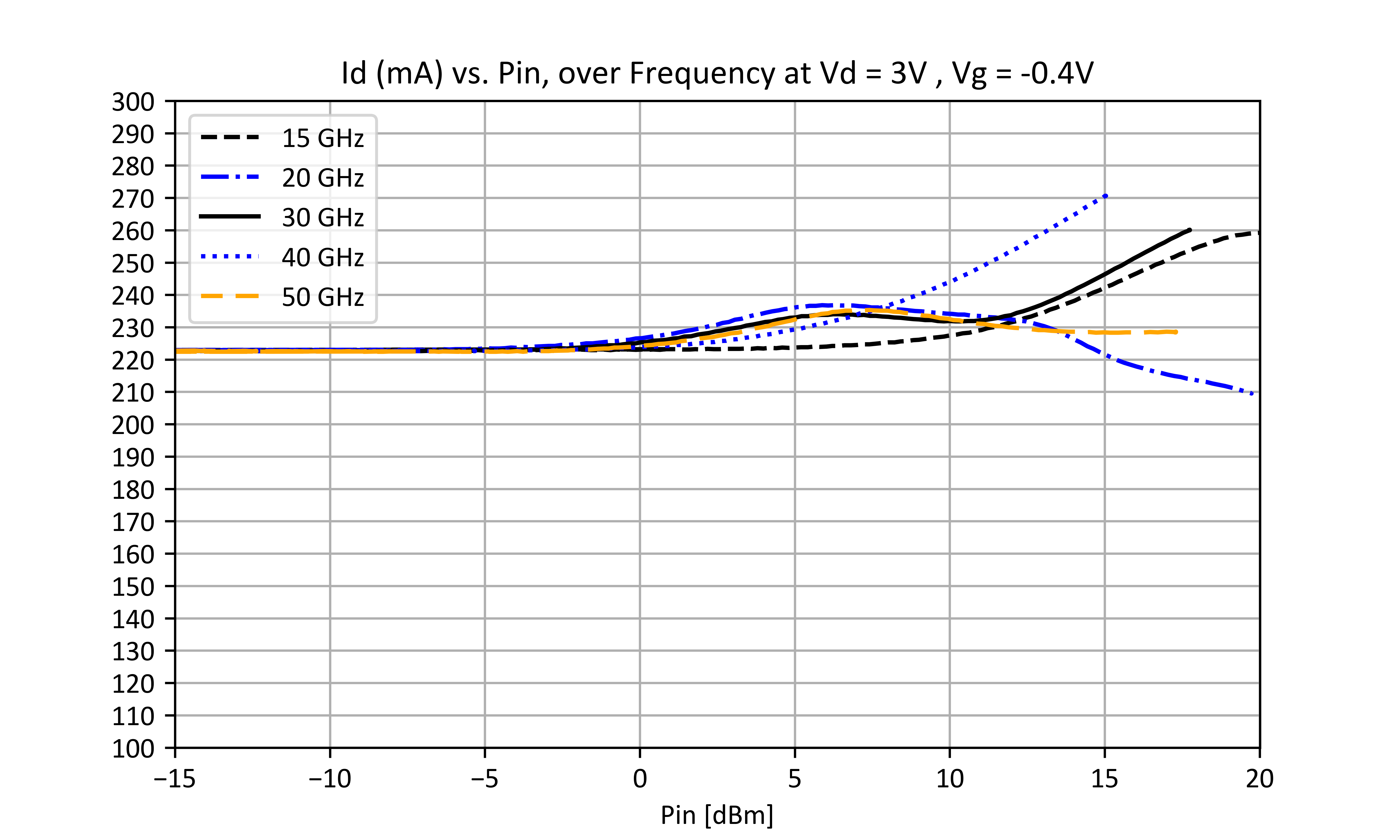

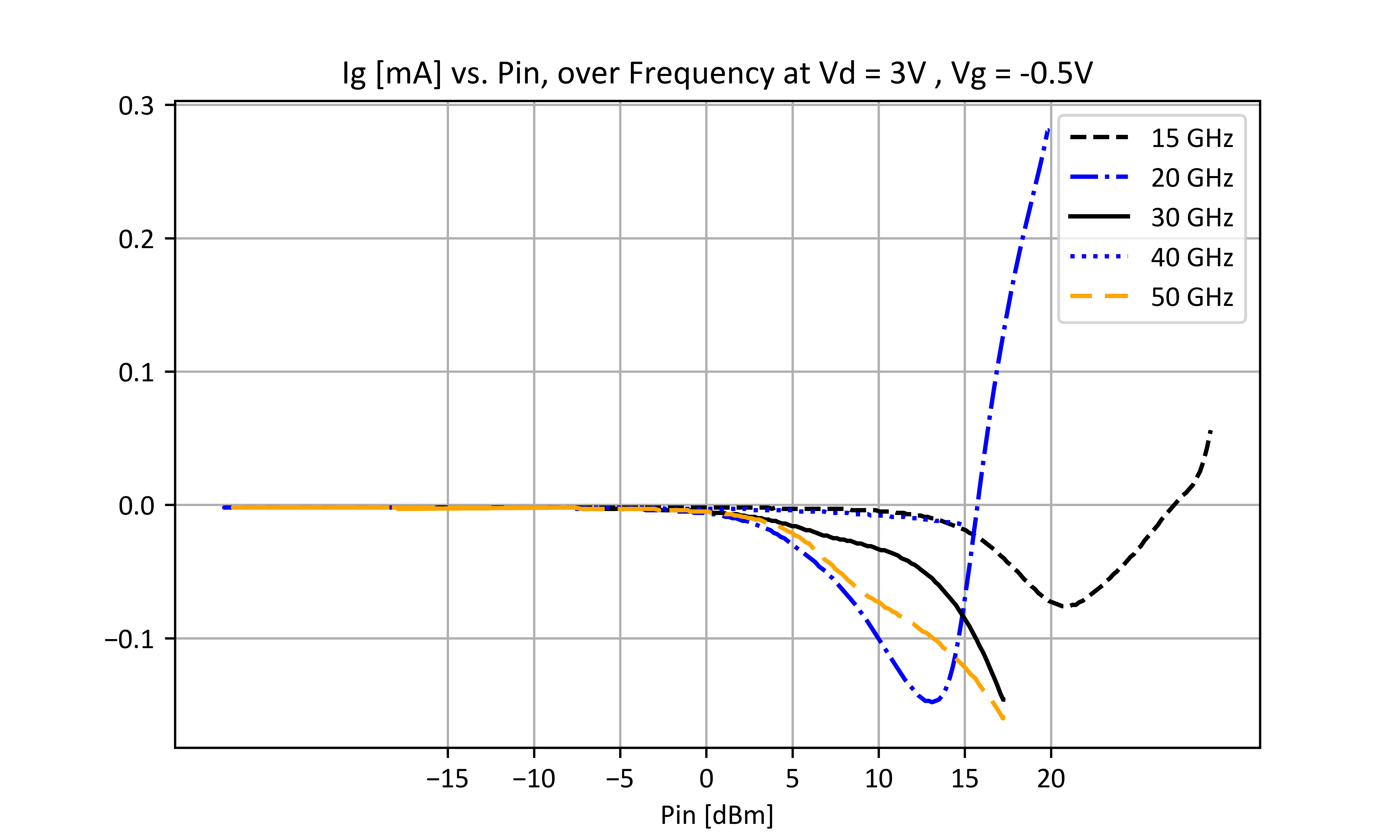

Current Consumption ¹	Vd = 3V, Vg = -0.5V	-	-	-	175	-	mA

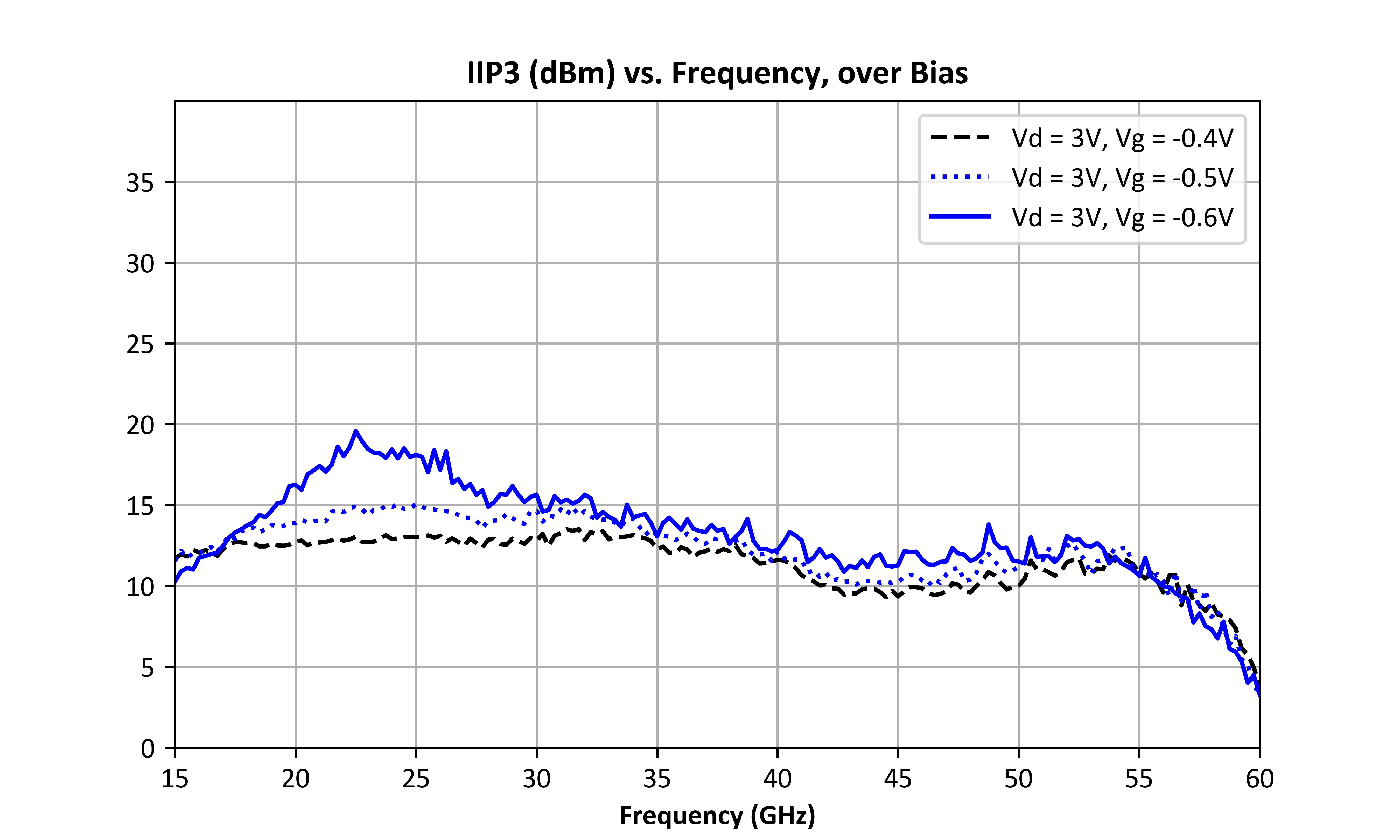

Input IP3	Vd = 3V, Vg = -0.5V, -12dBm Input Power, 10MHz tone spacing	22	57	-	12	-	dBm
Input Power for Saturation	Vd = 3V, Vg = -0.5V	22	57	-	11	-	dBm

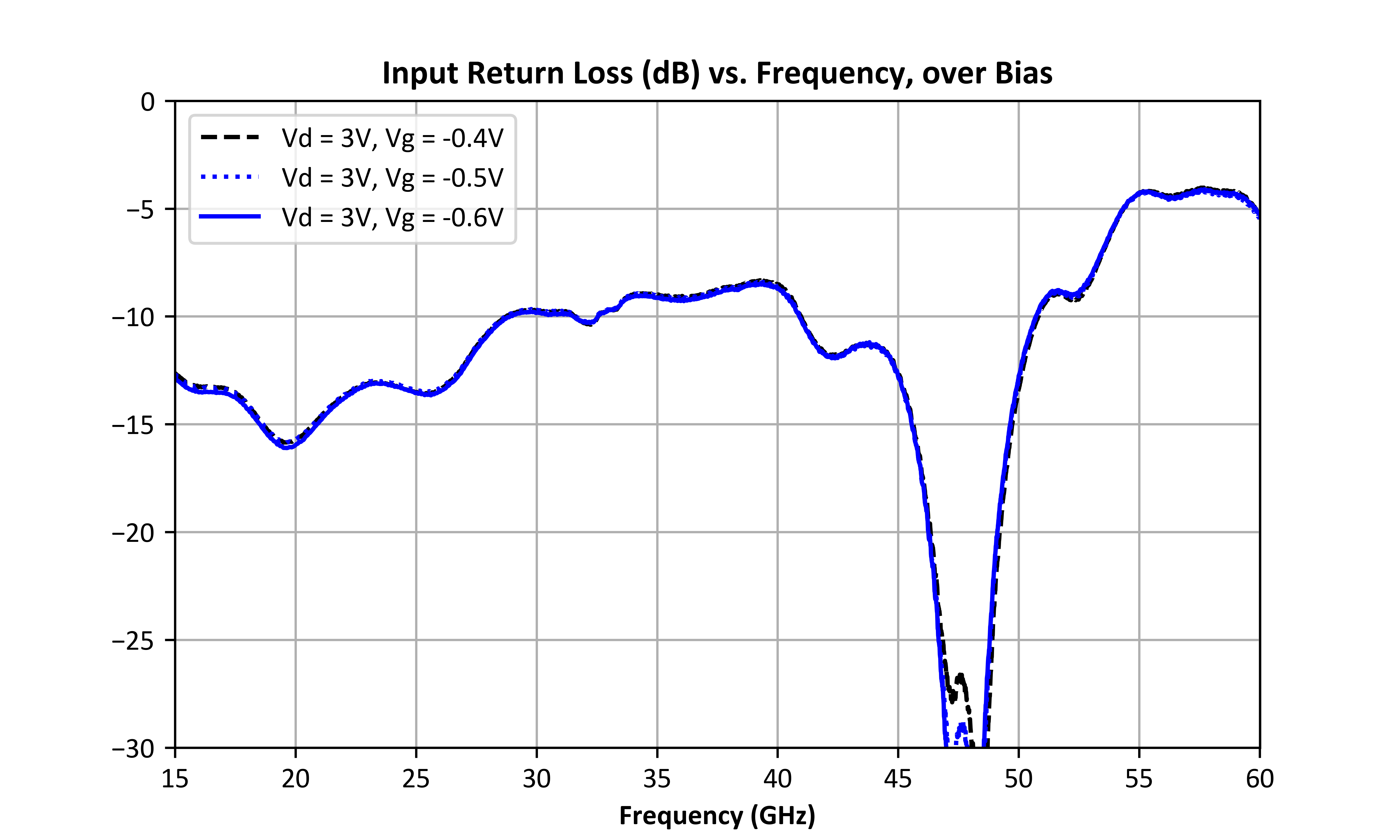

Input Return Loss	Vd = 3V, Vg = -0.5V, -25dBm Input Power	22	57	-	11	-	dB

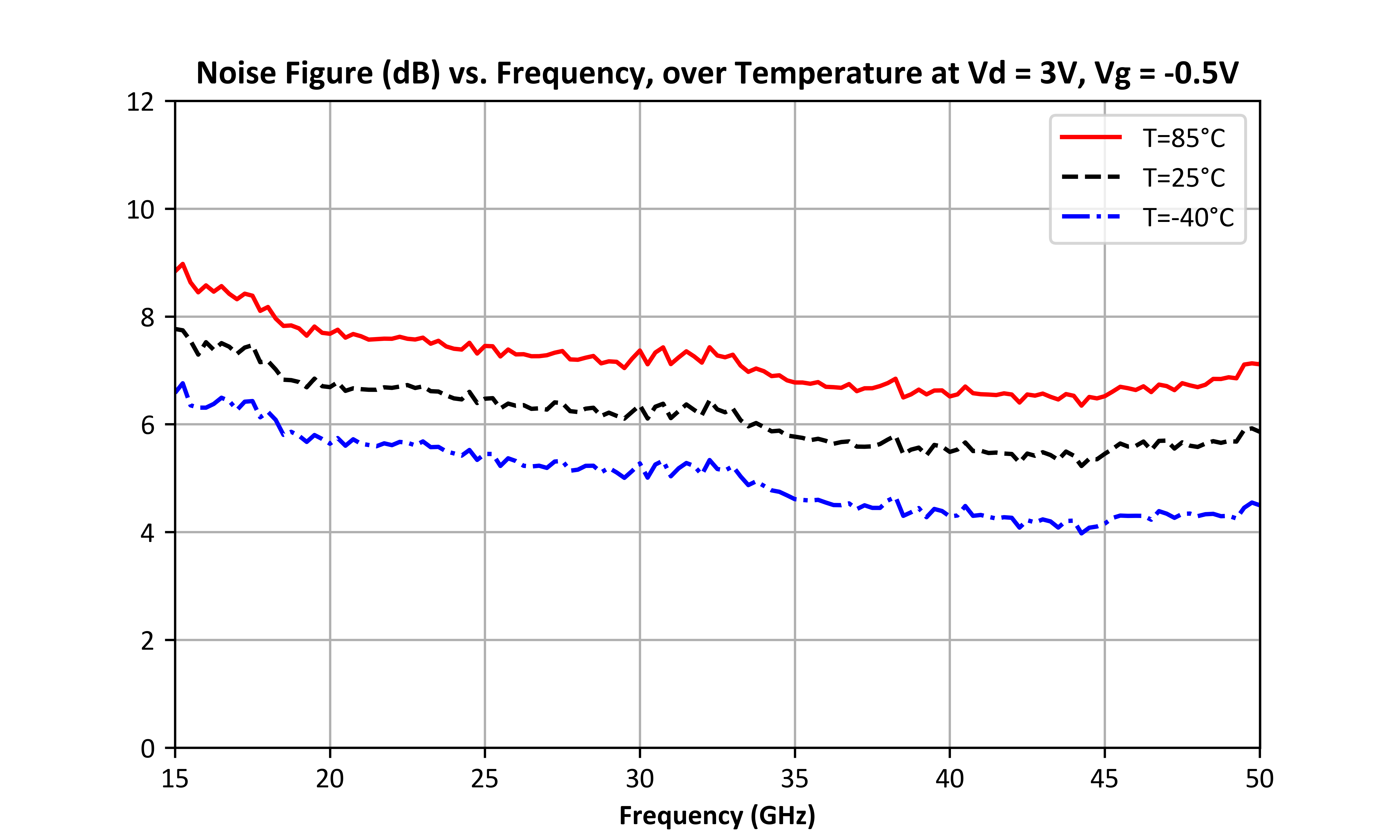

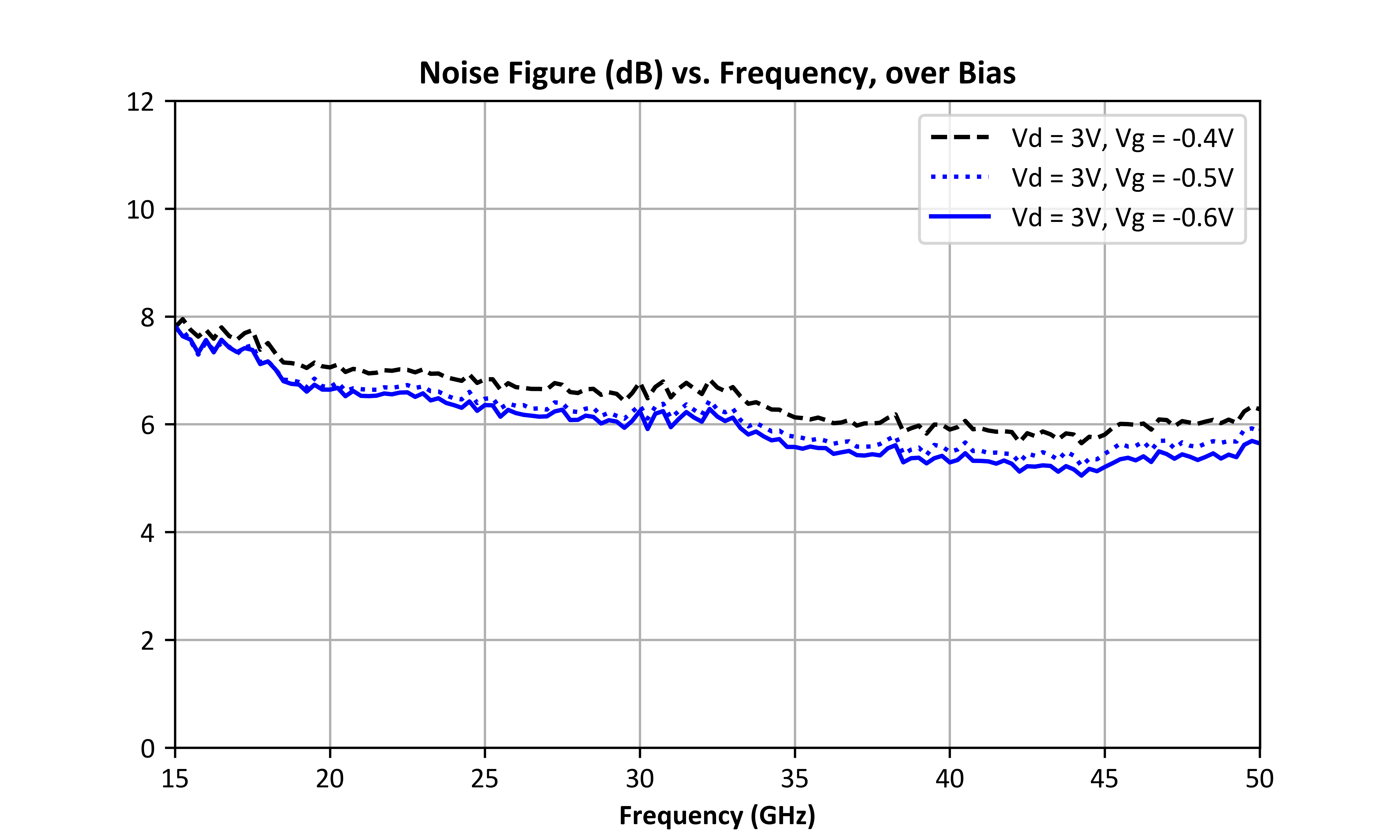

Noise Figure	Vd = 3V, Vg = -0.5V	22	57	-	6	-	dB
Output IP3	Vd = 3V, Vg = -0.5V, -12dBm Input Power, 10MHz tone spacing	22	50	-	26	-	dBm

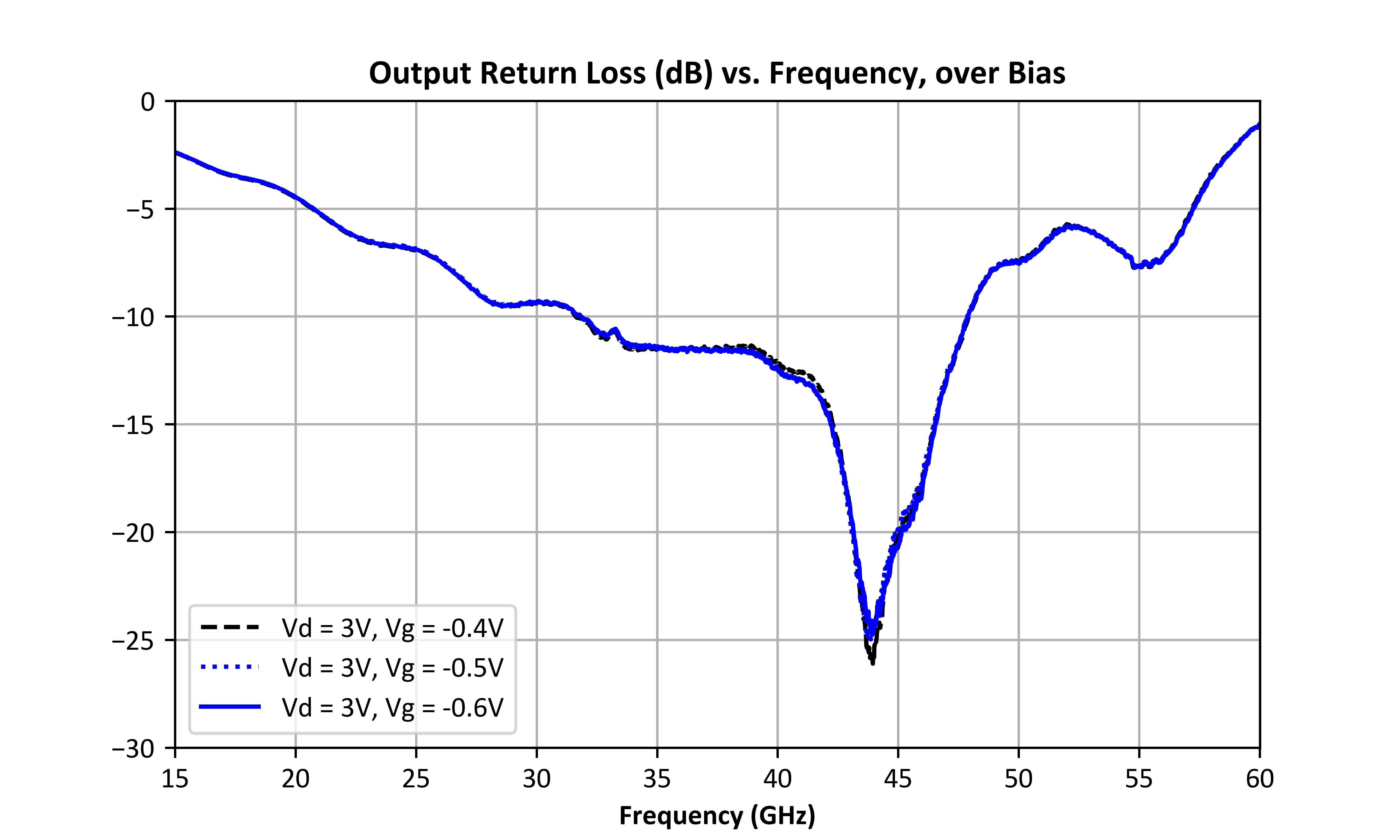

Output Return Loss	Vd = 3V, Vg = -0.5V, -25dBm Input Power	22	57	-	10	-	dB

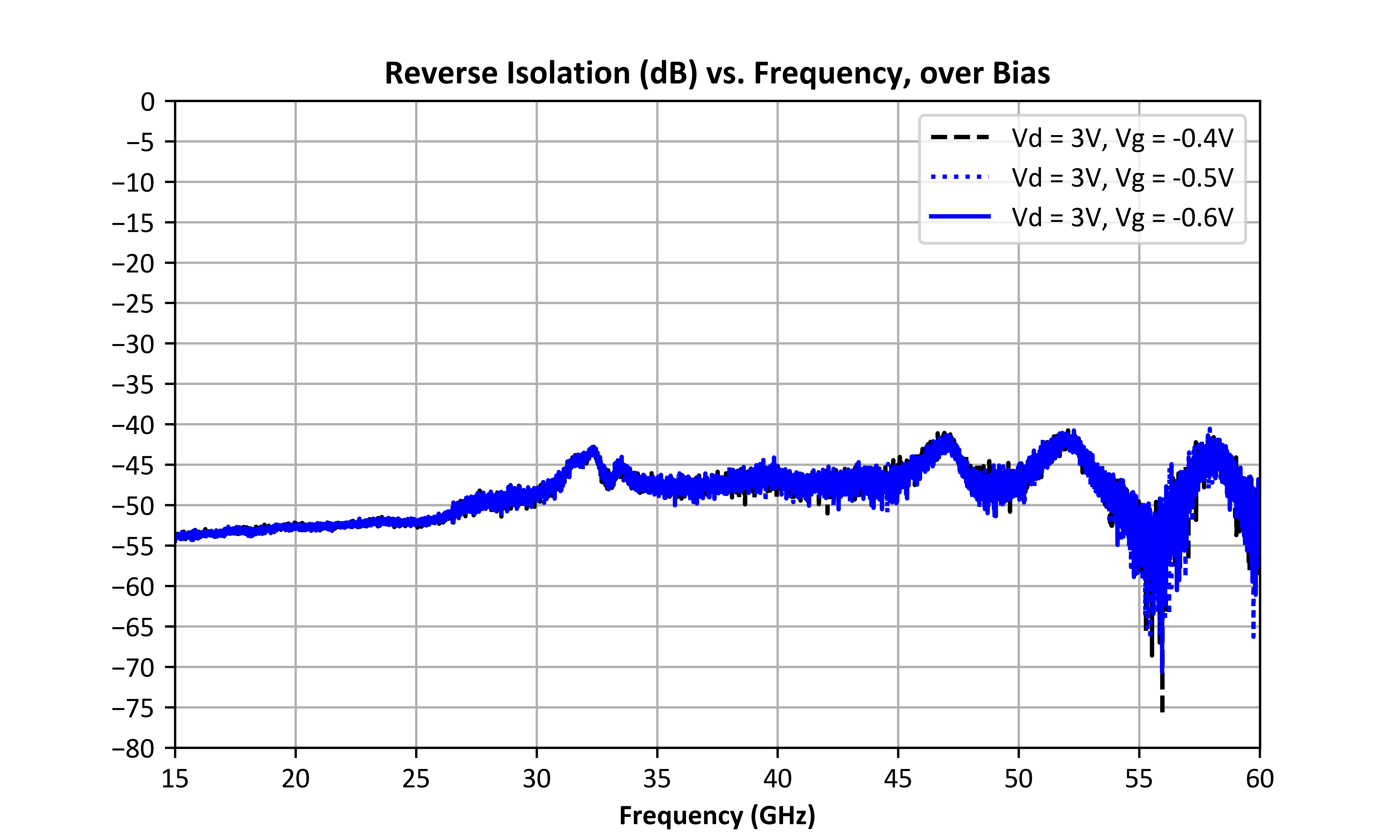

Reverse Isolation	Vd = 3V, Vg = -0.5V, -25dBm Input Power	22	57	-	48	-	dB

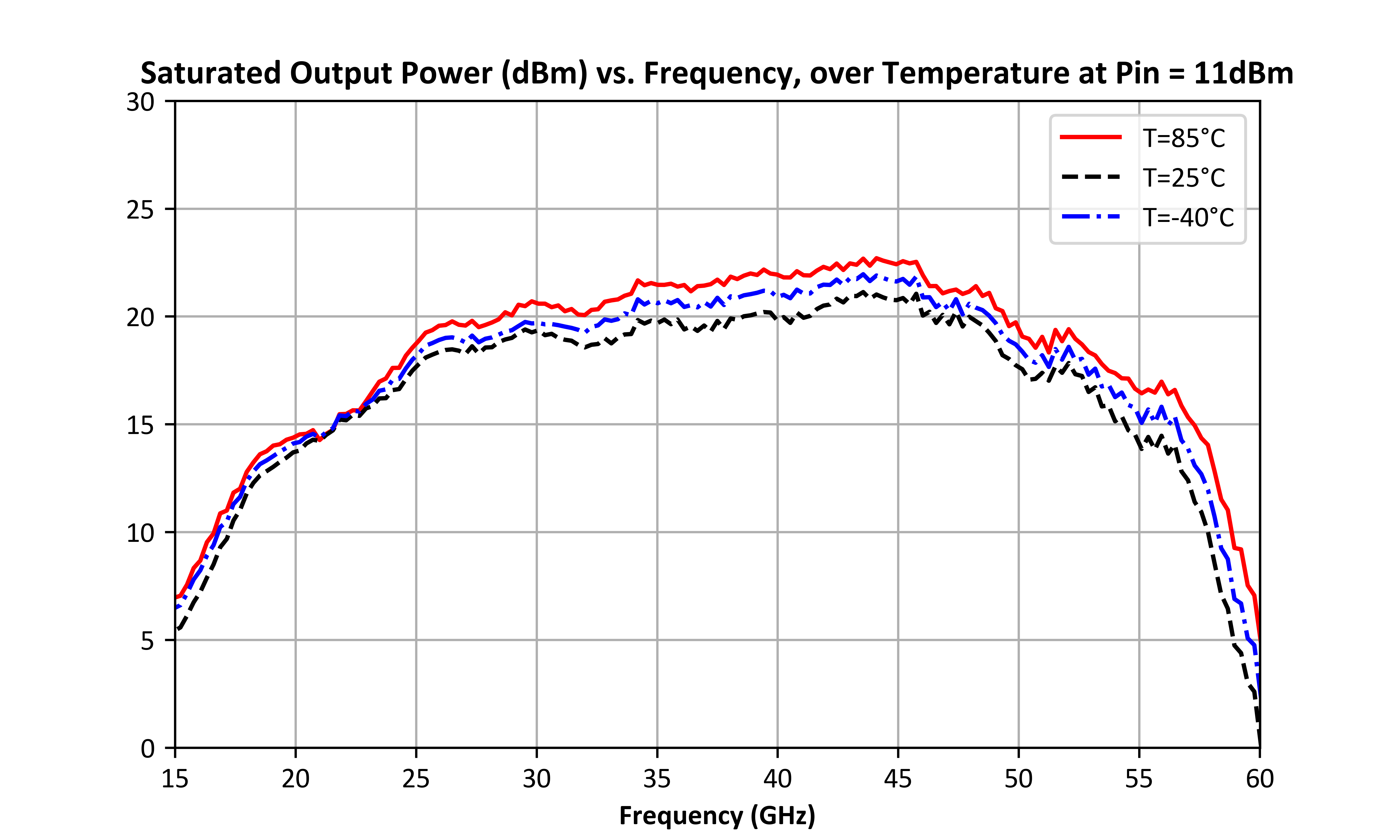

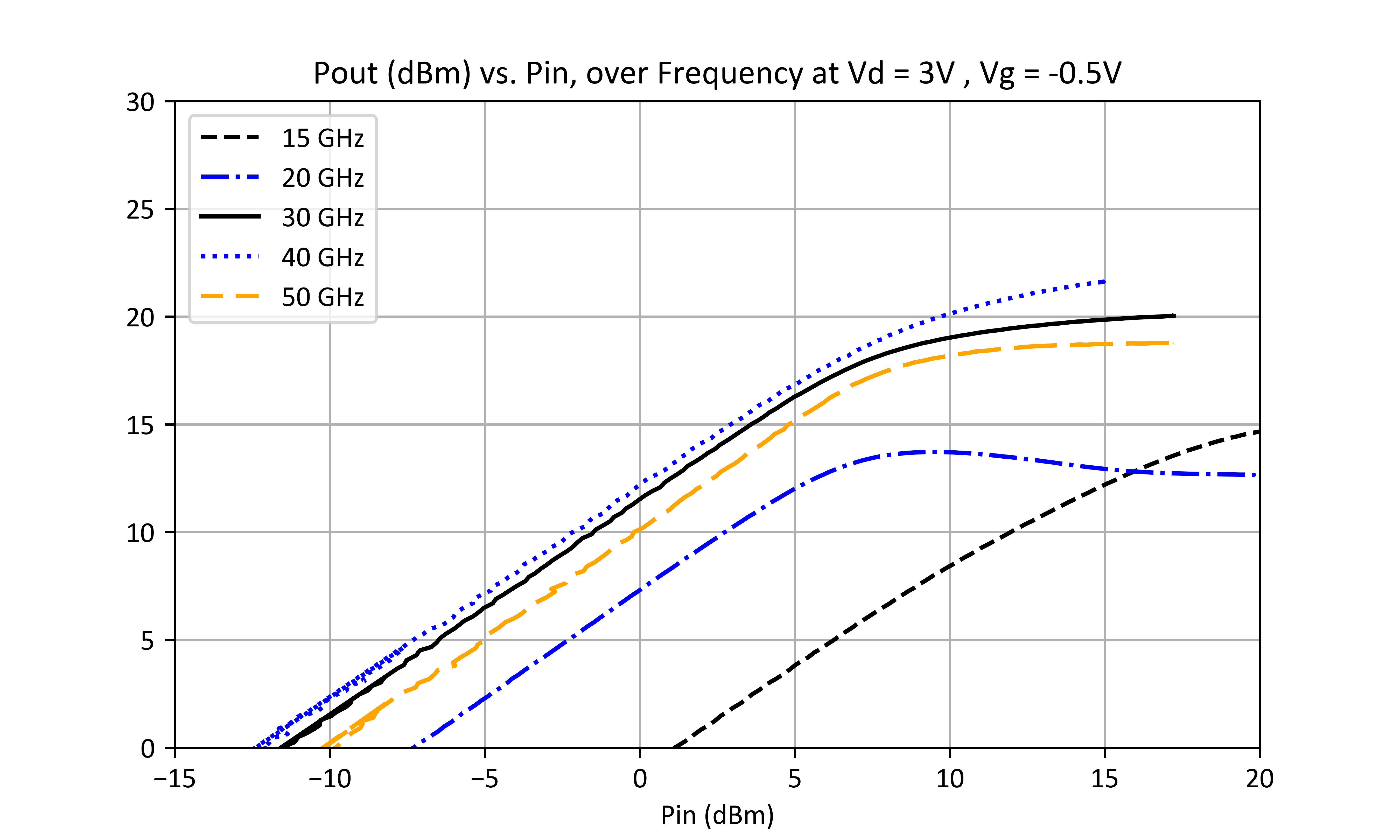

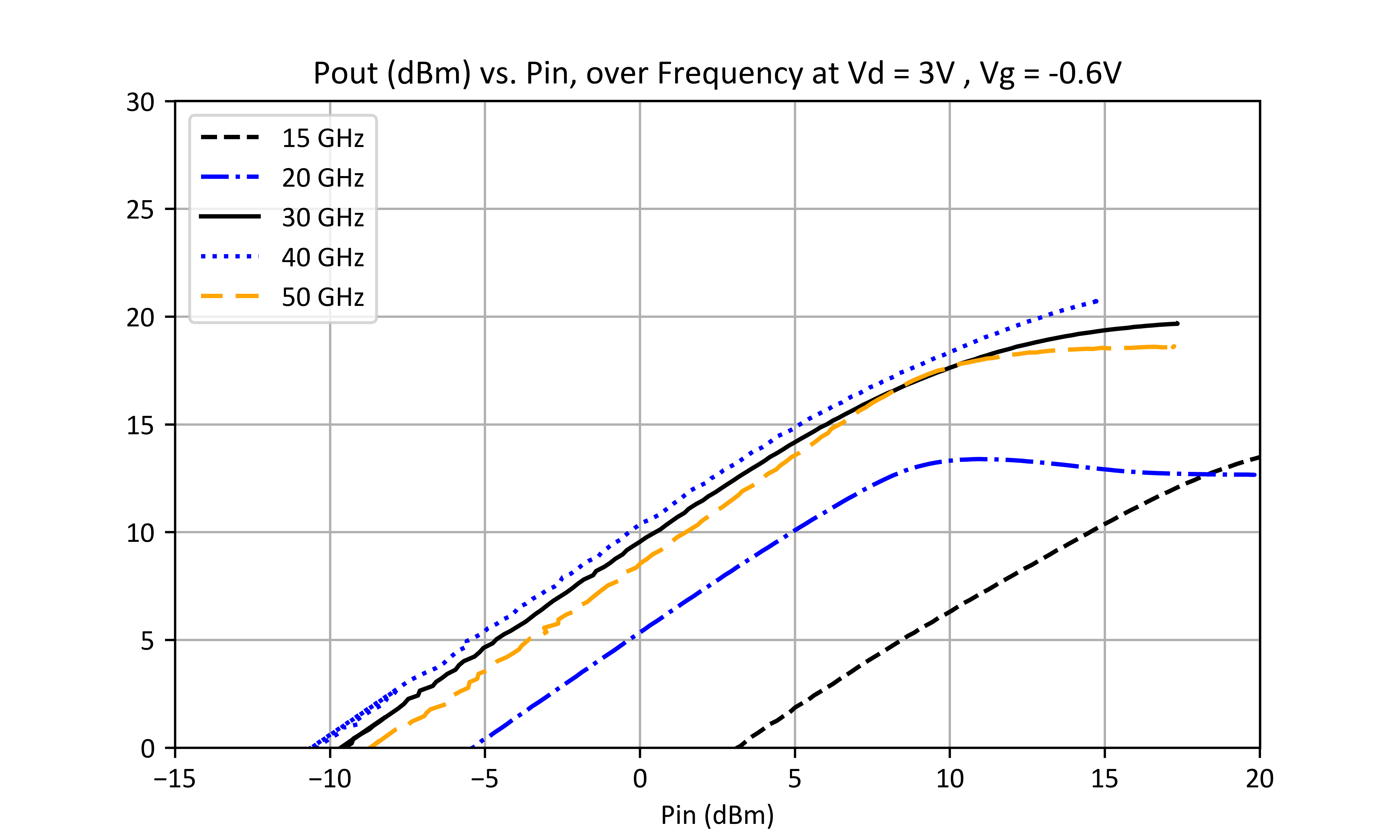

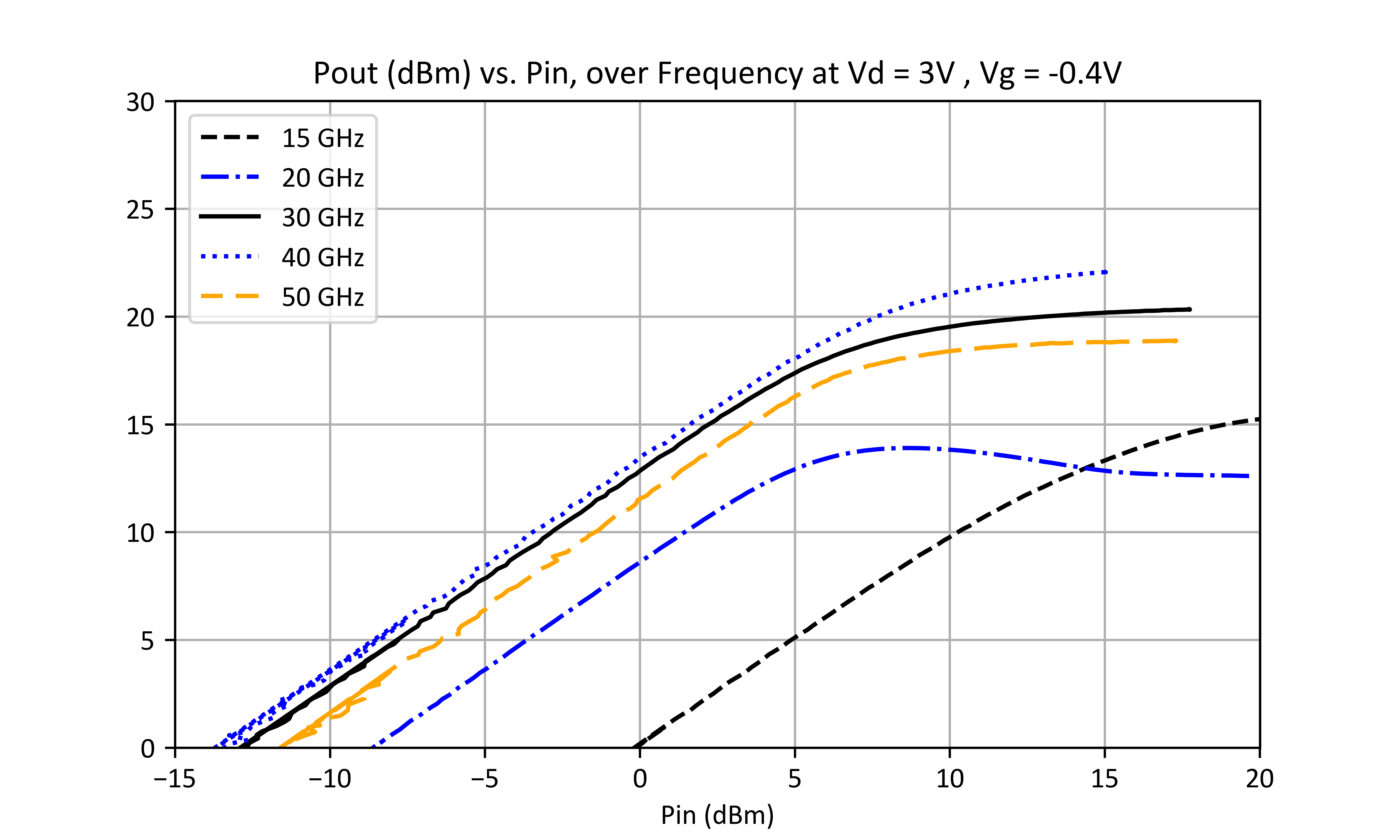

Saturated Output Power	Vd = 3V, Vg = -0.5V	45	57	-	17	-	dBm
Saturated Output Power	Vd = 3V, Vg = -0.5V	30	45	-	20	-	dBm
Saturated Output Power	Vd = 3V, Vg = -0.5V	22	30	-	17	-	dBm

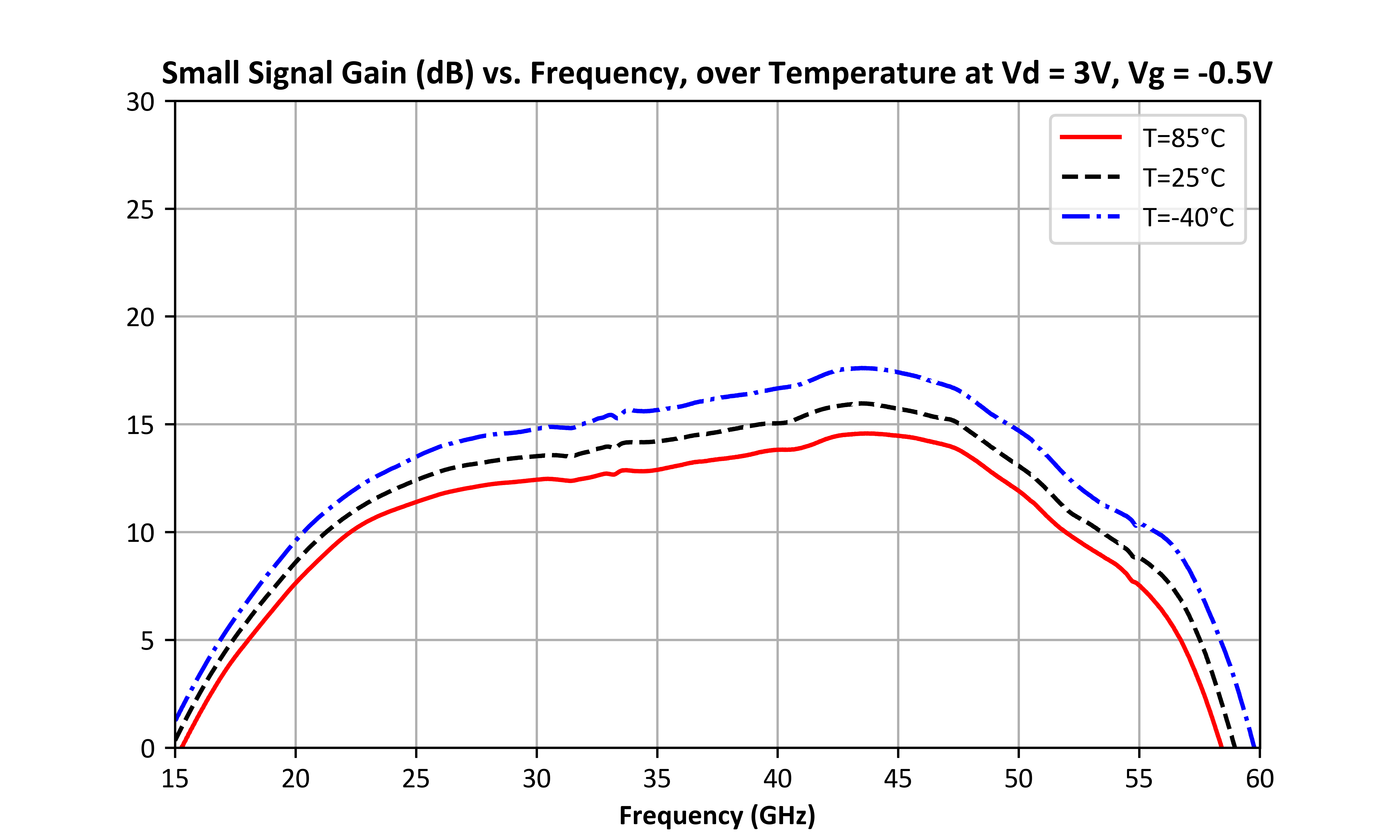

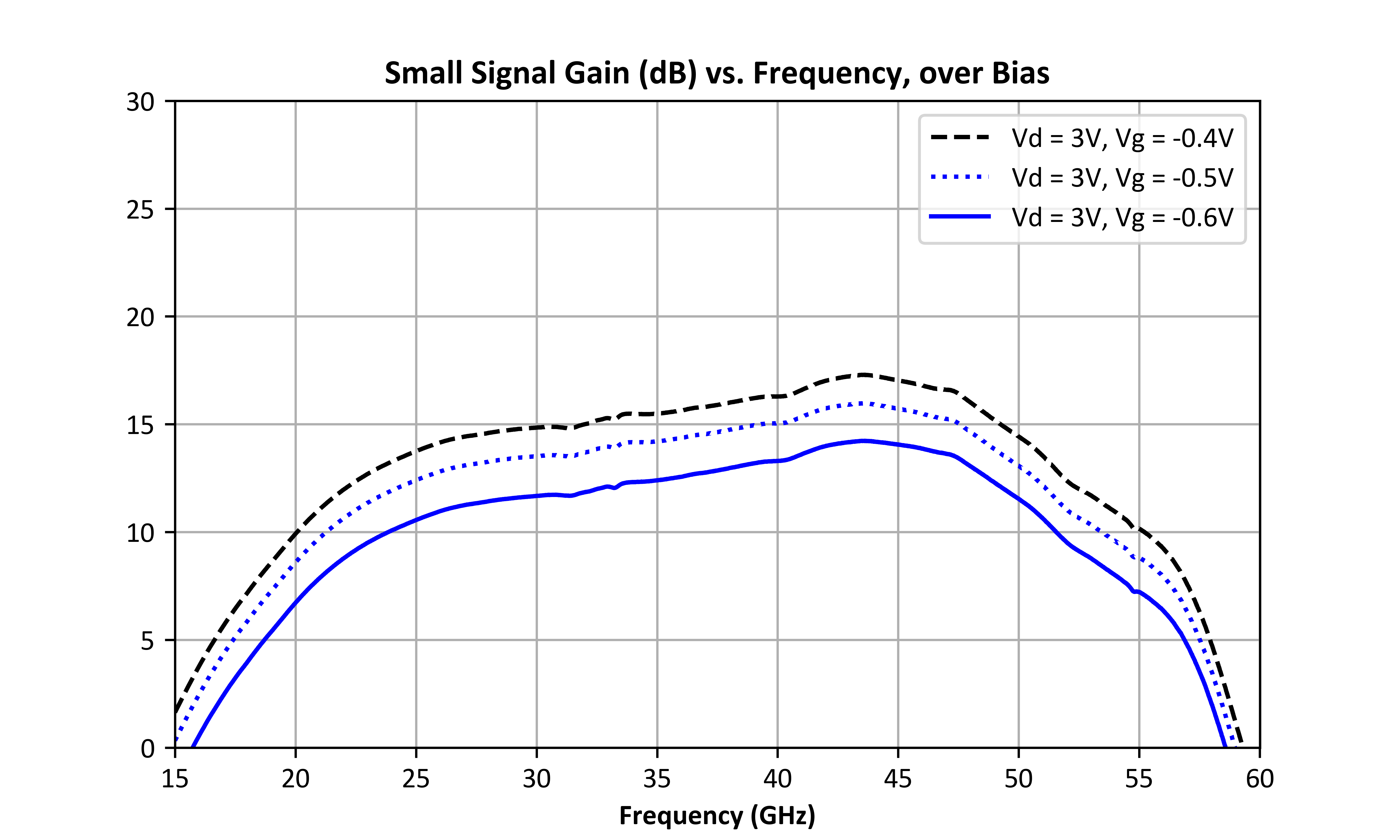

Small Signal Gain	Vd = 3V, Vg = -0.5V, -25dBm Input Power	45	57	-	11	-	dB
Small Signal Gain	Vd = 3V, Vg = -0.5V, -25dBm Input Power	22	30	-	12	-	dB
Small Signal Gain	Vd = 3V, Vg = -0.5V, -25dBm Input Power	30	48	-	14	-	dB

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Output IP3	Vd = 3V, Vg = -0.5V, -12dBm Input Power, 10MHz tone spacing	50	57	-	20	-	dBm
Current Consumption ¹	Vd = 3V, Vg = -0.5V	-	-	-	175	-	mA
Input IP3	Vd = 3V, Vg = -0.5V, -12dBm Input Power, 10MHz tone spacing	22	57	-	12	-	dBm
Input Power for Saturation	Vd = 3V, Vg = -0.5V	22	57	-	11	-	dBm
Input Return Loss	Vd = 3V, Vg = -0.5V, -25dBm Input Power	22	57	-	11	-	dB
Noise Figure	Vd = 3V, Vg = -0.5V	22	57	-	6	-	dB
Output IP3	Vd = 3V, Vg = -0.5V, -12dBm Input Power, 10MHz tone spacing	22	50	-	26	-	dBm
Output Return Loss	Vd = 3V, Vg = -0.5V, -25dBm Input Power	22	57	-	10	-	dB
Reverse Isolation	Vd = 3V, Vg = -0.5V, -25dBm Input Power	22	57	-	48	-	dB
Saturated Output Power	Vd = 3V, Vg = -0.5V	45	57	-	17	-	dBm
Saturated Output Power	Vd = 3V, Vg = -0.5V	30	45	-	20	-	dBm
Saturated Output Power	Vd = 3V, Vg = -0.5V	22	30	-	17	-	dBm
Small Signal Gain	Vd = 3V, Vg = -0.5V, -25dBm Input Power	45	57	-	11	-	dB
Small Signal Gain	Vd = 3V, Vg = -0.5V, -25dBm Input Power	22	30	-	12	-	dB
Small Signal Gain	Vd = 3V, Vg = -0.5V, -25dBm Input Power	30	48	-	14	-	dB
