Port Diagram

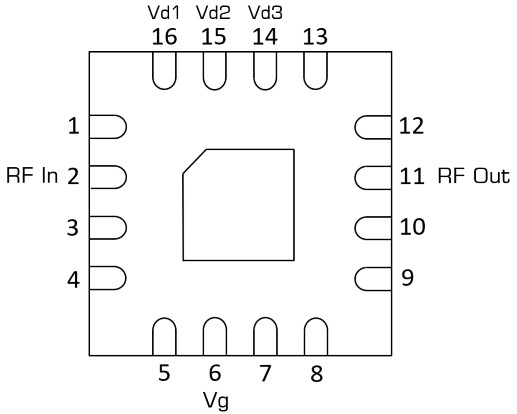

A port diagram of the AMM-7199SM’s QFN package is shown below. The pin functions are detailed in this datasheet.
END OF LIFE
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description

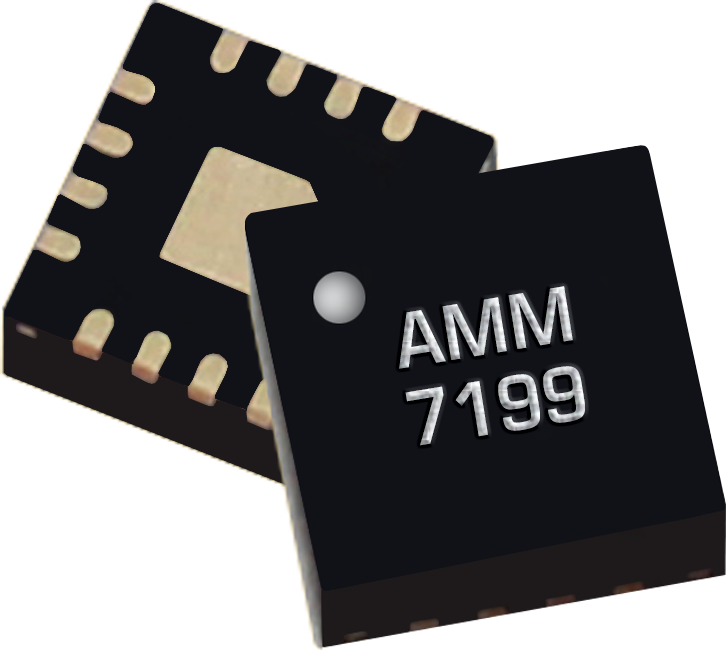

The AMM-7199SM is a surface-mount amplifier suitable for use as a single tone driver or general-purpose gain block. It can drive an L or H diode mixer from 11 to 38 GHz, or S diode mixer from 16 to 34 GHz. This amplifier also has exceptionally low input and output reflections, and excellent gain flatness in-band. The AMM-7199SM is packaged in a compact 3mm QFN for surface mount integration onto printed circuit boards.
Features
- +21dB Small Signal Gain
- +21 dBm saturated output power
- Excellent return losses
- Compact 3mm QFN package
Applications
- Mobile test and measurement equipment
- Radar
- SATCOM
- LO driver for Marki L-, H-, and S-diode mixers
- 5G transceivers
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|
| AMM-7199SM | 11-38 GHz GaAs Surface Mount LO Driver Amplifier | QFN | REACH RoHS | End of Life | 3A001.b.2.d | AMM-7199ASM |
| EVAL-AMM-7199SM | Evaluation Board, 11-38 GHz GaAs Surface Mount LO Driver Amplifier | EVAL | REACH RoHS | End of Life | EAR99 | EVB-AMM-7199ASM |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|
| AMM-7199SM | 11-38 GHz GaAs Surface Mount LO Driver Amplifier | QFN | REACH RoHS | End of Life | 3A001.b.2.d | AMM-7199ASM |
| EVAL-AMM-7199SM | Evaluation Board, 11-38 GHz GaAs Surface Mount LO Driver Amplifier | EVAL | REACH RoHS | End of Life | EAR99 | EVB-AMM-7199ASM |
AMM-7199SM
11-38 GHz GaAs Surface Mount LO Driver Amplifier
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Absolute Maximum Ratings
- Fit and MTTF Table
- Package Information
- Recommended Operating Conditions
- Sequencing Requirements
- Electrical Specifications
- Typical Performance Plots
- Typical Performance Plot of Marki MM1-1140H Using AMM-7199SM as LO Driver
- Typical Performance Plot of Marki MM1-1240S Using AMM-7199SM as LO Driver
- Operation
- Mechanical Data
- Footprint Image
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2021-05-01 | Datasheet Initial Release |
| A | 2021-09-01 | Added IP3, Noise Figure & P1dB plots vs Temperature |
| B | 2026-01-26 | NRND |
| C | 2026-02-13 | MTTF Table Added. |
| D | 2026-03-17 | End of Life |
AMM-7199SM
11-38 GHz GaAs Surface Mount LO Driver Amplifier
Port Configuration and Functions
AMM-7199SM
11-38 GHz GaAs Surface Mount LO Driver Amplifier
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | Ground paddle and non-connected pins must be connected to a DC/RF ground potential with high thermal and electrical conductivity, and low inductance. |  |
| Pin 11 | RF Output | Pin 11 is the RF output of the amplifier, and is matched to 50 ohms. It is internally DC blocked. |  |
| Pin 14 | Positive DC Supply Vd | Pins 14 provides +2.5V to +4V DC voltage to the amplifier’s third stage. Negative voltage must be supplied to Pin 6 before turning on the positive supply voltage. |  |
| Pin 15 | Positive DC Supply Vd | Pins 15 provides +2.5V to +4V DC voltage to the amplifier’s second stage. Negative voltage must be supplied to Pin 6 before turning on the positive supply voltage. | |
| Pin 16 | Positive DC Supply Vd | Pins 16 provides +2.5V to +4V DC voltage to the amplifier’s first stage. Negative voltage must be supplied to Pin 6 before turning on the positive supply voltage. | |
| Pin 2 | RF Input | Pin 2 is the RF input of the amplifier, and is matched to 50 ohms. It is internally DC blocked. |  |
| Pin 6 | Negative DC Supply Vg | Pin 6 provides -0.4V to -0.6V of DC voltage. This must be turned on before turning on the positive supply voltage to Pin 1. |  |
AMM-7199SM
11-38 GHz GaAs Surface Mount LO Driver Amplifier
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime. This amplifier is designed and characterized in a 50Ω system, and operation in a reflective environment can cause performance degradation.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Continuous Power Dissipation (PDISS) (at 85 ˚C case temp.) 1 | 1 | W |
| Maximum Operating Temperature | 85 | °C |
| Maximum Storage Temperature | 150 | °C |
| Max Junction Temperature for MTTF > 1E6 hours | 175 | °C |
| Minimum Operating Temperature | -40 | °C |
| Minimum Storage Temperature | -65 | °C |
| Negative Bias Voltage (Pin 6) | -2 | V |
| Positive Drain Supply Current (with RF Input) 2 | 450 | mA |
| Positive Drain Supply Voltage (Pin 14, 15, 16) | 4.5 | V |
| RF Input Power | 20 | dBm |
| Thermal Resistance, θJC | 94 | ºC/W |
[1] Derates by 11 mW/ ˚C above 85 ˚C case temperature.
[2] Positive Drain Supply DC current is specified as Id1 + Id2 + Id3
FIT and MTTF Table
| T (°C) | λ (TIF) | MTTF (hr) | MTTF (yr) |
|---|---|---|---|
| 105 | 2,441.45 | 4.10E+05 | 47 |
| 85 | 310.48 | 3.22E+06 | 368 |
| 55 | 8.79 | 1.14E+08 | 12,992 |
| 25 | 0.12 | 8.24E+09 | 941,063 |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 3 x 3 mm |
| Moisture Sensitivity Level | - | MSL 1 |
Recommended Operating Conditions
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications. Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the Electrical Specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Ambient Temperature | -40 | 25 | 85 | °C |
| Power Supply DC Voltage | 2.5 | 3 | 4 | V |
| Power Supply DC Current 1 | 115 | 180 | 300 | mA |
| Gate Bias DC Voltage | -0.6 | -0.5 | -0.4 | V |
| Input Power for Saturation | 3 | 6 | 8 | dBm |
[1] Power Supply DC current is specified as Id1 + Id2 + Id3
AMM-7199SM
11-38 GHz GaAs Surface Mount LO Driver Amplifier
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. QFNs are 100% RF tested. Evaluation board losses are mathematically extracted from Saturated output power, Small signal gain, and Noise figure specifications.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Current Consumption 1 | 3V/-0.4V | - | - | - | 230 | - | mA |
| Current Consumption 2 | 3V/-0.5V | - | - | - | 180 | - | mA |
| Current Consumption 3 | 3V/-0.6V | - | - | - | 130 | - | mA |
| Input IP3 | 3V/-0.5V bias, -20 dBm Input Power | 11 | 38 | - | 11 | - | dBm |
| Input Power for Saturation | 3V/-0.5V bias | 11 | 38 | - | 6 | - | dBm |
| Input Return Loss | 3V/-0.5V bias, -25 dBm Input Power | 11 | 38 | - | 16 | - | dB |
| Noise Figure | 3V/-0.5V Bias | 11 | 38 | - | 5 | - | dB |
| Output IP3 | 3V/-0.5V bias, -20 dBm Input Power | 11 | 38 | - | 29 | - | dBm |
| Output P1dB | 3V/-0.5V bias | 11 | 38 | - | 19 | - | dBm |
| Output Return Loss | 3V/-0.5V bias, -25 dBm Input Power | 11 | 38 | - | 13 | - | dB |
| Reverse Isolation | 3V/-0.5V bias, -25 dBm Input Power | 11 | 38 | - | 53 | - | dB |
| Saturated Output Power 4 | 3V/-0.5V bias | 11 | 15 | - | 19 | - | dBm |
| Saturated Output Power 5 | 3V/-0.5V bias | 15 | 30 | 17 | 21 | - | dBm |
| Saturated Output Power 6 | 3V/-0.5V bias | 30 | 38 | - | 19 | - | dBm |
| Small Signal Gain | 3V/-0.5V bias, -25 dBm Input Power | 11 | 15 | - | 20 | - | dB |
| Small Signal Gain | 3V/-0.5V bias, -25 dBm Input Power | 30 | 38 | - | 17 | - | dB |
| Small Signal Gain | 3V/-0.5V bias, -25 dBm Input Power | 15 | 30 | 17 | 21 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Current Consumption 1 | 3V/-0.4V | - | - | - | 230 | - | mA |
| Current Consumption 2 | 3V/-0.5V | - | - | - | 180 | - | mA |
| Current Consumption 3 | 3V/-0.6V | - | - | - | 130 | - | mA |
| Input IP3 | 3V/-0.5V bias, -20 dBm Input Power | 11 | 38 | - | 11 | - | dBm |
| Input Power for Saturation | 3V/-0.5V bias | 11 | 38 | - | 6 | - | dBm |
| Input Return Loss | 3V/-0.5V bias, -25 dBm Input Power | 11 | 38 | - | 16 | - | dB |
| Noise Figure | 3V/-0.5V Bias | 11 | 38 | - | 5 | - | dB |
| Output IP3 | 3V/-0.5V bias, -20 dBm Input Power | 11 | 38 | - | 29 | - | dBm |
| Output P1dB | 3V/-0.5V bias | 11 | 38 | - | 19 | - | dBm |
| Output Return Loss | 3V/-0.5V bias, -25 dBm Input Power | 11 | 38 | - | 13 | - | dB |
| Reverse Isolation | 3V/-0.5V bias, -25 dBm Input Power | 11 | 38 | - | 53 | - | dB |
| Saturated Output Power 4 | 3V/-0.5V bias | 11 | 15 | - | 19 | - | dBm |
| Saturated Output Power 5 | 3V/-0.5V bias | 15 | 30 | 17 | 21 | - | dBm |
| Saturated Output Power 6 | 3V/-0.5V bias | 30 | 38 | - | 19 | - | dBm |
| Small Signal Gain | 3V/-0.5V bias, -25 dBm Input Power | 11 | 15 | - | 20 | - | dB |
| Small Signal Gain | 3V/-0.5V bias, -25 dBm Input Power | 30 | 38 | - | 17 | - | dB |
| Small Signal Gain | 3V/-0.5V bias, -25 dBm Input Power | 15 | 30 | 17 | 21 | - | dB |
[1][2][3] Bias conditions for Id tested with no RF input power. See Typical Performance Plots for DC current vs. RF power. Bias conditions presented as Vd/Vg. Drain current is specified as Id1 + Id2 + Id3.
[4][5][6] Saturated output power specification defined using the EVAL-APM-7199SM P5dB compression curve shown in Typical Performance Plots, with board losses mathematically extracted.
AMM-7199SM
11-38 GHz GaAs Surface Mount LO Driver Amplifier
Typical Performance Plots
Measurement data taken using the EVAL-AMM-7199SM module.
Evaluation board losses are mathematically extracted out of Output Compression Curves, Small Signal Gain Plots, and Noise Figure plots. All other plots include evaluation board losses.
¹² Drain current is specified as Id1 + Id2 + Id3
AMM-7199SM
11-38 GHz GaAs Surface Mount LO Driver Amplifier
AMM-7199SM
11-38 GHz GaAs Surface Mount LO Driver Amplifier
AMM-7199SM
11-38 GHz GaAs Surface Mount LO Driver Amplifier
Typical Performance Plot of Marki MM1-1140H Using AMM-7199SM as LO Driver
Plots taken using EVAL-AMM-7199SM as LO driver for connectorized MM1-1140H module in configuration A with a 91MHz IF. Power specified is input power to EVAL-AMM-7199SM driver.
AMM-7199SM
11-38 GHz GaAs Surface Mount LO Driver Amplifier
Typical Performance Plot of Marki MM1-1240S Using AMM-7199SM as LO Driver
Plots taken using EVAL-AMM-7199SM as LO driver for connectorized MM1-1240S module in configuration A with a 91MHz IF. Power specified is input power to EVAL-AMM-7199SM driver.
AMM-7199SM
11-38 GHz GaAs Surface Mount LO Driver Amplifier

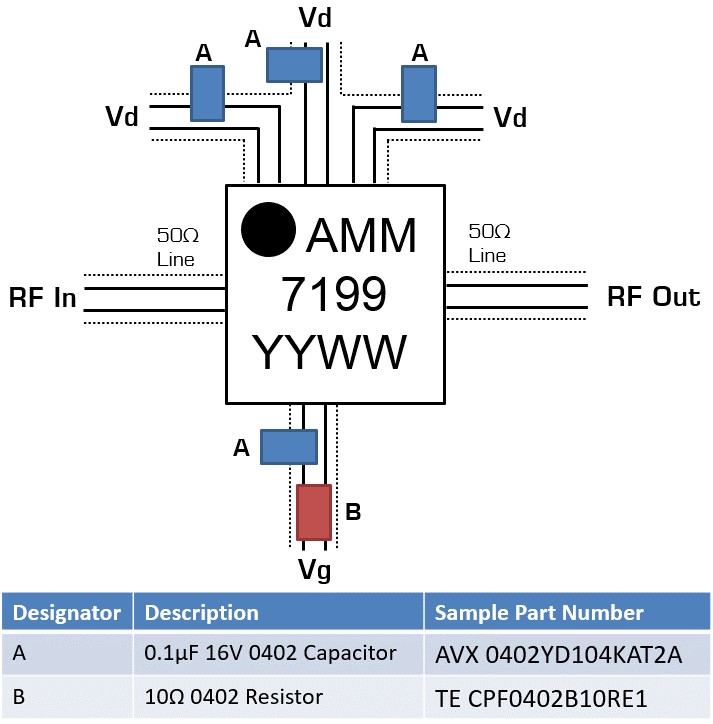

Application Circuit
AMM-7199SM
11-38 GHz GaAs Surface Mount LO Driver Amplifier

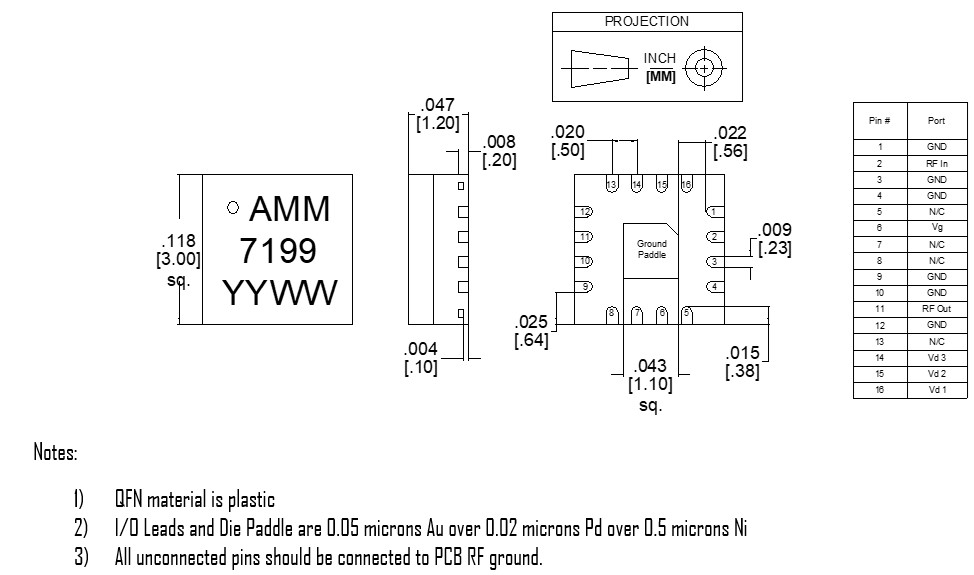

Mechanical Data
AMM-7199SM
11-38 GHz GaAs Surface Mount LO Driver Amplifier

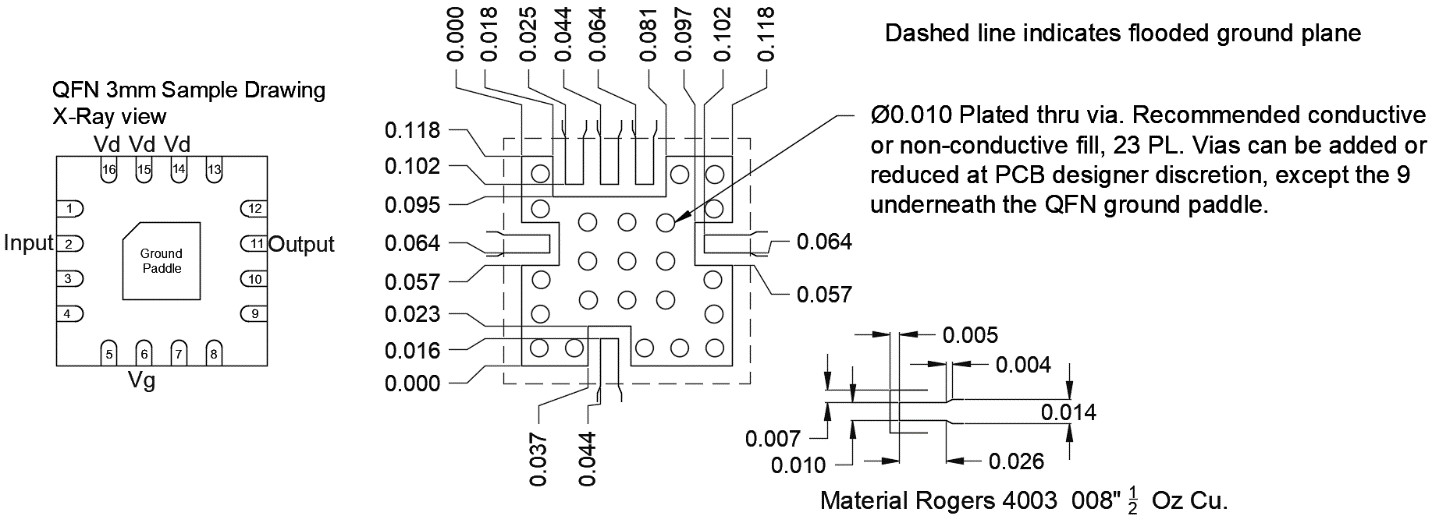

Footprint Image
Download : Footprint Drawing
AMM-7199SM
11-38 GHz GaAs Surface Mount LO Driver Amplifier
Evaluation Board - Outline Drawing
