Port Diagram

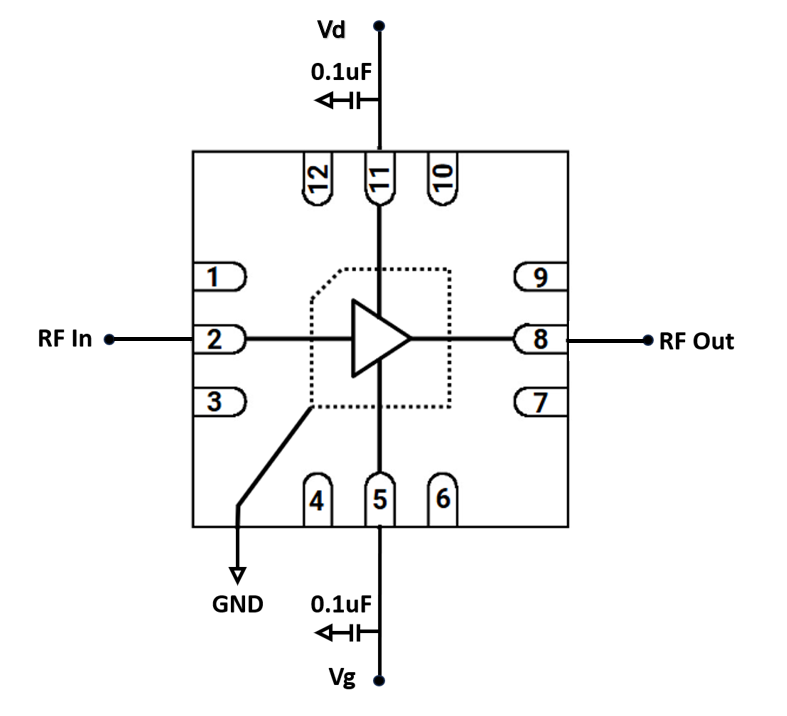

A port diagram of the AMM-10858PSM is shown below (X-ray view).
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The AMM-10858PSM is a wideband pHEMT-based GaAs surface-mount driver amplifier operating from 3 to 30 GHz. This amplifier offers high gain at 20 dB, +20 dBm saturated output power, and strong linearity with output IP3 of +29 dBm. It’s an excellent driver for our H- and S-diode mixers and multipliers, and comes in a compact 3 mm surface-mount package for easy integration onto printed circuit boards.
Features
- Wideband, 3 to 30 GHz
- High Gain, 20 dB Typical
- High Output Power, +20 dBm Typical
- Minimal Application Circuit
- Internal Blocking Capacitors
- Small 3 x 3 mm QFN Package
Applications
- Satellite Communications
- Electronic Warfare
- Driver Amplifier for H and S - Diode Mixers
- Test and Measurement Equipment
- Wireless Backhaul
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| AMM-10858PSM | 3-30 GHz Broadband Driver Amplifier | Plastic QFN | REACH RoHS | Released | EAR99 |
| EVB-AMM-10858P | Evaluation Board, 3 - 30 GHz Broadband Driver Amplifier | EVB | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| AMM-10858PSM | 3-30 GHz Broadband Driver Amplifier | Plastic QFN | REACH RoHS | Released | EAR99 |
| EVB-AMM-10858P | Evaluation Board, 3 - 30 GHz Broadband Driver Amplifier | EVB | REACH RoHS | Released | EAR99 |
AMM-10858PSM
3-30 GHz Broadband Driver Amplifier
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Operation
- Mechanical Data
- Footprint Image
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2026-04-01 | Initial Release |
AMM-10858PSM
3-30 GHz Broadband Driver Amplifier
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Ground Paddle | Ground | Ground paddle and non-connected pins must be connected to a DC/RF ground potential with high thermal and electrical conductivity, and low inductance. |  |
| Pin 11 | Vd | Pin 11 is the DC bias supply for the amplifier. The voltage at this pin should be set to 4V for normal operation. This part requires an off-chip bypass capacitor of 0.1uF installed at this pin as close to the IC as possible. See applications circuit. |  |
| Pin 2 | RF Input | Pin 2 is the amplifier's RF input pin. This port is internally matched to 50 Ohms and is internally DC blocked. |  |
| Pin 5 | Vg | This is the negative DC bias voltage for the amplifier IC. The voltage at this pin controls the current draw Id of the part. Higher voltage results in higher current. For normal operation, the voltage at this pin is adjusted to produce an Id of 84mA when Vd=4V. This part requires an off-chip 0.1uF bypass capacitor installed at this pin as close to the IC as possible. See applications circuit. |  |
| Pin 8 | RF Output | Pin 8 is the amplifier's RF output pin. This port is internally matched to 50 Ohms and is internally DC blocked. |  |
AMM-10858PSM
3-30 GHz Broadband Driver Amplifier
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime. This amplifier is designed and characterized in a 50Ω system, and operation in a reflective environment can cause performance degradation
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 85 | °C |
| Maximum Storage Temperature | 150 | °C |
| Max Junction Temperature for MTTF > 1E6 hours | 175 | °C |
| Minimum Operating Temperature | -40 | °C |
| Minimum Storage Temperature | -65 | °C |
| Positive Drain Supply Current (with RF Input) | 130 | mA |
| Positive Drain Supply Voltage (Vd) | 4.5 | V |
| RF Input Power | 15 | dBm |
| Gate Supply Voltage (Vg) | 0 | V |
| Thermal Resistance, θJC | 135 | ºC/W |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | < 250 Volts | HBM Class 0 |
| Dimensions | - | 3 x 3 mm |
| Moisture Sensitivity Level | - | MSL 1 |
Recommended Operating Conditions
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications. Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the Electrical Specifications. For limits, above which damage may occur, see Absolute Maximum Ratings .
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Power Supply DC Voltage (Vd) | 3 | 4 | 4 | V |
| Ambient Temperature | -40 | 25 | 85 | °C |
| Gate Bias DC Voltage (Vg) | -0.3 | -0.16 | -0.05 | V |
| Positive DC Current (Id) (No RF Input) | 62 | 84 | 100 | mA |
AMM-10858PSM
3-30 GHz Broadband Driver Amplifier
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. QFNs are 100% RF tested.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Small Signal Gain | 4V/-0.16V bias, -20 dBm Input Power | 3 | 30 | - | 20 | - | dB |
| Input Return Loss | 4V/-0.16V bias, -20 dBm Input Power | 3 | 30 | - | 17 | - | dB |
| Output Return Loss | 4V/-0.16V bias, -20 dBm Input Power | 3 | 30 | - | 8 | - | dB |
| Reverse Isolation | 4V/-0.16V bias, -20dBm Input Power | 3 | 30 | - | 47 | - | dB |
| Noise Figure | 4V/-0.16V bias, -30 dBm Input Power | 3 | 30 | - | 6.1 | - | dB |
| Input P1dB | 4V/-0.16V bias | 3 | 30 | - | -1.2 | - | dBm |
| Output P1dB | 4V/-0.16V bias | 3 | 30 | - | 17.7 | - | dBm |
| Saturated Output Power | 4V/-0.16V Bias | 3 | 30 | - | 20.2 | - | dBm |
| Input IP3 | 4V/-0.16V bias, -15dBm input, 1 MHz tone spacing | 3 | 30 | - | 8.4 | - | dBm |
| Output IP3 | 4V/-0.16V bias, -15dBm input, 1 MHz tone spacing | 3 | 30 | - | 29 | - | dBm |
| Input IP2 | 4V/-0.16V bias, -15dBm input, 1 MHz tone spacing | 3 | 15 | - | 16.9 | - | dBm |
| Output IP2 | 4V/-0.16V bias, -15dBm input, 1 MHz tone spacing | 3 | 15 | - | 37 | - | dBm |
| Current Consumption 1 | 4V/-0.16V bias | - | - | - | 84 | - | mA |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Small Signal Gain | 4V/-0.16V bias, -20 dBm Input Power | 3 | 30 | - | 20 | - | dB |
| Input Return Loss | 4V/-0.16V bias, -20 dBm Input Power | 3 | 30 | - | 17 | - | dB |
| Output Return Loss | 4V/-0.16V bias, -20 dBm Input Power | 3 | 30 | - | 8 | - | dB |
| Reverse Isolation | 4V/-0.16V bias, -20dBm Input Power | 3 | 30 | - | 47 | - | dB |
| Noise Figure | 4V/-0.16V bias, -30 dBm Input Power | 3 | 30 | - | 6.1 | - | dB |
| Input P1dB | 4V/-0.16V bias | 3 | 30 | - | -1.2 | - | dBm |
| Output P1dB | 4V/-0.16V bias | 3 | 30 | - | 17.7 | - | dBm |
| Saturated Output Power | 4V/-0.16V Bias | 3 | 30 | - | 20.2 | - | dBm |
| Input IP3 | 4V/-0.16V bias, -15dBm input, 1 MHz tone spacing | 3 | 30 | - | 8.4 | - | dBm |
| Output IP3 | 4V/-0.16V bias, -15dBm input, 1 MHz tone spacing | 3 | 30 | - | 29 | - | dBm |
| Input IP2 | 4V/-0.16V bias, -15dBm input, 1 MHz tone spacing | 3 | 15 | - | 16.9 | - | dBm |
| Output IP2 | 4V/-0.16V bias, -15dBm input, 1 MHz tone spacing | 3 | 15 | - | 37 | - | dBm |
| Current Consumption 1 | 4V/-0.16V bias | - | - | - | 84 | - | mA |
[1] Bias conditions for Id tested with no RF input power. Bias conditions presented as Vd/Vg
AMM-10858PSM
3-30 GHz Broadband Driver Amplifier
Typical Performance Plots (vs Bias)
Measurement data de-embedded using standard evaluation board.

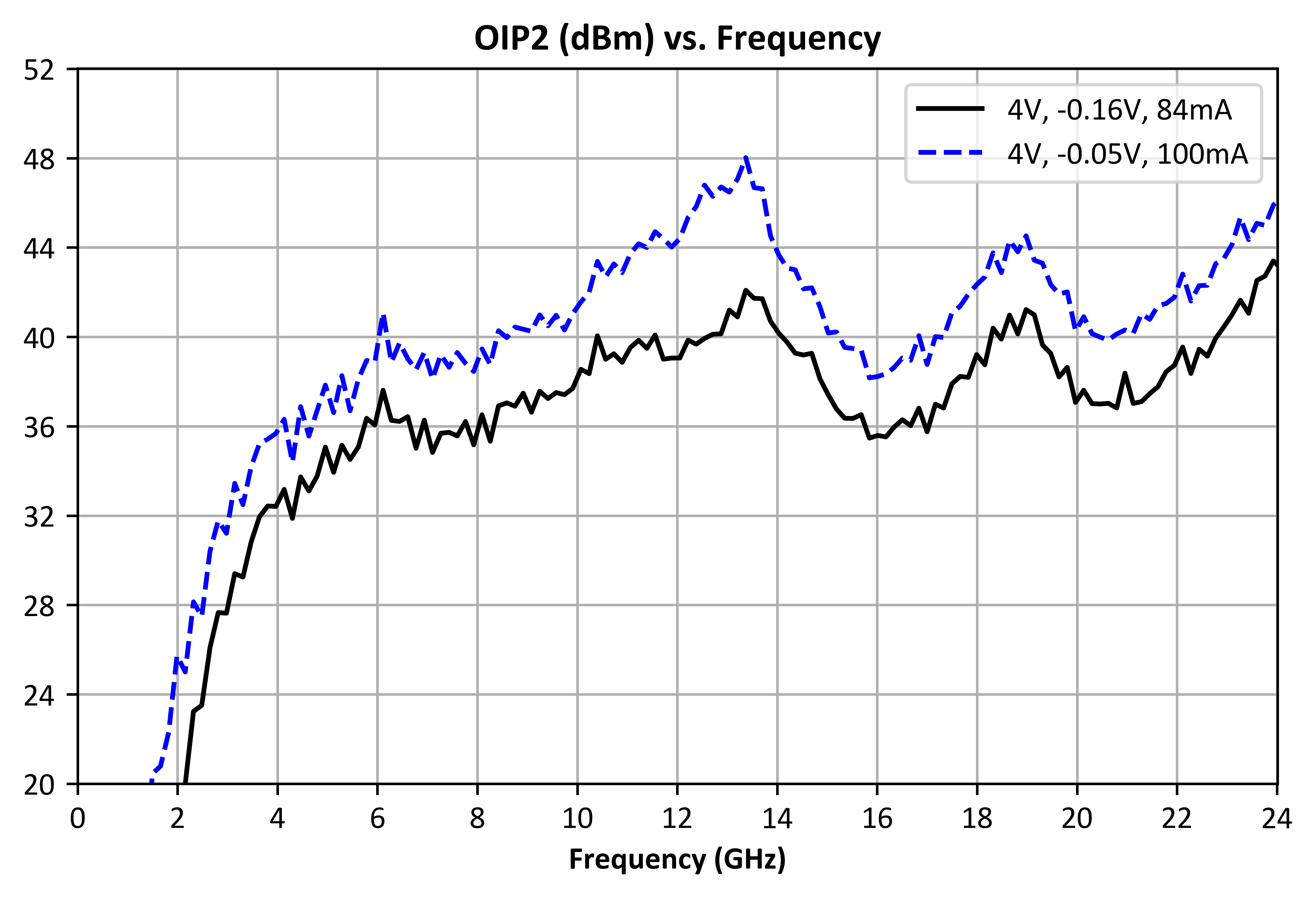

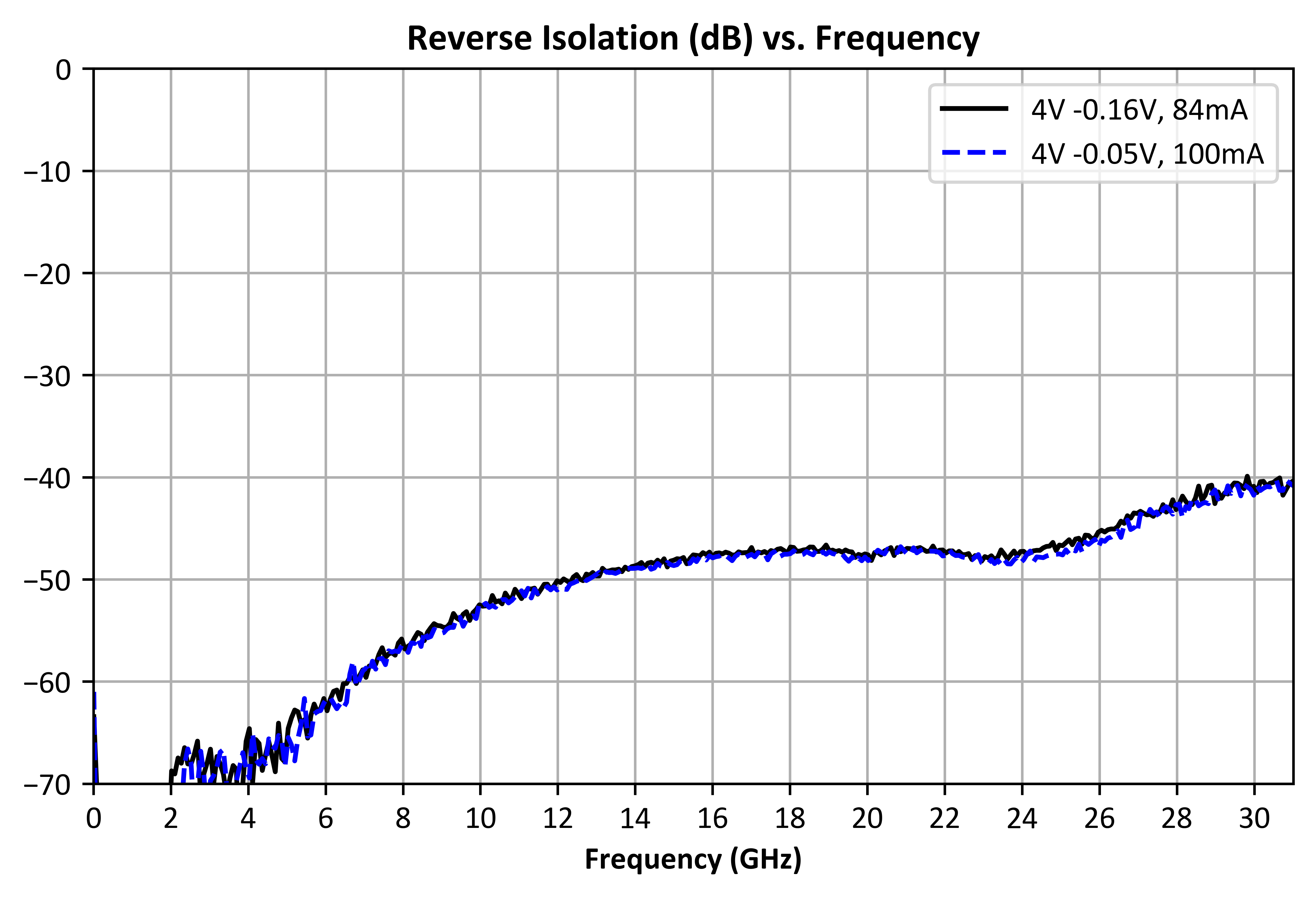

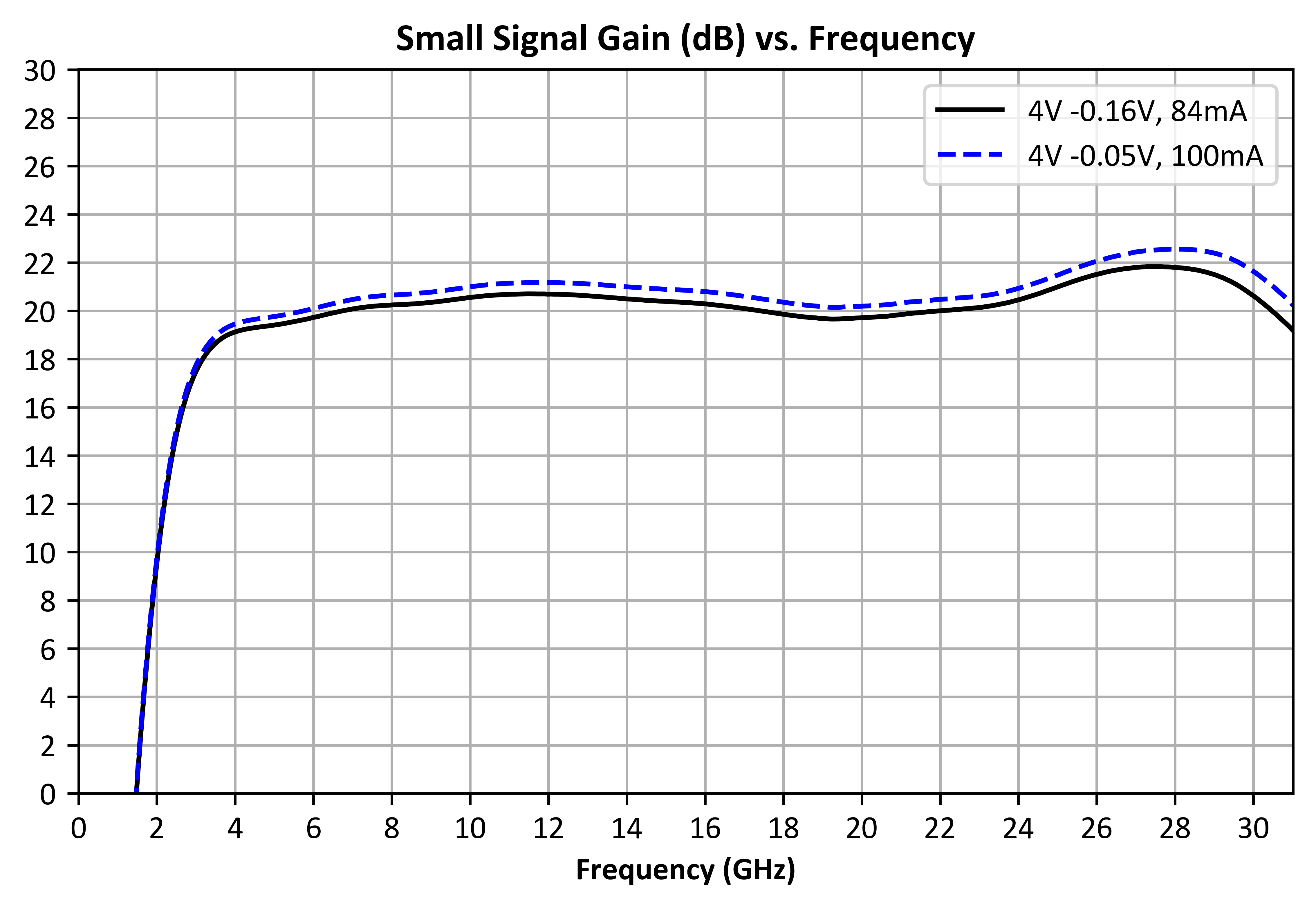

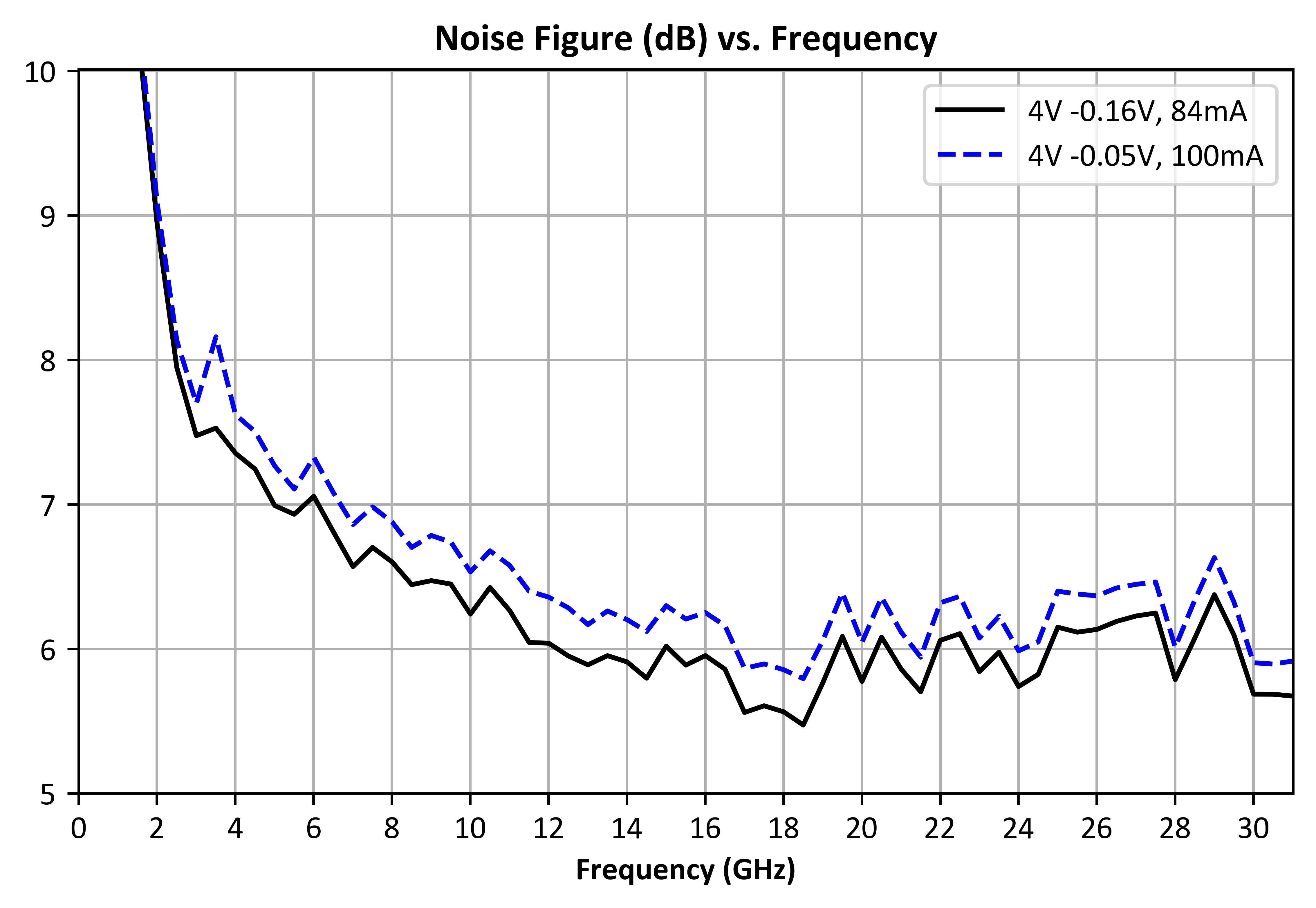

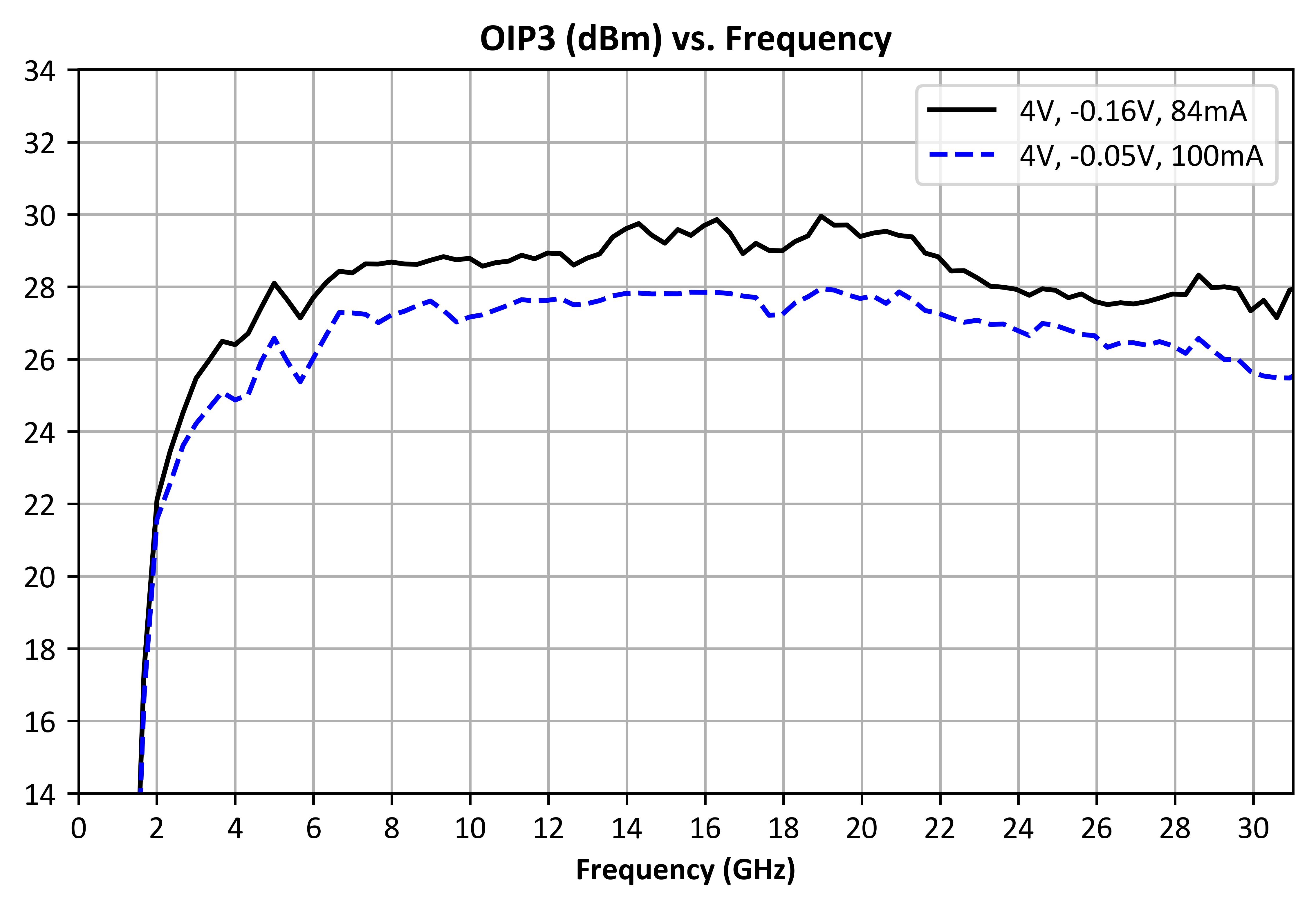

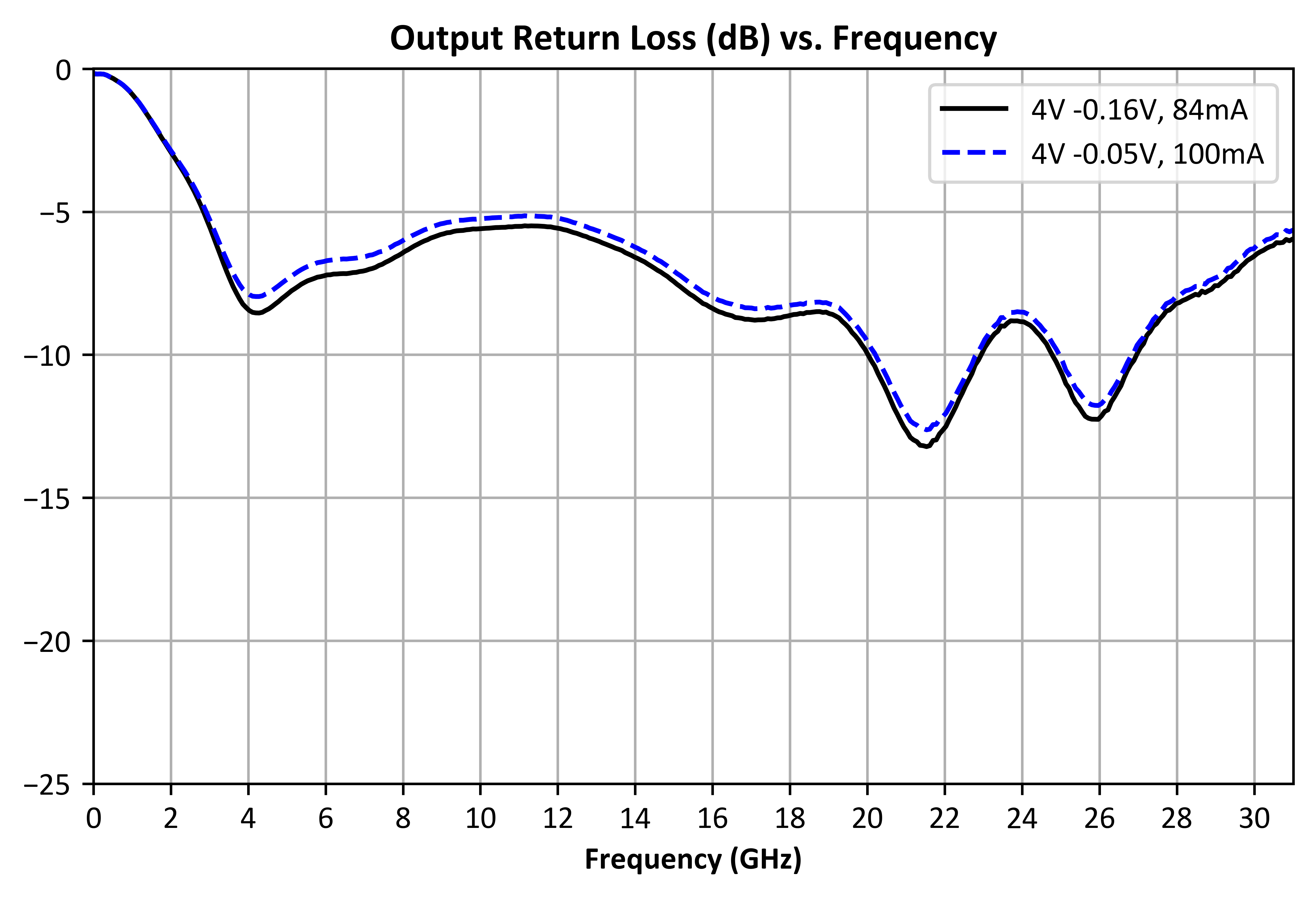

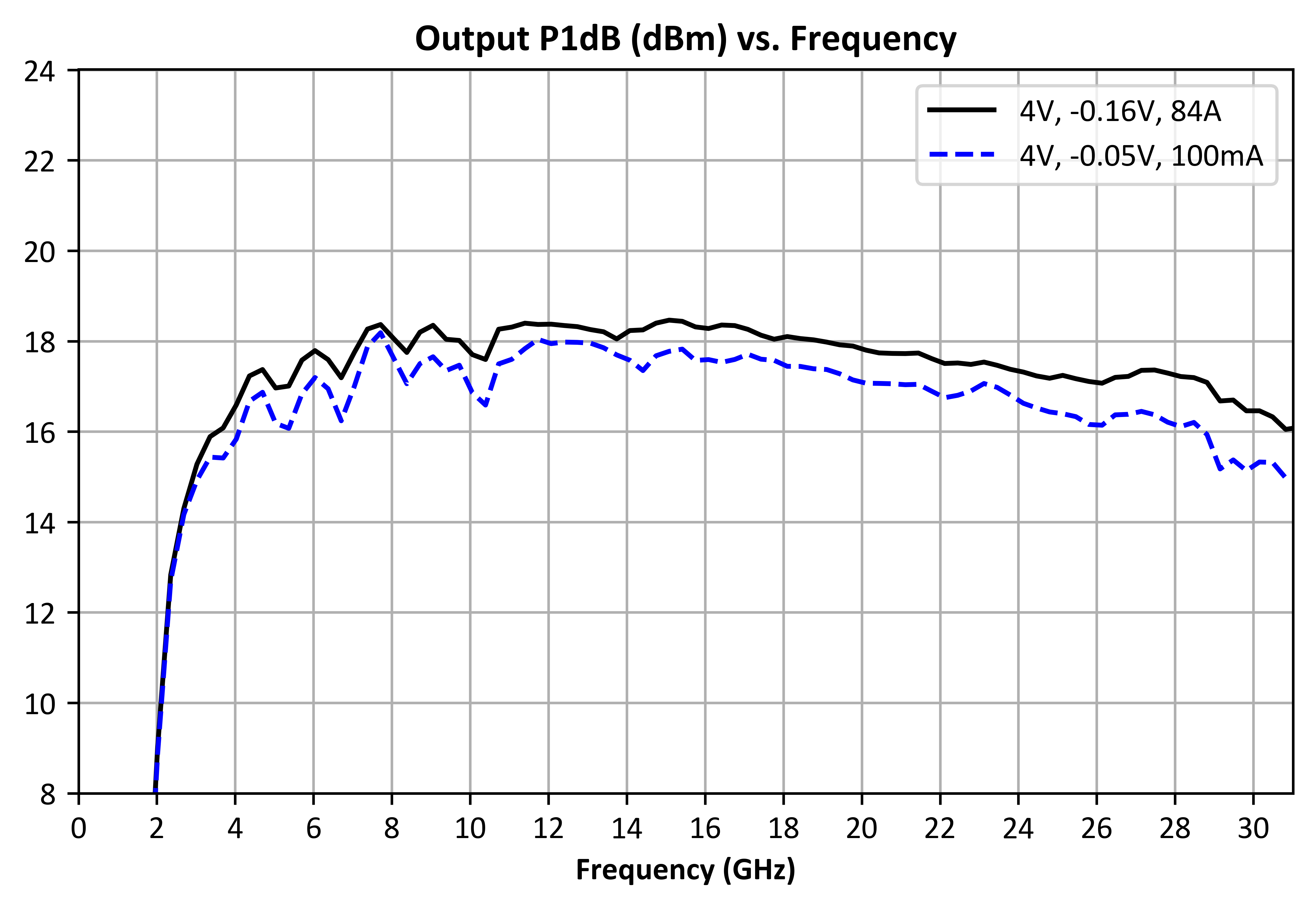

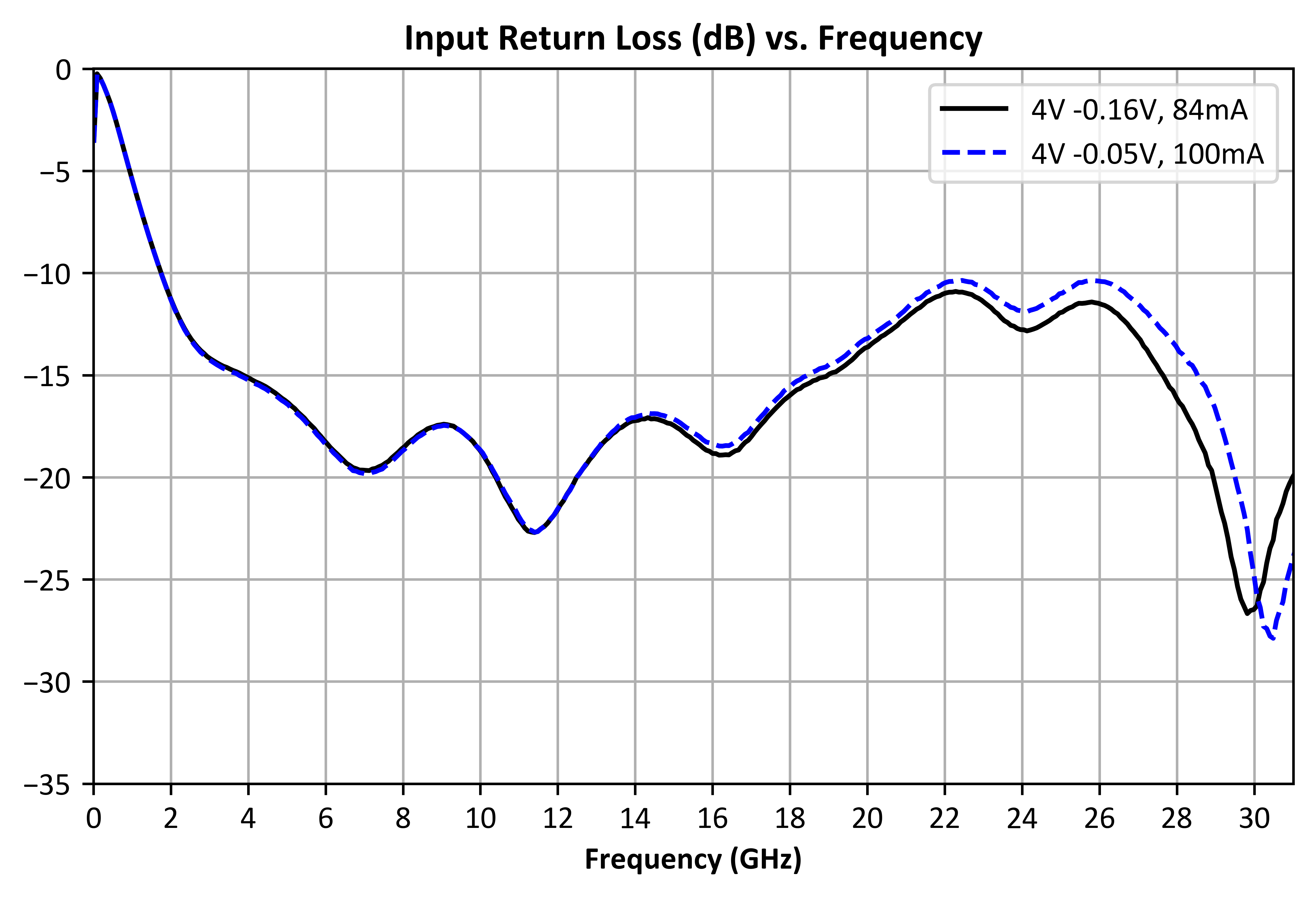

%20vs.%20Frequency.png)
%20vs.%20Frequency.png)
%20vs.%20Frequency.png)
%20vs.%20Frequency.png)
%20vs.%20Frequency.png)
%20vs.%20Frequency.png)
%20vs.%20Frequency.png)
%20vs.%20Frequency.png)
AMM-10858PSM
3-30 GHz Broadband Driver Amplifier

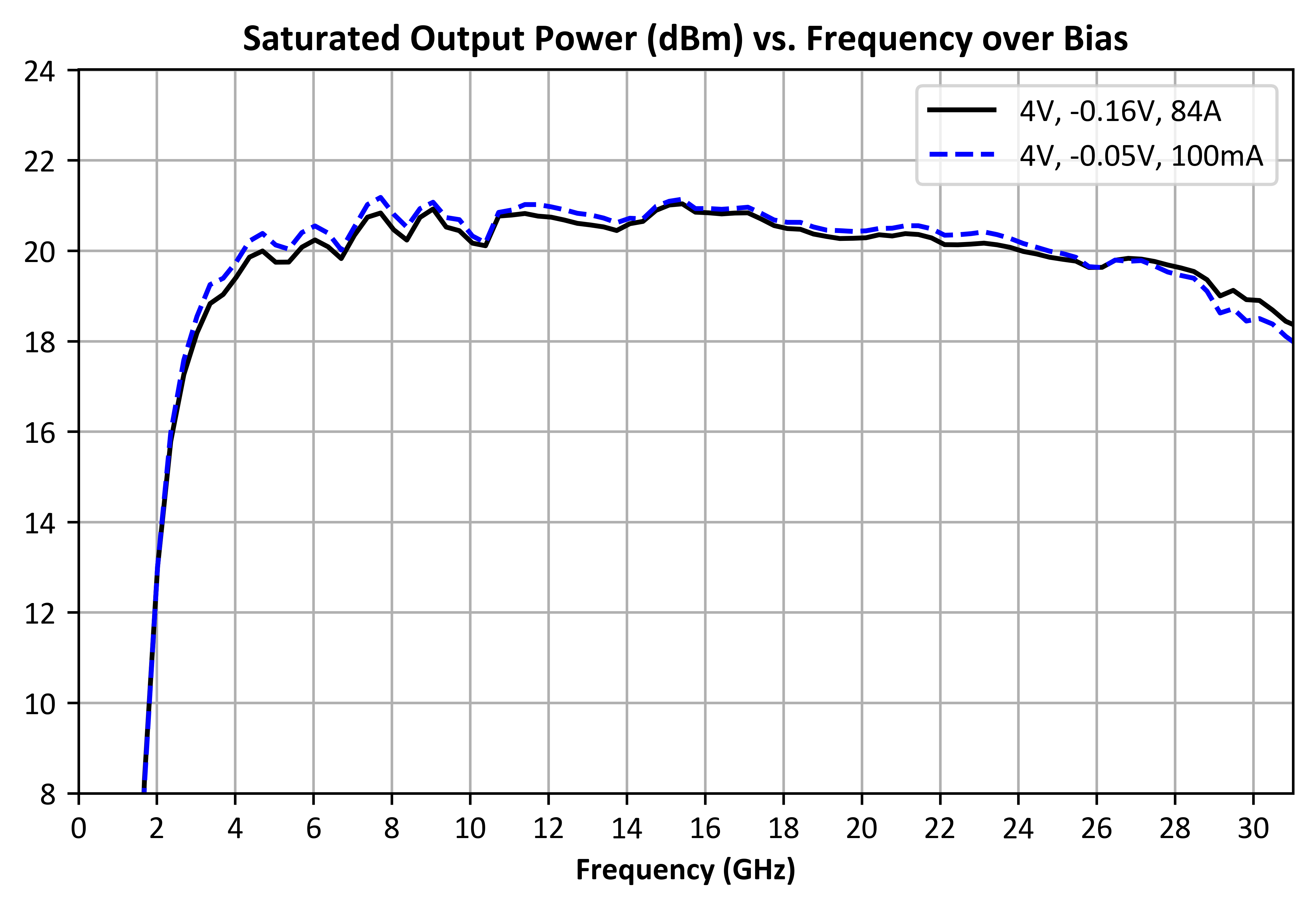

%20vs.%20Frequency%20over%20Bias.png)
AMM-10858PSM
3-30 GHz Broadband Driver Amplifier
Typical Performance Plots (vs Temperature)

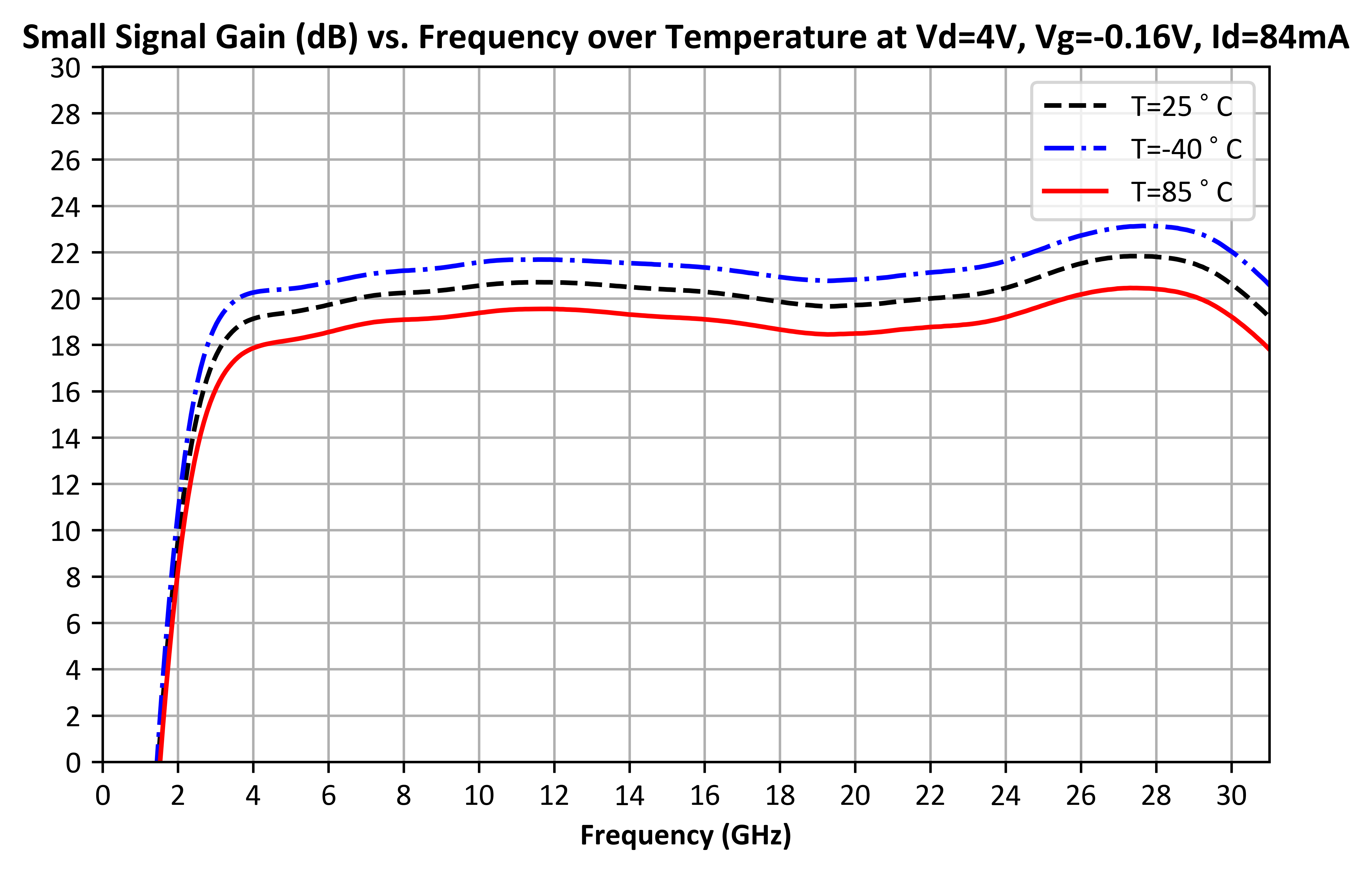

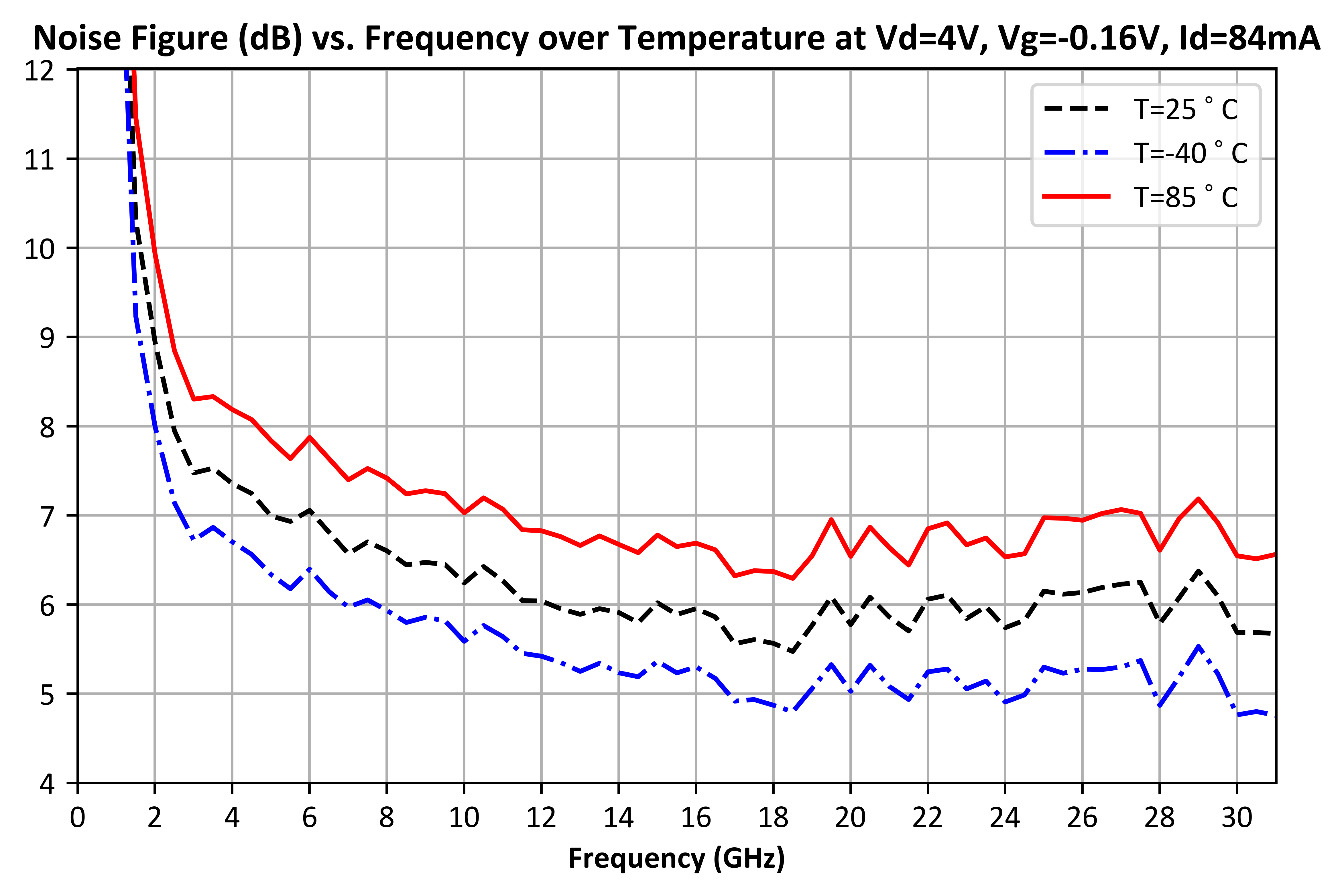

%20vs.%20Frequency%20over%20Temperature%20at%20Vd=4V,%20Vg=-0.16V,%20Id=84mA.png)

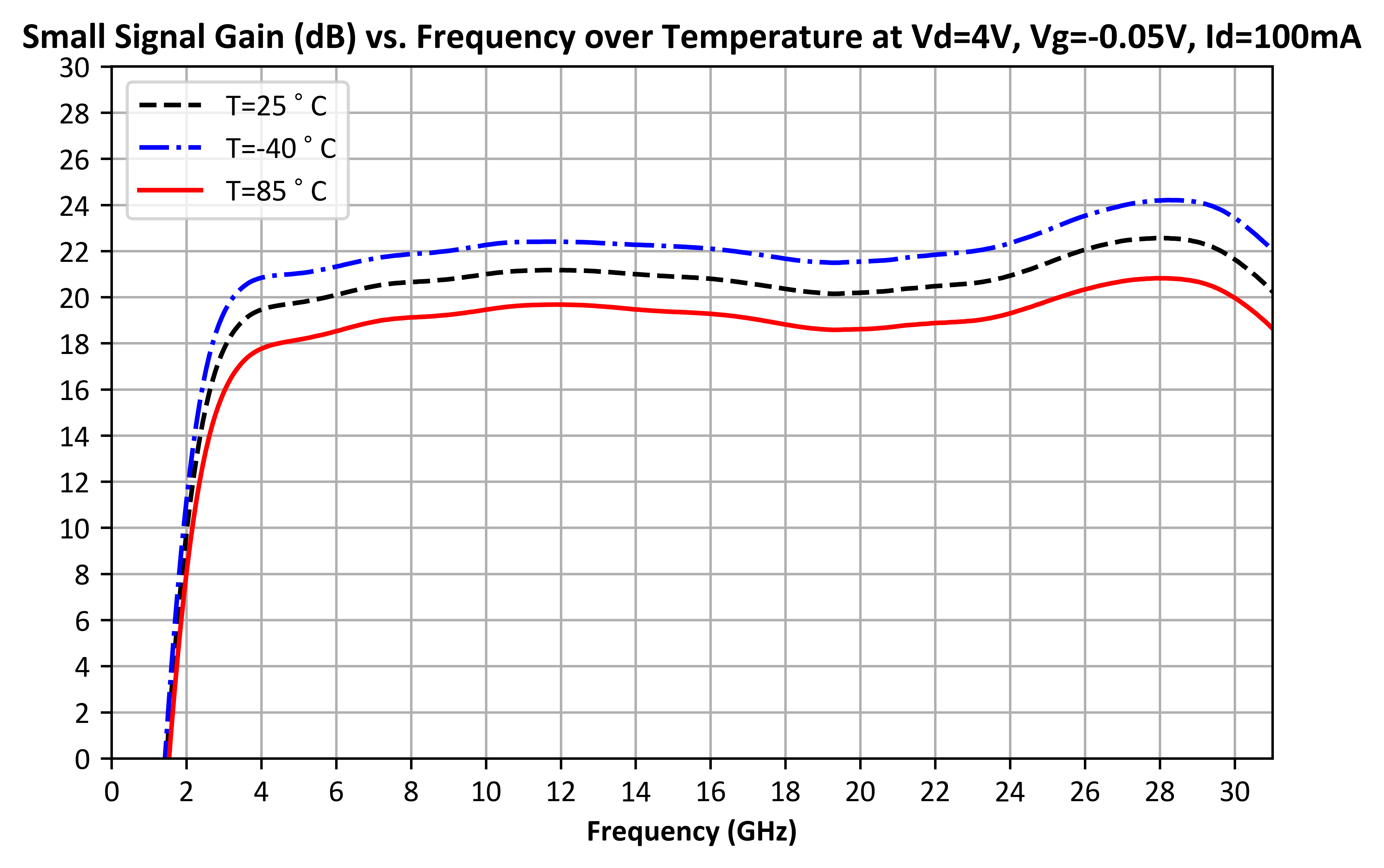

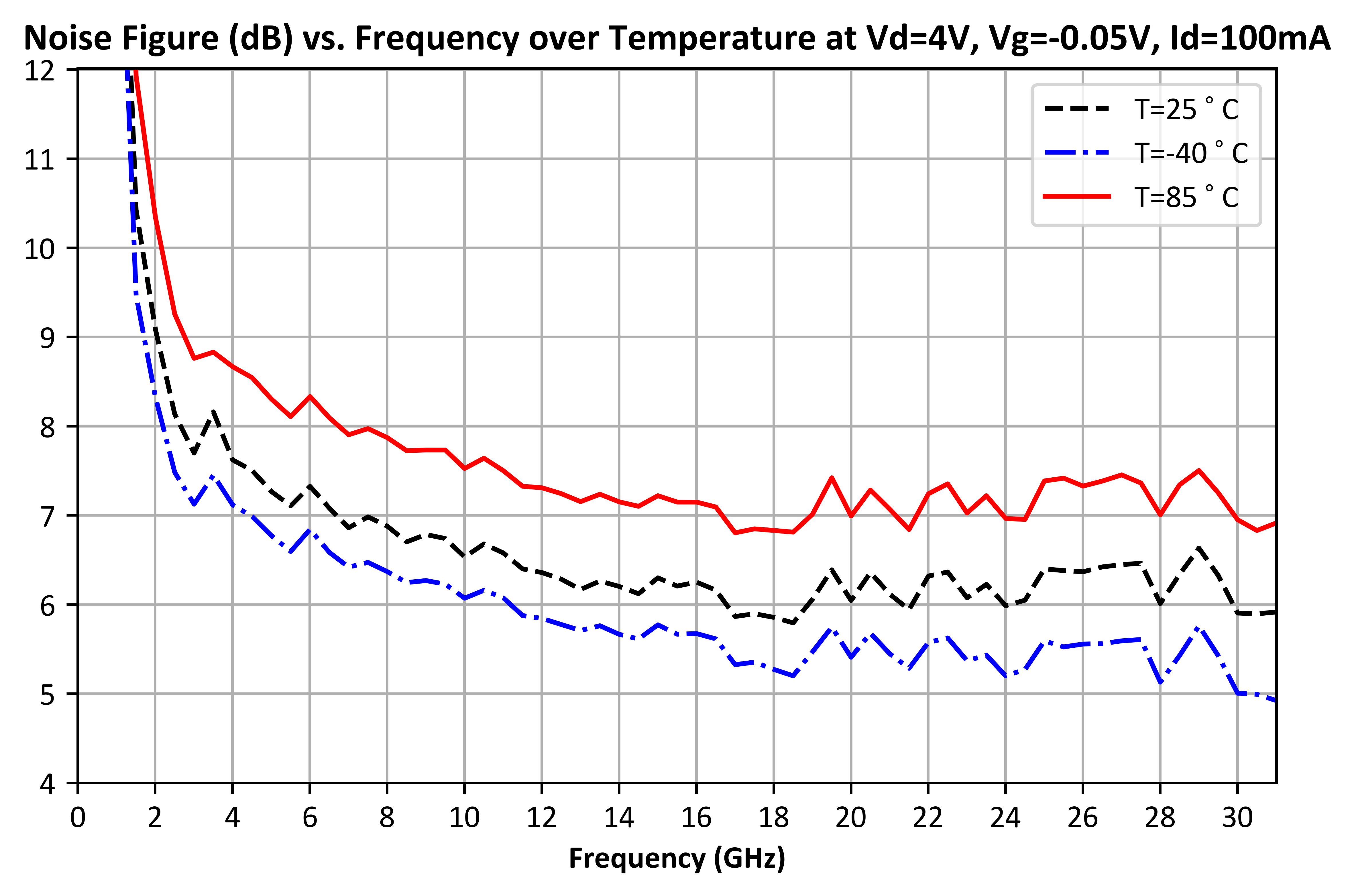

%20vs.%20Frequency%20over%20Temperature%20at%20Vd=4V,%20Vg=-0.05V,%20Id=100mA.png)
%20vs.%20Frequency%20over%20Temperature%20at%20Vd=4V,%20Vg=-0.16V,%20Id=84mA.png)
%20vs.%20Frequency%20over%20Temperature%20at%20Vd=4V,%20Vg=-0.05V,%20Id=100mA.png)
AMM-10858PSM
3-30 GHz Broadband Driver Amplifier
Application Circuit
AMM-10858PSM
3-30 GHz Broadband Driver Amplifier
Mechanical Data
AMM-10858PSM
3-30 GHz Broadband Driver Amplifier

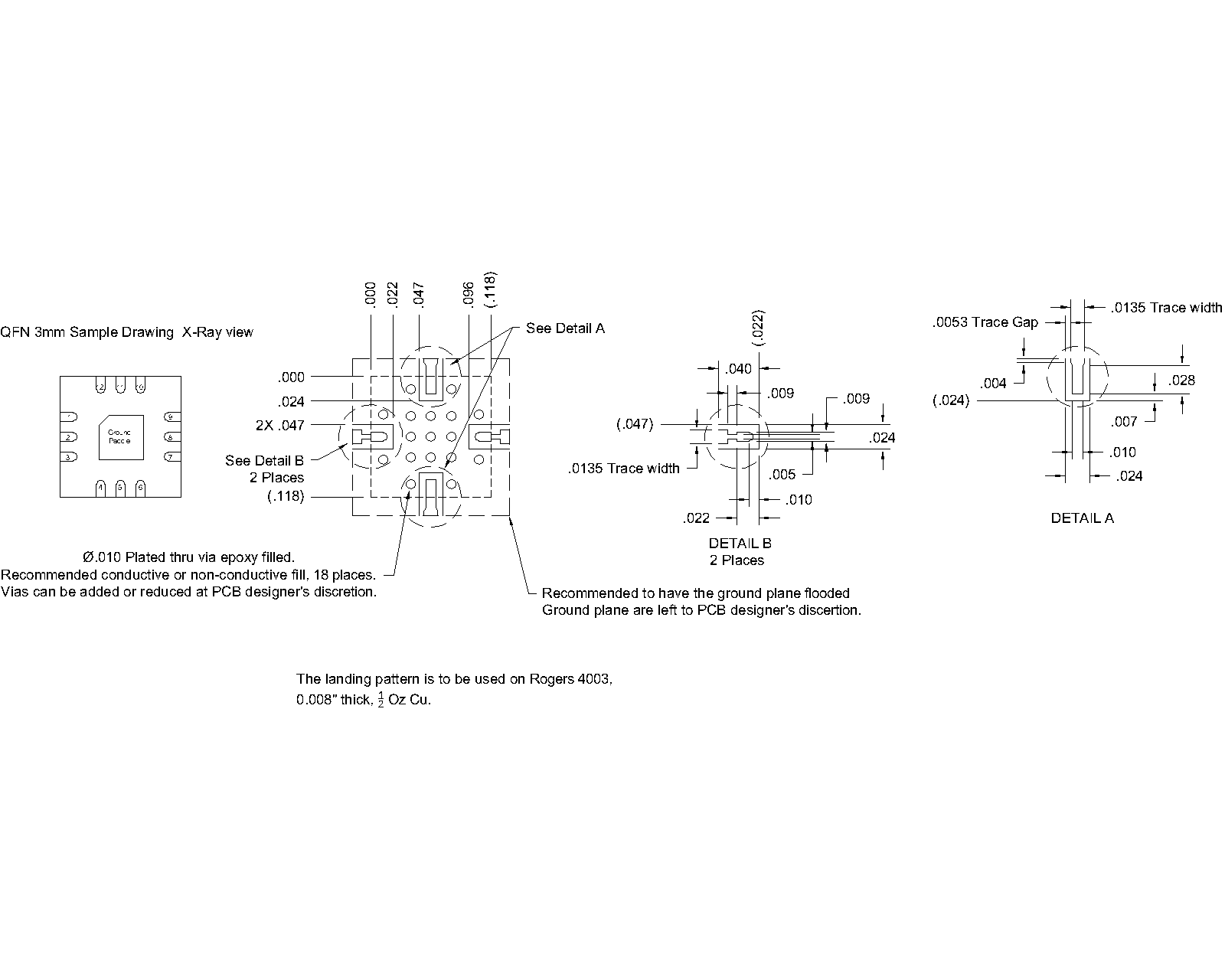

Footprint Image

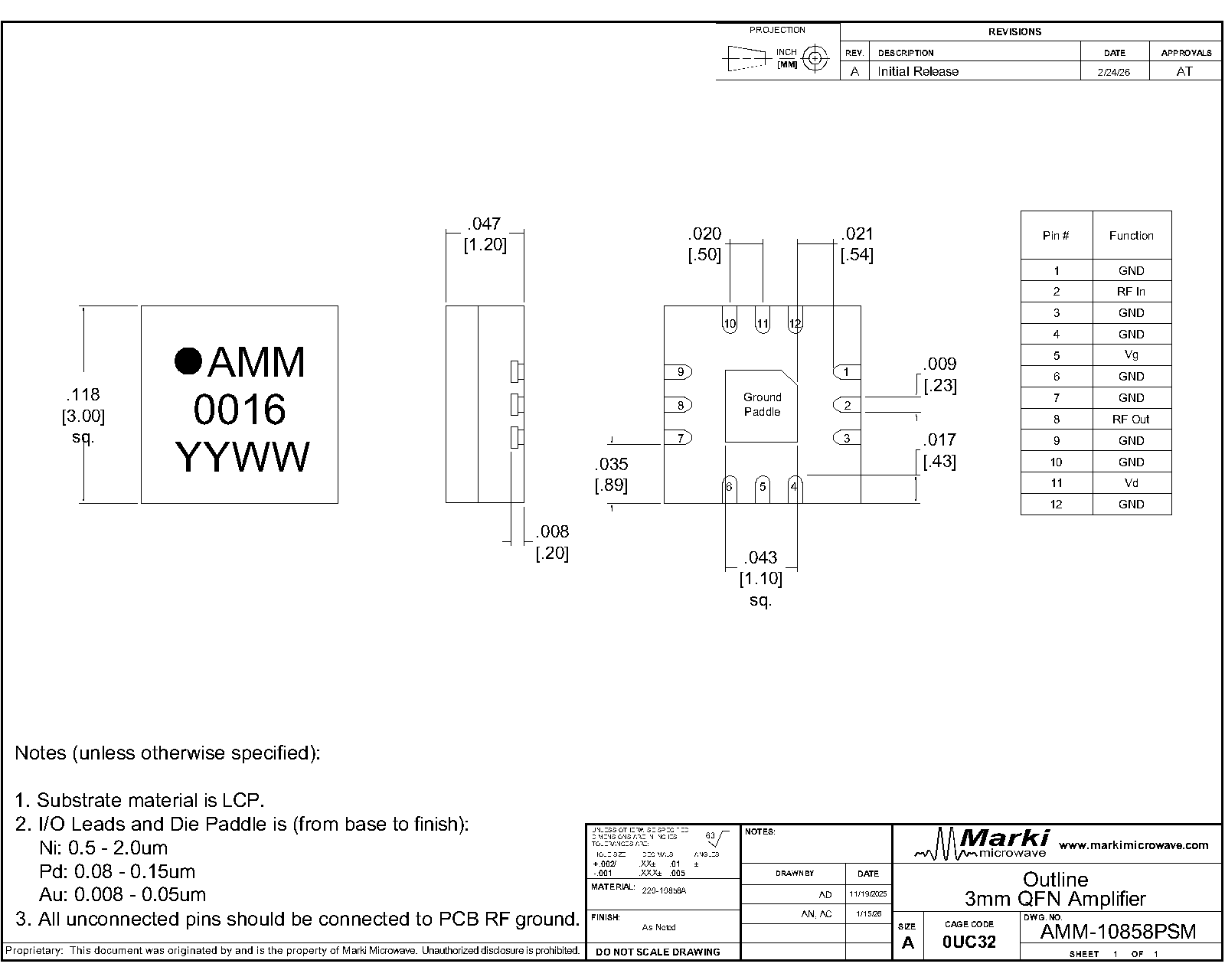

Download : Footprint Drawing
AMM-10858PSM
3-30 GHz Broadband Driver Amplifier

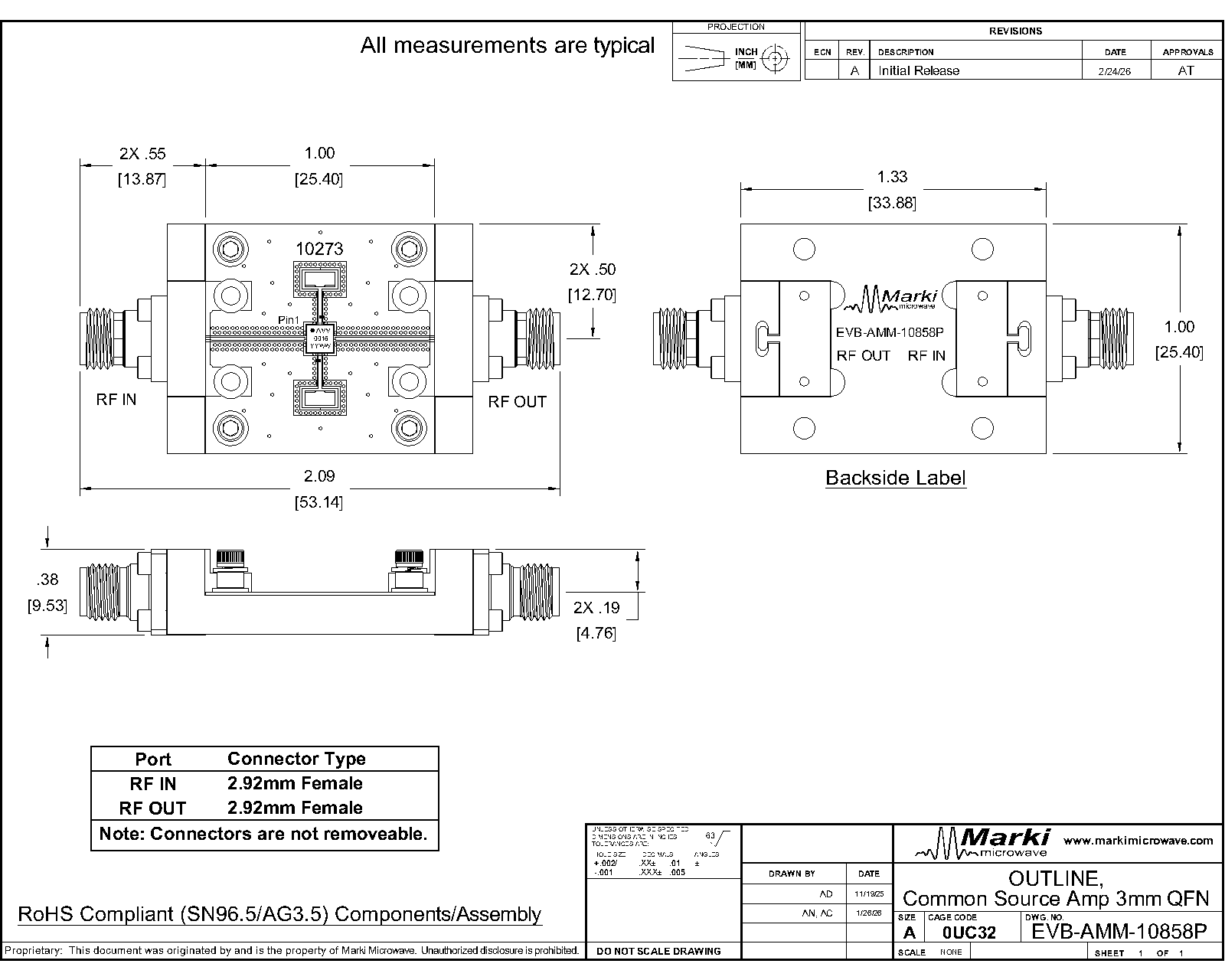

Evaluation Board - Outline Drawing
