ADM-8475PSM

0.5 - 18 GHz High Dynamic Range Gain Block

The ADM-8475PSM is a high-linearity, low noise amplifier capable of providing 13 dB gain, +26 dBm OIP3 and 2 dB noise figure across a broad 0.5-18 GHz bandwidth. The amplifier's low power consumption, high dynamic range and small size make it a suitable choice as a linear signal amplifier for RF front-end, low SWaP applications. Compared to the sister ADM-8624PSM, the ADM-8475PSM has higher gain and lower noise. The ADM-8624PSM has flatter gain and lower return loss. The ADM-8624PSM is available in a compact 1.3 x 2 mm DFN package.

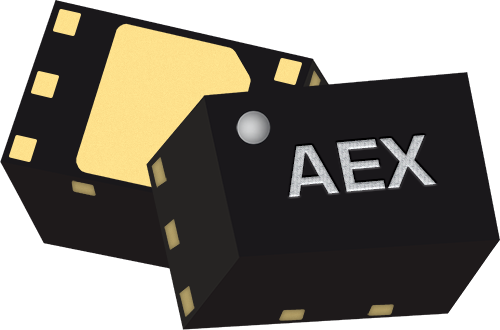

Product Variant : ADM-8475PSM
Sorted by: No sorting applied
EVB-ADM-8475P
Gain Block
LNA
0.515------Released
ADM-8475PSM
Gain Block
LNA
0.5181321826162.0 x 1.3 mmReleased

Technical Resources
