Port Diagram
NOT RECOMMENDED FOR NEW DESIGN
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The D-1505 is a passive doubler fabricated with silicon Schottky diodes. This operates over a guaranteed 1.5 to 5 GHz input frequency range or a doubled output frequency range of 3 to 10 GHz. It features excellent conversion loss, isolations, and harmonic suppressions across a broad bandwidth. D series doublers have generally been replaced with MMD doublers with superior performance, repeatability and availability. The D-0308 is still used in legacy systems and is suitable for laboratory use.
Features
- Input 1.5 to 5.0 GHz
- Output 3.0 to 10.0 GHz
- 10 dB Typical Conversion Loss
- 30 dBc Typical Third Harmonic Suppression
- Two Input Levels Available
- Multi-Octave Band Input
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|
| D-1505LE | Frequency Doublers | E | Non-RoHS | Not Recommended for New Design | EAR99 | MMD-0415HPSM |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|
| D-1505LE | Frequency Doublers | E | Non-RoHS | Not Recommended for New Design | EAR99 | MMD-0415HPSM |
D-1505LE
Frequency Doublers
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Mechanical Data
- Footprint Image
- Notes
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2015-07-11 | Datasheet Initial Release |
D-1505LE
Frequency Doublers
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| 2F | 2F Output | - | - |
| F | F input | - | - |
D-1505LE
Frequency Doublers
Specifications
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Weight | Package name: E | 1g |
| Dimensions | - | 15.24 x 8.13 mm |
D-1505LE
Frequency Doublers
Electrical Specifications
Specifications guaranteed from -55 to +100°C, measured in a 50-Ohm system
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| LO Input Drive Level, L Diode Option | - | - | - | 10 | - | 13 | dBm |
| Suppression, 1F | Input=1.5-5.0 GHz | 1.5 | 5 | 15 | 25 | - | dBc |
| Suppression, 3F | Output=4.5-10.0 GHz | 4.5 | 10 | 20 | 30 | - | dBc |
| Conversion Loss | Second Harmonic Output | 3 | 10 | - | 10 | 12 | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| LO Input Drive Level, L Diode Option | - | - | - | 10 | - | 13 | dBm |
| Suppression, 1F | Input=1.5-5.0 GHz | 1.5 | 5 | 15 | 25 | - | dBc |
| Suppression, 3F | Output=4.5-10.0 GHz | 4.5 | 10 | 20 | 30 | - | dBc |
| Conversion Loss | Second Harmonic Output | 3 | 10 | - | 10 | 12 | dB |
D-1505LE
Frequency Doublers
Typical Performance Plots
D-1505LE
Frequency Doublers

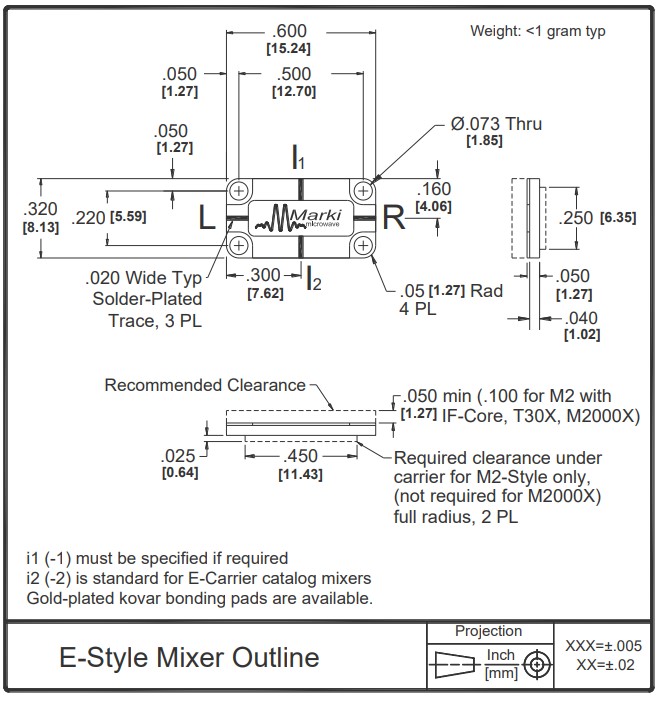

Mechanical Data
D-1505LE
Frequency Doublers

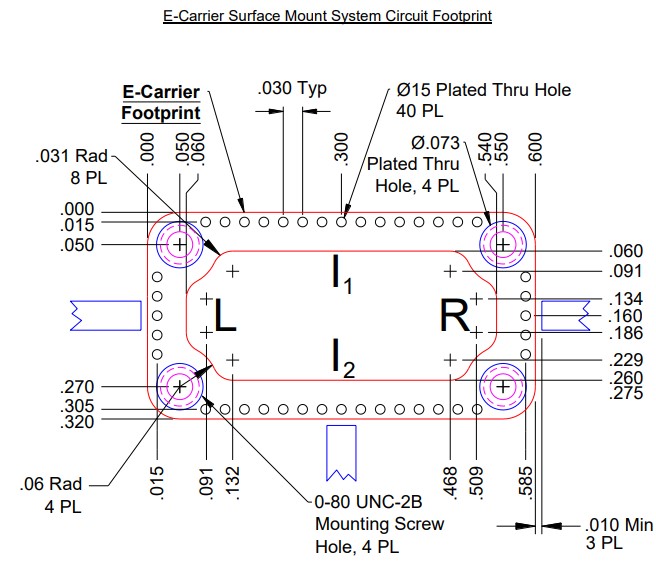

Footprint Image
