Device Overview

General Description

The T3-18G is a high performance mixer featuring LO/RF from 10 MHz to 18 GHz and IF from 1 MHz to 10 GHz. As with all T3 mixers, this mixer offers unparalleled nonlinear performance in terms of IIP3, P1dB, and spurious performance with a flexible LO drive requirement from +15 dBm to +25 dBm. The T3-18G is offered in connectorized, surface mount, and drop-in style packaging, suitable for any type of system level integration. The T3-18G differs from its sister product the T3-18 in that the T3-18G is built using GaAs diodes instead of Si.

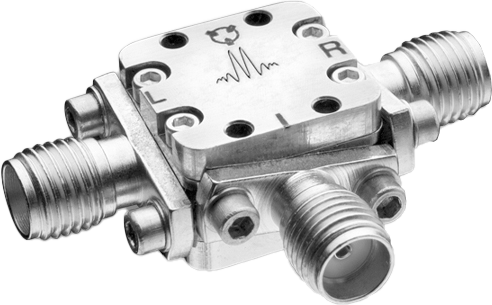

Photo of T3-18GLES

Features

  • Ultra-Broadband RF, LO, and IF
  • Compatible with Sine or Square-Wave LO
  • Square-Wave LO delivers Industry-Leading Spurious, IP3, and P1dB Performance

Applications

  • T3 Mixer Primer

Functional Block Diagram

N/A

Part Ordering Options

Part NumberDescriptionPackageGreen StatusProduct LifecycleExport Classification
T3-18GLESTwo-Tone-Terminator MixerESConsult FactoryReleasedEAR99
T3-18GLES-2Two-Tone-Terminator-MixerES

Non-RoHS

ReleasedEAR99
T3-18GLES-1Two-Tone-Terminator-MixerES

Non-RoHS

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2020-07-07Initial Release

Rev: - | Copyright © 2020 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

Diagram of the port configuration for T3-18GLES

Port Functions

PortFunctionDescriptionDC Equivalent
Circuit
IFIF The IF port is DC blocked and AC matched to 50 Ohms from 1 MHz to 10 GHz.Equivalent circuit for the IF
LOLO The LO port is DC short to ground and AC matched to 50 Ohms from 10 MHz to 18 GHz. Blocking capacitor is optional.Equivalent circuit for the LO
RFRF The RF port is DC short to ground and AC matched to 50 Ohms from 10 MHz to 18 GHz. Blocking capacitor is optional.Equivalent circuit for the RF

Rev: - | Copyright © 2020 Marki Microwave LLC.

3

Specifications

Absolute Maximum Ratings

ParameterMaximum RatingUnit
LO DC Current 1Amp
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C
RF DC Current 1Amp
RF Power Handling (RF+LO), (L -Version) 25dBm

Package Information

ParameterDetailsRating
ESD250 to < 500 VoltsHBM Class 1A
Dimensions-8.13 x 8.13mm
ParameterMinNominalMaxUnit
LO Input Power 15-25-

Rev: - | Copyright © 2020 Marki Microwave LLC.

4

Electrical Specifications

ParameterTest ConditionsMinTypMaxUnit
IF Frequency Range -0.001-10GHz
LO Frequency Range -0.01-18GHz
RF Frequency Range -0.01-18GHz
Conversion Loss LO/RF=.01-14 GHz
IF=.001-5 GHz
-913.5dB
Conversion Loss LO/RF=.01-18 GHz
IF=91MHz
-812dB
Input IP3 --28-dBm
LO-RF Isolation --25-dB

Rev: - | Copyright © 2020 Marki Microwave LLC.

5

Typical Performance

Conversion Loss graph for T3-18GLES

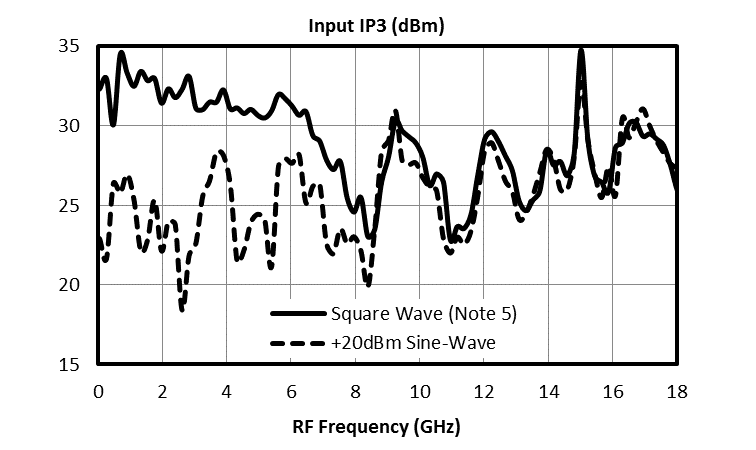

Input IP3 (dBm) graph for T3-18GLES

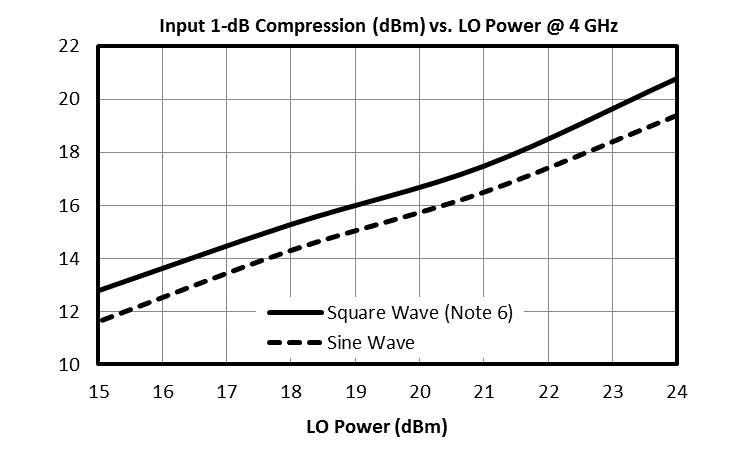

Input 1-db Compression (dBm) vs LO power @ 4 GHz graph for T3-18GLES

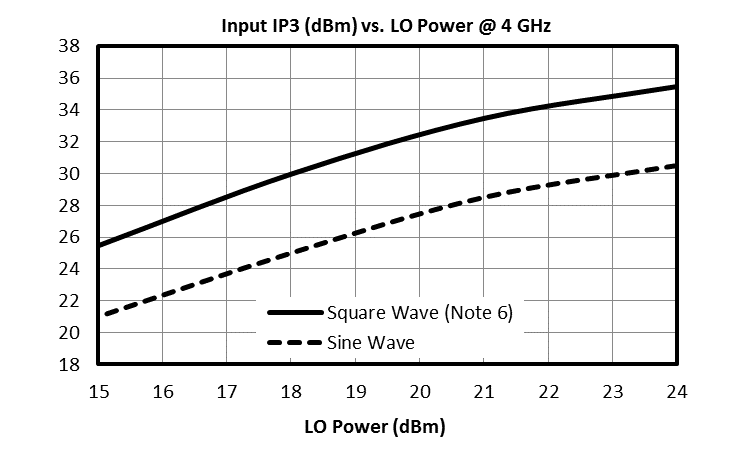

Input IP3 (dBm) vs LO Power @ 4 GHz graph for T3-18GLES

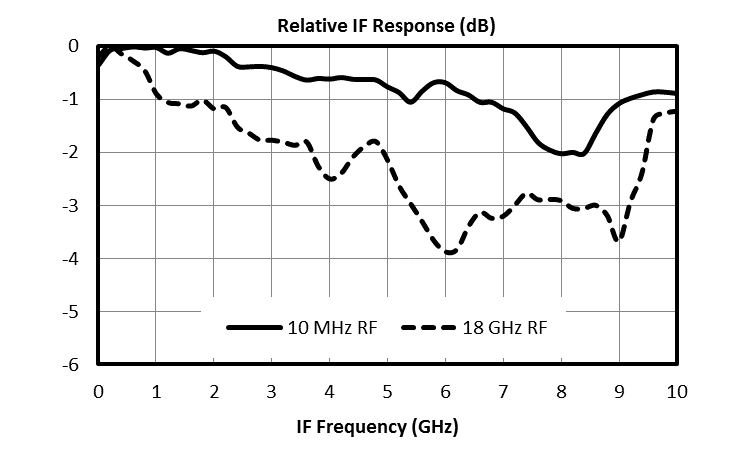

Relative IF Response (dB) graph for T3-18GLES
Low-End Relative IF Response (dB) graph for T3-18GLES
RF VSWR graph for T3-18GLES
LO VSWR graph for T3-18GLES

Rev: - | Copyright © 2020 Marki Microwave LLC.

6

RF to IF Isolation (dB) graph for T3-18GLES
IF VSWR graph for T3-18GLES
LO to RF Isolation (dB) graph for T3-18GLES
LO to IF Isolation (dB) graph for T3-18GLES
LO Even Harmonic to RF Isolation (dB) graph for T3-18GLES
LO Odd Harmonic to RF Isolation (dB) graph for T3-18GLES
LO Even Harmonic to IF Isolation (dB) graph for T3-18GLES
LO Odd Harmonic to IF Isolation (dB) graph for T3-18GLES

Rev: - | Copyright © 2020 Marki Microwave LLC.

7

Mechanical Data

Outline Drawing

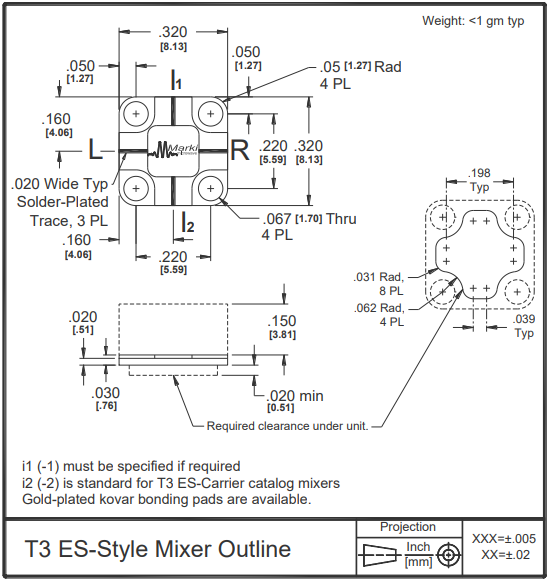

Outline Drawing

Rev: - | Copyright © 2020 Marki Microwave LLC.
