General Description

The T3-1040G is a high performance mixer featuring LO/RF from 10 to 40 GHz and IF from 1 to 18 GHz. As with all T3 mixers, this mixer offers unparalleled nonlinear performance in terms of IIP3, P1dB, and spurious performance with a flexible LO drive requirement from +13 dBm to +25 dBm. The T3-1040G is offered in connectorized and drop-in style packaging, suitable for any type of system level integration. The T3-1040G is a form fit function replacement for the obsolete T3-1040, built with GaAs diodes instead of Si.

Photo of T3-1040GLES-1

Features

  • LO/RF 10.0 to 40.0 GHz
  • IF 1.0 to 18.0 GHz
  • 8 dB Typical Conversion Loss
  • Ultra-Broadband RF, LO, and IF
  • 2.92 mm Connectors

Applications

N/A

Functional Block Diagram

N/A

Part Ordering Options

Part NumberDescriptionPackageGreen StatusProduct LifecycleExport Classification
T3-1040GLES-2High-Linearity Triple-Balanced MixersES

REACH

RoHS

ReleasedEAR99
T3-1040GLES-1High-Linearity Triple-Balanced MixersES

Non-RoHS

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2021-01-01Datasheet Initial Release

Rev: - | Copyright © 2021 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

Diagram of the port configuration for T3-1040GLES-1

Port Functions

PortFunctionDescriptionDC Equivalent
Circuit
IFIF The IF port is DC coupled to the diodes and AC matched to 50 Ohms from 1.0 to 18 GHz. Blocking capacitor is optional.Equivalent circuit for the IF
LOLO The LO port is DC coupled to ground and AC matched to 50 Ohms from 10 to 40 GHz. Blocking capacitor is optional.Equivalent circuit for the LO
RFRF The RF port is DC coupled to ground and AC matched to 50 Ohms from 10 to 40 GHz. Blocking capacitor is optional.Equivalent circuit for the RF

Rev: - | Copyright © 2021 Marki Microwave LLC.

3

Specifications

Absolute Maximum Ratings

ParameterMaximum RatingUnit
IF DC Current 50mA
LO DC Current 1Amp
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C
RF DC Current 1Amp
RF Power Handling (RF+LO), (L -Version) 25dBm

Package Information

ParameterDetailsRating
ESD250 to < 500 VoltsHBM Class 1A
WeightPackage name: ES1g
Dimensions-8.13 x 8.13 mm
ParameterMinNominalMaxUnit
LO Input Power 13-25-

Rev: - | Copyright © 2021 Marki Microwave LLC.

4

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50-Ohm system.

ParameterTest ConditionsMinTypMaxUnit
Conversion Loss LO/RF=10-40GHz
IF=1-15
-815dB
Conversion Loss LO/RF=10-40GHz
IF=15-18
-1317dB
IF Frequency Range -1-18GHz
LO Frequency Range -10-40GHz
RF Frequency Range -10-40GHz
Input IP3 --25-dBm
LO-RF Isolation --32-dB

Rev: - | Copyright © 2021 Marki Microwave LLC.

5

Typical Performance

Conversion Loss (dB) graph for T3-1040GLES-1
Input IP3 (dBm) graph for T3-1040GLES-1
Relative IF Response (dB) graph for T3-1040GLES-1
Input 1-dB Compression (dBm) vs. LO Power @ 10 GHz graph for T3-1040GLES-1
Low-End Relative IF Response (dB) graph for T3-1040GLES-1
RF VSWR graph for T3-1040GLES-1
LO VSWR graph for T3-1040GLES-1
IF VSWR graph for T3-1040GLES-1

Rev: - | Copyright © 2021 Marki Microwave LLC.

6

RF to IF Isolation (dB) graph for T3-1040GLES-1
LO to RF Isolation (dB) graph for T3-1040GLES-1
LO to IF Isolation (dB) graph for T3-1040GLES-1
LO Even Harmonic to RF Isolation (dB) graph for T3-1040GLES-1
LO Even Harmonic to IF Isolation (dB) graph for T3-1040GLES-1
LO Odd Harmonic to RF Isolation (dB) graph for T3-1040GLES-1
LO Odd Harmonic to IF Isolation (dB) graph for T3-1040GLES-1

Rev: - | Copyright © 2021 Marki Microwave LLC.

7

Mechanical Data

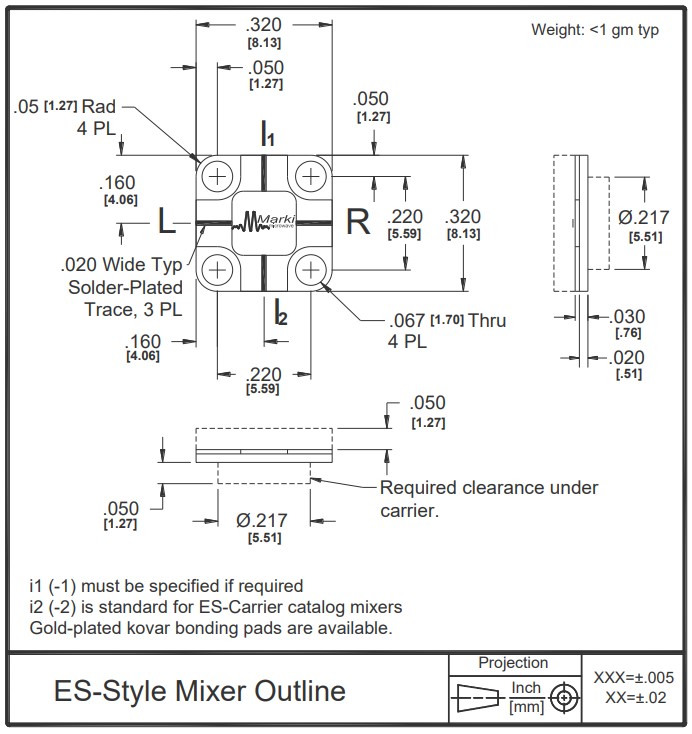

Outline Drawing

Outline Drawing
