The T3-0838G is a high performance mixer featuring LO/RF from 8 to 38 GHz and IF from 10 MHz to 10 GHz. As with all T3 mixers, this mixer offers unparalleled nonlinear performance in terms of IIP3, P1dB, and spurious performance with a flexible LO drive requirement from +13 dBm to +25 dBm. The T3-0838G is offered in connectorized and drop-in style packaging, suitable for any type of system level integration. The T3-0838G is a form fit function replacement for the obsolete T3-0838, built with GaAs diodes instead of Si.
N/A
N/A
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| T3-0838GLES-2 | High-Linearity Triple-Balanced Mixers | ES | Non-RoHS | Released | EAR99 |
| T3-0838GLES-1 | High-Linearity Triple-Balanced Mixers | ES | Non-RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| T3-0838GLES-2 | High-Linearity Triple-Balanced Mixers | ES | Non-RoHS | Released | EAR99 |
| T3-0838GLES-1 | High-Linearity Triple-Balanced Mixers | ES | Non-RoHS | Released | EAR99 |
T3-0838GLES-2
High-Linearity Triple-Balanced Mixers
| Revision Code | Revision Date | Comment |
|---|---|---|
| PRE | 2021-03-01 | Pre-release Draft |
T3-0838GLES-2
High-Linearity Triple-Balanced Mixers
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| IF | IF | The IF port is DC coupled to the diodes and AC matched to 50 Ohms from 0.01 to 10 GHz. Blocking capacitor is optional. |  |
| LO | LO | The LO port is DC coupled to ground and AC matched to 50 Ohms from 8 to 38 GHz. Blocking capacitor is optional. |  |
| RF | RF | The RF port is DC coupled to ground and AC matched to 50 Ohms from 8 to 38 GHz. Blocking capacitor is optional. | |
T3-0838GLES-2
High-Linearity Triple-Balanced Mixers
| Parameter | Maximum Rating | Unit |
|---|---|---|
| IF DC Current | 50 | mA |
| LO DC Current | 1 | Amp |
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF DC Current | 1 | Amp |
| RF Power Handling (RF+LO), (L -Version) | 25 | dBm |
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Weight | Package name: ES | 1g |

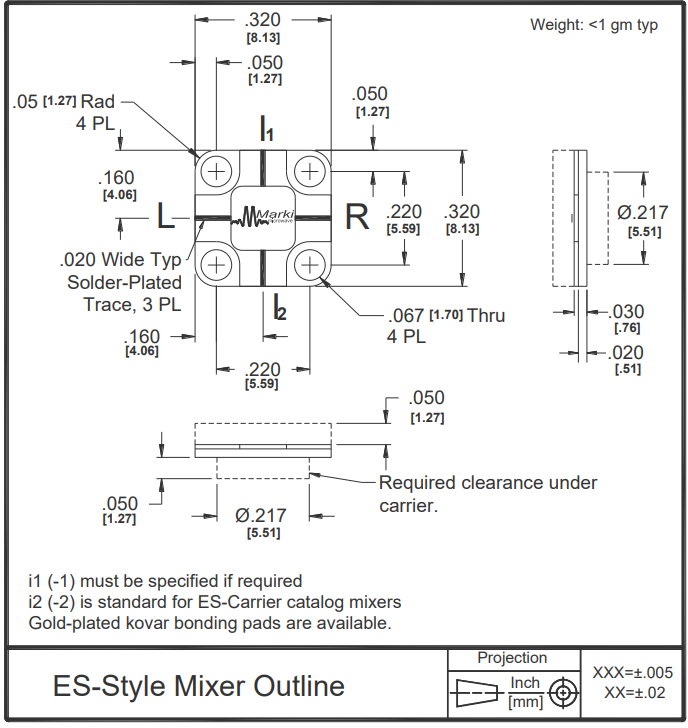

| Dimensions | - | 8.13 x 8.13 mm |
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| LO Input Power | 13 | - | 25 | - |
T3-0838GLES-2
High-Linearity Triple-Balanced Mixers
Specifications guaranteed from -55 to +100°C, measured in a 50-Ohm system.
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss | LO/RF=8.0-38.0 GHz IF=0.01-10.0 GHz | - | 8 | 13 | dB |
| IF Frequency Range | - | 0.01 | - | 10 | GHz |
| LO Frequency Range | - | 8 | - | 38 | GHz |
| RF Frequency Range | - | 8 | - | 38 | GHz |
| Input IP3 | - | - | 25 | - | dBm |
| LO-RF Isolation | - | - | 31 | - | dB |
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss | LO/RF=8.0-38.0 GHz IF=0.01-10.0 GHz | - | 8 | 13 | dB |
| IF Frequency Range | - | 0.01 | - | 10 | GHz |
| LO Frequency Range | - | 8 | - | 38 | GHz |
| RF Frequency Range | - | 8 | - | 38 | GHz |
| Input IP3 | - | - | 25 | - | dBm |
| LO-RF Isolation | - | - | 31 | - | dB |
