Device Overview

General Description

The T3-07 is a high performance mixer featuring LO/RF from 1 MHz to 7 GHz and IF from 1 MHz to 4 GHz. As with all T3 mixers, this mixer offers unparalleled nonlinear performance in terms of IIP3, P1dB, and spurious performance with a flexible LO drive requirement from +15 dBm to +27 dBm. The T3-07 is offered in connectorized, surface mount, and drop-in style packaging, suitable for any type of system level integration. RoHS compliant versions are also available.

Photo of T3-07LQ-2

Features

  • Ultra-Broadband RF, LO, and IF
  • Compatible with Sine or Square-Wave LO
  • Square-Wave LO delivers Industry-Leading Spurious, IP3, and P1dB Performance

Applications

N/A

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageGreen StatusProduct LifecycleExport Classification
T3-07MQ-1Two-Tone-Terminator MixerQConsult FactoryObsoleteEAR99
T3-07MQ-2Two-Tone-Terminator MixerQ

Non-RoHS

ObsoleteEAR99
T3-07LQ-1Two-Tone-Terminator MixerQConsult FactoryReleasedEAR99
T3-07LQ-2Two-Tone-Terminator MixerQConsult FactoryReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2008-01-01Initial Release
A2018-12-01Removed Leaded Surface Mount CQ package
B2021-10-01Updated SMT Package Outlines

Rev: B | Copyright © 2008, 2018, 2021 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

Diagram of the port configuration for T3-07LQ-2

Port Functions

PortFunctionDescriptionDC Equivalent
Circuit
IFIF The IF port is DC blocked and AC matched to 50 Ohms from 1 MHz to 4 GHz.Equivalent circuit for the IF
LOLO The LO port is DC short to ground and AC matched to 50 Ohms from 1 MHz to 7 GHz. Blocking capacitor is optional.Equivalent circuit for the LO
RFRF The RF port is DC short to ground and AC matched to 50 Ohms from 1 MHz to 7 GHz. Blocking capacitor is optional.Equivalent circuit for the RF

Rev: B | Copyright © 2008, 2018, 2021 Marki Microwave LLC.

3

Specifications

Absolute Maximum Ratings

ParameterMaximum RatingUnit
LO DC Current 1Amp
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C
RF DC Current 1Amp
RF Power Handling (RF+LO) 25dBm

Package Information

ParameterDetailsRating
ESD250 to < 500 VoltsHBM Class 1A
Dimensions-10.16 x 8.13 mm
ParameterMinNominalMaxUnit
LO Input Power 15-25-

Rev: B | Copyright © 2008, 2018, 2021 Marki Microwave LLC.

4

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.

ParameterTest ConditionsMinTypMaxUnit
Conversion Loss LO/RF=.001-7GHz
IF=.001-0.5GHz
-6.59dB
Conversion Loss LO/RF=.001-7GHz
IF=.001-4GHz
-810.5dB
IF Frequency Range -0.001-4GHz
LO Frequency Range -0.001-7GHz
RF Frequency Range -0.001-7GHz
Input IP3 --32-dBm
LO-RF Isolation --32-dB

Rev: B | Copyright © 2008, 2018, 2021 Marki Microwave LLC.

5

Typical Performance Plots

Conversion Loss (dB) graph for T3-07LQ-2
Input IP3 (dBm) graph for T3-07LQ-2
Input 1-dB Compression (dBm) vs. LO Power @ 3.3 GHz graph for T3-07LQ-2
Input IP3 (dBm) vs. LO Power @ 3.3 GHz graph for T3-07LQ-2
Relative IF Response (dB) graph for T3-07LQ-2
Low-End Relative IF Response (dB) graph for T3-07LQ-2
RF VSWR graph for T3-07LQ-2
LO VSWR graph for T3-07LQ-2

Rev: B | Copyright © 2008, 2018, 2021 Marki Microwave LLC.

6

RF to IF Isolation (dB) graph for T3-07LQ-2
IF VSWR graph for T3-07LQ-2
LO to RF Isolation (dB) graph for T3-07LQ-2
LO to IF Isolation (dB) graph for T3-07LQ-2
LO Even Harmonic to RF Isolation (dB) graph for T3-07LQ-2
LO Even Harmonic to IF Isolation (dB) graph for T3-07LQ-2
LO Odd Harmonic to RF Isolation (dB) graph for T3-07LQ-2
LO Odd Harmonic to IF Isolation (dB) graph for T3-07LQ-2

Rev: B | Copyright © 2008, 2018, 2021 Marki Microwave LLC.

7

Mechanical Data

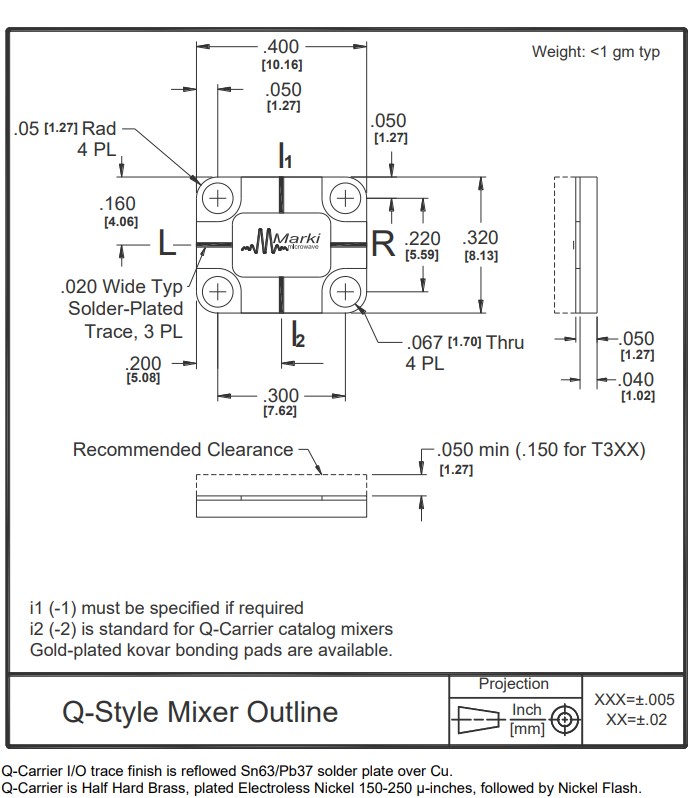

Outline Drawing
