Device Overview
General Description
The EVB-MQH-0612 is a connectorized evaluation board for the MQH-0612CSP3 MMIC 6 - 12 GHz 90° Hybrid Coupler.
Features
- Designed for C/X-band applications
- Excellent amplitude and phase balance
- High isolation
- Low insertion loss
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MQH-0612CSP3 | MMIC 6 - 12 GHz 90° Hybrid Coupler | CSP3 | RoHS REACH | Released | EAR99 |
| EVB-MQH-0612 | Evaluation Board, 6 - 12 GHz MMIC 90° Hybrid Coupler | EVB | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MQH-0612CSP3 | MMIC 6 - 12 GHz 90° Hybrid Coupler | CSP3 | RoHS REACH | Released | EAR99 |
| EVB-MQH-0612 | Evaluation Board, 6 - 12 GHz MMIC 90° Hybrid Coupler | EVB | RoHS REACH | Released | EAR99 |
EVB-MQH-0612
Evaluation Board, 6 - 12 GHz MMIC 90° Hybrid Coupler
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2026-04-16 | Initial Release |
EVB-MQH-0612
Evaluation Board, 6 - 12 GHz MMIC 90° Hybrid Coupler
Mechanical Data
EVB-MQH-0612
Evaluation Board, 6 - 12 GHz MMIC 90° Hybrid Coupler

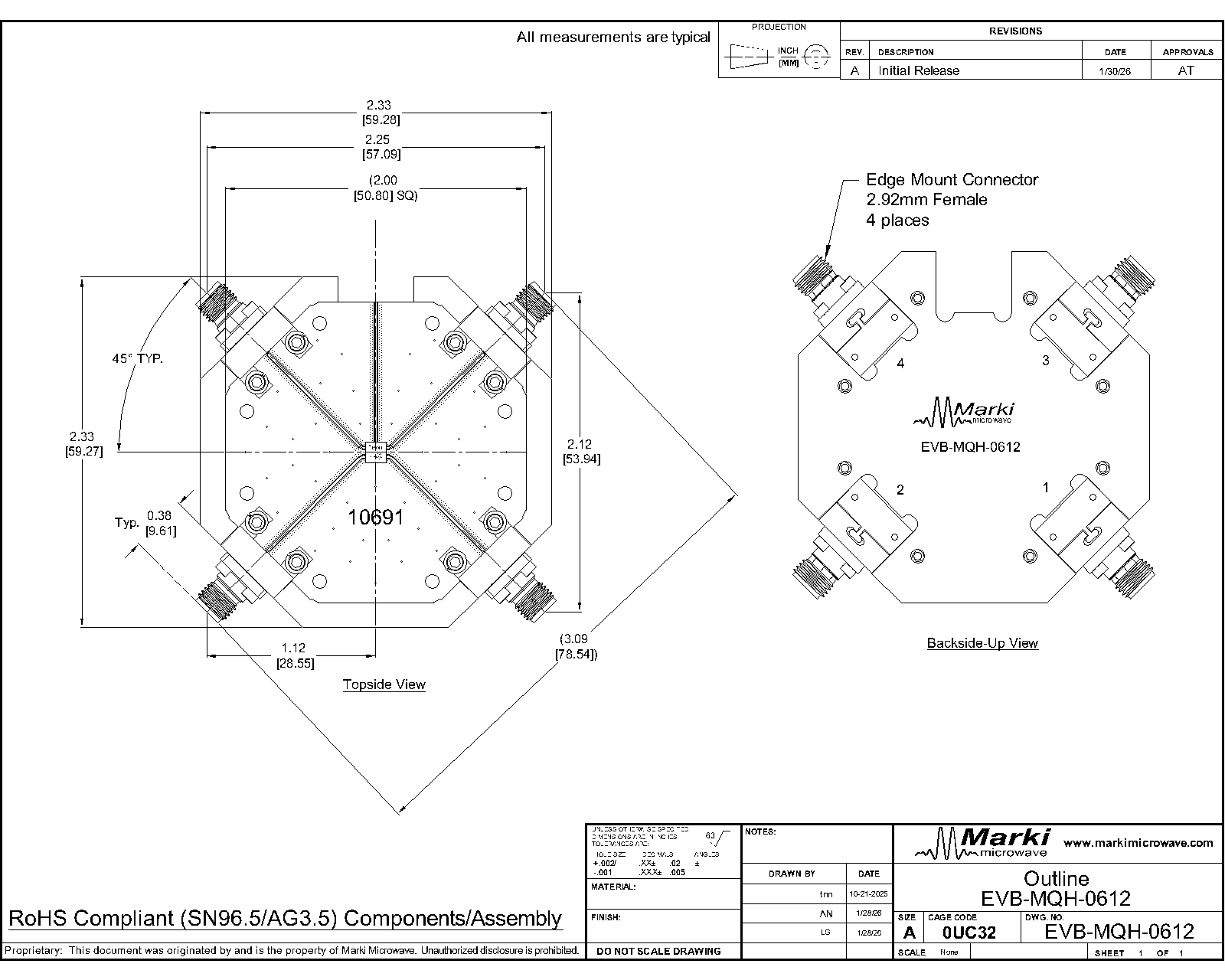

Evaluation Board - Outline Drawing
