Device Overview
General Description
The EVB-MPD4-0R504 is a connectorized evaluation board for the MPD4-0R504CSP2 MMIC 0.5-4.5 GHz 4-Way power divider/power splitter.
Features
- 0.5-4.5 GHz 4-way power splitter/combiner
- Excellent phase and amplitude balance
- RoHS compliant
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MPD4-0R504CSP2 | 0.5 - 4.5 GHz MMIC 4-Way Wilkinson Power Divider/Power Splitter | CSP2 | REACH RoHS | Released | EAR99 |
| EVB-MPD4-0R504 | Evaluation Board, 0.5 - 4.5 GHz MMIC 4-Way Wilkinson Power Divider/Power Splitter | EVB | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MPD4-0R504CSP2 | 0.5 - 4.5 GHz MMIC 4-Way Wilkinson Power Divider/Power Splitter | CSP2 | REACH RoHS | Released | EAR99 |
| EVB-MPD4-0R504 | Evaluation Board, 0.5 - 4.5 GHz MMIC 4-Way Wilkinson Power Divider/Power Splitter | EVB | RoHS REACH | Released | EAR99 |
EVB-MPD4-0R504
Evaluation Board, 0.5 - 4.5 GHz MMIC 4-Way Wilkinson Power Divider/Power Splitter
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-12-13 | Initial Release |
EVB-MPD4-0R504
Evaluation Board, 0.5 - 4.5 GHz MMIC 4-Way Wilkinson Power Divider/Power Splitter
Mechanical Data
EVB-MPD4-0R504
Evaluation Board, 0.5 - 4.5 GHz MMIC 4-Way Wilkinson Power Divider/Power Splitter

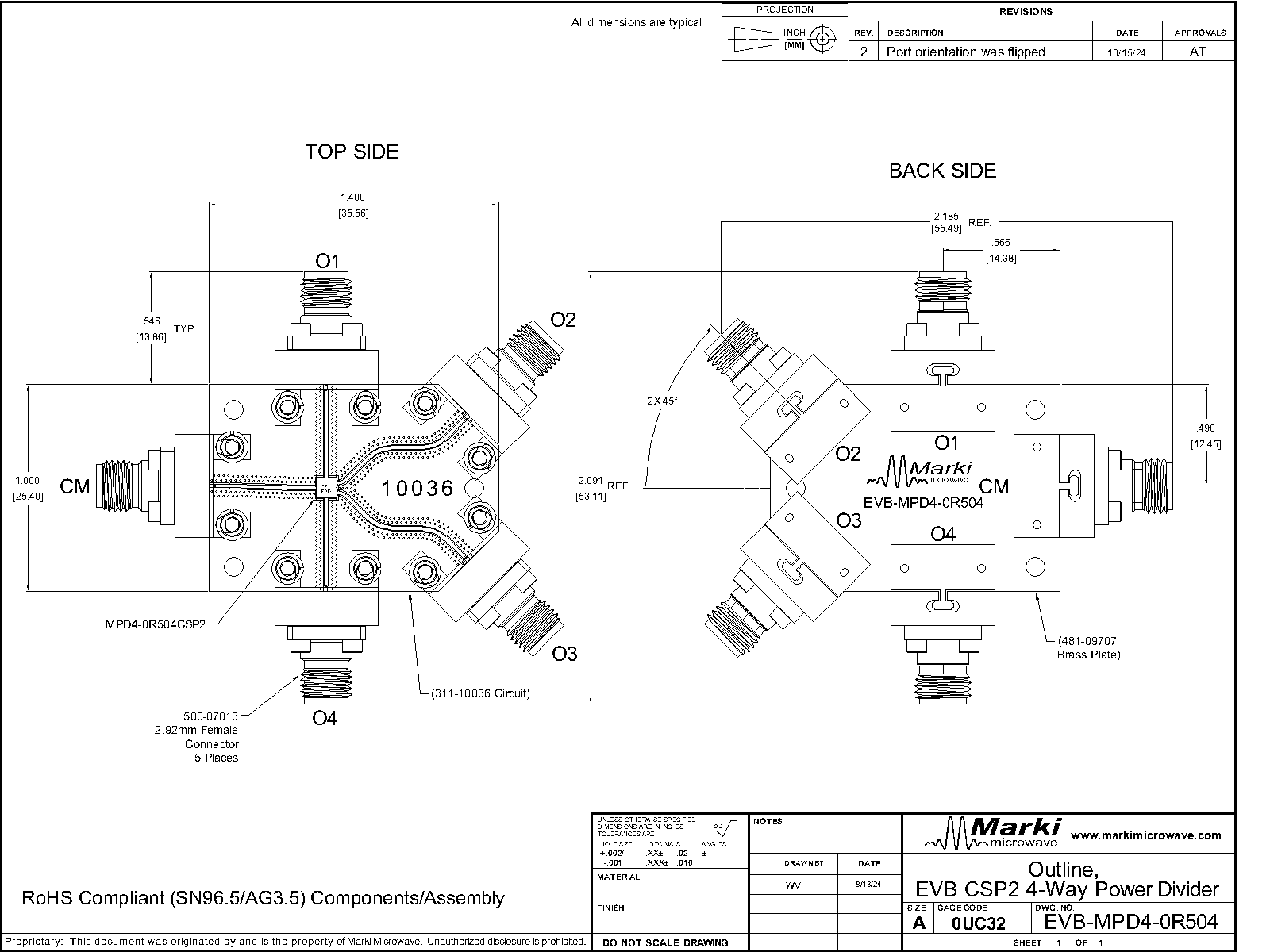

Evaluation Board - Outline Drawing
