Device Overview
General Description

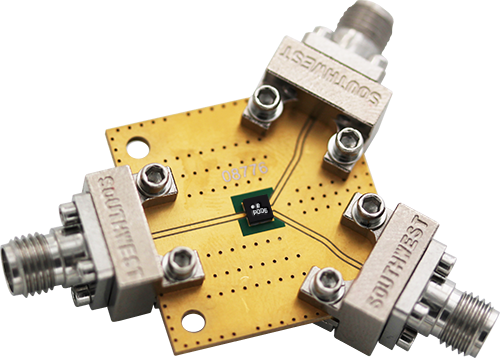

The EVB-MPD-0108F is a connectorized evaluation board for the MPD-0108FCSP2 MMIC 1-8 GHz 2-Way power divider/power splitter.
Features
- 1-8 GHz 2-way power splitter/combiner
- Front Ports
- Excellent phase and amplitude balance
- RoHS compliant
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MPD-0108FCSP2 | 1 - 8 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Front Ports | CSP2 | REACH RoHS | Released | EAR99 |
| EVB-MPD-0108F | Evaluation Board, 1 - 8 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Front Ports | EVB | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MPD-0108FCSP2 | 1 - 8 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Front Ports | CSP2 | REACH RoHS | Released | EAR99 |
| EVB-MPD-0108F | Evaluation Board, 1 - 8 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Front Ports | EVB | RoHS REACH | Released | EAR99 |
EVB-MPD-0108F
Evaluation Board, 1 - 8 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Front Ports
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-10-24 | Initial Release |
EVB-MPD-0108F
Evaluation Board, 1 - 8 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Front Ports
Mechanical Data
EVB-MPD-0108F
Evaluation Board, 1 - 8 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Front Ports

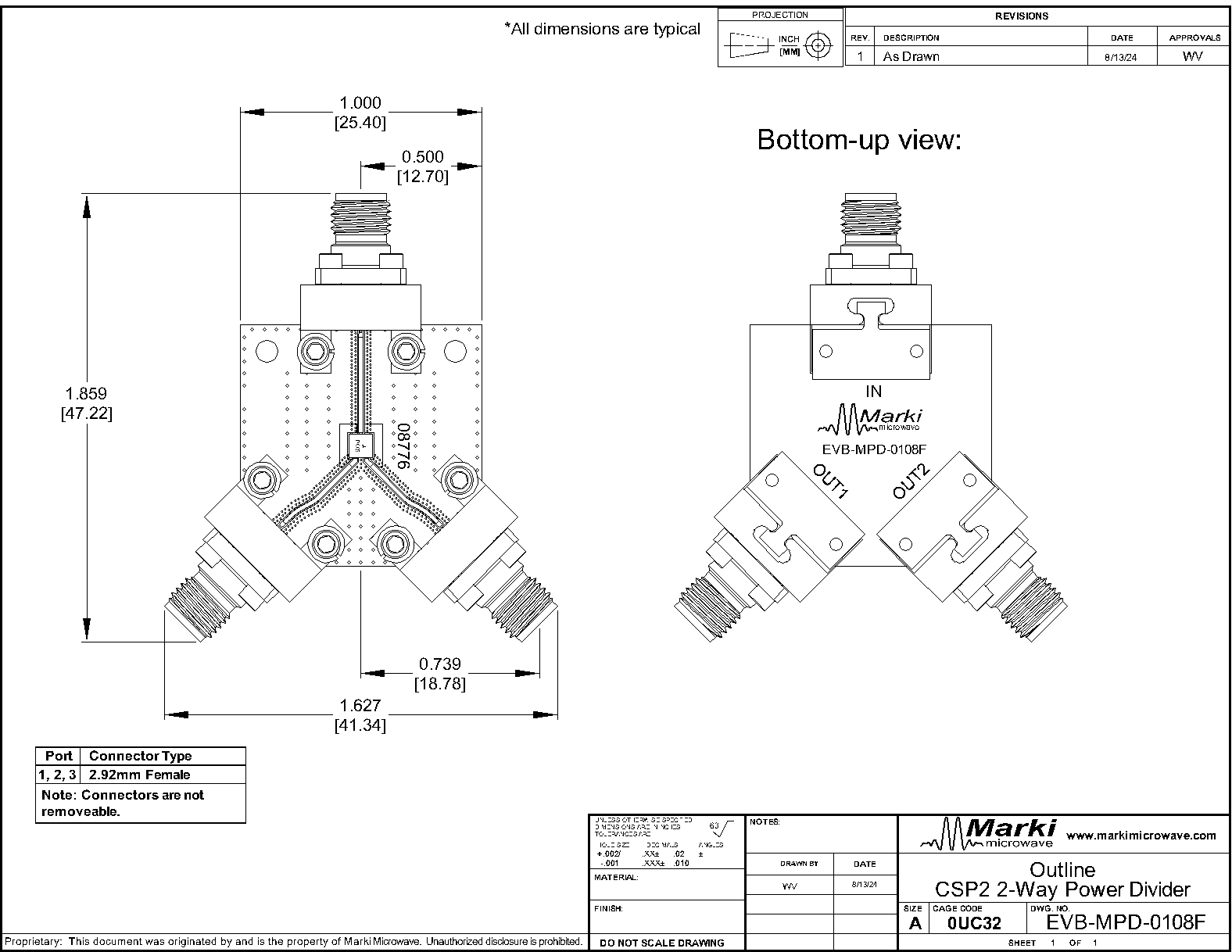

Evaluation Board - Outline Drawing
