Device Overview
General Description
The EVB-MPBR-0022 is a connectorized evaluation board for the MPBR-0022CSP3 DC - 22 GHz MMIC 2-Way High Isolation Power Divider/Power Splitter
Features
- DC-22 GHz 2-way high isolation power splitter/combiner
- Excellent phase and amplitude balance
- RoHS compliant
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MPBR-0022CSP3 | DC - 22 GHz MMIC 2-Way High Isolation Power Divider/Power Splitter | CSP3 | REACH RoHS | Released | EAR99 |
| EVB-MPBR-0022 | Evaluation Board, DC - 22 GHz MMIC 2-Way High Isolation Power Divider/Power Splitter | EVB | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MPBR-0022CSP3 | DC - 22 GHz MMIC 2-Way High Isolation Power Divider/Power Splitter | CSP3 | REACH RoHS | Released | EAR99 |
| EVB-MPBR-0022 | Evaluation Board, DC - 22 GHz MMIC 2-Way High Isolation Power Divider/Power Splitter | EVB | RoHS REACH | Released | EAR99 |
EVB-MPBR-0022
Evaluation Board, DC - 22 GHz MMIC 2-Way High Isolation Power Divider/Power Splitter
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-08-18 | Initial Release |
EVB-MPBR-0022
Evaluation Board, DC - 22 GHz MMIC 2-Way High Isolation Power Divider/Power Splitter
Mechanical Data
EVB-MPBR-0022
Evaluation Board, DC - 22 GHz MMIC 2-Way High Isolation Power Divider/Power Splitter

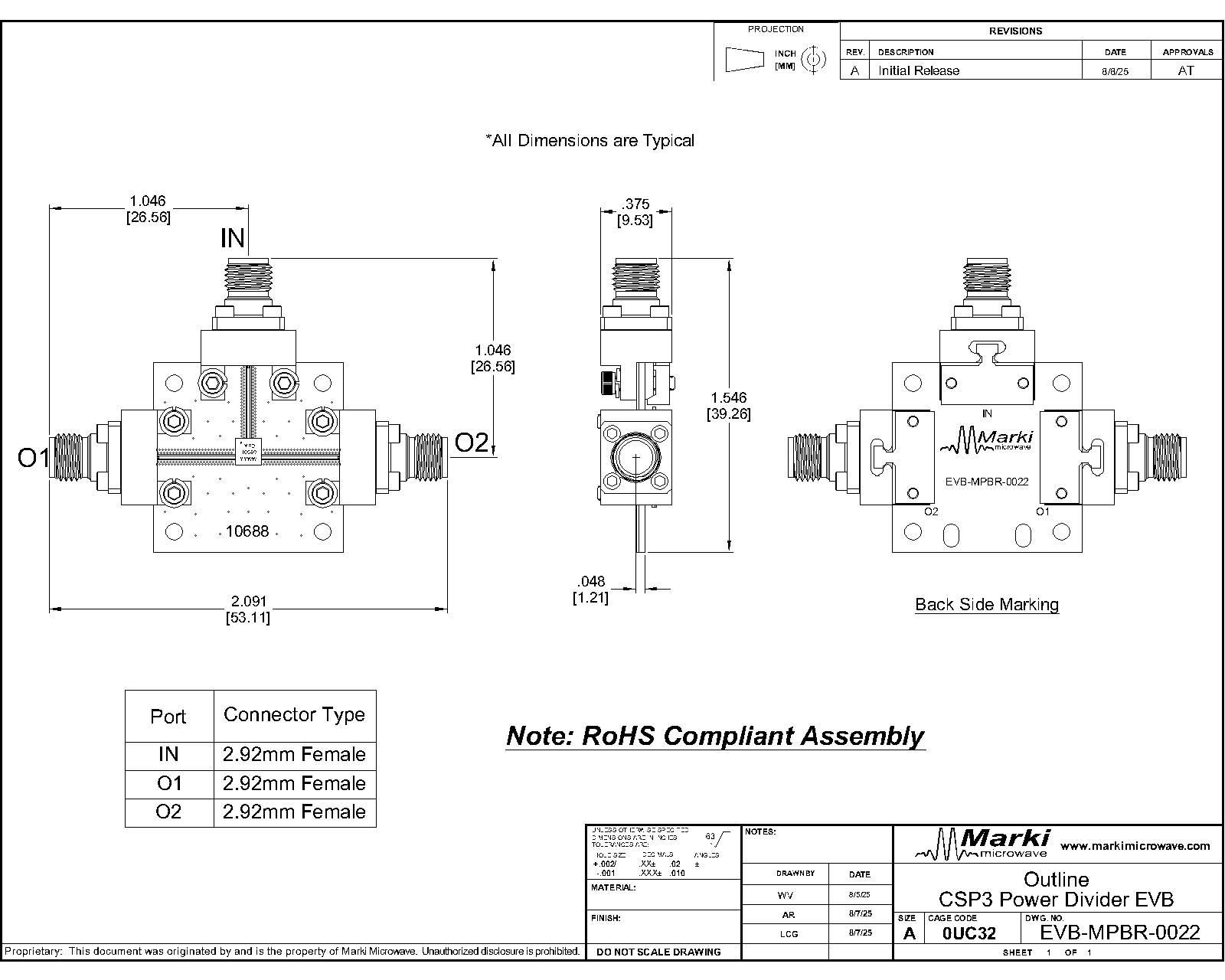

Evaluation Board - Outline Drawing
