Device Overview
General Description
The EVB-MMD-0416L is a connectorized evaluation board for the MMD-0416LPSM passive MMIC surface mount 4 - 16 GHz Doubler.
Features
N/A
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MMD-0416LPSM | GaAs MMIC Doubler | DFN | REACH RoHS | Released | EAR99 |
| EVB-MMD-0416L | Evaluation Board, GaAs MMIC 4 - 16 GHz Doubler | EVB | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MMD-0416LPSM | GaAs MMIC Doubler | DFN | REACH RoHS | Released | EAR99 |
| EVB-MMD-0416L | Evaluation Board, GaAs MMIC 4 - 16 GHz Doubler | EVB | REACH RoHS | Released | EAR99 |
EVB-MMD-0416L
Evaluation Board, GaAs MMIC 4 - 16 GHz Doubler
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-12-10 | Initial Release |
EVB-MMD-0416L
Evaluation Board, GaAs MMIC 4 - 16 GHz Doubler
Mechanical Data
EVB-MMD-0416L
Evaluation Board, GaAs MMIC 4 - 16 GHz Doubler

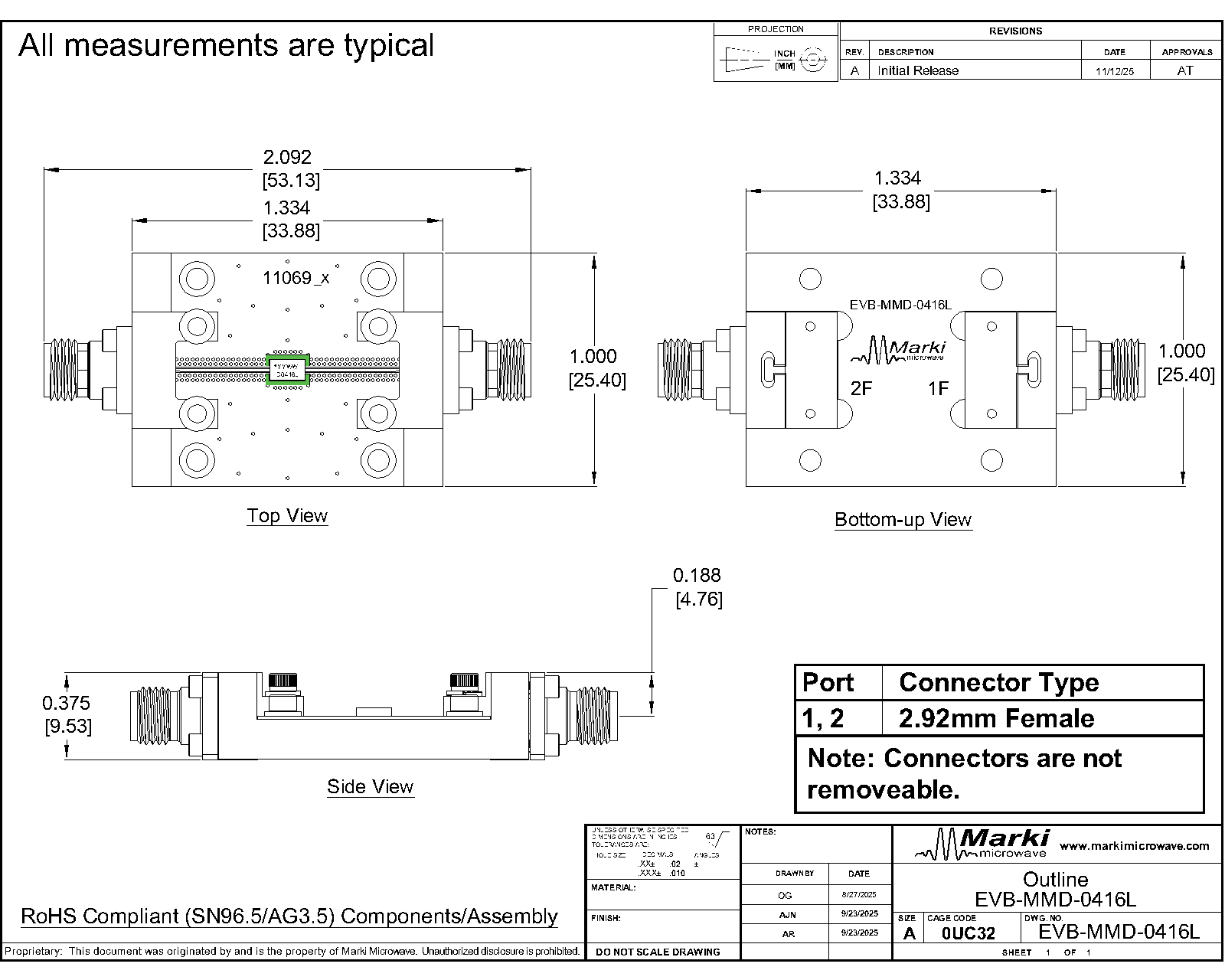

Evaluation Board - Outline Drawing
