EVB-MTPX-00001
Evaluation Board, Passive MMIC 10GHz and 18GHz Triplexer
General Description
The EVB-MTPX-00001 is a connectorized evaluation board for the MTPX-00001CSP3 is a MMIC surface mount triplexer featuring 10.1 GHz and 18.2 GHz crossover frequencies.
Features
N/A
Functional Block Diagram
N/A
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MTPX-00001CSP3 | Passive MMIC 10 GHz and 18 GHz Triplexer/Reflectionless Filter | CSP3 | RoHS REACH | Released | EAR99 |
| EVB-MTPX-00001 | Evaluation Board, Passive MMIC 10GHz and 18GHz Triplexer | EVB | RoHS REACH | Released | EAR99 |
Table Of Contents
Mechanical Data

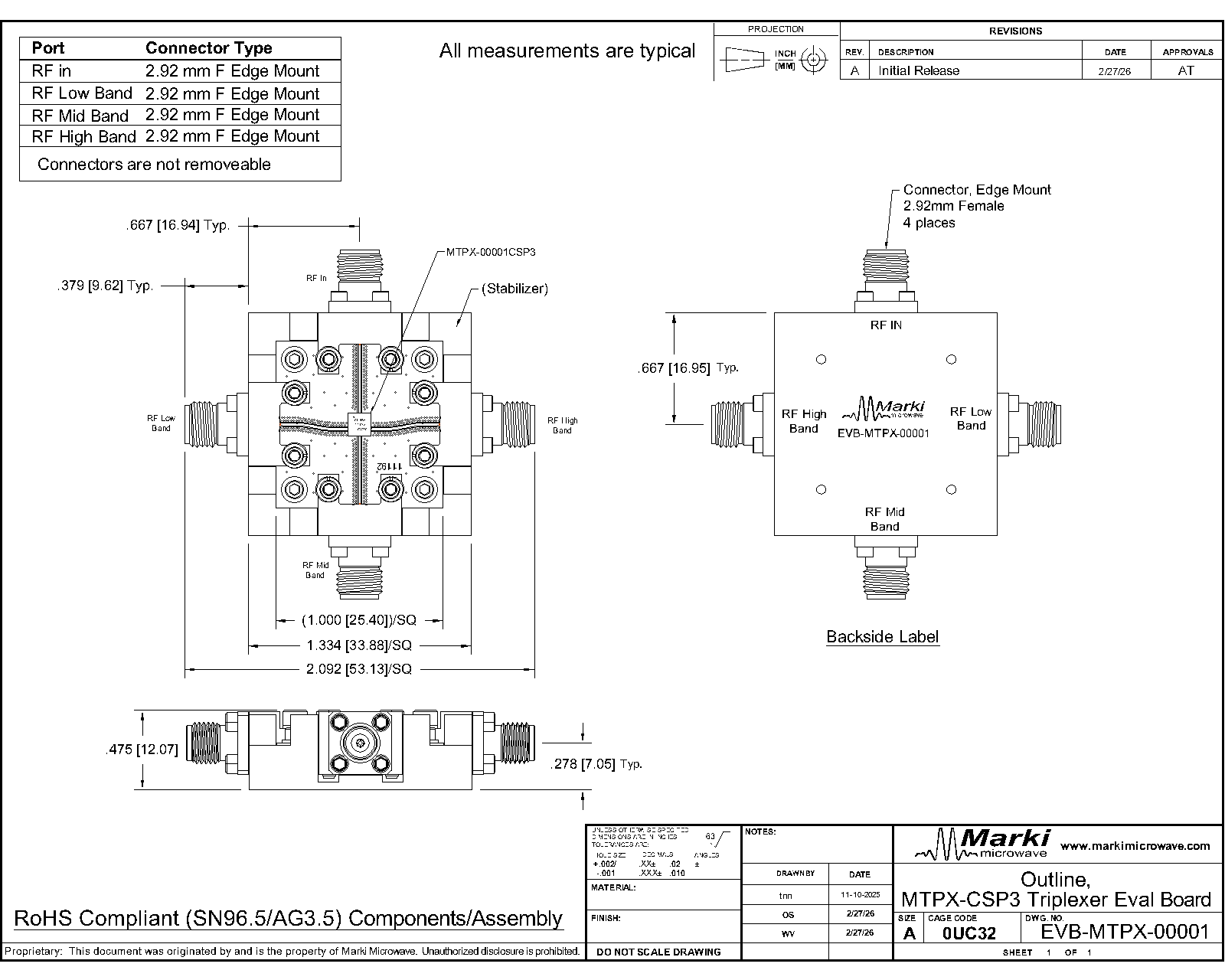

Outline Drawing
Download : Outline 2D Drawing
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2026-08-12 | Initial Release |
