Device Overview
General Description
The EVB-MM1-0115HP is a connectorized evaluation board for the MM1-0115HPSM passive MMIC Surface mount 1 - 15 GHz Double Balanced Mixer.
Features
N/A
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MM1-0115HPSM-2 | GaAs MMIC Double Balanced Mixer | QFN | REACH RoHS | Released | EAR99 |
| EVB-MM1-0115HP | Evaluation Board, GaAs MMIC Double Balanced Mixer | EVB | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MM1-0115HPSM-2 | GaAs MMIC Double Balanced Mixer | QFN | REACH RoHS | Released | EAR99 |
| EVB-MM1-0115HP | Evaluation Board, GaAs MMIC Double Balanced Mixer | EVB | REACH RoHS | Released | EAR99 |
EVB-MM1-0115HP
Evaluation Board, GaAs MMIC Double Balanced Mixer
Table Of Contents
EVB-MM1-0115HP
Evaluation Board, GaAs MMIC Double Balanced Mixer
Mechanical Data
Outline Drawing
EVB-MM1-0115HP
Evaluation Board, GaAs MMIC Double Balanced Mixer

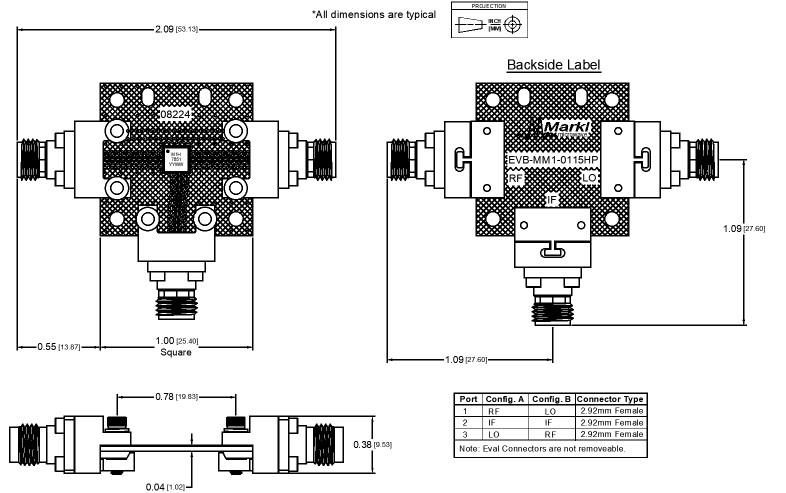

Evaluation Board - Outline Drawing
