Device Overview
General Description
The EVAL-HLM-40P is a connectorized evaluation board for the HLM-40PSM DC-40 GHz surface mount amplifier.
Features
- Low 0.7dB loss at 20 GHz
- 9.5W Peak Power (pulsed), 2.5W CW
- +11 to +19 dBm Flat Leakage @ 1W CW
- Typical P1dB of +14dBm
- Small signal S2P data available
Applications
- RF Transceivers
- Test and Measurement Equipment
- SATCOM
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| HLM-40PSM | DC - 40GHz Surface Mount Limiter | QFN | REACH RoHS | Released | EAR99 |
| EVAL-HLM-40P | Evaluation Board, DC - 40GHz Surface Mount Limiter | EVAL | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| HLM-40PSM | DC - 40GHz Surface Mount Limiter | QFN | REACH RoHS | Released | EAR99 |
| EVAL-HLM-40P | Evaluation Board, DC - 40GHz Surface Mount Limiter | EVAL | REACH RoHS | Released | EAR99 |
EVAL-HLM-40P
Evaluation Board, DC - 40GHz Surface Mount Limiter
Table Of Contents
EVAL-HLM-40P
Evaluation Board, DC - 40GHz Surface Mount Limiter
Specifications
EVAL-HLM-40P
Evaluation Board, DC - 40GHz Surface Mount Limiter

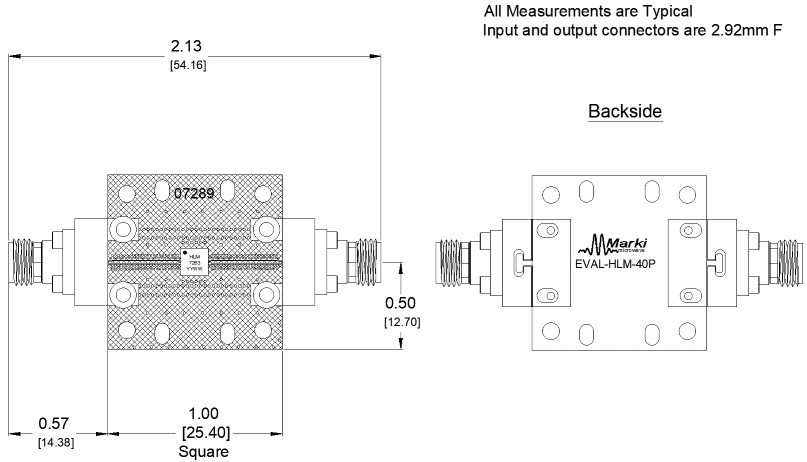

Footprint Image
