Device Overview
General Description
The EVB-MFLP-00033 is a connectorized evaluation board for the MFLP-00033CSP1 passive MMIC surface mount 19 GHz lowpass filter.
Features
N/A
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFLP-00033CSP1 | Passive GaAs MMIC 19 GHz Lowpass Filter | CSP1 | RoHS REACH | Released | EAR99 |
| EVB-MFLP-00033 | Evaluation Board, Passive GaAs MMIC 19 GHz Lowpass Filter | EVB | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFLP-00033CSP1 | Passive GaAs MMIC 19 GHz Lowpass Filter | CSP1 | RoHS REACH | Released | EAR99 |
| EVB-MFLP-00033 | Evaluation Board, Passive GaAs MMIC 19 GHz Lowpass Filter | EVB | RoHS REACH | Released | EAR99 |
EVB-MFLP-00033
Evaluation Board, Passive GaAs MMIC 19 GHz Lowpass Filter
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-11-18 | Initial Release |
EVB-MFLP-00033
Evaluation Board, Passive GaAs MMIC 19 GHz Lowpass Filter
Mechanical Data
EVB-MFLP-00033
Evaluation Board, Passive GaAs MMIC 19 GHz Lowpass Filter

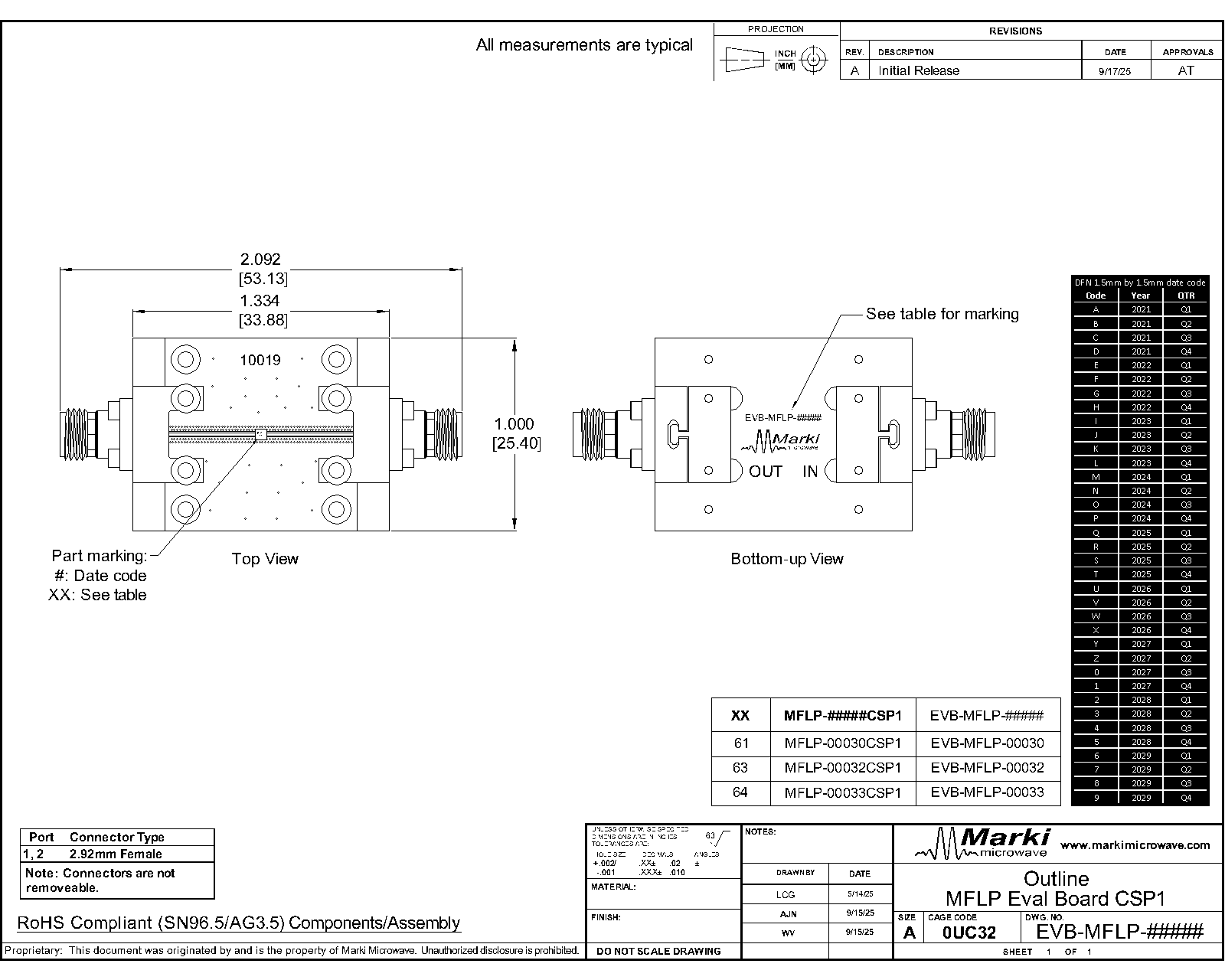

Evaluation Board - Outline Drawing
%20Catalog%20Outline-Model.png)
