Device Overview
General Description
The EVB-MFBP-00164G is a connectorized evaluation board for the MFBP-00164GSM1 passive MMIC glass surface mount 430 - 990 MHz bandpass filter.
Features
N/A
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFBP-00164GSM1 | Passive Glass 430 - 990 MHz Surface Mount Bandpass Filter | GSM1 | RoHS | Released | EAR99 |
| EVB-MFBP-00164G | Evaluation Board, Passive Glass MMIC 430 - 990 MHz Bandpass Filter | EVB | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFBP-00164GSM1 | Passive Glass 430 - 990 MHz Surface Mount Bandpass Filter | GSM1 | RoHS | Released | EAR99 |
| EVB-MFBP-00164G | Evaluation Board, Passive Glass MMIC 430 - 990 MHz Bandpass Filter | EVB | REACH RoHS | Released | EAR99 |
EVB-MFBP-00164G
Evaluation Board, Passive Glass MMIC 430 - 990 MHz Bandpass Filter
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-12-10 | Initial Release |
| A | 2026-04-02 | Added ECCN Classification |
EVB-MFBP-00164G
Evaluation Board, Passive Glass MMIC 430 - 990 MHz Bandpass Filter
Mechanical Data
EVB-MFBP-00164G
Evaluation Board, Passive Glass MMIC 430 - 990 MHz Bandpass Filter

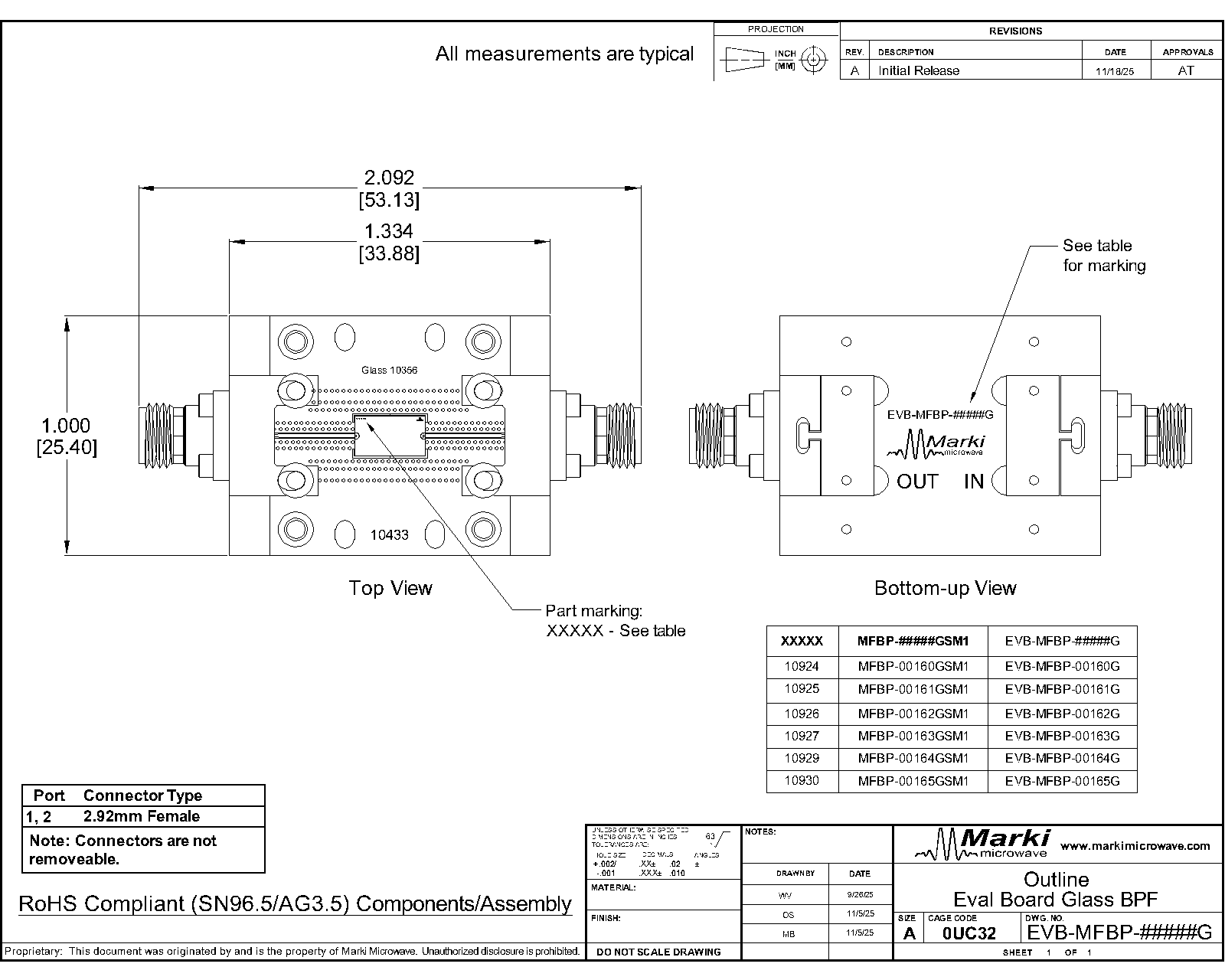

Evaluation Board - Outline Drawing
