EVB-ABSD-10169P
Evaluation Board
General Description
This is the evaluation board for the ABSD-10169PSM. The ABSD-10169PSM is a GaAs active MMIC balun in a 3mm QFN surface mount package. Its frequency ranges from DC to 30 GHz and offers 9 dB single ended to differential gain (low end limited by DC block). The 3mm QFN package is a lead free, RoHS compliant package compatible with standard leaded and lead-free solder reflows. Connectorized evaluation packages are available. The ABSD-10169PSM is an excellent choice for active single ended to differential mode conversion and higher order Nyquist sampling in analog to digital converters.
Features
- 2.92mm edge mount connectors
- Vd and Vs clip rings
- Output DC blocking caps
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ABSD-10169PSM | 30 GHz Single Ended to Differential Active Balun | QFN | REACH RoHS | Released | EAR99 |
| EVB-ABSD-10169P | Evaluation Board | EVB | REACH RoHS | Released | EAR99 |
Table Of Contents
Mechanical Data

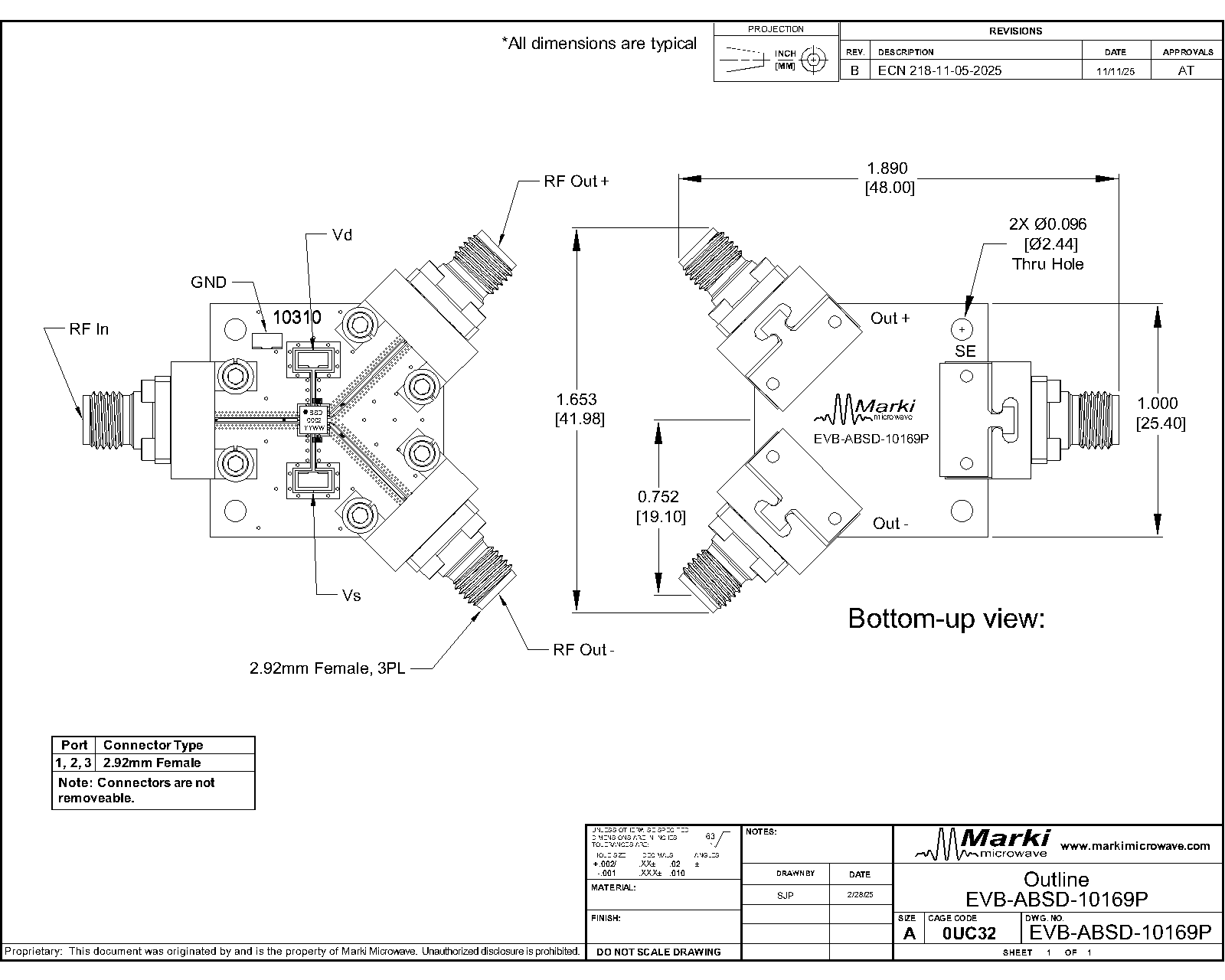

Outline Drawing
Download : Outline 2D Drawing
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-04-07 | Initial Release |
