Device Overview
General Description
This is the evaluation board for the AMM-10220PSM. The AMM-10220PSM is a surface-mount amplifier suitable for use as a single tone driver or general-purpose gain block. It can drive an L or H diode mixer from 2 to 26 GHz. This amplifier also has exceptionally low input and output reflections, and a low 2.7 dB typical noise figure from 8 to 18 GHz. Additionally, this amplifier exhibits a positive gain slope to equalize frequency dependent losses.
Features
- 2.92mm edge mount connectors
- Vd and Vg clip rings
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|
| AMM-10220PSM | 2 - 26 GHz GaAs Surface Mount LO Driver Amplifier | REACH RoHS | Released | EAR99 |
| EVB-AMM-10220P | Evaluation Board, AMM-10220PSM, 2 - 26 GHz GaAs Surface Mount LO Driver Amplifier | REACH RoHS | Released | - |
| Part Number | Description | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|
| AMM-10220PSM | 2 - 26 GHz GaAs Surface Mount LO Driver Amplifier | REACH RoHS | Released | EAR99 |
| EVB-AMM-10220P | Evaluation Board, AMM-10220PSM, 2 - 26 GHz GaAs Surface Mount LO Driver Amplifier | REACH RoHS | Released | - |
EVB-AMM-10220P
Evaluation Board, AMM-10220PSM, 2 - 26 GHz GaAs Surface Mount LO Driver Amplifier
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-09-02 | Initial Release |
EVB-AMM-10220P
Evaluation Board, AMM-10220PSM, 2 - 26 GHz GaAs Surface Mount LO Driver Amplifier
Mechanical Data
EVB-AMM-10220P
Evaluation Board, AMM-10220PSM, 2 - 26 GHz GaAs Surface Mount LO Driver Amplifier

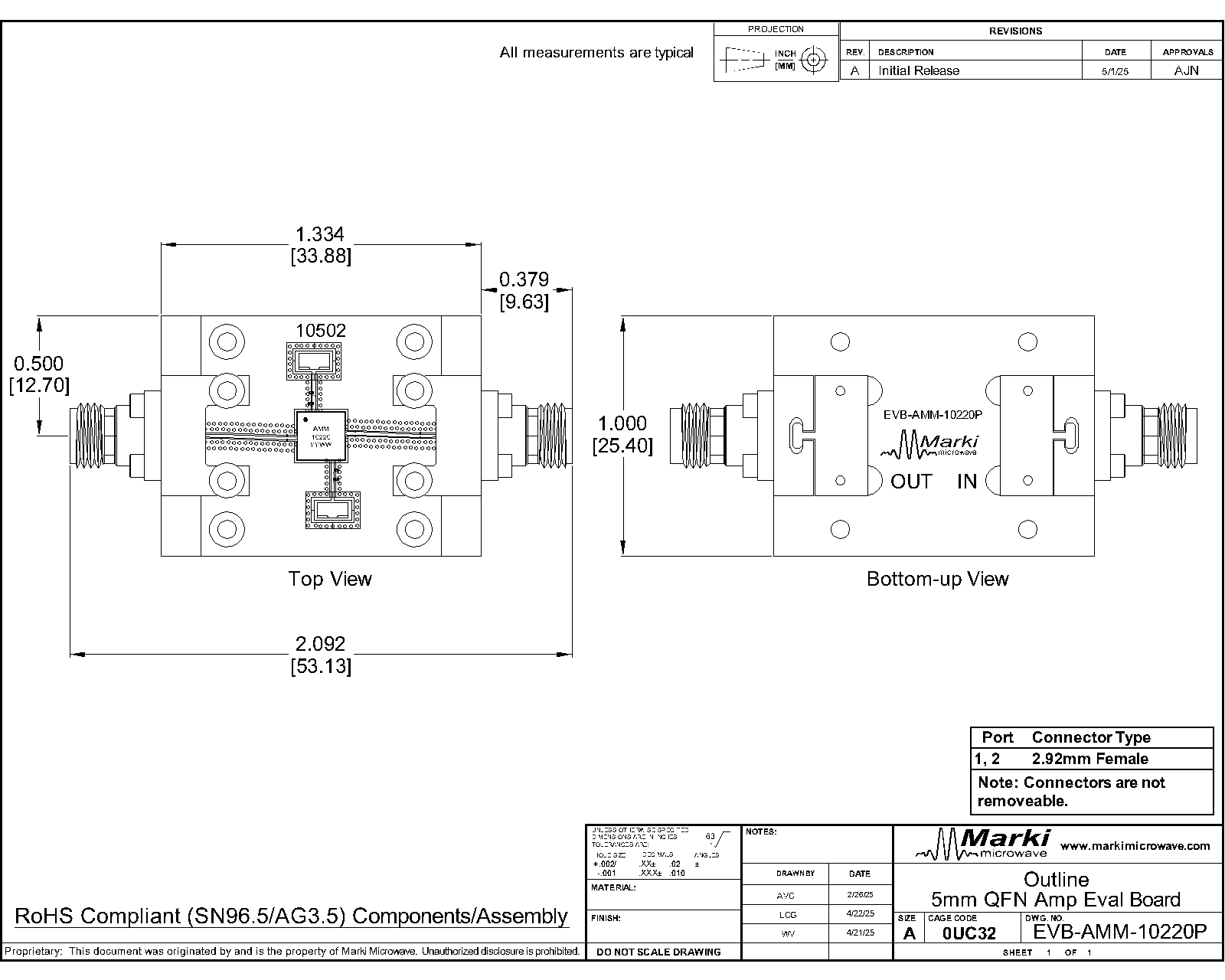

Evaluation Board - Outline Drawing
