General Description

This is the evaluation board for the ADM-8344PSM. The ADM-8344PSM is a wideband distributed low noise amplifier capable of providing 19 dB gain and +29 dBm OIP3 from DC to 18 GHz and a low 1.7 dB typical noise figure from 4 to 14 GHz. The ADM-8344PSM is an ideal linear signal amplifier for applications requiring low power consumption and small form-factors. ADM-8344 is available A 4mm QFN and can be supplied from a single positive bias. The amplifier has excellent return losses and noise figure performance.

Download s-parameters here
Photo of EVB-ADM-8344P

Features

  • 19 dB typical gain
  • 1.9 dB typical noise figure
  • Single supply, positive-only bias
  • 2.92mm female RF connectors
  • Metal clip ring for Vb bias input

Applications

N/A

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageGreen StatusProduct LifecycleExport Classification
ADM-8344PSMDC - 18 GHz Distributed AmplifierPSM

RoHS

REACH

ReleasedEAR99
EVB-ADM-8344PEvaluation Board, DC - 18 GHz Distributed AmplifierEVB

REACH

RoHS

Released-

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2025-06-13Initial Release

Rev: - | Copyright © 2025 Marki Microwave LLC.

2

Mechanical Data

Outline Drawing

Download : Outline 2D Drawing

Outline Drawing

External DC blocks are required at RF In and RF Out / Vd connectors. Vd should be provided through an external choke inductor or bias tee.

Rev: - | Copyright © 2025 Marki Microwave LLC.

3

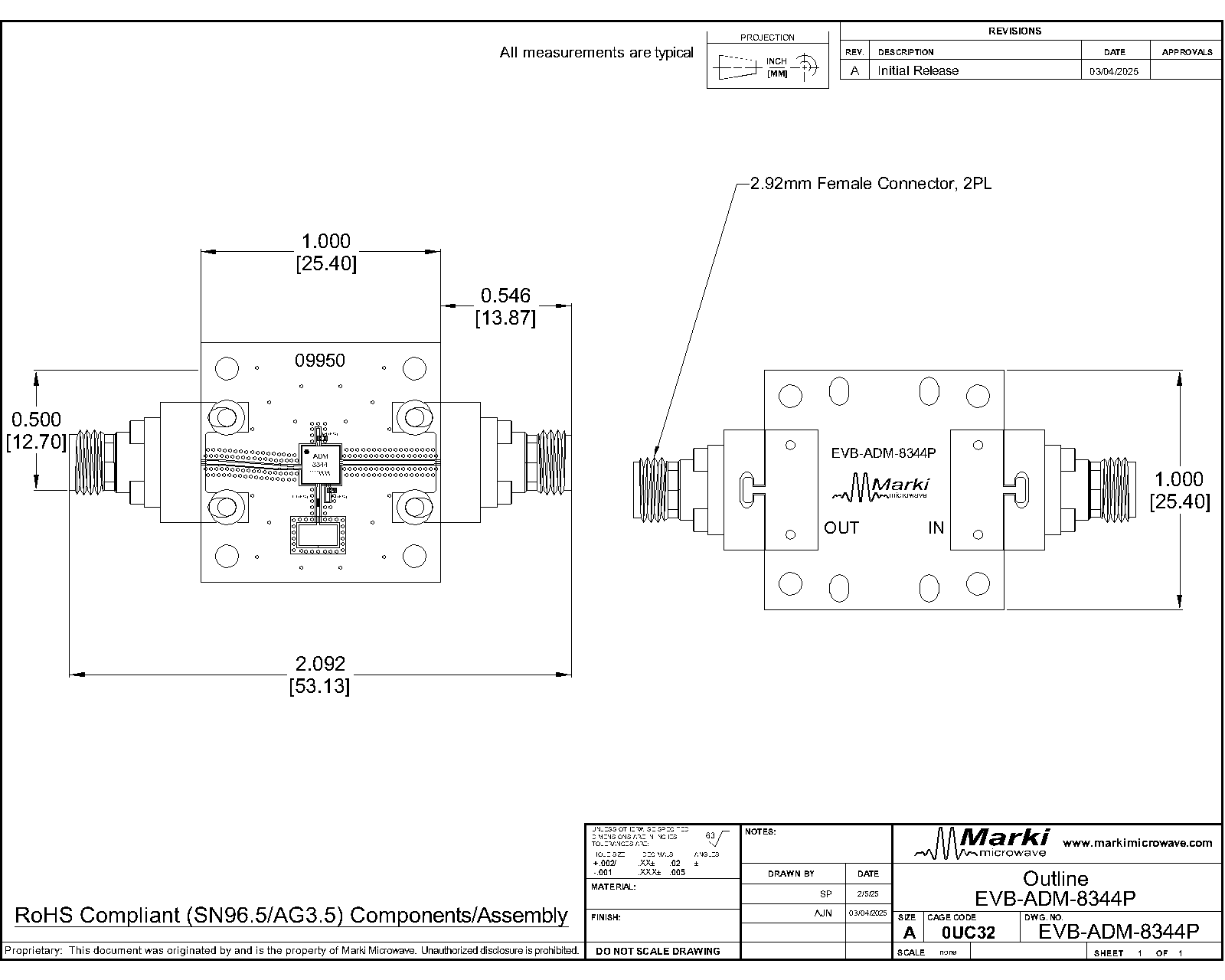

Evaluation Board - Outline Drawing
