The TM50-27 is a well-matched, 50Ω male termination enabling operation from DC to 27 GHz. This termination features a 2W power rating and 32 dB typical return loss. The termination is suitable for use with our connectorized components. The T50-27 is available with both Male and Female connector options available as a SMA connectorized module.
TM50-27
DC to 27 GHz 50Ω Male Termination
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-06-13 | Initial Release |

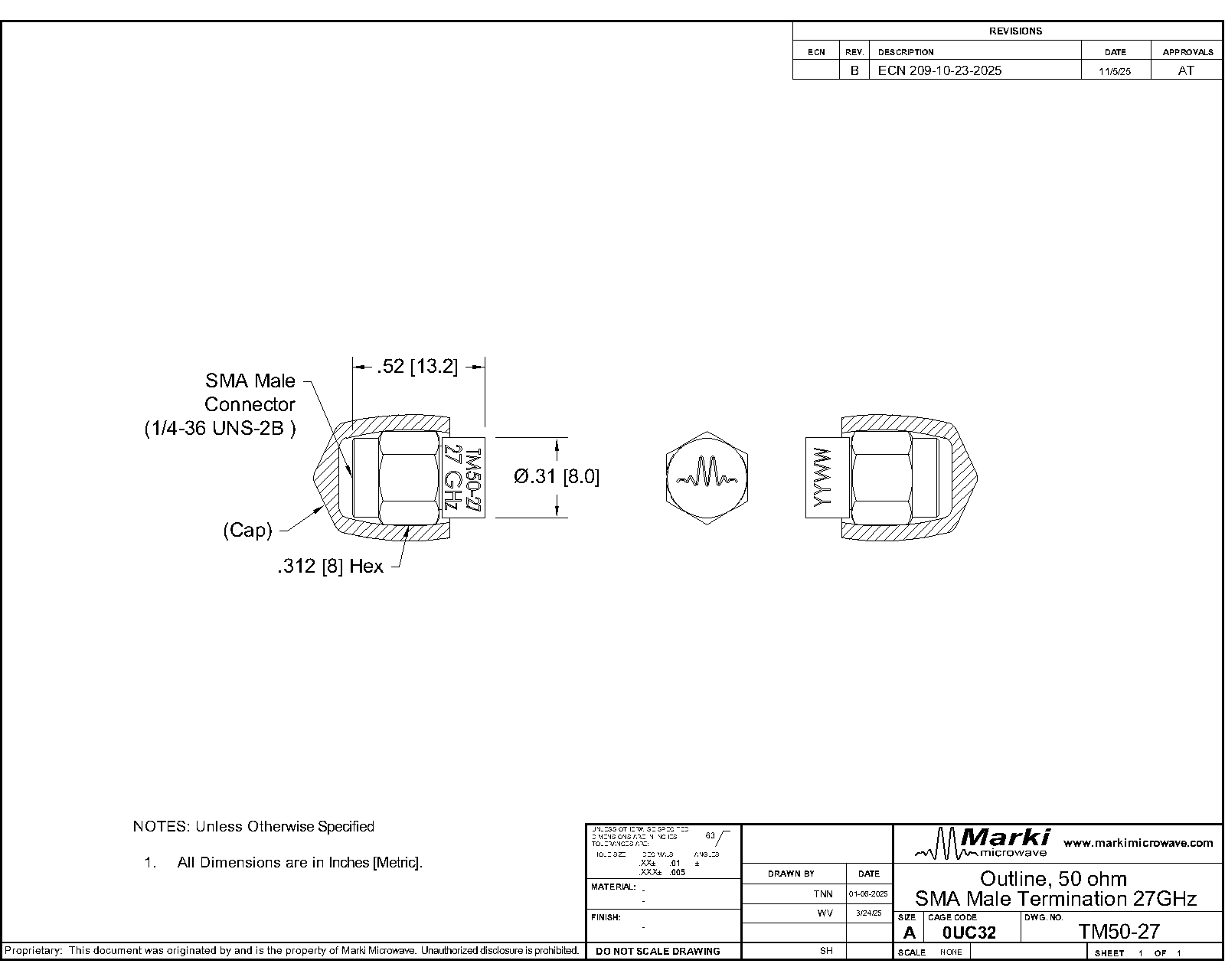

| A | 2025-11-24 | Power Handling removed from Outline Drawing |
| B | 2026-02-17 | Power Handling Updated in the Features Section |
TM50-27
DC to 27 GHz 50Ω Male Termination
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| GND | Ground | - | Ground provided through metal housing and outer coax conductor. |  |
| Port 1 | Input | SMAM | Port 1 is DC connected to ground through a broadband 50Ω resistor. |  |
TM50-27
DC to 27 GHz 50Ω Male Termination
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Average Power Handling 1 | 0.7 | W |
| Maximum Operating Temperature | 105 | °C |
| Maximum Storage Temperature | 105 | °C |
| Minimum Operating Temperature | -40 | °C |
| Minimum Storage Temperature | -40 | °C |
1 W Average power from -40°C to +70°C Linearly derated to 0.7W at 105°C
[1] 1 W Average power from -40°C to +70°C Linearly derated to 0.7W at 105°C
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
TM50-27
DC to 27 GHz 50Ω Male Termination
The electrical specifications apply at TA=+25°C in a 50Ω system.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Impedance | 25°C | 0 | 27 | - | 50 | - | Ω |
| Return Loss | 25°C | 0 | 27 | 23 | 32 | - | dB |
| VSWR | 25°C | 0 | 27 | - | 1.05 | 1.15 |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Impedance | 25°C | 0 | 27 | - | 50 | - | Ω |
| Return Loss | 25°C | 0 | 27 | 23 | 32 | - | dB |
| VSWR | 25°C | 0 | 27 | - | 1.05 | 1.15 |
