QH-0R714_3 dB Quadrature Hybrid

General Description

The QH-0R714 is a 0.7-14.5 GHz, multi-purpose broadband 3dB quadrature hybrid. The multisection tri-plate stripline design exhibits excellent amplitude balance with broadband quadrature phasing (90o) between the output ports. Applications include single sideband upconverters, image rejection downconverters, IQ modulators, balanced amplifiers, microwave correlators and microwave Butler matrices. Custom designs are also available; contact the factory for details.

Download s-parameters here

Features

Broadband performance
Excellent amplitude and phase balance
High isolation
Low VSWR

Functional Block Diagram

Download PDF

Electrical Performance Summary

Parameter	Typ	Unit
Frequency Range	0.7 to 14.5	GHz
Isolation	22	dB
Nominal Phase Shift	90	°
Phase Balance	2	°
Amplitude Balance	0.2	dB

Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.

Part Ordering Options

Part Number	Description	Connectors	Green Status	Product Lifecycle	Export Classification
QH-0R714	3 dB Quadrature Hybrid	Standard	REACH RoHS	Released	EAR99

Part Number

Description

Connectors

Green Status

Product Lifecycle

Export Classification

QH-0R714

3 dB Quadrature Hybrid

Standard

REACH

RoHS

Released

EAR99

Device Overview
Specifications
Port Configuration and Functions
- Port Diagram
- Port Functions
Mechanical Data
- Outline Drawing

Typical Performance

Through and coupled line insertion loss graph for QH-0R714

Return loss and isolation graph for QH-0R714

Amplitude difference between the 0o and 90o output ports graph for QH-0R714

Phase difference between the 0o and 90o output ports graph for QH-0R714

Specifications

Electrical Specifications

Specifications guaranteed when operated in a 50Ω system.

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Frequency Range	-	0.7	14.5	-	-	-	GHz
Amplitude Balance ¹	-	0.7	14.5	-	0.2	0.8	dB
CW Power	-	0.7	14.5	-	-	20	W
Excess Insertion Loss ²	-	0.7	14.5	-	1.2	2.5	dB
Isolation	-	0.7	14.5	15	22	-	dB
Mean Coupling	-	0.7	14.5	-	3	-	dB
Nominal Phase Shift	-	0.7	14.5	-	90	-	°
Phase Balance	-	0.7	14.5	-	2	8	°
VSWR	-	0.7	14.5	-	1.2	1.5	-

^[1] Maximum amplitude differential is twice the magnitude of the amplitude balance

^[2] Excess Insertion Loss = (Input Port to Output Port Insertion Loss) – 3 dB

Package Information

Parameter	Details	Rating
Weight	-	225g
Dimensions	-	132.08 x 40.64 mm

Port Configuration and Functions

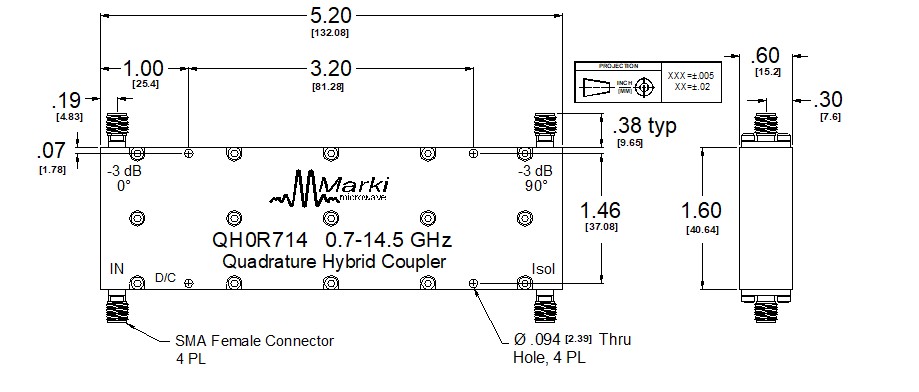

Port Diagram

Diagram of the port configuration for QH-0R714

Port Functions

Port	Function	Connector Type	Description
Port 1	0° Output	SMAF	Port 1 is DC short to port 3 and open to ground.
Port 2	90° Output	SMAF	Port 2 is DC short to port 4 and open to ground
Port 3	Isolated	SMAF	Port 3 is DC short to port 1 and open to ground.
Port 4	Input	SMAF	Port 4 is DC short to port 2 and open to ground

Mechanical Data

Outline Drawing

Download : Outline 3D Drawing Outline 3D STP
