Device Overview
General Description
The QH-0867 is a 8-67 GHz, multi-purpose broadband 3dB quadrature hybrid. The multisection tri-plate stripline design exhibits excellent amplitude balance with broadband quadrature phasing (90o) between the output ports. Applications include single sideband upconverters, image rejection downconverters, IQ modulators, balanced amplifiers, microwave correlators and microwave Butler matrices. Custom designs are also available; contact the factory for details.
Features
- Broadband performance
- Excellent amplitude and phase balance
- High isolation
- Low VSWR
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| QH-0867 | 3 dB Quadrature Hybrid | Standard | REACH RoHS | Released | EAR99 |
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| QH-0867 | 3 dB Quadrature Hybrid | Standard | REACH RoHS | Released | EAR99 |
QH-0867
3 dB Quadrature Hybrid
Table Of Contents
QH-0867
3 dB Quadrature Hybrid

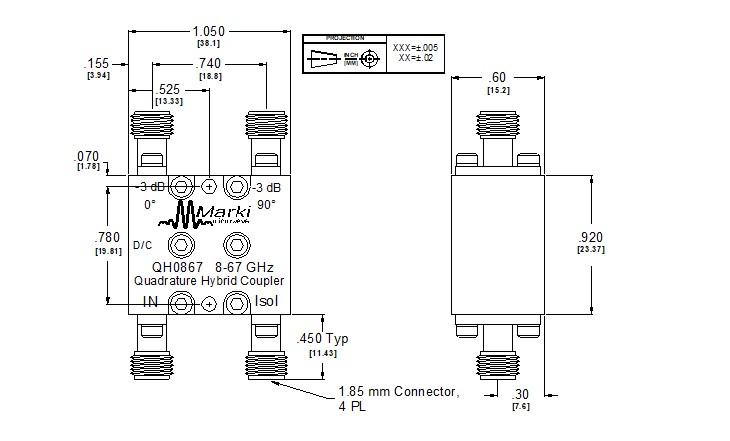

Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | 0° Output | 1.85F | Port 1 is DC short to port 3 and open to ground. |  |
| Port 2 | 90° Output | 1.85F | Port 2 is DC short to port 4 and open to ground | |
| Port 3 | Isolated | 1.85F | Port 3 is DC short to port 1 and open to ground. | |
| Port 4 | Input | 1.85F | Port 4 is DC short to port 2 and open to ground | |
QH-0867
3 dB Quadrature Hybrid
Specifications
Absolute Maximum Ratings
| Parameter | Maximum Rating | Unit |
|---|---|---|
| RF Power Handling 1 | 40 | W |
[1] RF Power Handling is measured at 18GHz CW
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Weight | - | 36g |
| Dimensions | - | 38.81 x 23.37 mm |
QH-0867
3 dB Quadrature Hybrid
Electrical Specifications
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance 1 | - | 8 | 67 | - | 0.6 | 1.2 | dB |
| Excess Insertion Loss 2 | - | 8 | 67 | - | 1.2 | - | dB |
| Isolation | - | 50 | 67 | 9 | 13 | - | dB |
| Isolation | - | 8 | 50 | 13 | 18 | - | dB |
| Mean Coupling | - | 8 | 67 | - | 3 | - | dB |
| Nominal Phase Shift | - | 8 | 67 | - | 90 | - | ° |
| Phase Balance | - | 8 | 67 | - | 6 | 18 | ° |
| VSWR | - | 8 | 40 | - | 1.3 | 1.65 | |
| VSWR | - | 40 | 67 | - | 1.6 | - |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance 1 | - | 8 | 67 | - | 0.6 | 1.2 | dB |
| Excess Insertion Loss 2 | - | 8 | 67 | - | 1.2 | - | dB |
| Isolation | - | 50 | 67 | 9 | 13 | - | dB |
| Isolation | - | 8 | 50 | 13 | 18 | - | dB |
| Mean Coupling | - | 8 | 67 | - | 3 | - | dB |
| Nominal Phase Shift | - | 8 | 67 | - | 90 | - | ° |
| Phase Balance | - | 8 | 67 | - | 6 | 18 | ° |
| VSWR | - | 8 | 40 | - | 1.3 | 1.65 | |
| VSWR | - | 40 | 67 | - | 1.6 | - |
[1] Maximum amplitude differential is twice the magnitude of the amplitude balance
[2] Excess Insertion Loss = (Input to Output Insertion Loss) – 3 dB.
QH-0867
3 dB Quadrature Hybrid
Typical Performance
QH-0867
3 dB Quadrature Hybrid
