PBR-0006
High Isolation Power Combiner
The PBR-0006 is a 300 kHz to 6 GHz high isolation power combiner. This power combiner features a unique hand tuned construction based on a bridge coupler that enables 40 dB typical isolation across the operational bandwidth. High isolation power combiners are ideal for power combining uncorrelated signals, such as when performing intermodulation distortion (IMD) tests like IP2 and IP3. Their higher insertion loss and uncontrolled phase balance makes them unsuitable for power dividing applications.
N/A
| Parameter | Typ | Unit |
|---|---|---|
| Frequency Range | 0.0003 to 6 | GHz |
| Excess Insertion Loss | 1.5 | dB |
| No. Ways | - | - |
| Amplitude Balance | 0.6 | dB |
| Isolation | 40 | dB |
Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| PBR-0006 | High Isolation Power Combiner | Standard | REACH RoHS | Released | EAR99 |
Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Frequency Range | - | 0.0003 | 6 | - | - | - | GHz |
| Amplitude Balance | - | 0.0003 | 6 | - | 0.6 | 1.2 | dB |
| Common Port VSWR | - | 0.0003 | 6 | - | 1.3 | 1.8 | - |
| Excess Insertion Loss 1 | - | 0.0003 | 6 | - | 1.5 | 3 | dB |
| Input Port VSWR | - | 0.0003 | 6 | - | 1.2 | 1.5 | - |
| Isolation | - | 0.01 | 6 | 33 | 40 | - | dB |
| Isolation | - | 0.0003 | 0.01 | 15 | 30 | - | dB |
| Nominal Power Splitting | - | 0.0003 | 6 | - | 6 | - | dB |
[1] Excess Insertion Loss = (Input Port to Common Port Insertion Loss) - 6dB
| Parameter | Maximum Rating | Unit |
|---|---|---|
| RF Power Handling, Average | 1 | W |
| Parameter | Details | Rating |
|---|---|---|
| Weight | - | 40g |
| Dimensions | - | 66.04 x 16.76 mm |
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| C | Common | SMAF | Combined output port | - |
| IN 1 | Input 1 | SMAF | RF input of the combiner | - |
| IN 2 | Input 2 | SMAF | RF input 2 of the combiner | - |

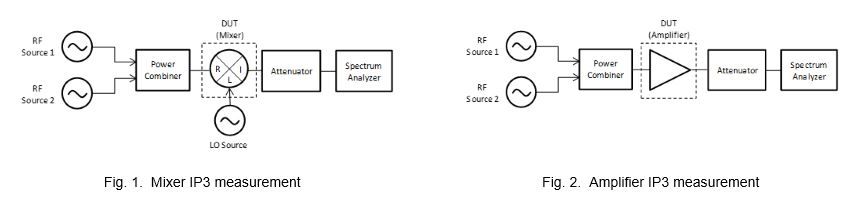

IP3 measurement using high isolation power combiner
Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2015-07-01 | Initial Date Released |
