Absolute Maximum Ratings
| Parameter | Maximum Rating | Unit |
|---|---|---|
| RF Power Handling, Average | 1 | W |
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The PBR-0003 is a 300 kHz to 3 GHz high isolation power combiner. This power combiner features a unique hand tuned construction based on a bridge coupler that enables 45 dB typical isolation across the operational bandwidth. High isolation power combiners are ideal for power combining uncorrelated signals, such as when performing intermodulation distortion (IMD) tests like IP2 and IP3. Their higher insertion loss and uncontrolled phase balance makes them unsuitable for power dividing applications.
Features
- 300kHz to 3 GHz Power Combiner
- 45 dB Typ Isolation

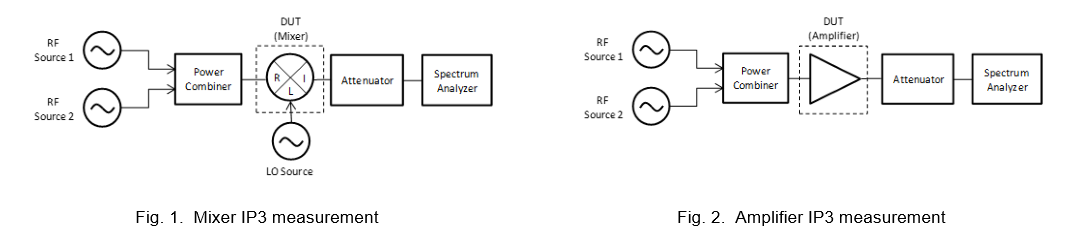

- Applications: IP3 Measurement and High Isolation Test Set-ups
Applications
N/A
Functional Block Diagram
N/A
Part Ordering Options
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| PBR-0003 | High Isolation Power Combiner | Standard | REACH RoHS | Released | EAR99 |
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| PBR-0003 | High Isolation Power Combiner | Standard | REACH RoHS | Released | EAR99 |
PBR-0003
High Isolation Power Combiner
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Operation
- Mechanical Data
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2015-07-01 | Initial Date Released |
PBR-0003
High Isolation Power Combiner
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| C | Common | SMAF | Combined output port | - |
| IN 1 | Input 1 | SMAF | RF input 1 of the combiner. | - |
| IN 2 | Input 2 | SMAF | RF input 2 of the combiner. | - |
PBR-0003
High Isolation Power Combiner
Specifications
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Weight | - | 38g |
| Dimensions | - | 66.04 x 16.76 mm |
PBR-0003
High Isolation Power Combiner
Electrical Specifications
Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance | - | 0.0003 | 3 | - | 0.5 | 1 | dB |
| Common Port VSWR | - | 0.0003 | 3 | - | 1.3 | 1.7 | |
| Excess Insertion Loss 1 | - | 0.0003 | 3 | - | 1.25 | 2.5 | dB |
| Input Port VSWR | - | 0.0003 | - | - | 1.15 | 1.45 | |
| Isolation | - | 0.01 | 3 | 37 | 45 | - | dB |
| Isolation | - | 0.0003 | 0.01 | 15 | 30 | - | dB |
| Nominal Power Splitting | - | 0.0003 | 3 | - | 6 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance | - | 0.0003 | 3 | - | 0.5 | 1 | dB |
| Common Port VSWR | - | 0.0003 | 3 | - | 1.3 | 1.7 | |
| Excess Insertion Loss 1 | - | 0.0003 | 3 | - | 1.25 | 2.5 | dB |
| Input Port VSWR | - | 0.0003 | - | - | 1.15 | 1.45 | |
| Isolation | - | 0.01 | 3 | 37 | 45 | - | dB |
| Isolation | - | 0.0003 | 0.01 | 15 | 30 | - | dB |
| Nominal Power Splitting | - | 0.0003 | 3 | - | 6 | - | dB |
[1] Excess Insertion Loss = (Input Port to Common Port Insertion Loss) – 6 dB.
PBR-0003
High Isolation Power Combiner
Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.
Typical Performance Plots
PBR-0003
High Isolation Power Combiner
