The MPDR-00110M2 is a mmWave 2-way resistive power divider in our connectorized miniature M2-package enabling operation from DC to 110 GHz. Passive GaAs MMIC technology allows production of smaller constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances result in less unit-to-unit variation than traditional power divider technologies, allowing for accurate simulations using the provided S3P file taken from measured production units. Resistive power dividers are not recommended for use as power combiners due to the lack of isolation. The MPDR-00110M2 is available as a 1.0mm connectorized module.
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MPDR-00110M2 | DC – 110 GHz MMIC 2-way Power Divider/Combiner | M2 | Standard | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MPDR-00110M2 | DC – 110 GHz MMIC 2-way Power Divider/Combiner | M2 | Standard | REACH RoHS | Released | EAR99 |
MPDR-00110M2
DC – 110 GHz MMIC 2-way Power Divider/Combiner
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2023-06-01 | Initial Datasheet Release |
MPDR-00110M2
DC – 110 GHz MMIC 2-way Power Divider/Combiner
A top-down view of the MPDR-00110M2’s M2 package outline drawing is shown below. The MMIC Power dividers are passive reciprocal devices allowing either power splitting or power combining. Additionally, any port can be used as an input or an output.
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| GND | Ground | - | M2 package ground provided through metal housing and outer coax conductor. |  |
| In | Input/common | 1.0F | The common port is DC short to the other two ports through a resistive network and open to ground. |  |
| Out1 | Output 1 | 1.0F | The output 1 port is DC short to the other two ports through a resistive network and open to ground. | |
| Out2 | Output 2 | 1.0F | The output 2 port is DC short to the other two ports through a resistive network and open to ground. | |
MPDR-00110M2
DC – 110 GHz MMIC 2-way Power Divider/Combiner
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| DC Current | 56 | mA |
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Power Handling, at any Port | 1 | W |
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 27.62 x 19.37 mm |
MPDR-00110M2
DC – 110 GHz MMIC 2-way Power Divider/Combiner
The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°C.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|

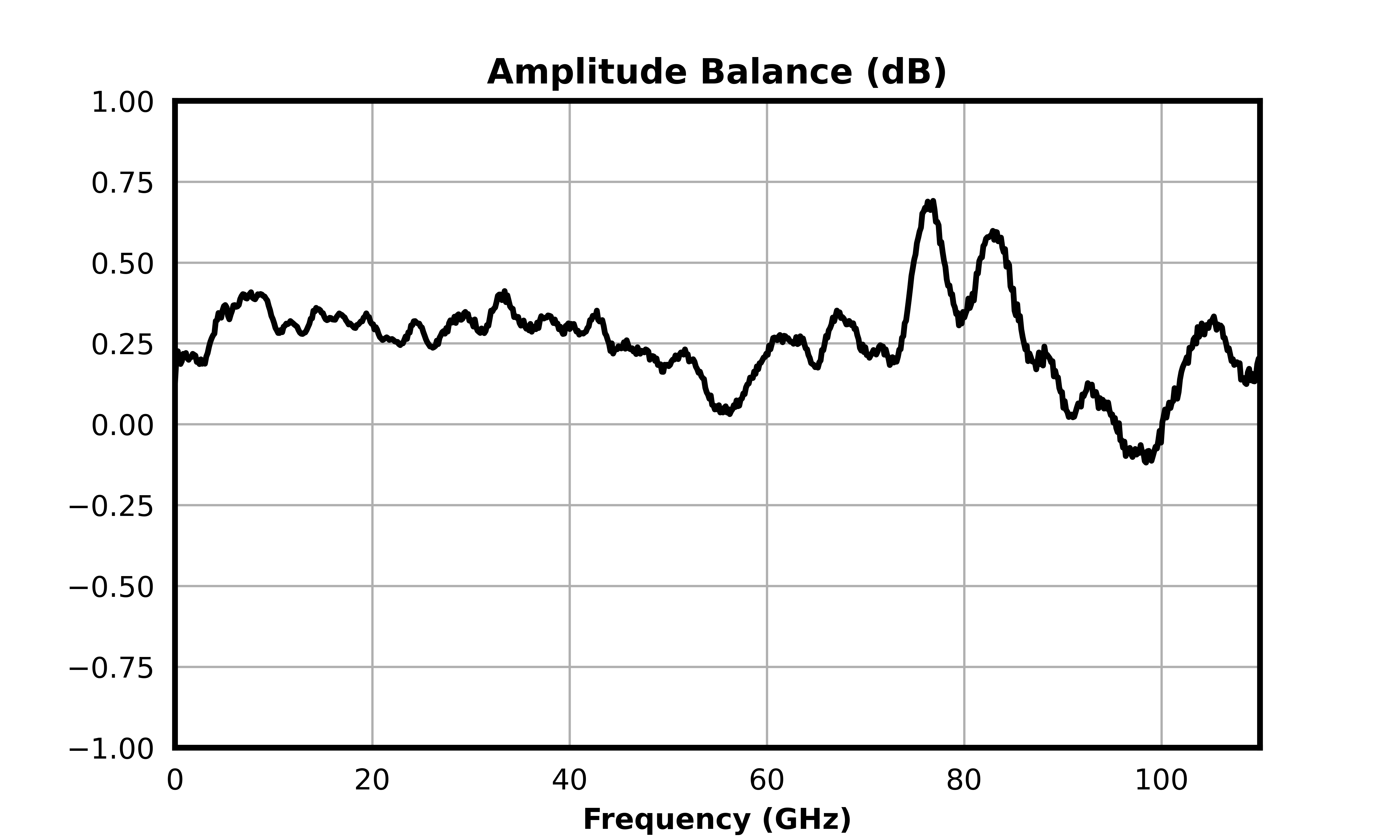

| Amplitude Balance | Temp = 25°C | 0 | 110 | - | 0.3 | - | dB |

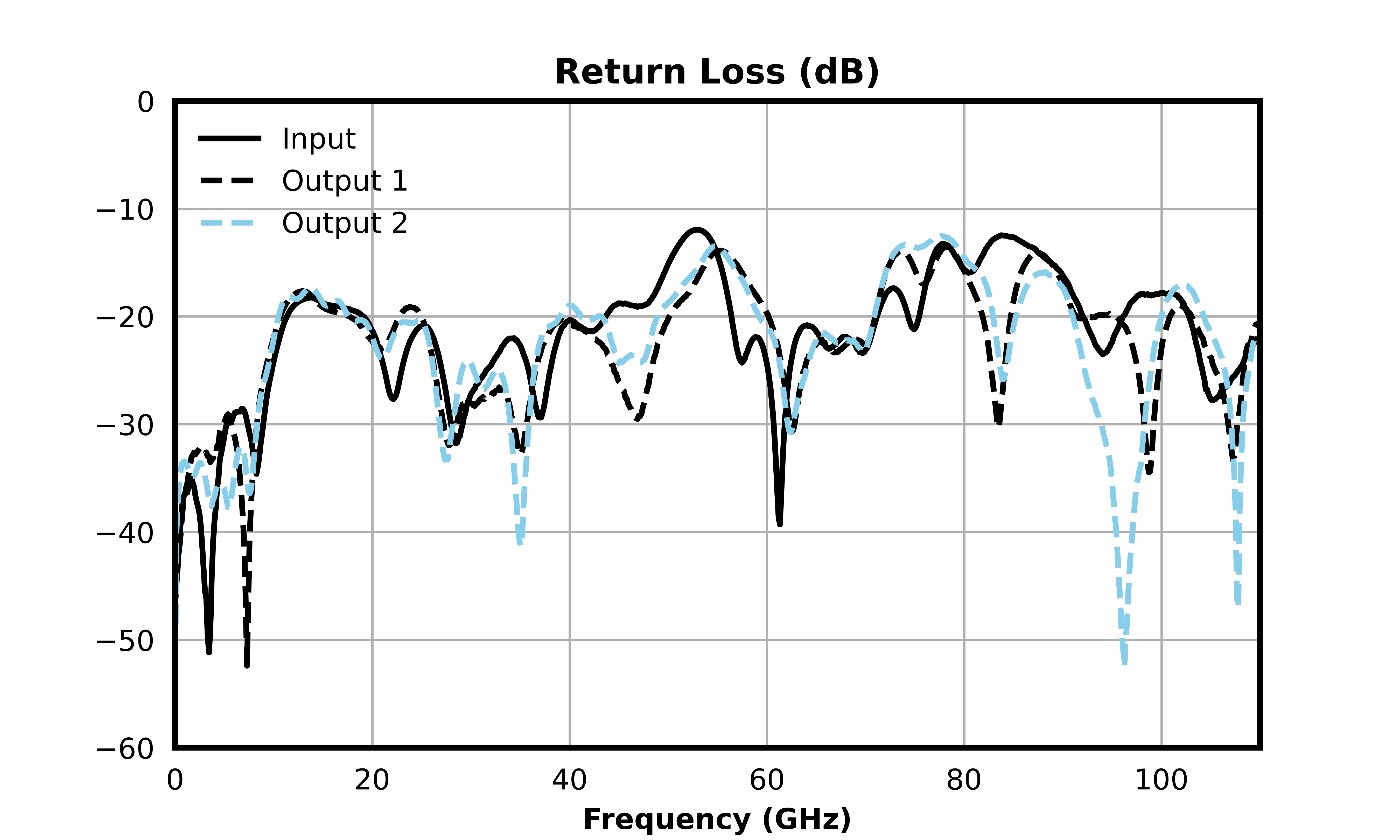

| Common Port Return Loss | Temp = 25°C | 0 | 110 | - | 21 | - | dB |

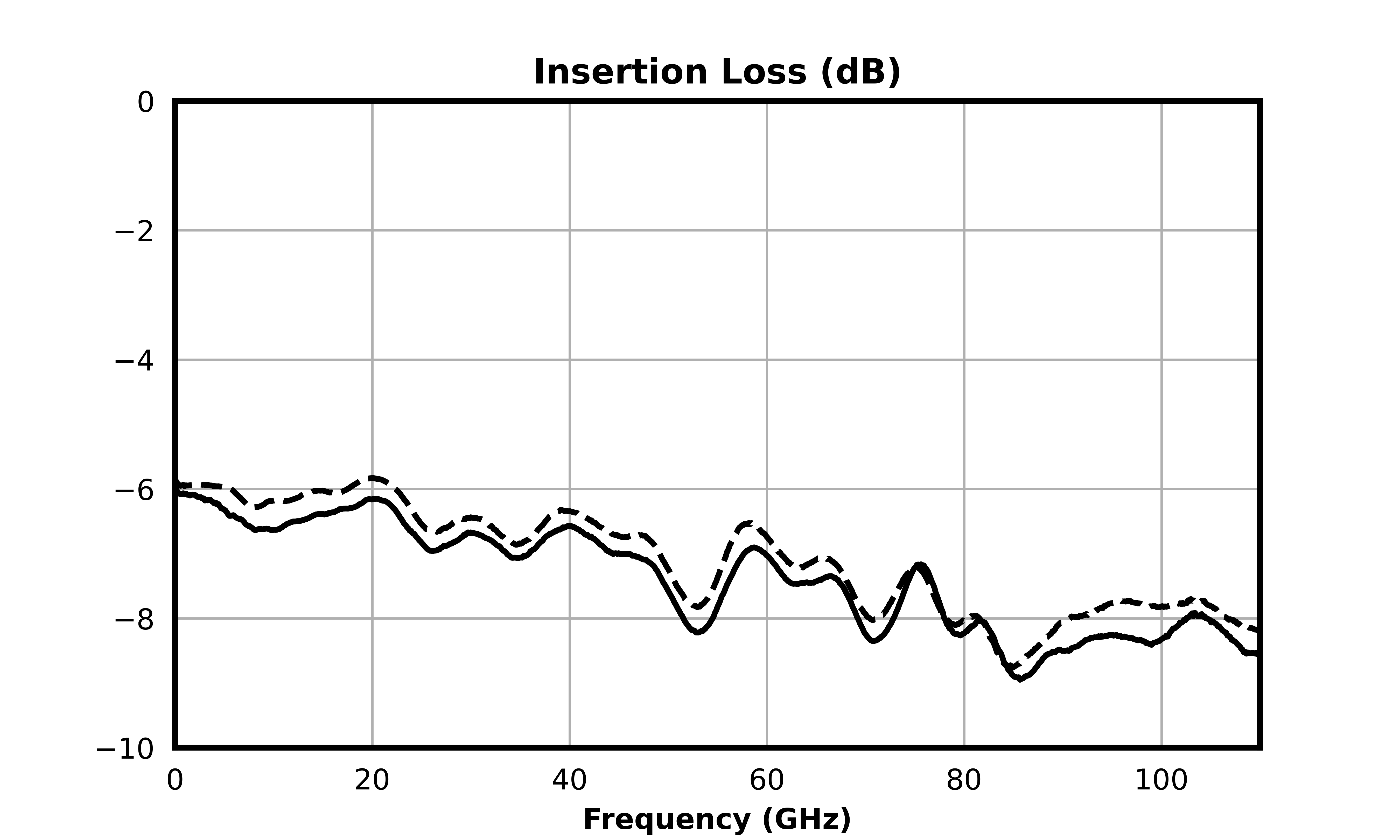

| Excess Insertion Loss 1 | Temp = 25°C | 0 | 110 | - | 1.3 | - | dB |
| Impedance | Temp = 25°C | - | - | - | 50 | - | Ω |

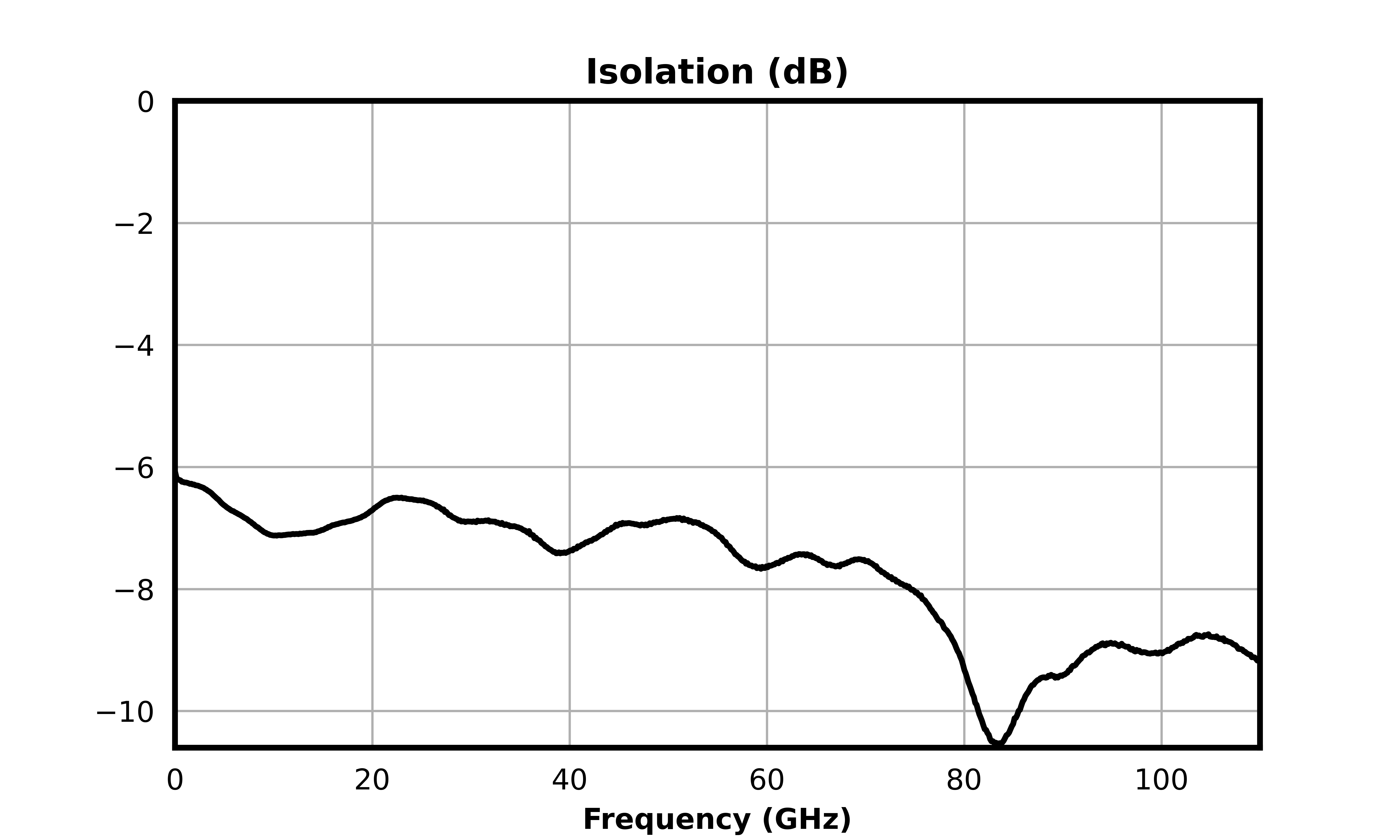

| Isolation | Temp = 25°C | 0 | 110 | - | 7 | - | dB |
| Nominal Phase Shift | Temp = 25°C | - | - | - | 0 | - | ° |
| Nominal Power Splitting | Temp = 25°C | - | - | - | 3 | - | dB |
| Output Return Loss | Temp = 25°C | 0 | 110 | - | 21 | - | dB |

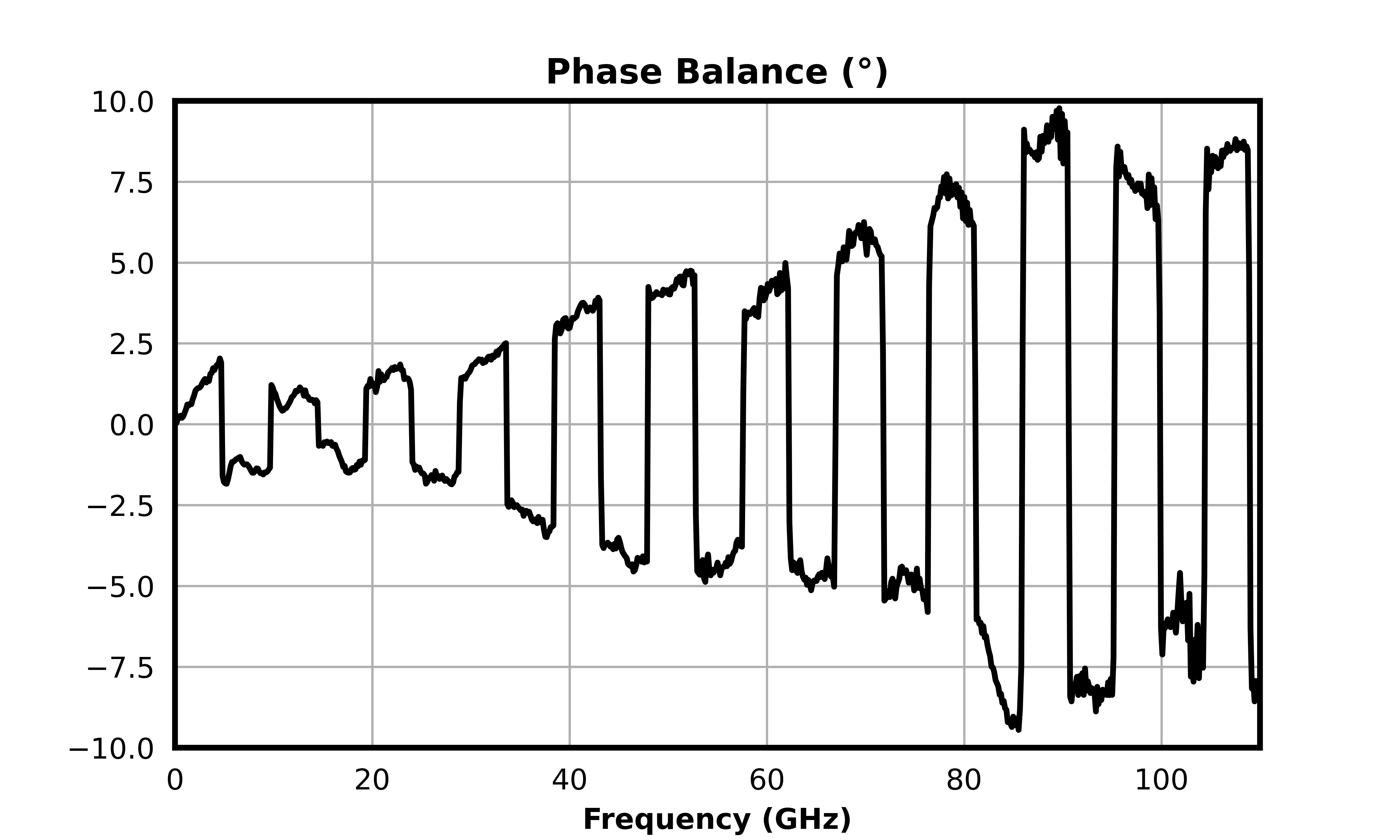

| Phase Balance | Temp = 25°C | 0 | 110 | - | 0.5 | - | ° |
| VSWR | Temp = 25°C | 0 | 110 | - | 1.20 | - |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance | Temp = 25°C | 0 | 110 | - | 0.3 | - | dB |
| Common Port Return Loss | Temp = 25°C | 0 | 110 | - | 21 | - | dB |
| Excess Insertion Loss 1 | Temp = 25°C | 0 | 110 | - | 1.3 | - | dB |
| Impedance | Temp = 25°C | - | - | - | 50 | - | Ω |
| Isolation | Temp = 25°C | 0 | 110 | - | 7 | - | dB |
| Nominal Phase Shift | Temp = 25°C | - | - | - | 0 | - | ° |
| Nominal Power Splitting | Temp = 25°C | - | - | - | 3 | - | dB |
| Output Return Loss | Temp = 25°C | 0 | 110 | - | 21 | - | dB |
| Phase Balance | Temp = 25°C | 0 | 110 | - | 0.5 | - | ° |
| VSWR | Temp = 25°C | 0 | 110 | - | 1.20 | - |
[1] Excess Insertion Loss = (Common Port to Output Port Insertion Loss) – 6 dB
MPDR-00110M2
DC – 110 GHz MMIC 2-way Power Divider/Combiner
.png)
.png)
.png)
.png)
.png)
MPDR-00110M2
DC – 110 GHz MMIC 2-way Power Divider/Combiner
