MPD-0226BH_2-26.5 GHz MMIC 2-way Wilkinson Power Divider/Combiner

General Description

The MPD-0226BH is a 2-way Wilkinson power divider/combiner covering 2 to 26.5 GHz, designed using passive GaAs MMIC technology for consistent performance across a multi-octave frequency range. It delivers 1.0 dB excess insertion loss and 26 dB isolation between outputs across the full band. The device also maintains tight 0 dB amplitude balance and 2.6º phase balance with excellent match on all ports. The MPD-0226BH is packaged in an small form-factor high-performance connectorized housing for easy integration into test setups and system signal paths.

Download s-parameters here

Features

Multi-Octave Bandwidth, 2 to 26.5 GHz
High Isolation, 26 dB Typical
Amplitude Balance, 0 dB Typical
Phase Balance, 2.6º Typical
Low Excess Insertion Loss, 1.0 dB Typical
RoHS Compliant

Functional Block Diagram

Download PDF

Electrical Performance Summary

Parameter	Typ	Unit
Frequency Range	2 to 26.5	GHz
Phase Balance	2.6	°
Excess Insertion Loss	1.0	dB
No. Ways	Wilkinson 1:2	-
RF Power Handling as a Power Divider	20	W
Amplitude Balance	0.0	dB
Isolation	26	dB

Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.

Part Ordering Options

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MPD-0226BH	2-26.5 GHz MMIC 2-way Wilkinson Power Divider/Combiner	BH	-	REACH RoHS	Released	EAR99

Part Number

Description

Package

Connectors

Green Status

Product Lifecycle

Export Classification

MPD-0226BH

2-26.5 GHz MMIC 2-way Wilkinson Power Divider/Combiner

REACH

RoHS

Released

EAR99

Device Overview
Specifications
Port Configuration and Functions
- Port Diagram
- Port Functions
Mechanical Data
- Outline Drawing
Revision History

Typical Performance Plot

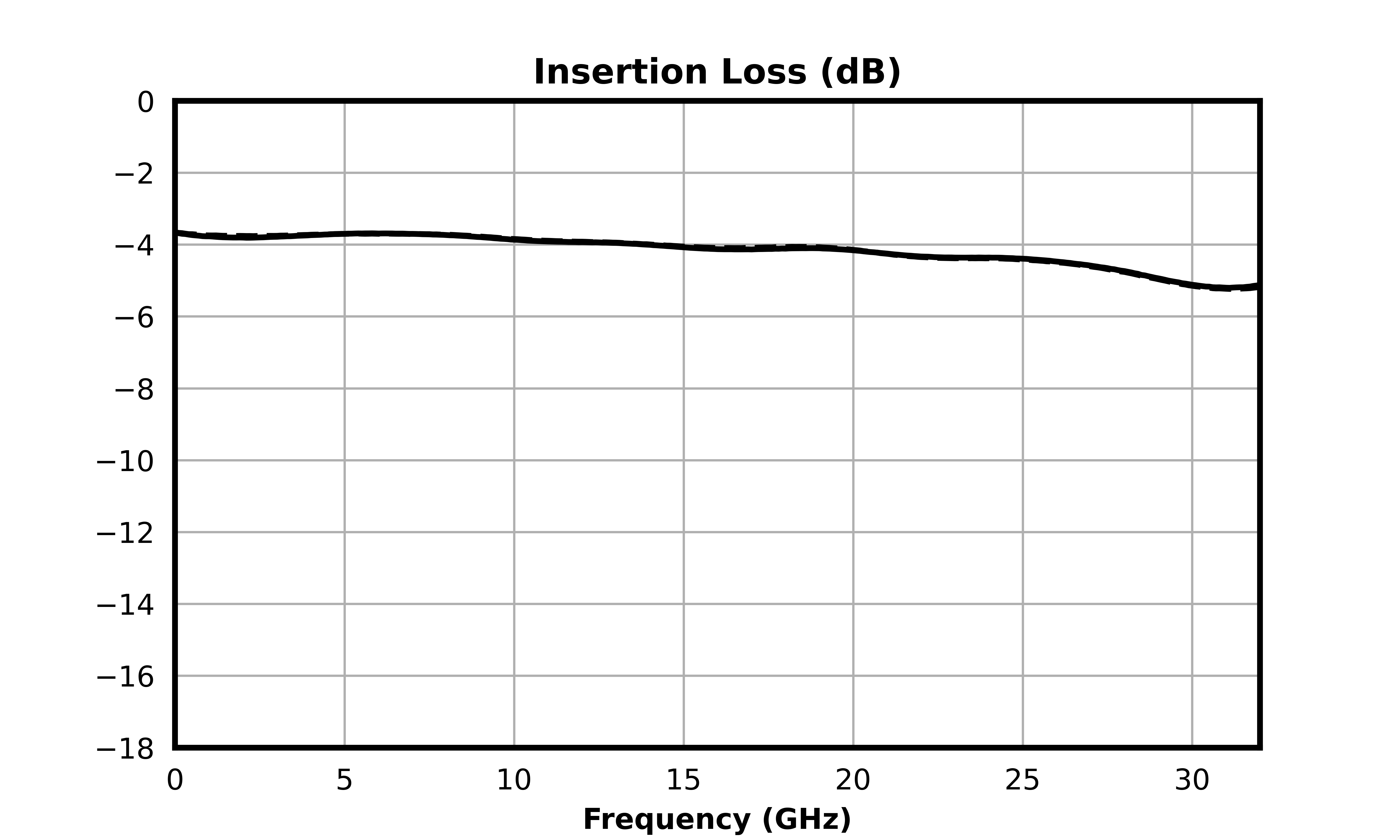

Insertion Loss (dB) graph for MPD-0226BH

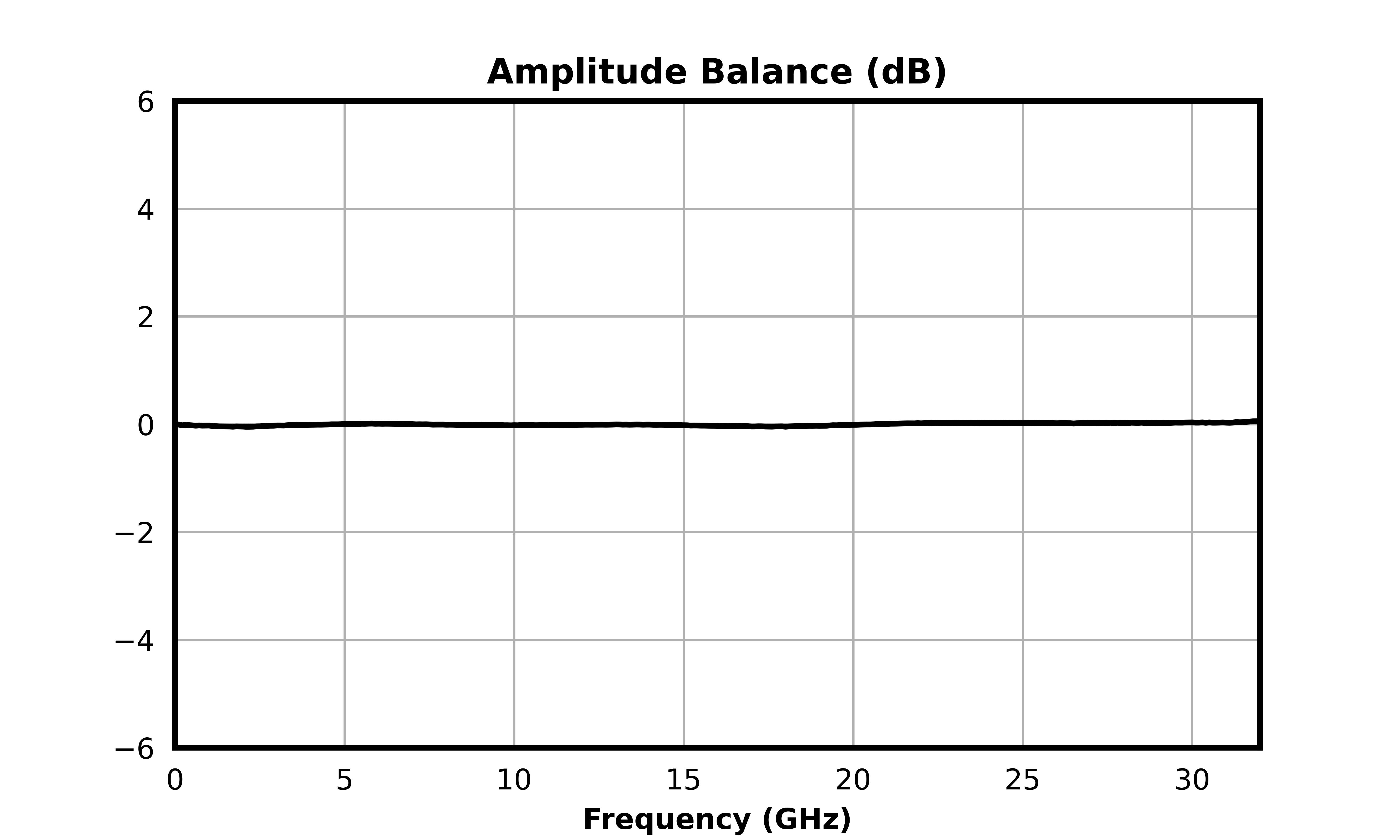

Amplitude Balance (dB) graph for MPD-0226BH

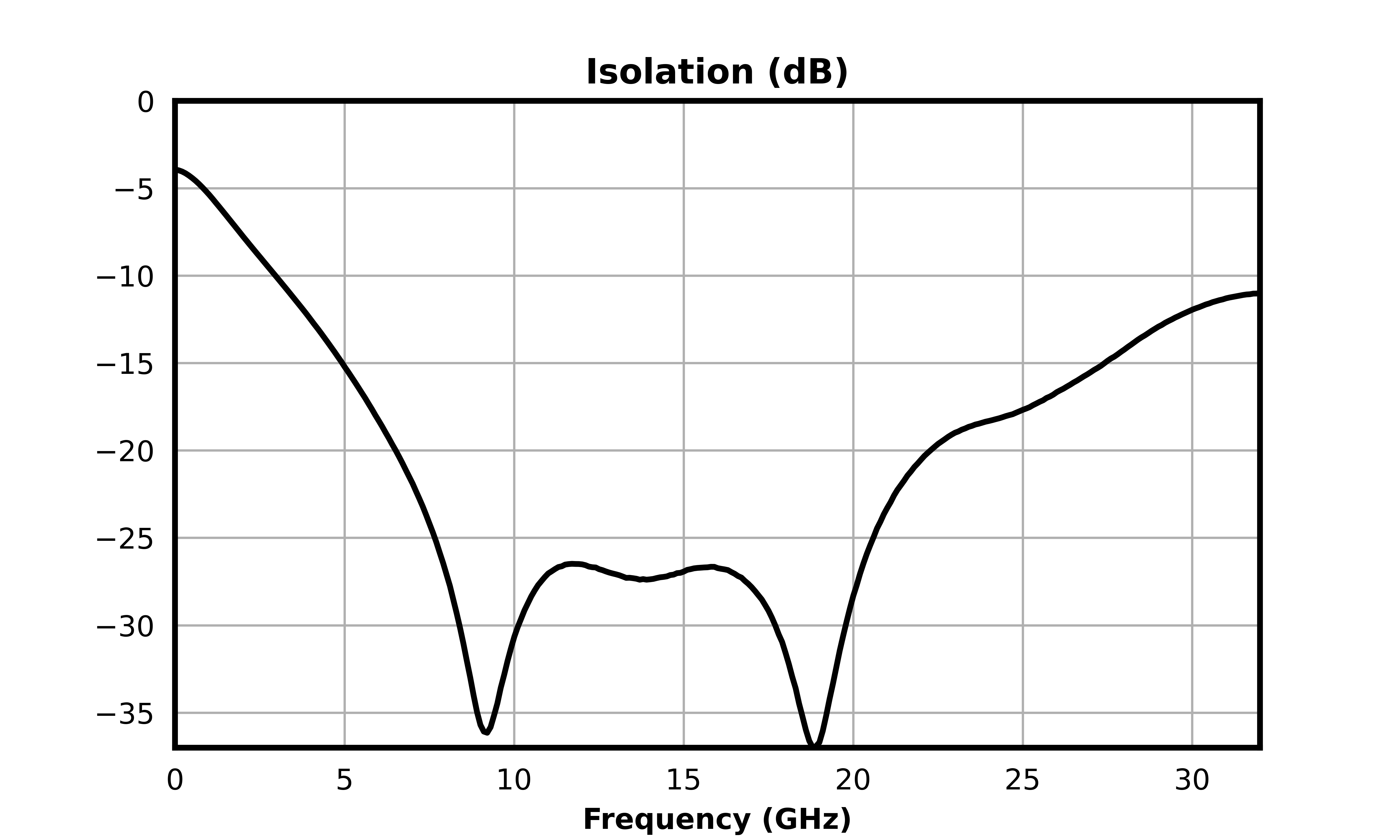

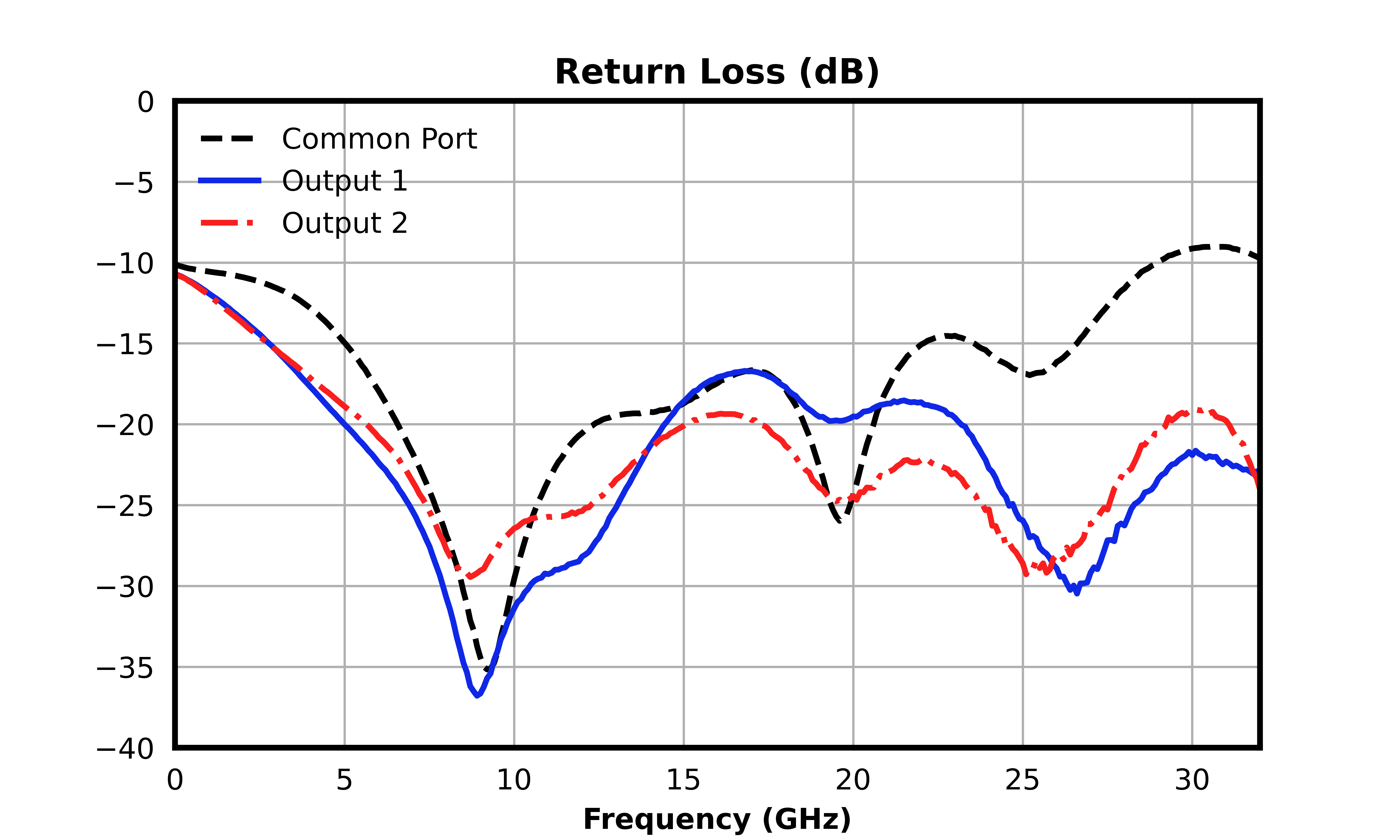

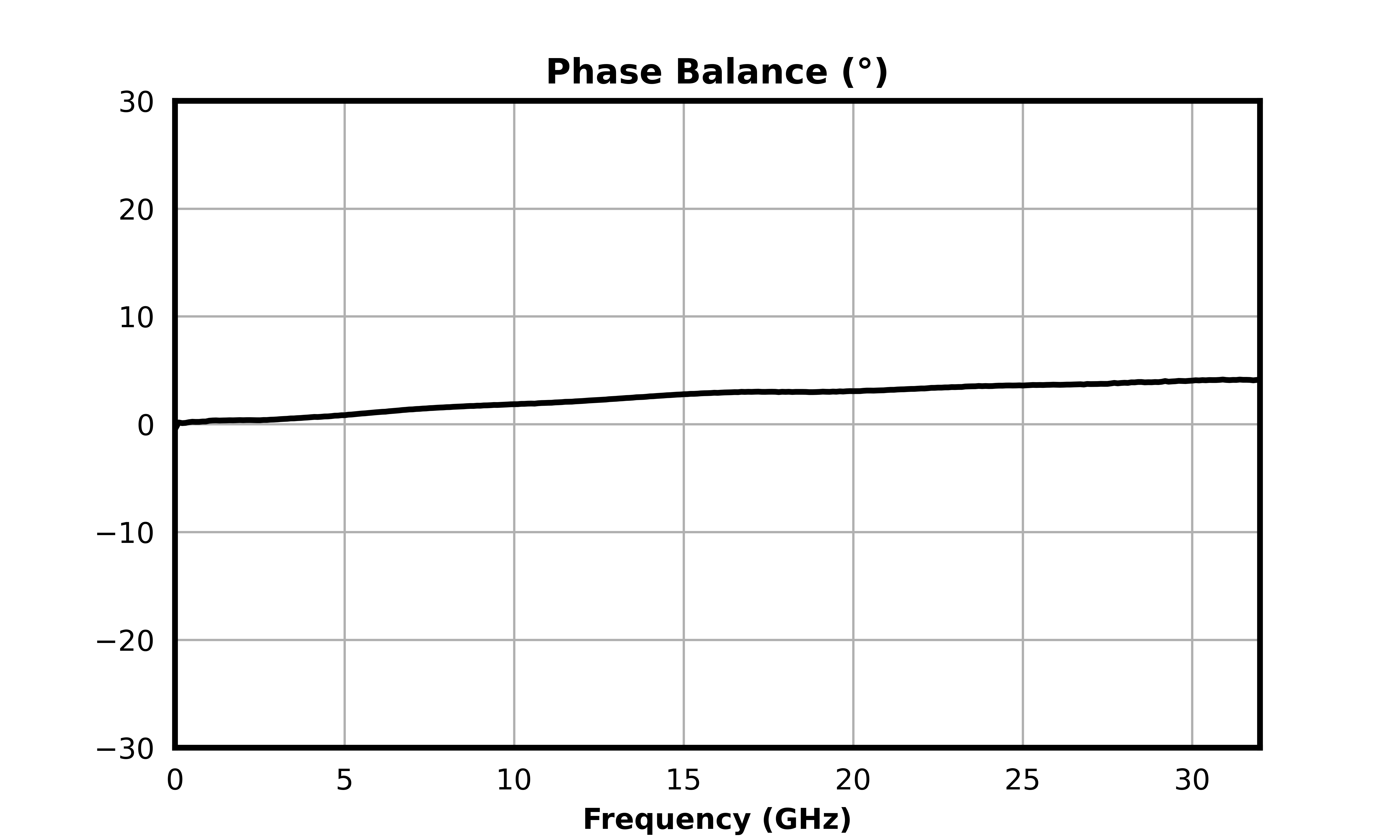

Specifications

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°C.

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Frequency Range	-	2	26.5	-	-	-	GHz
Excess Insertion Loss	Configuration A, Temp = 25°C	2	26.5	-	1.0	-	dB
Isolation	Configuration A, Temp = 25°C	2	26.5	-	26	-	dB
Amplitude Balance	Configuration A, Temp = 25°C	2	26.5	-	0.0	-	dB
Common Port Return Loss	Configuration A, Temp = 25°C	2	26.5	-	18	-	dB
Output Return Loss	Configuration A, Temp = 25°C	2	26.5	-	20	-	dB
Phase Balance	Configuration A, Temp = 25°C	2	26.5	-	2.6	-	°
Impedance	Configuration A, Temp = 25°C	-	-	-	50	-	Ω
Nominal Phase Shift	Configuration A, Temp = 25°C	-	-	-	0	-	°
Nominal Power Splitting	Configuration A, Temp = 25°C	-	-	-	3	-	dB

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

Parameter	Maximum Rating	Unit
Minimum Storage Temperature	-65	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Maximum Operating Temperature	100	°C
DC Current	60	mA
RF Power Handling as a Power Divider ¹	20	W
RF Power Handling as a Power Combiner ²	2	W

^[1] Based >40W Power handling test as a splitter without failure at room temperature at 2.5GHz with matched loads.

^[2] Based on 3W failure with out of phase signals at room temperature at 2.5GHz with matched loads.

Package Information

Parameter	Details	Rating
ESD	250 to < 500 Volts	HBM Class 1A
Weight	Package name: BH	12g
Dimensions	-	29.01 x 19.84 mm

Port Configuration and Functions

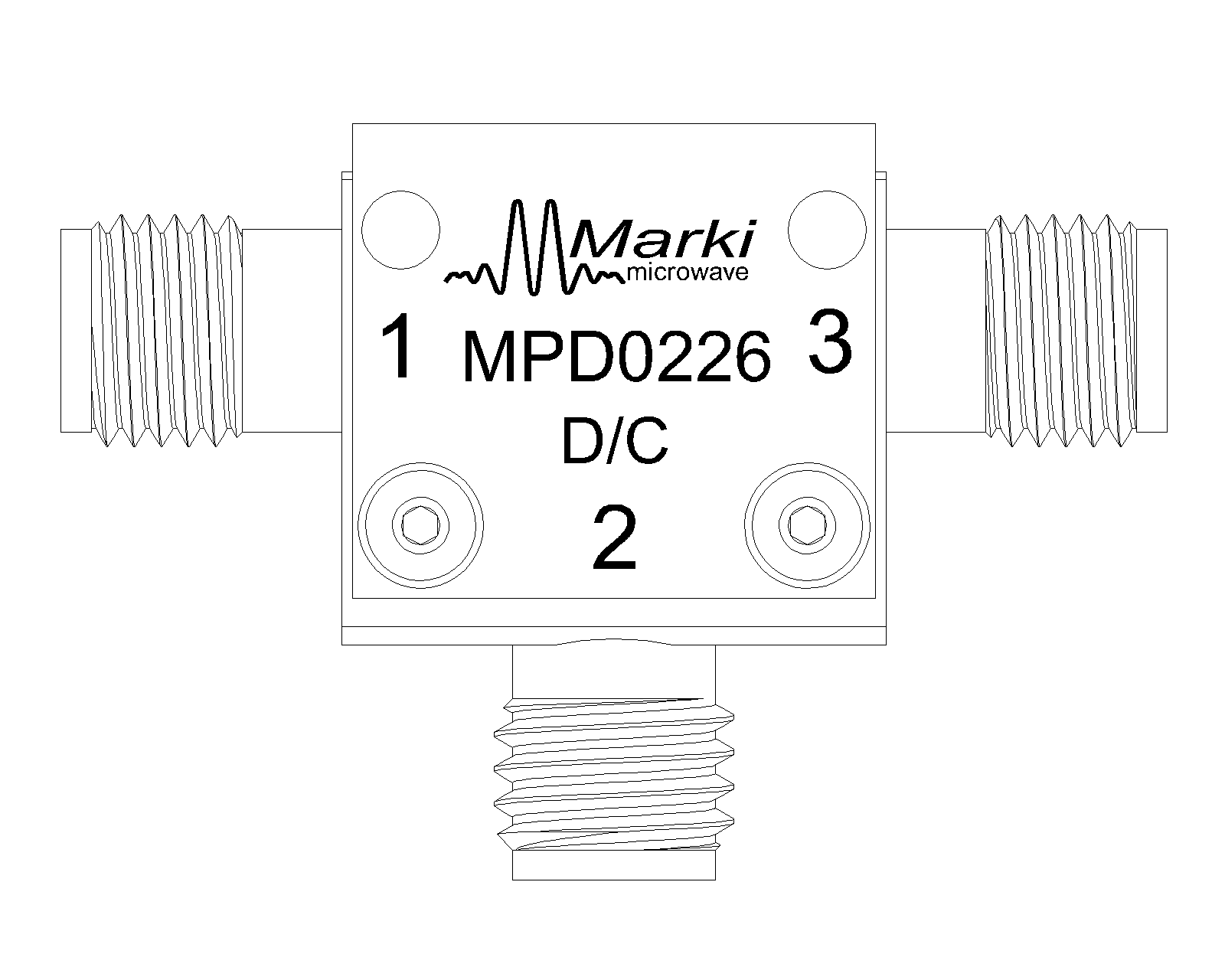

Port Diagram

Diagram of the port configuration for MPD-0226BH

Port Functions

Port	Function	Connector Type	Description
GND	Ground	-	BH package ground provided through metal housing and outer coax conductor.
Port 1	Input/Common	2.92F	The common port is DC short to the other two ports and open to ground.
Port 2	Output 1	2.92F	The output 1 port is DC short to the other two ports and open to ground.
Port 3	Output 2	2.92F	The output 2 port is DC short to the other two ports and open to ground.

Mechanical Data

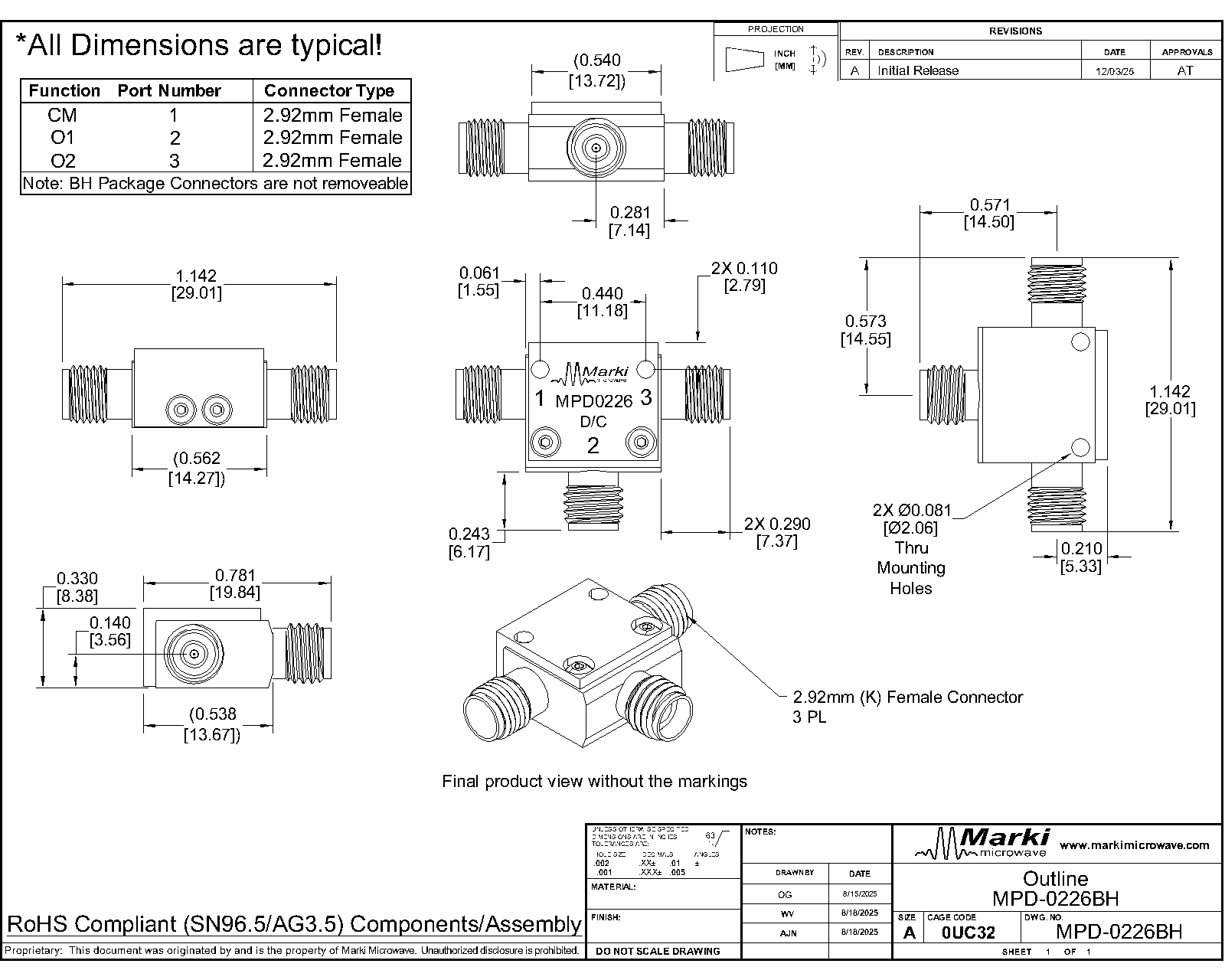

Outline Drawing

Download : Outline 2D Drawing

Revision History

Revision Code	Revision Date	Comment
-	2026-02-18	Initial Release
