Device Overview

General Description

NLTL-6275 is a MMIC non-linear transmission line (NLTL) based comb generator. This NLTL offers excellent phase noise performance over a 3 to 15 GHz input frequency range with output tones beyond 85 GHz. NLTL-6275 is fabricated with GaAs Schottky diode based varactors on a 2.28 mm x 3.13 mm substrate. Both wire bondable die and connectorized modules are available

Photo of NLTL-6275U

Features

  • Low Phase Noise
  • Broadband Input Frequencies
  • No External DC Bias Required

Applications

  • Comb Line Generation
  • High Efficiency Multiplication
  • Samplers
  • Phase Locked Loops

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageConnectorsGreen StatusProduct LifecycleExport Classification
NLTL-6275UGaAs MMIC Non-Linear Transmission LineUStandard

RoHS

REACH

ReleasedEAR99
NLTL-6275U-SWGaAs MMIC Non-Linear Transmission LineUStandard

RoHS

REACH

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2017-09-01Datasheet Initial Release
A2017-10-01Corrected typos
B2017-12-01Added U package outline
C2018-09-01Corrected Signal Pad Locations
D2025-04-16Updated Outline Drawing

Rev: D | Copyright © 2017 - 2018, 2025 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

The NLTL should only be used in the forward direction, with the input and output ports given in Port Functions.

Diagram of the port configuration for NLTL-6275U

Port Functions

PortFunctionConnector TypeDescriptionDC Equivalent
Circuit
GNDGround -U package ground provided through metal housing and outer coax conductor.Equivalent circuit for the Ground
Port 1Input SMAFPort 1 is diode connected for the CH package and DC short for the U package.Equivalent circuit for the Input
Port 2Output 1.85FPort 2 is diode connected for the CH and DC open for the U package.Equivalent circuit for the Output

Rev: D | Copyright © 2017 - 2018, 2025 Marki Microwave LLC.

3

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

ParameterMaximum RatingUnit
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C

Package Information

ParameterDetailsRating
WeightPackage name: U10g
Dimensions-14.22 x 13.21 mm

The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.

ParameterMinNominalMaxUnit
Ambient Temperature -5525100°C
Input Power 16-25dBm

Rev: D | Copyright © 2017 - 2018, 2025 Marki Microwave LLC.

4

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the NLTL used in the forward direction with a sine wave input.

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
Input Frequency Range -- -3-15GHz
Input Power -- -16-26dBm
Maximum Output Harmonic for given Input 1Input=10 GHz
- ---8
Maximum Output Harmonic for given Input 2Input=15 Ghz
- ---5
Maximum Output Harmonic for given Input 3Input=3 GHz
- ---28
Maximum Output Harmonic for given Input 4Input=5 GHz
- ---16
Maximum Output Harmonic for given Input 5Input=7 GHz
- ---12
Output Frequency Range -- -3-85GHz

[1][2][3][4][5] Maximum Output Harmonic specification given for the harmonic with a -20 dBm output power for a +20 dBm input.

Rev: D | Copyright © 2017 - 2018, 2025 Marki Microwave LLC.

5

Typical Performance Plots

Output Power vs Input Power: 3 GHz Sine Wave Input (dBm) graph for NLTL-6275U
3 GHz +19 dBm Sine Wave Input graph for NLTL-6275U
NTL Output for 3 GHz +19 dBm Sine Wave Input graph for NLTL-6275U
Output Power vs Input Power: 5 GHz Sine Wave Input (dBm) graph for NLTL-6275U
5 GHz +19 dBm Sine Wave Input graph for NLTL-6275U
NLTL Output for 5 GHz +19 dBm Sine Wave Input graph for NLTL-6275U
Output Power vs Input Power: 7 GHz Sine Wave Input (dBm) graph for NLTL-6275U
7 GHz +19 dBm Sine Wave Input graph for NLTL-6275U

Rev: D | Copyright © 2017 - 2018, 2025 Marki Microwave LLC.

6

NLTL Output for 7 GHz +19 dBm Sine Wave Input graph for NLTL-6275U
Output Power vs Input Power: 10 GHz Sine Wave Input (dBm) graph for NLTL-6275U
10 GHz +19 dBm Sine Wave Input graph for NLTL-6275U
NLTL Output for 10 GHz +19 dBm Sine Wave Input graph for NLTL-6275U
Output Power vs Input Power: 15 GHz Sine Wave Input (dBm) graph for NLTL-6275U
15 GHz +19 dBm Sine Wave Input graph for NLTL-6275U
NLTL Output for 15 GHz +19 dBm Sine Wave Input graph for NLTL-6275U

Rev: D | Copyright © 2017 - 2018, 2025 Marki Microwave LLC.

7

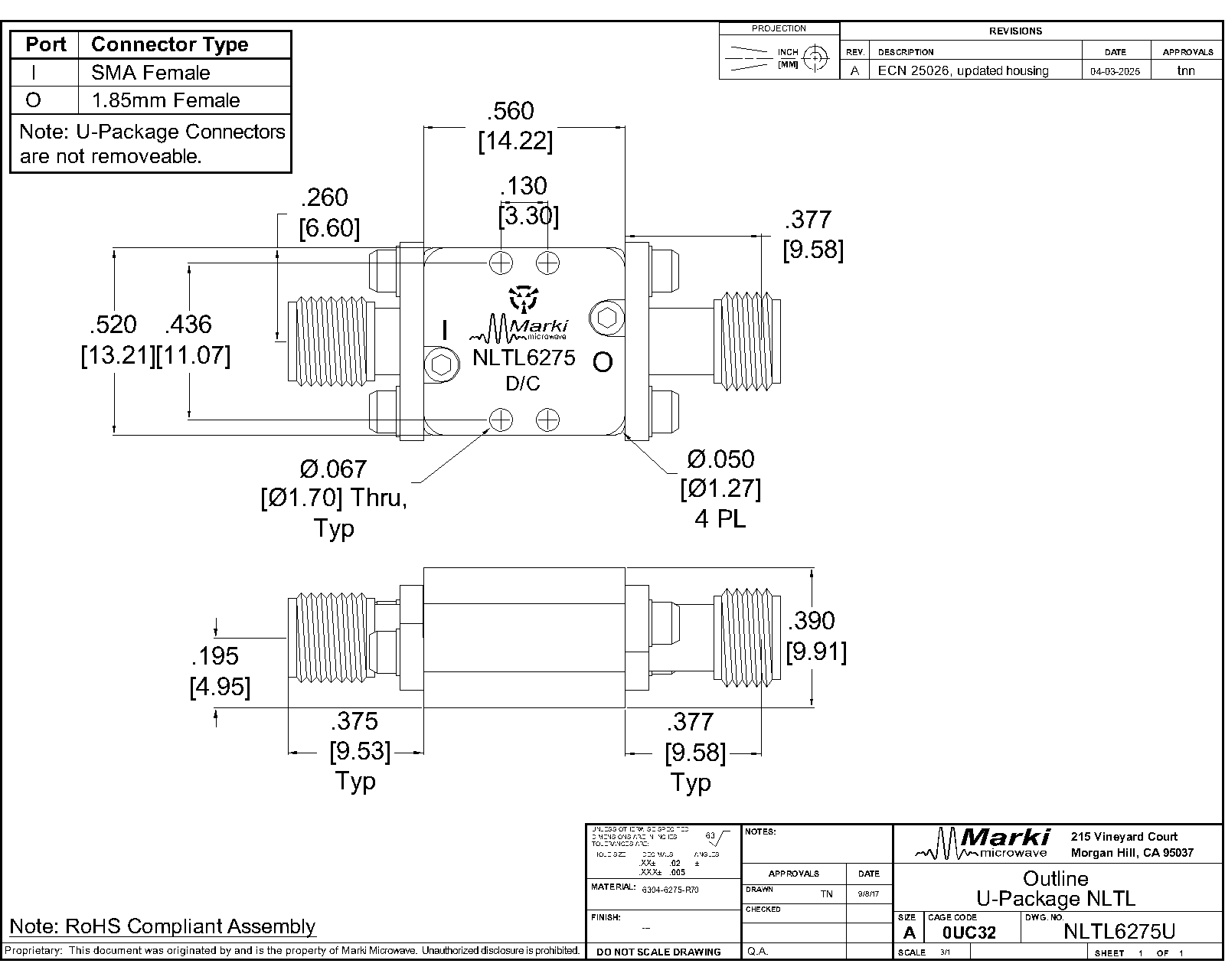

Mechanical Data
