Device Overview

General Description

The MMD-3567LBH is a MMIC doubler fabricated with GaAs Schottky diodes. This part operates over a 17.5 GHz to 33.5 GHz input frequency range or a doubled output frequency range of 35 to 67 GHz. It features excellent 12 dB conversion loss, superior 49 dB 1F and 51 dB 3F isolations, and harmonic suppressions across a broad bandwidth. Available in a compact inline connectorized bullet housing. For wire-bondable die, see MMD-3580LCH.

Photo of MMD-3567LBH

Features

  • High Fundamental Rejection
  • 2F Conversion Loss, 12 dB Typical
  • Low Input Drive, +7 dBm Typical
  • mmWave Output Frequencies
  • Compact Inline Bullet Housing

Applications

  • High frequency synthesis
  • LO signal chain

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageConnectorsGreen StatusProduct LifecycleExport Classification
MMD-3567LBHGaAs MMIC Doubler, 35 - 67 GHz Output FrequencyBH-

REACH

RoHS

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2025-12-01Initial Release

Rev: - | Copyright © 2025 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

The MMD-3567LBH should only be used in the forward direction, with the input and output ports given in Port Functions.

Diagram of the port configuration for MMD-3567LBH

Port Functions

PortFunctionConnector TypeDescriptionDC Equivalent
Circuit
GNDGround -BH package ground provided through metal housing and outer coax conductorEquivalent circuit for the Ground
Port 11F Input 1.85FInput 1x Frequency Port. Port 1 is DC open for the BH package. Equivalent circuit for the 1F Input
Port 22F Output 1.85M2x Input Frequency output port. Port 2 is DC open for the BH package. Equivalent circuit for the 2F Output

Rev: - | Copyright © 2025 Marki Microwave LLC.

3

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. All Absolute Maximum Ratings are individual and should not be met in parallel. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

ParameterMaximum RatingUnit
Maximum Storage Temperature 125°C
Minimum Storage Temperature -65°C
Maximum Operating Temperature 85°C
Minimum Operating Temperature -55°C
Power Handling, at any Port 23dBm

Package Information

ParameterDetailsRating
ESD250 to < 500 VoltsHBM Class 1A
WeightPackage name: BH10g
Dimensions-32.8 x 9.5 mm

The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.

ParameterMinNominalMaxUnit
Operating Temperature -552585°C
Input Power 7911dBm

Rev: - | Copyright © 2025 Marki Microwave LLC.

4

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the connectorized BH package doubler used in the forward direction with a +9 dBm sine wave input.

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
Conversion Loss Second Harmonic Output
35 67-12-dB
Input Frequency Range -- -17.5-33.5GHz
Isolation, 1F 1Input = 17.5 - 33.5 GHz
Output = 17.5 - 33.5 GHz
- --49-dB
Isolation, 3F 2Input = 17.5 – 22.3 GHz
Output = 52.5 - 67 GHz
- --51-dB
Isolation, 4F 3Input = 15 – 16.8 GHz
Output = 60 - 67 GHz
- --23-dB
Output Frequency Range -- -35-67GHz
Suppression, 1F 4Input = 17.5 - 33.5 GHz
Output = 17.5 - 33.5 GHz
- --37-dBc
Suppression, 3F 5Input = 17.5 – 22.3 GHz
Output = 52.5 - 67 GHz
- --38-dBc
Suppression, 4F 6Input = 15 – 16.8 GHz
Output = 60 - 67 GHz
- --10-dBc

[1][2][3] Isolation is defined as the harmonic power relative to the 1F fundamental input power.

[4][5][6] Suppressions and isolations measured with an input source with >60dBc (relative to fundamental input) harmonic suppression. Suppression is defined as the harmonic power relative to the 2F doubled output power.

Rev: - | Copyright © 2025 Marki Microwave LLC.

5

Typical Performance Plots

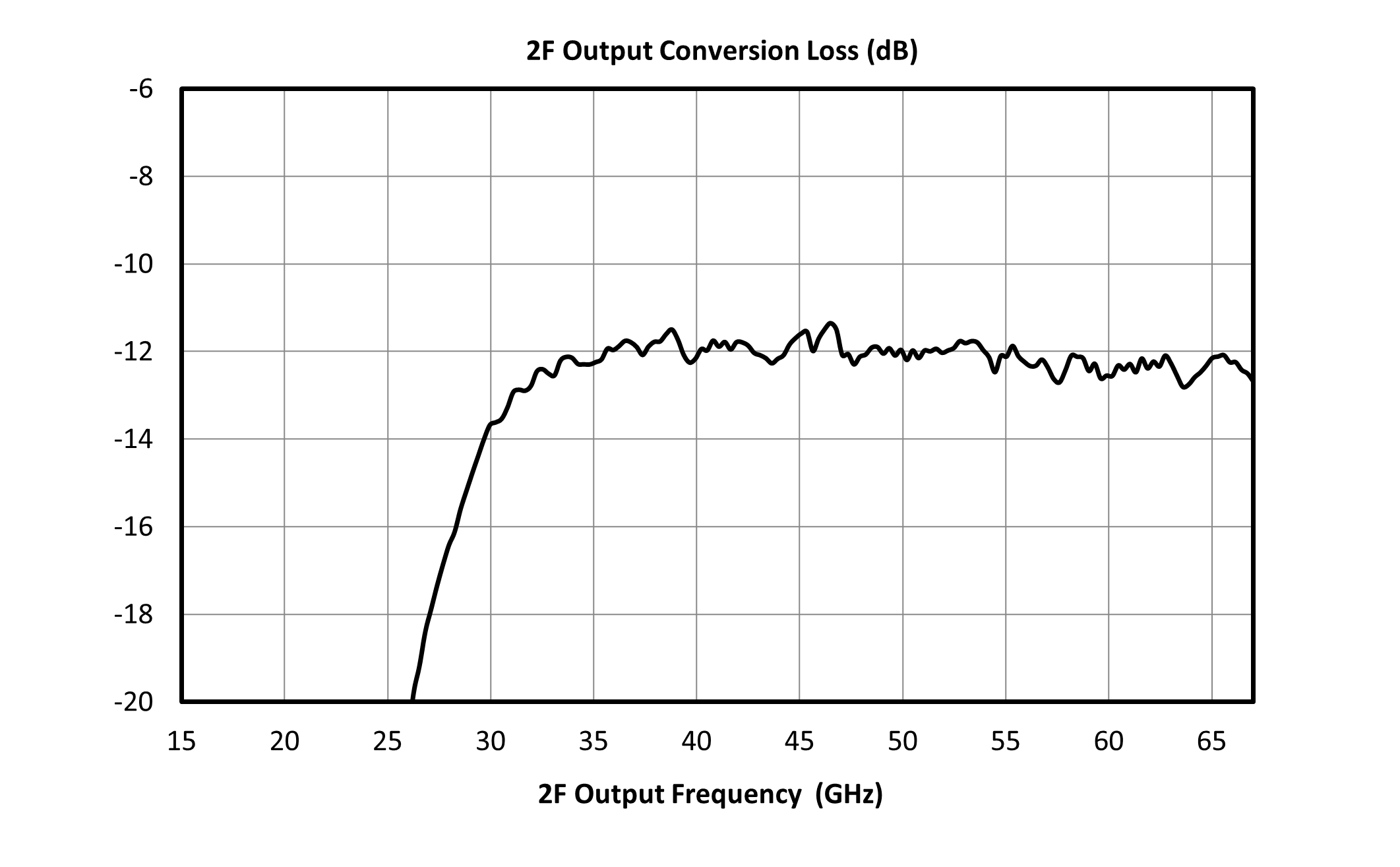

2F Output Conversion Loss (dB) graph for MMD-3567LBH

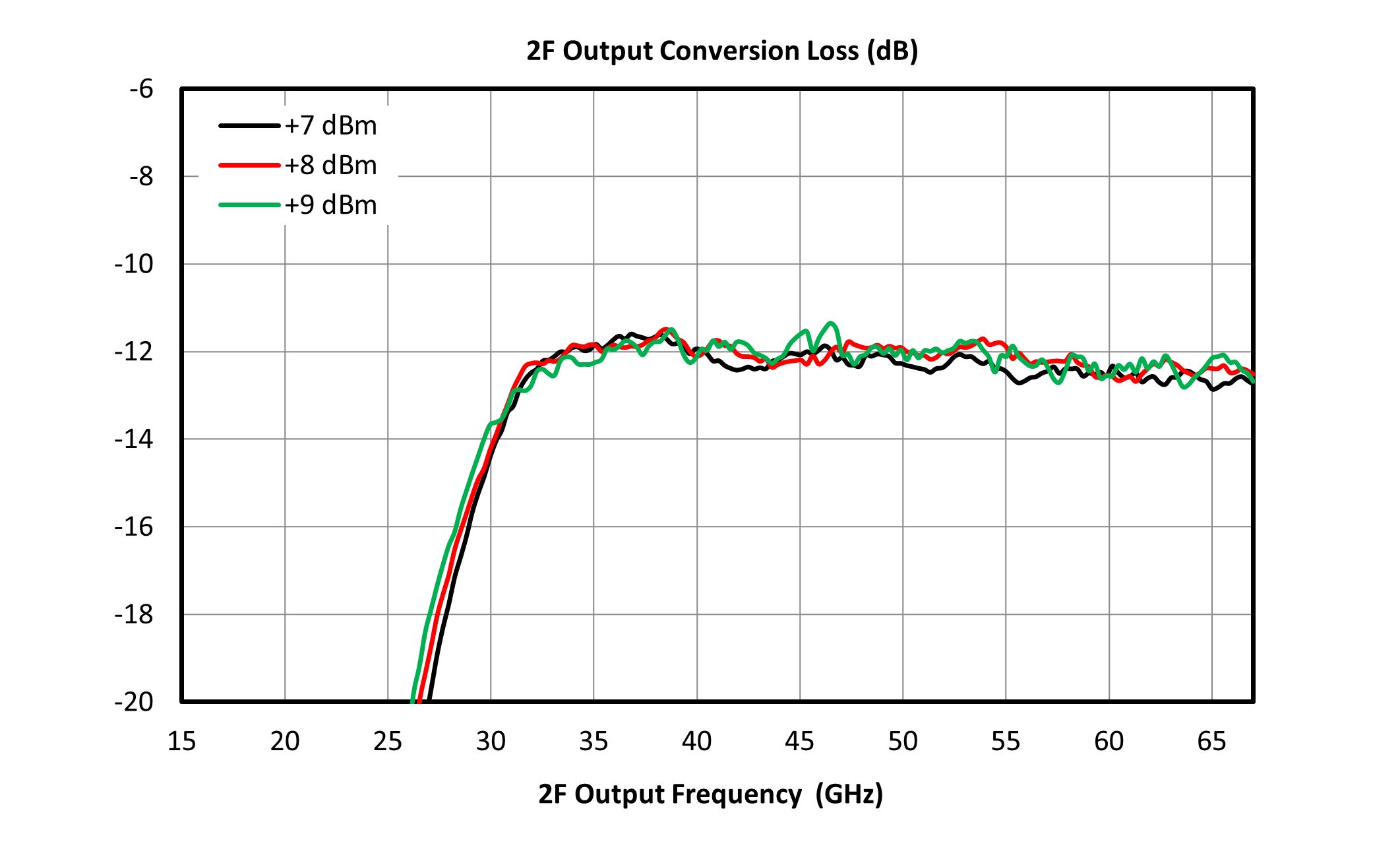

2F Output Conversion Loss vs Input Power (dB) graph for MMD-3567LBH

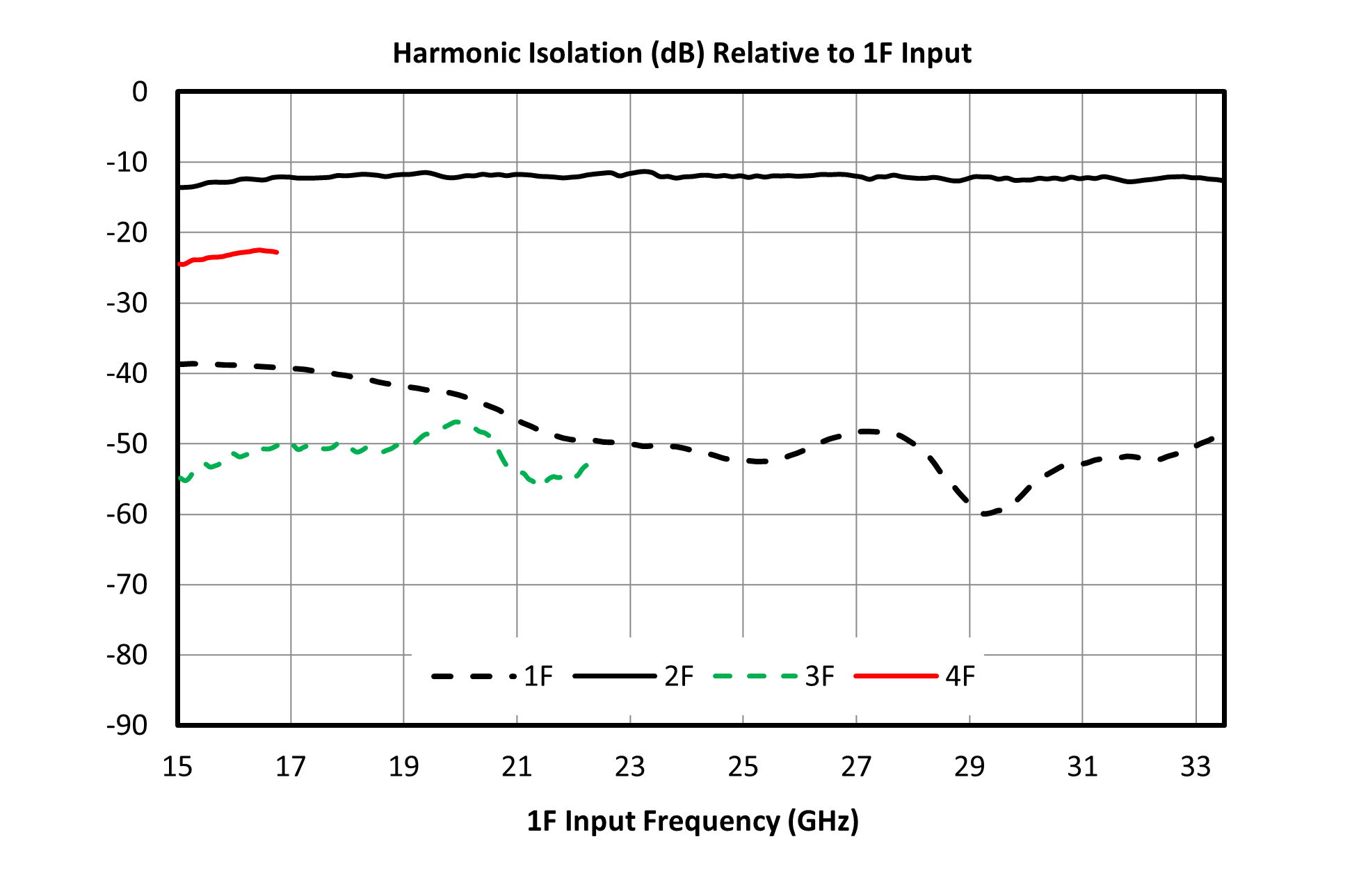

Harmonic Isolation (dB) Relative to 1F Input graph for MMD-3567LBH

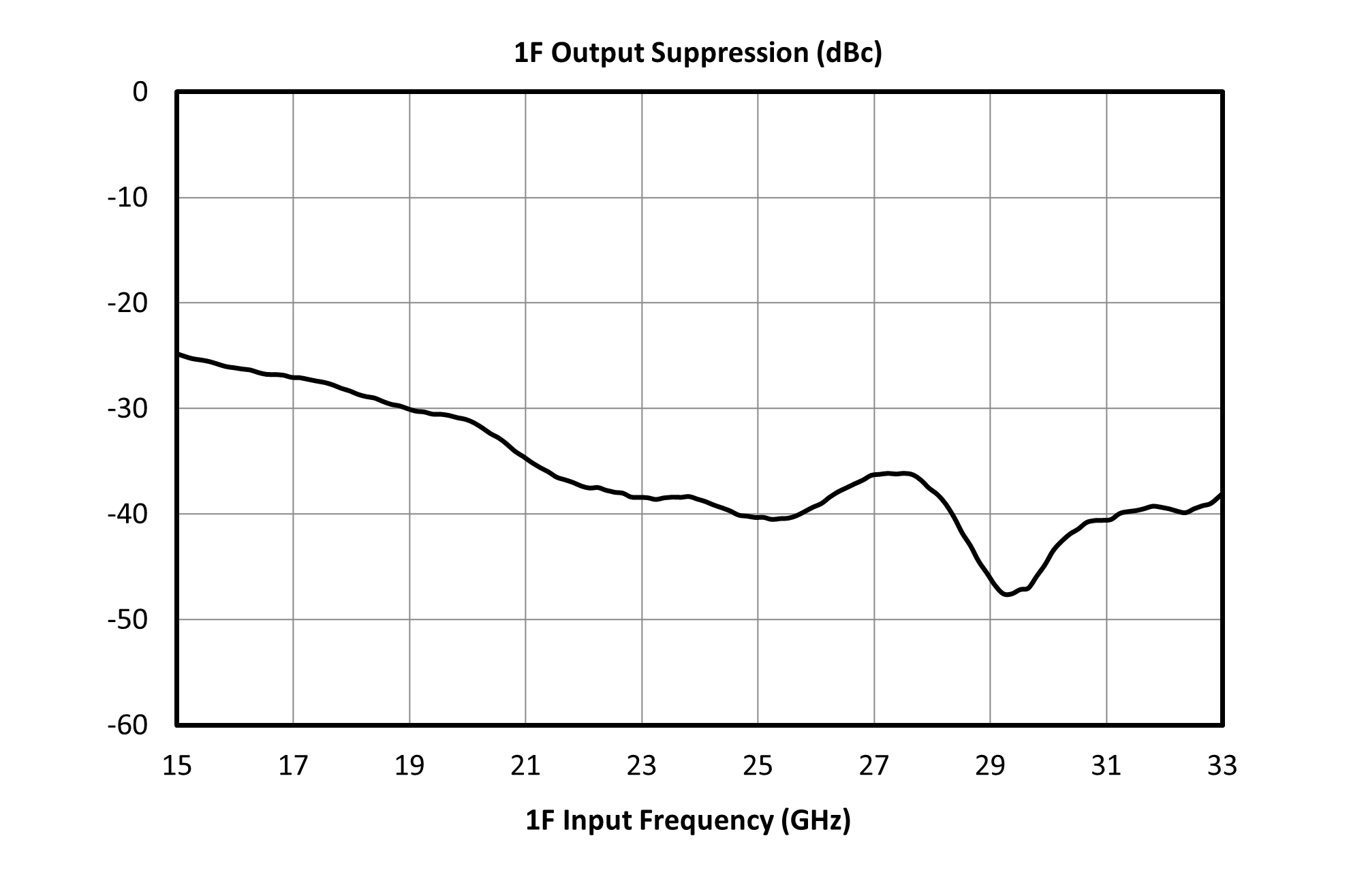

1F Output Suppression (dBc) graph for MMD-3567LBH

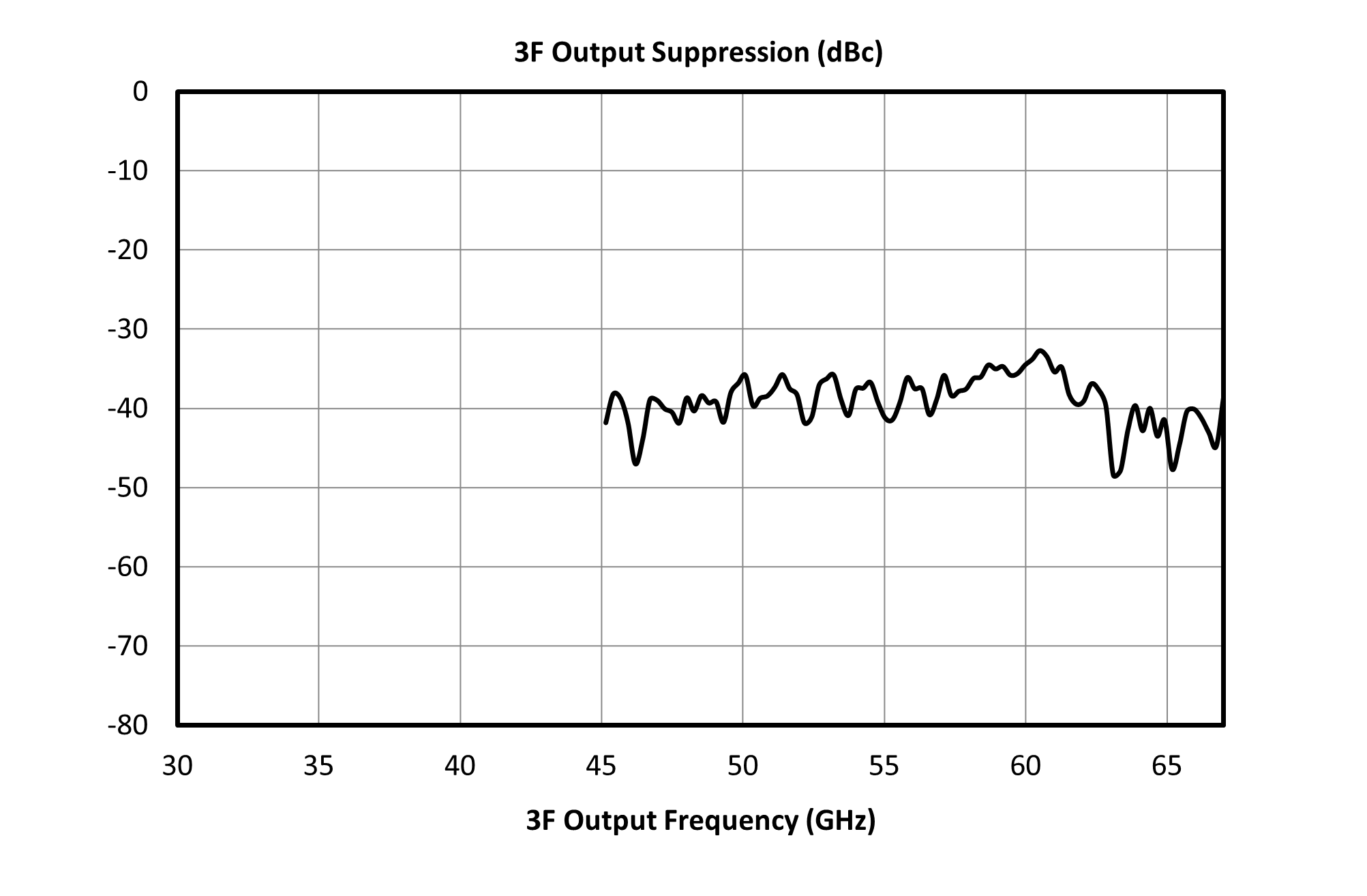

3F Output Suppression (dBc) graph for MMD-3567LBH

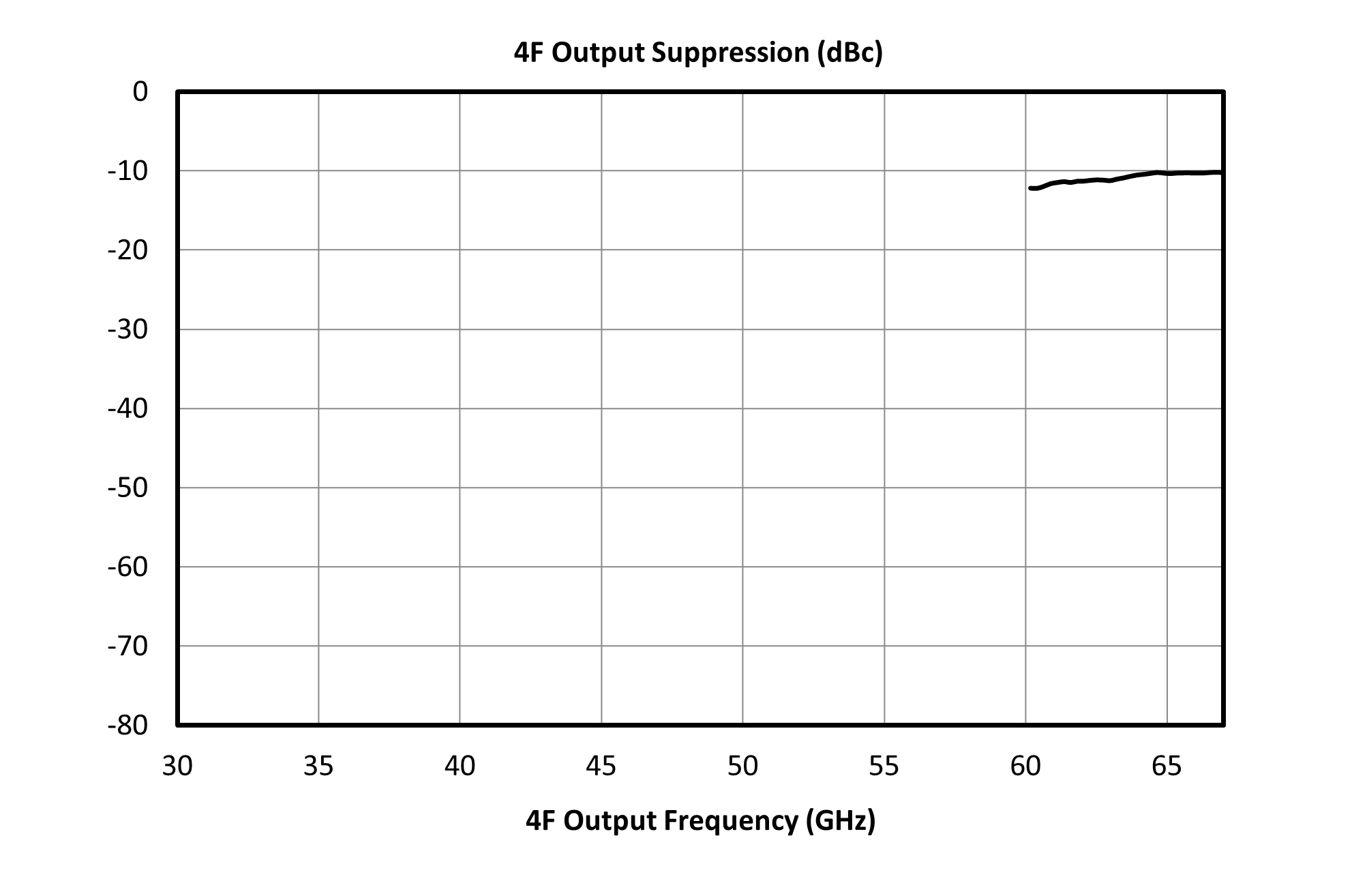

4F Output Suppression (dBc) graph for MMD-3567LBH

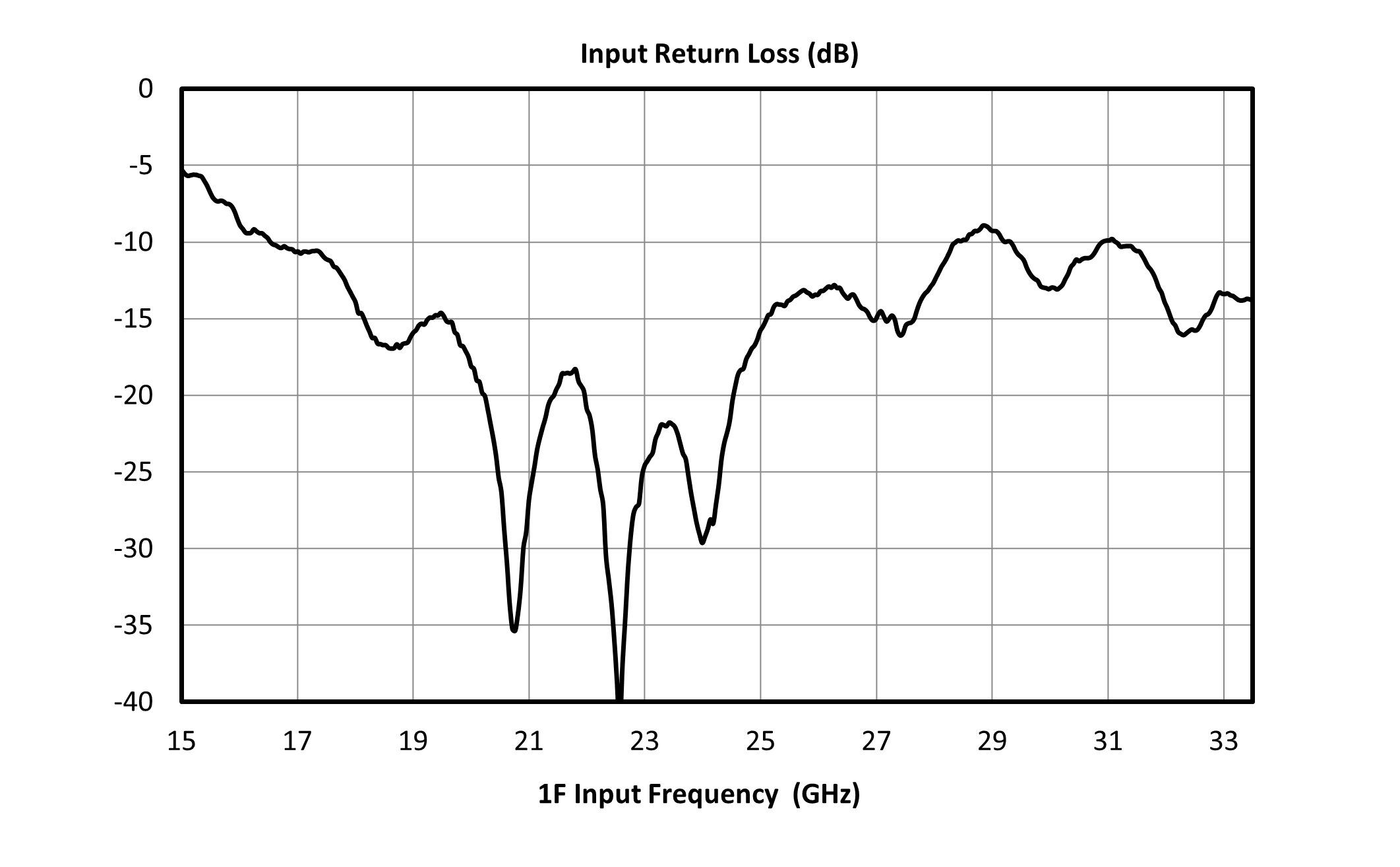

Input Return Loss (dB) graph for MMD-3567LBH

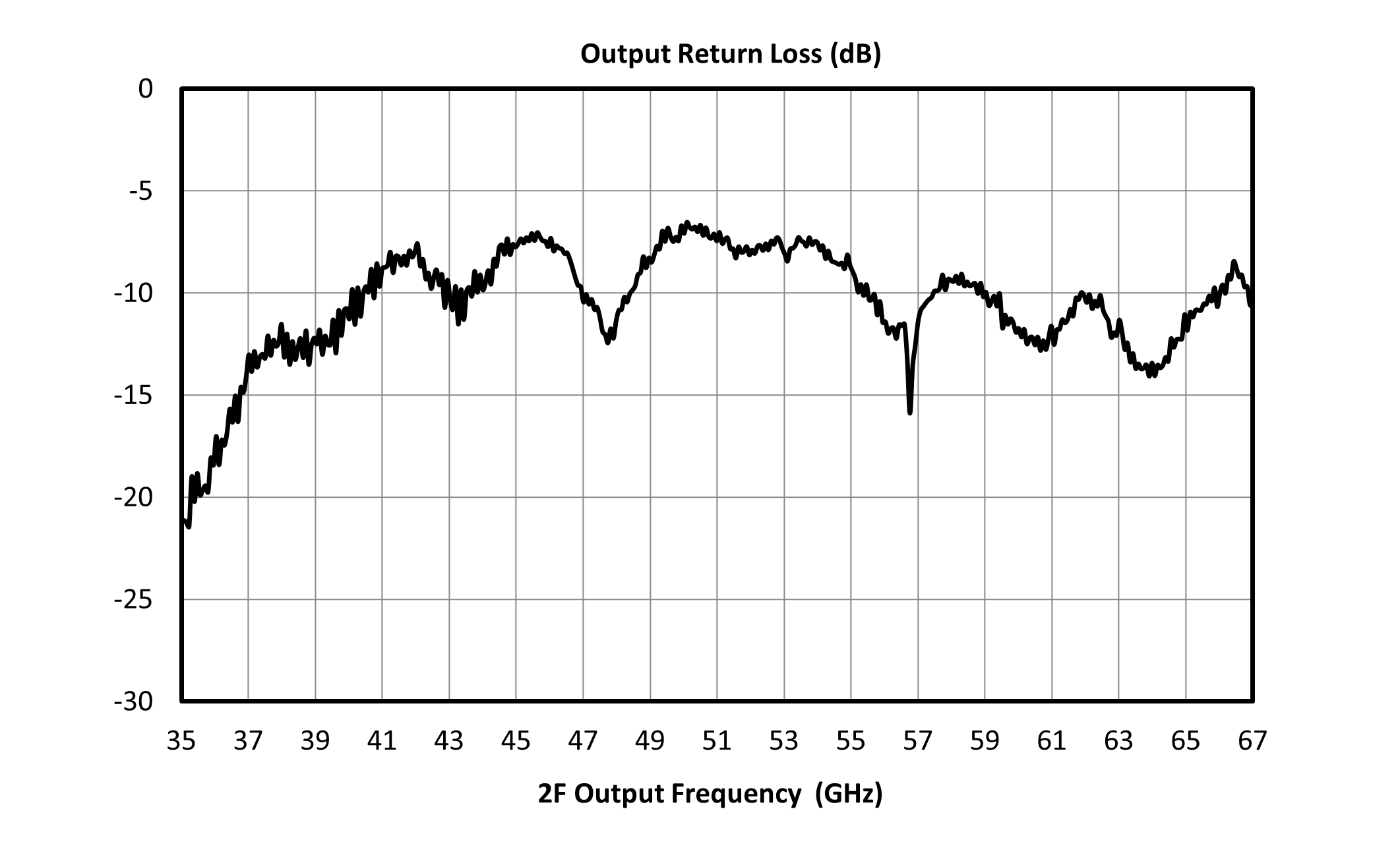

Output Return Loss (dB) graph for MMD-3567LBH

Rev: - | Copyright © 2025 Marki Microwave LLC.

6

Mechanical Data

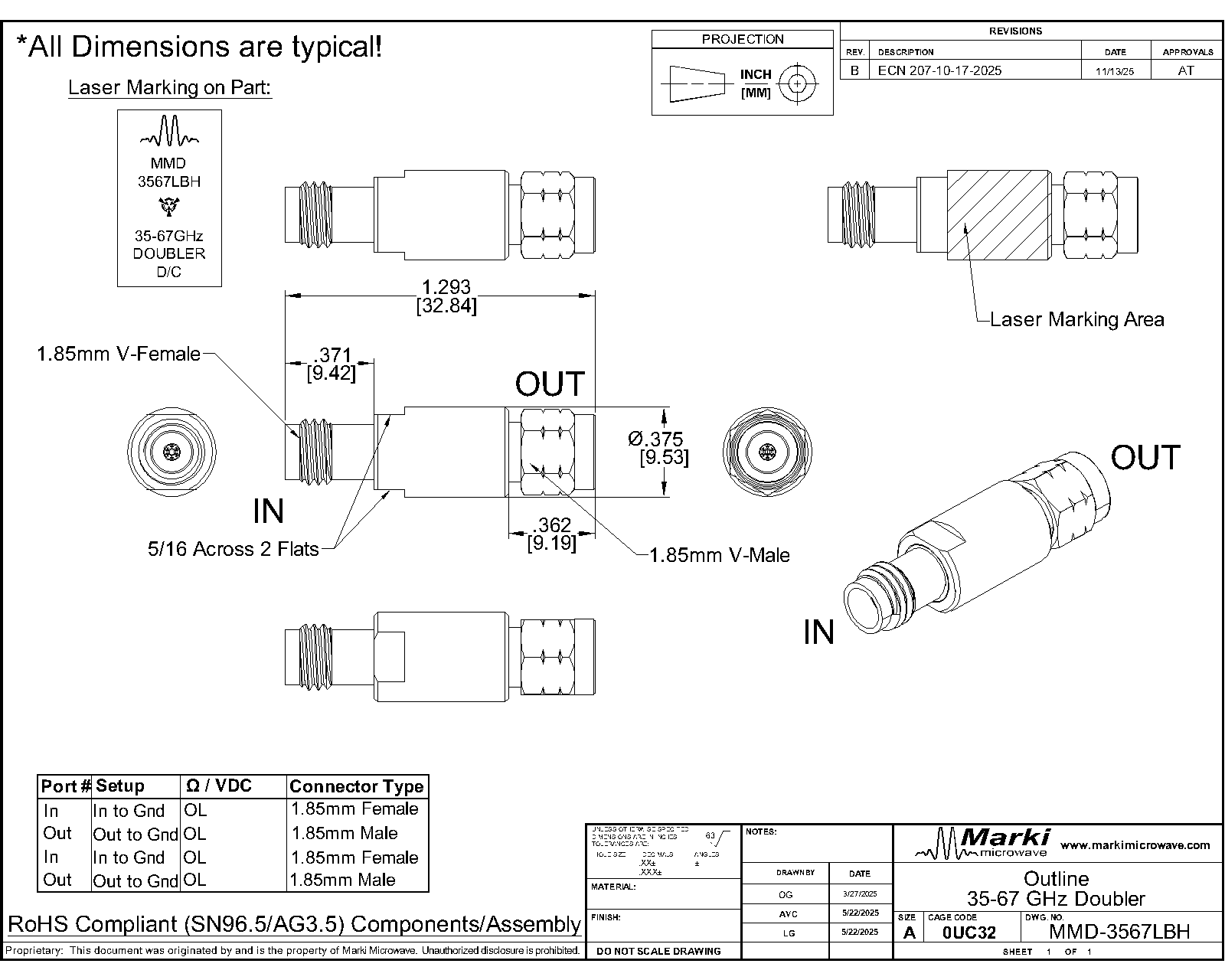

Outline Drawing

Download : Outline 2D Drawing

Outline Drawing
