Port Diagram
The MMD-2060LBH should only be used in the forward direction, with the input and output ports given in Port Functions.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The MMD-2060LBH is a MMIC doubler fabricated with GaAs Schottky diodes. This part operates over a 10 to 30 GHz input frequency range or a doubled output frequency range of 20 to 60 GHz. It features excellent 11 dB conversion loss, superior 48 dB 1F and 54 dB 3F isolations, and harmonic suppressions across a broad bandwidth. Available in a compact inline connectorized bullet housing. For wire-bondable die, see MMD-2060LCH.
Features
- High Fundamental Rejection
- 2F Conversion Loss, 11 dB Typical
- Low Input Drive, +3 dBm Typical
- mmWave Output Frequencies
- Compact Inline Bullet Housing
Applications
- High frequency synthesis
- LO signal chain
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MMD-2060LBH | GaAs MMIC Doubler, 20 - 60 GHz Output Frequency | BH | - | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MMD-2060LBH | GaAs MMIC Doubler, 20 - 60 GHz Output Frequency | BH | - | REACH RoHS | Released | EAR99 |
MMD-2060LBH
GaAs MMIC Doubler, 20 - 60 GHz Output Frequency
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-12-01 | Initial Release |
MMD-2060LBH
GaAs MMIC Doubler, 20 - 60 GHz Output Frequency
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| GND | Ground | - | BH package ground provided through metal housing and outer coax conductor |  |
| Port 1 | 1F Input | 1.85F | Input 1x Frequency Port. Port 1 is DC coupled to the diodes for the BH package. Blocking capacitor is optional. |  |
| Port 2 | 2F Output | 1.85M | 2x Input Frequency output port. Port 2 is DC open for the BH package. |  |
MMD-2060LBH
GaAs MMIC Doubler, 20 - 60 GHz Output Frequency
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. All Absolute Maximum Ratings are individual and should not be met in parallel. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 85 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Port 1 DC Current | 25 | mA |
| Power Handling, at any Port | 23 | dBm |

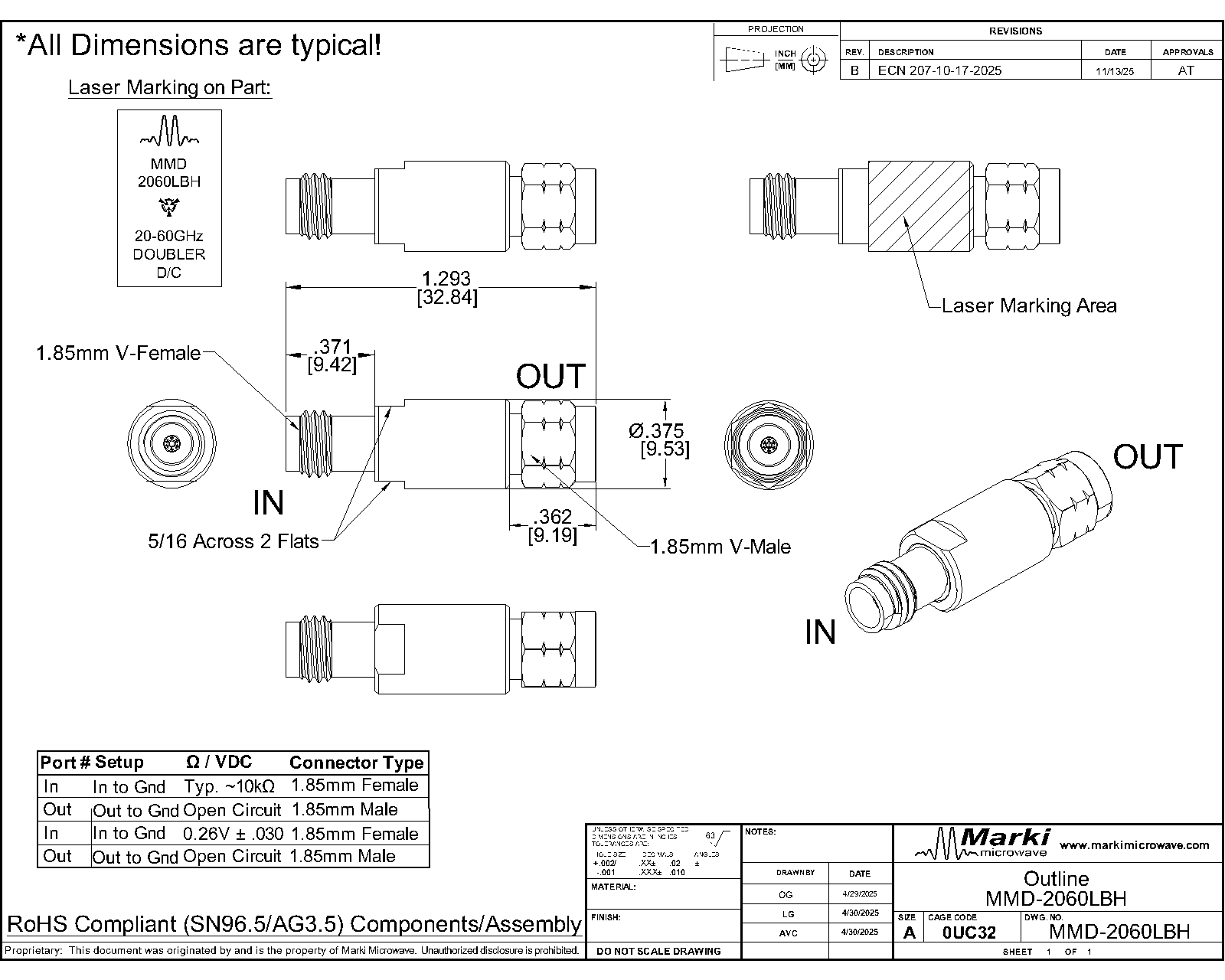

Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Weight | Package name: BH | 10g |
| Dimensions | - | 32.8 x 9.5 mm |
Recommended Operating Conditions
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Operating Temperature | -55 | 25 | 85 | °C |
| Input Power | 3 | - | 10 | dBm |
MMD-2060LBH
GaAs MMIC Doubler, 20 - 60 GHz Output Frequency
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the connectorized BH package doubler used in the forward direction with a +3 dBm sine wave input.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Conversion Loss | Second Harmonic Output | - | - | - | 11 | - | dB |
| Input Frequency Range | - | - | - | 10 | - | 30 | GHz |
| Output Frequency Range | - | - | - | 20 | - | 60 | GHz |
| Isolation, 1F 1 | Input=10-30 GHz Output=10-30 GHz | - | - | - | 48 | - | dB |
| Isolation, 3F 2 | Input=10-20 GHz Output=30-60 GHz | - | - | - | 54 | - | dB |
| Isolation, 4F 3 | Input=10-15 GHz Output=40-60 GHz | - | - | - | 25 | - | dB |
| Suppression, 1F 4 | Input=10-30 GHz Output=10-30 GHz | - | - | - | 36 | - | dBc |
| Suppression, 3F 5 | Input=10-20 GHz Output=30-60 GHz | - | - | - | 42 | - | dBc |
| Suppression, 4F 6 | Input=10-15 GHz Output=40-60 GHz | - | - | - | 13 | - | dBc |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Conversion Loss | Second Harmonic Output | - | - | - | 11 | - | dB |
| Input Frequency Range | - | - | - | 10 | - | 30 | GHz |
| Output Frequency Range | - | - | - | 20 | - | 60 | GHz |
| Isolation, 1F 1 | Input=10-30 GHz Output=10-30 GHz | - | - | - | 48 | - | dB |
| Isolation, 3F 2 | Input=10-20 GHz Output=30-60 GHz | - | - | - | 54 | - | dB |
| Isolation, 4F 3 | Input=10-15 GHz Output=40-60 GHz | - | - | - | 25 | - | dB |
| Suppression, 1F 4 | Input=10-30 GHz Output=10-30 GHz | - | - | - | 36 | - | dBc |
| Suppression, 3F 5 | Input=10-20 GHz Output=30-60 GHz | - | - | - | 42 | - | dBc |
| Suppression, 4F 6 | Input=10-15 GHz Output=40-60 GHz | - | - | - | 13 | - | dBc |
[1][2][3] Isolation is defined as the harmonic power relative to the 1F fundamental input power.
[4][5][6] Suppressions and isolations measured with an input source with >60dBc (relative to fundamental input) harmonic suppression. Suppression is defined as the harmonic power relative to the 2F doubled output power.
MMD-2060LBH
GaAs MMIC Doubler, 20 - 60 GHz Output Frequency

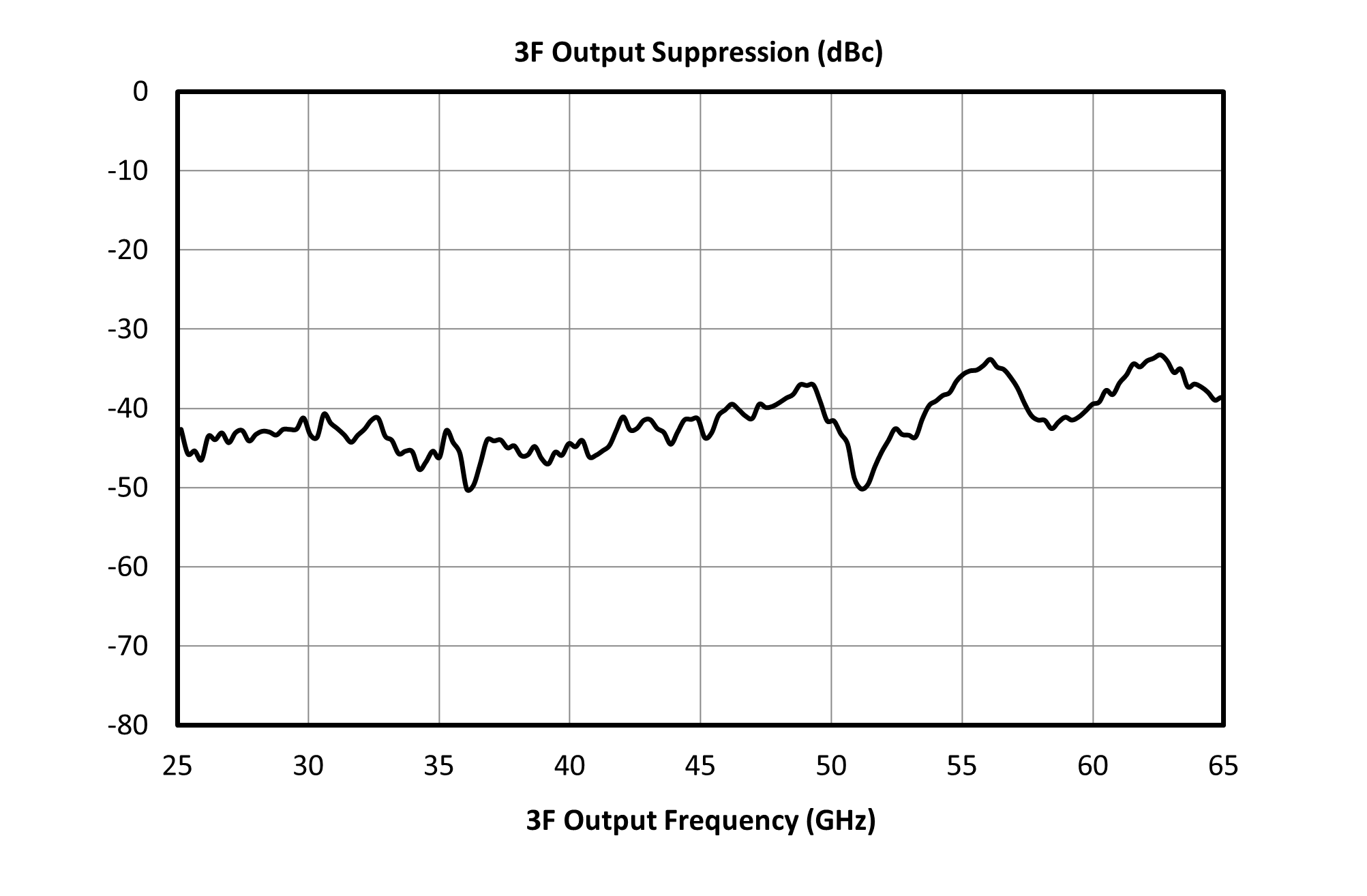

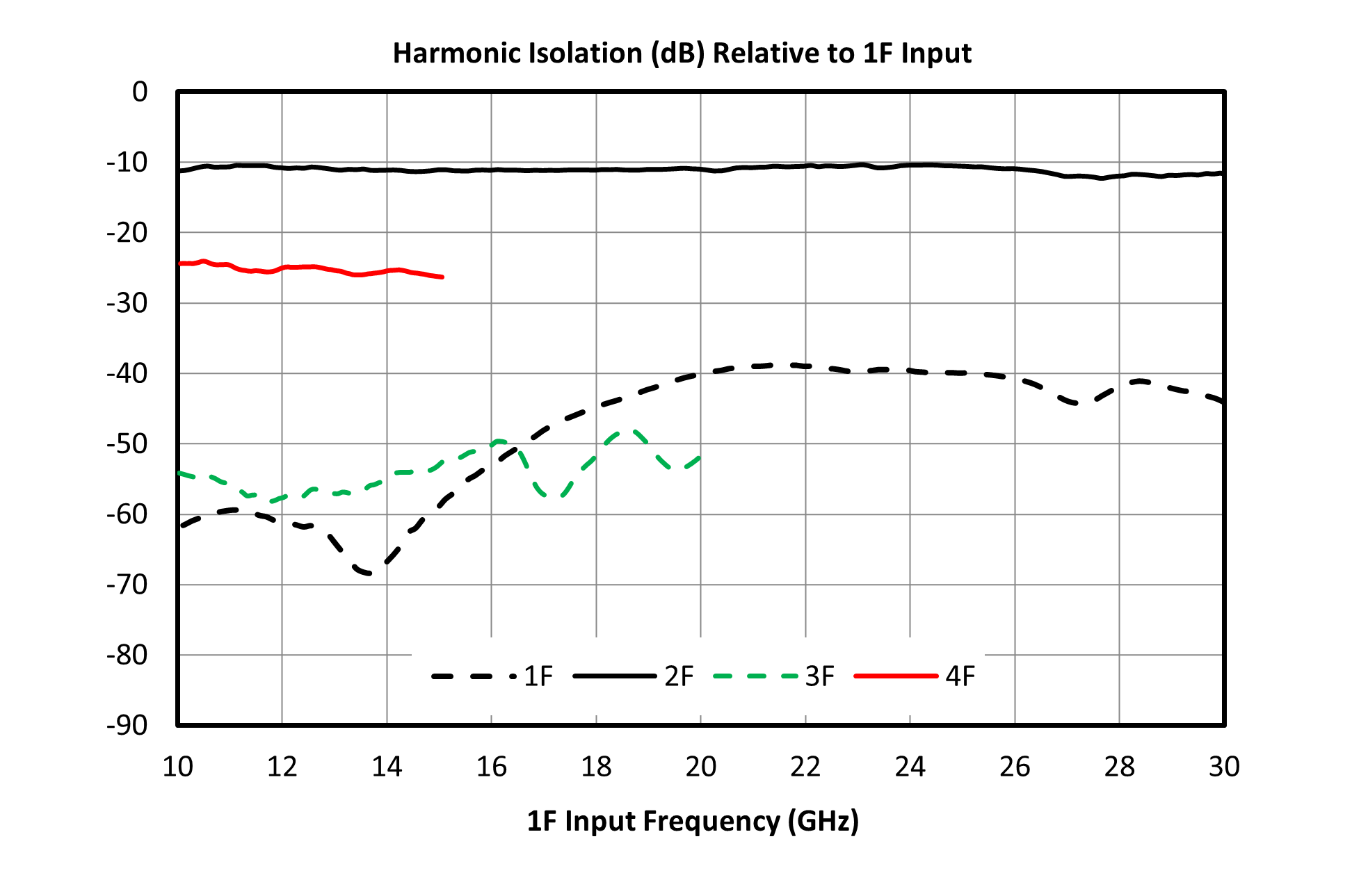

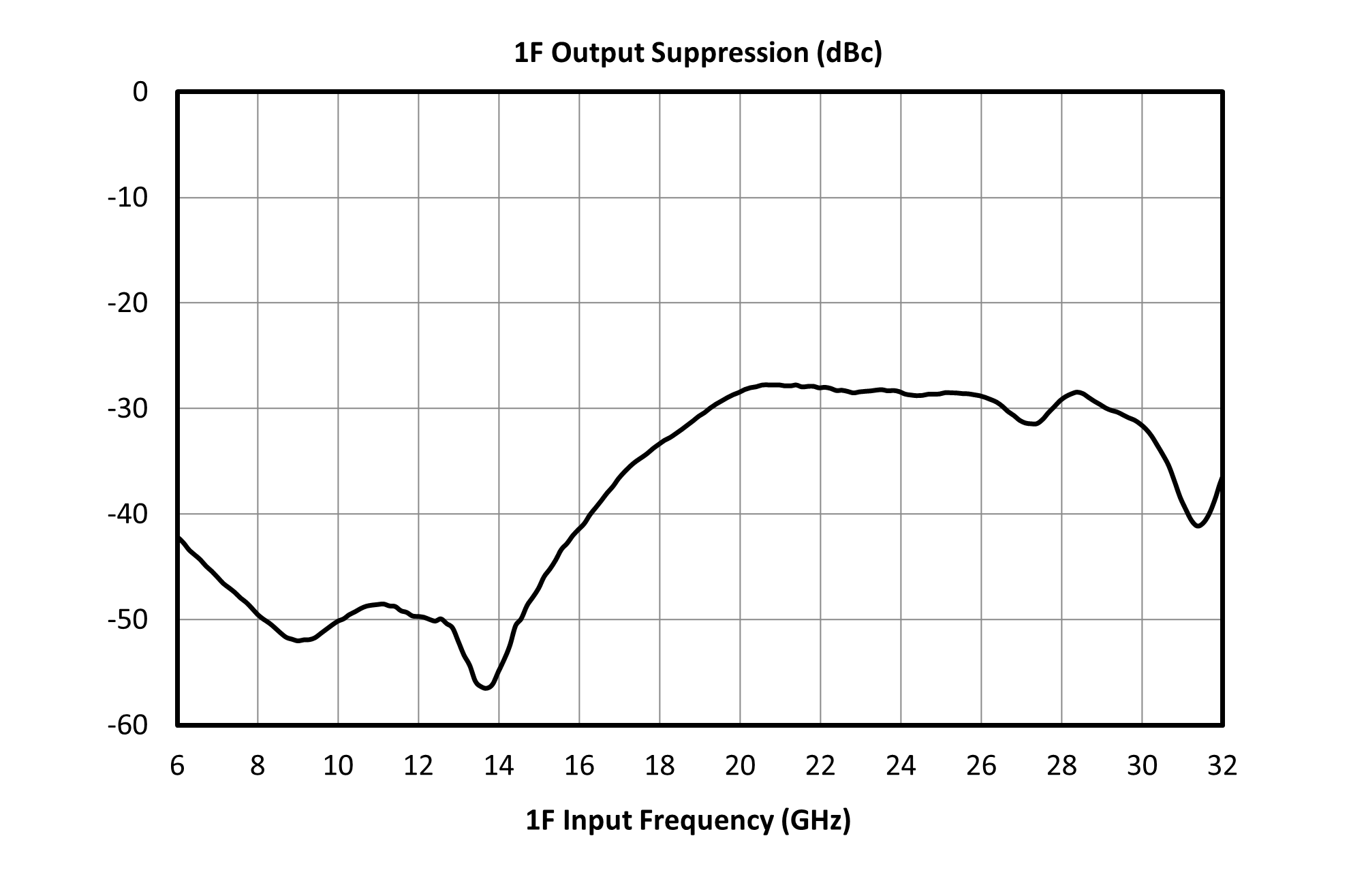

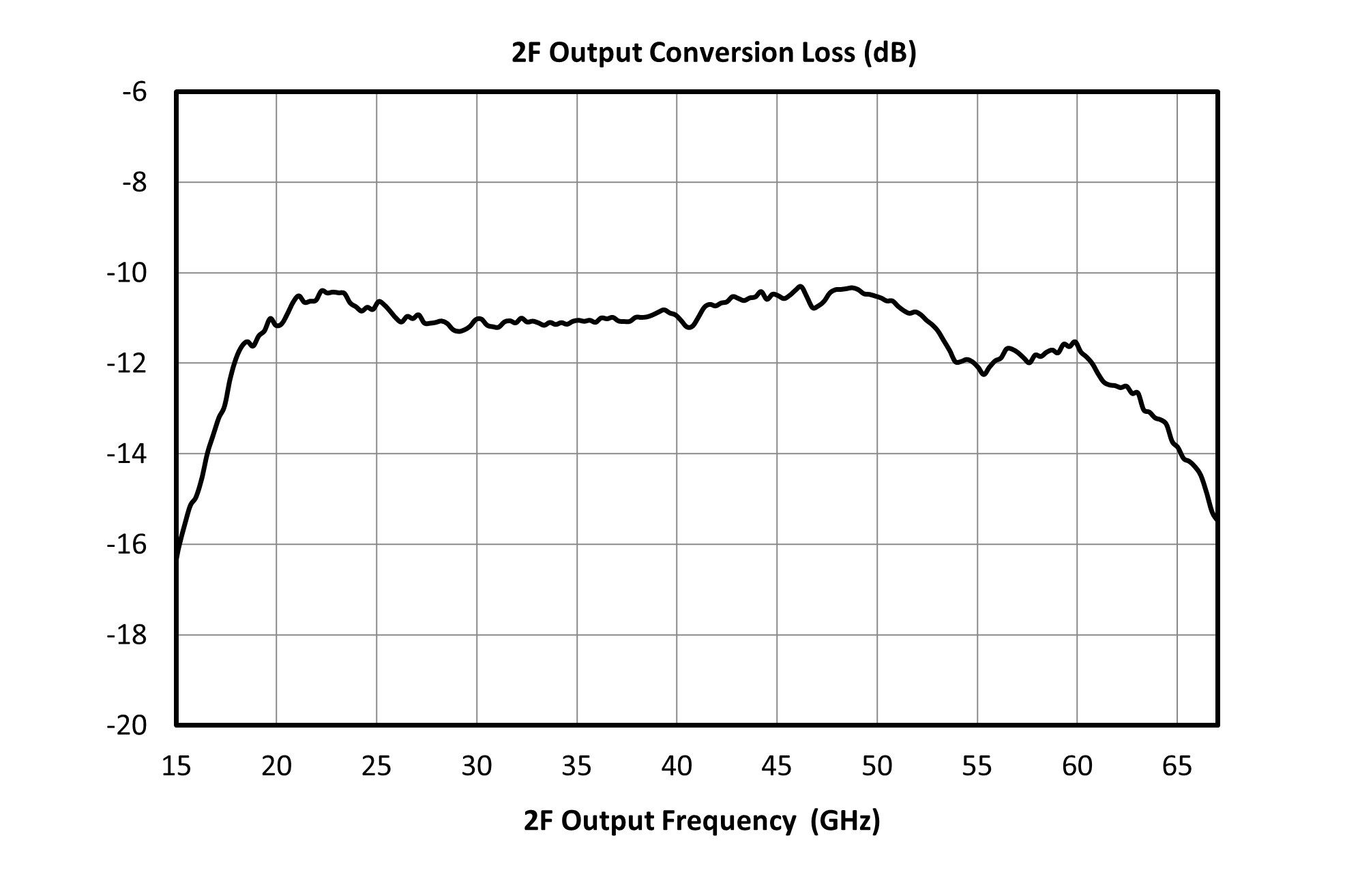

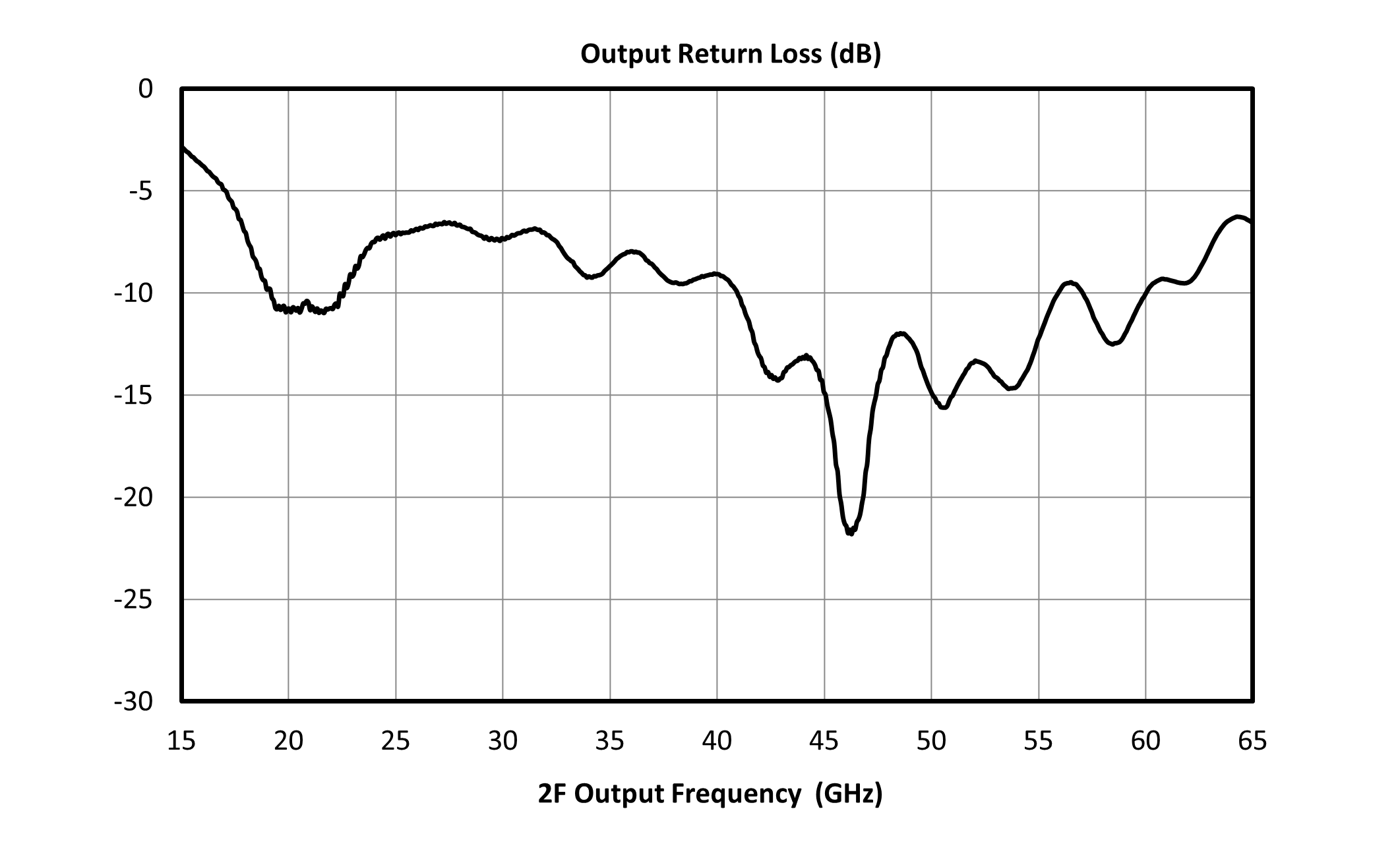

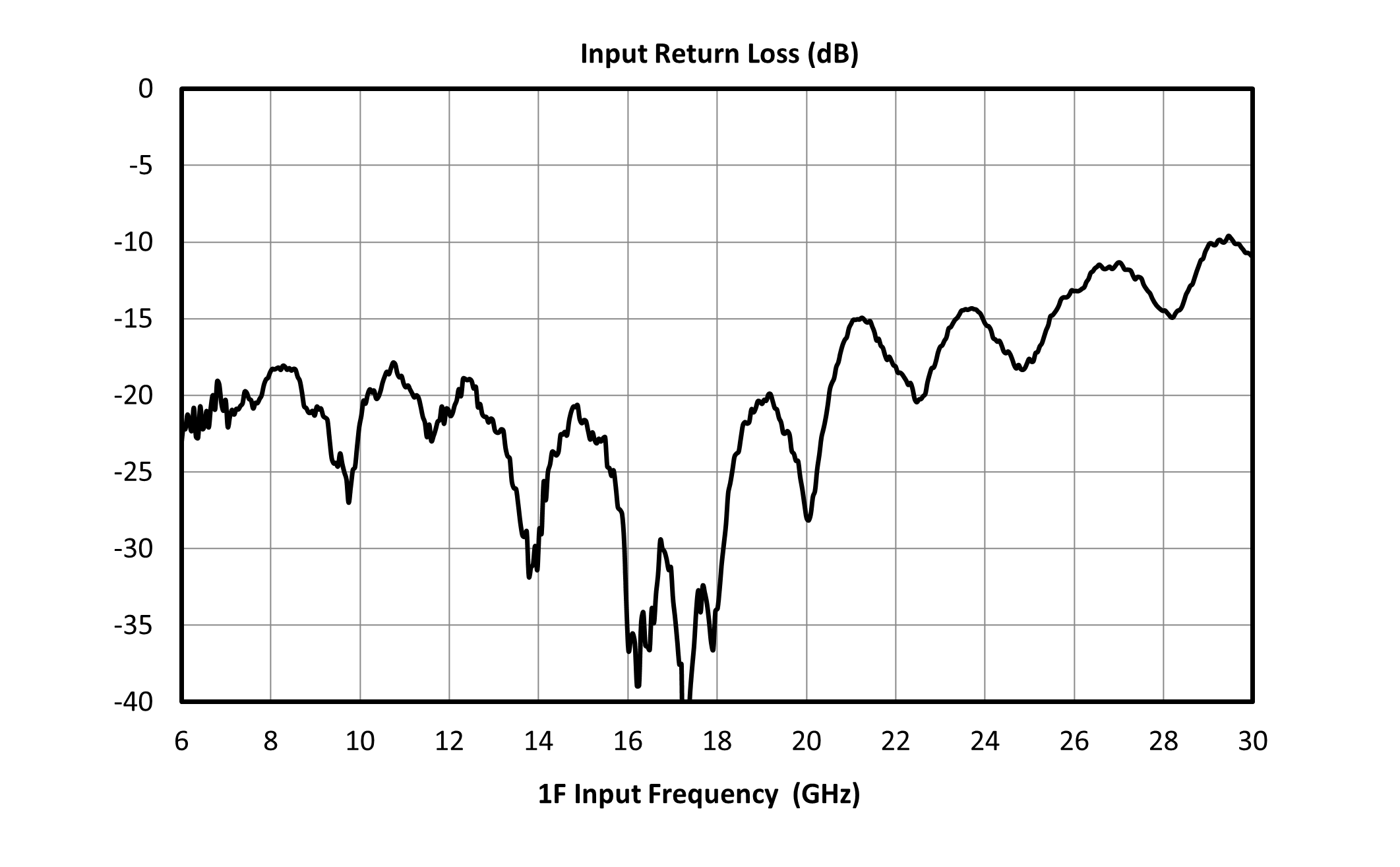

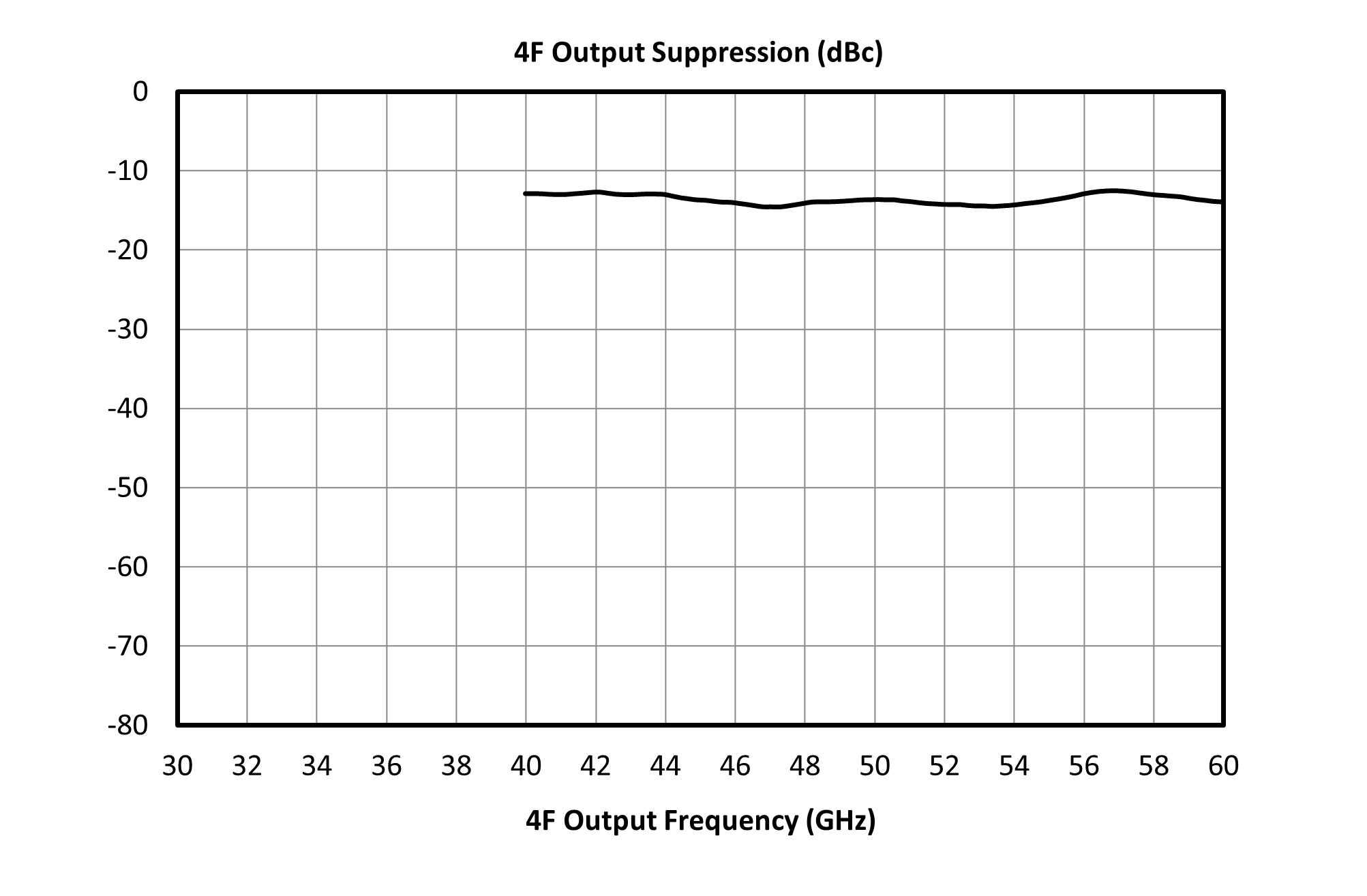

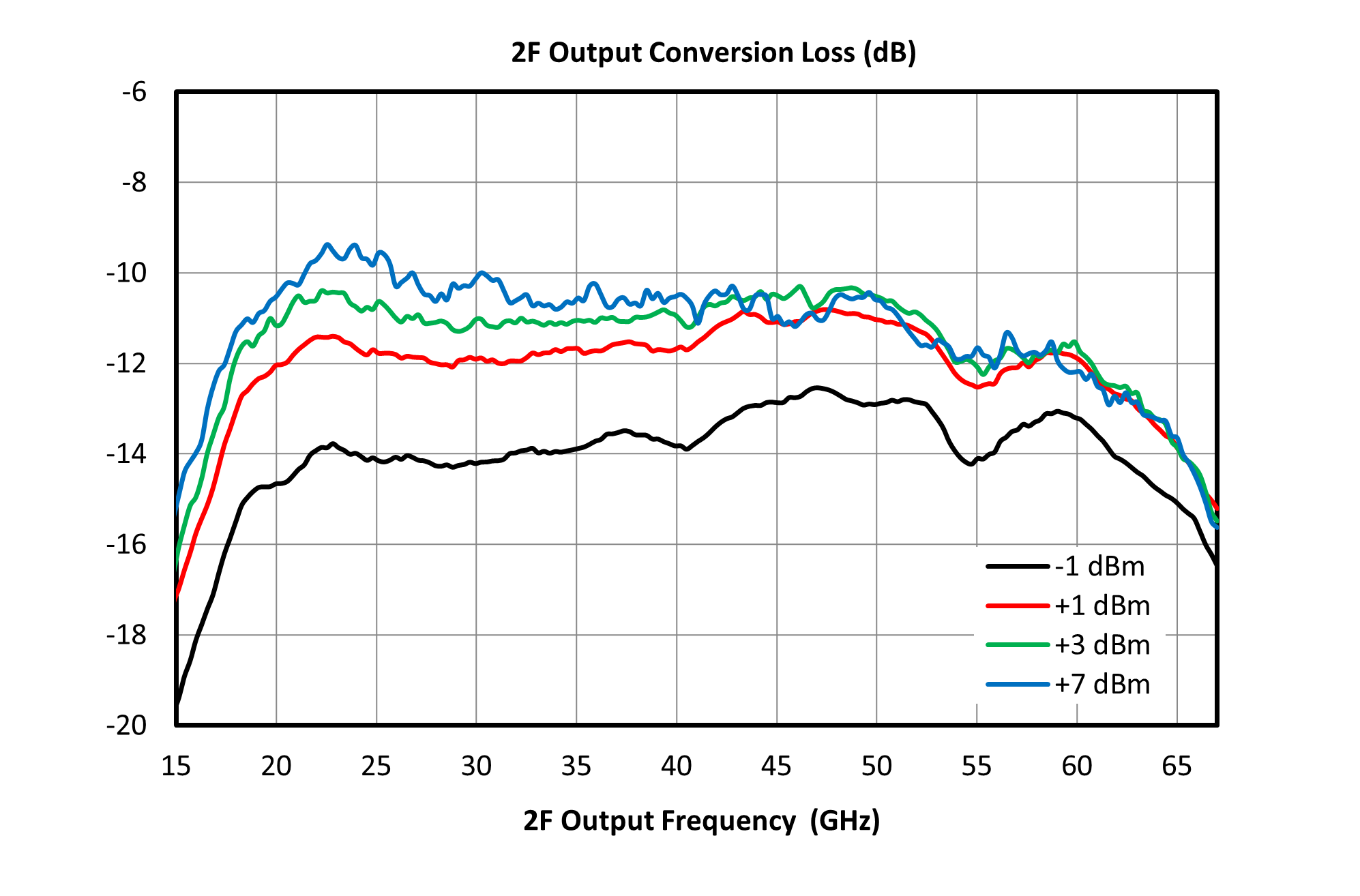

Typical Performance Plot
MMD-2060LBH
GaAs MMIC Doubler, 20 - 60 GHz Output Frequency
