Port Diagram
The MMD-1030LBH should only be used in the forward direction, with the input and output ports given in Port Functions.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The MMD-1030LBH is a MMIC doubler fabricated with GaAs Schottky diodes. This part operates over a 5 to 15 GHz input frequency range or a doubled output frequency range of 10 to 30 GHz. It features excellent 12 dB 2F conversion loss, superior isolations and harmonic suppressions across a broad bandwidth. Both the wire bondable die and connectorized units are available.
Features
- High Fundamental Rejection
- Low 12 dB 2F Conversion Loss
- Excellent 50 dB 1F and 58 dB 3F Isolations respectively
- Low +5 dBm Input Drive
Applications
- High frequency synthesis
- LO signal chain
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MMD-1030LBH | GaAs MMIC Doubler, 10 - 30 GHz Output Frequency | BH | - | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MMD-1030LBH | GaAs MMIC Doubler, 10 - 30 GHz Output Frequency | BH | - | REACH RoHS | Released | EAR99 |
MMD-1030LBH
GaAs MMIC Doubler, 10 - 30 GHz Output Frequency
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-06-06 | Initial Release |
MMD-1030LBH
GaAs MMIC Doubler, 10 - 30 GHz Output Frequency
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| GND | Ground | - | BH package ground provided through metal housing and outer coax conductor |  |
| Port 1 | 1F Input | 2.92F | Input 1x Frequency Port. Port 1 is DC open and AC matched to 50 Ohms from 5 to 15 GHz for the CH & BH packages. |  |
| Port 2 | 2F Output | 2.92M | 2x Input Frequency output port. Port 2 is DC open and AC matched to 50 Ohms from 10 to 30 GHz for the CH & BH packages. | |
MMD-1030LBH
GaAs MMIC Doubler, 10 - 30 GHz Output Frequency
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. All Absolute Maximum Ratings are individual and should not be met in parallel. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Power Handling, at any Port | 25 | dBm |

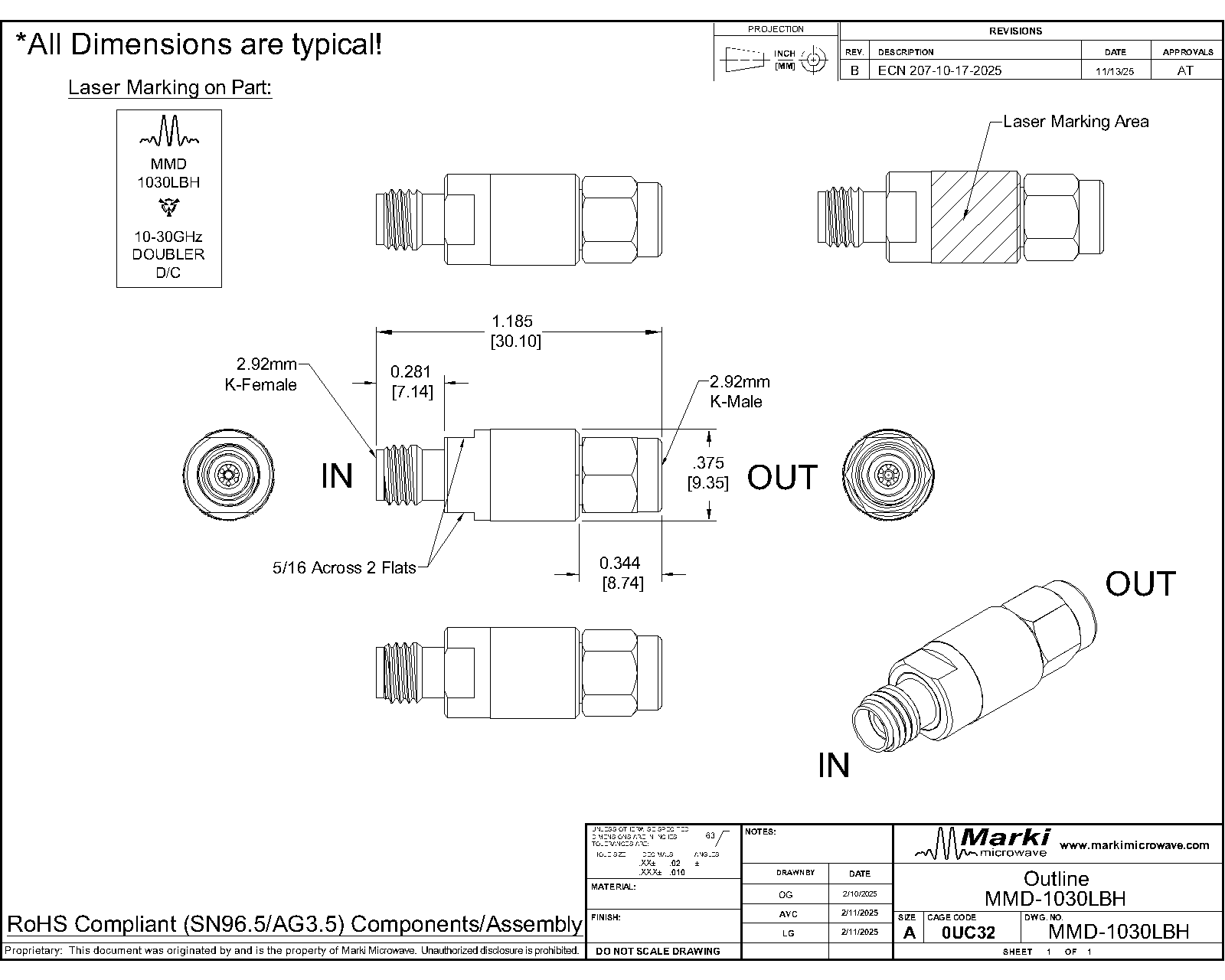

Package Information
| Parameter | Details | Rating |
|---|---|---|
| Weight | Package name: BH | 9.2g |
| Dimensions | - | 30.1 x 9.5 mm |
Recommended Operating Conditions
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Operating Temperature | -55 | 25 | 125 | °C |
| Input Power | 5 | 10 | 15 | dBm |
MMD-1030LBH
GaAs MMIC Doubler, 10 - 30 GHz Output Frequency
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the connectorized BH package doubler used in the forward direction with a +10 dBm sine wave input.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Input Frequency Range | - | - | - | 5 | - | 15 | GHz |
| Output Frequency Range | - | - | - | 10 | - | 30 | GHz |
| Conversion Loss | Second Harmonic Output | 10 | 30 | - | 12 | - | dB |
| Isolation, 1F 1 | Input=5–15 GHz Output=5-15 GHz | 5 | 15 | - | 50 | - | dB |
| Isolation, 3F 2 | Input=5–10 GHz Output=15-30 GHz | 15 | 30 | - | 58 | - | dB |
| Isolation, 4F 3 | Input=5–7.5 GHz Output=20-30 GHz | 20 | 30 | - | 27 | - | dB |
| Suppression, 1F 4 | Input=5–15 GHz Output=10-30 GHz | 5 | 15 | - | 38 | - | dBc |
| Suppression, 3F 5 | Input=5–10 GHz Output=15-30 GHz | 15 | 30 | - | 46 | - | dBc |
| Suppression, 4F 6 | Input=5–7.5 GHz Output=20-30 GHz | 20 | 30 | - | 20 | - | dBc |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Input Frequency Range | - | - | - | 5 | - | 15 | GHz |
| Output Frequency Range | - | - | - | 10 | - | 30 | GHz |
| Conversion Loss | Second Harmonic Output | 10 | 30 | - | 12 | - | dB |
| Isolation, 1F 1 | Input=5–15 GHz Output=5-15 GHz | 5 | 15 | - | 50 | - | dB |
| Isolation, 3F 2 | Input=5–10 GHz Output=15-30 GHz | 15 | 30 | - | 58 | - | dB |
| Isolation, 4F 3 | Input=5–7.5 GHz Output=20-30 GHz | 20 | 30 | - | 27 | - | dB |
| Suppression, 1F 4 | Input=5–15 GHz Output=10-30 GHz | 5 | 15 | - | 38 | - | dBc |
| Suppression, 3F 5 | Input=5–10 GHz Output=15-30 GHz | 15 | 30 | - | 46 | - | dBc |
| Suppression, 4F 6 | Input=5–7.5 GHz Output=20-30 GHz | 20 | 30 | - | 20 | - | dBc |
[1][2][3] Isolation is defined as the harmonic power relative to the 1F fundamental input power.
[4][5][6] Suppressions and isolations measured with an input source with >60dBc (relative to fundamental input) harmonic suppression. Suppression is defined as the harmonic power relative to the 2F doubled output power.
MMD-1030LBH
GaAs MMIC Doubler, 10 - 30 GHz Output Frequency

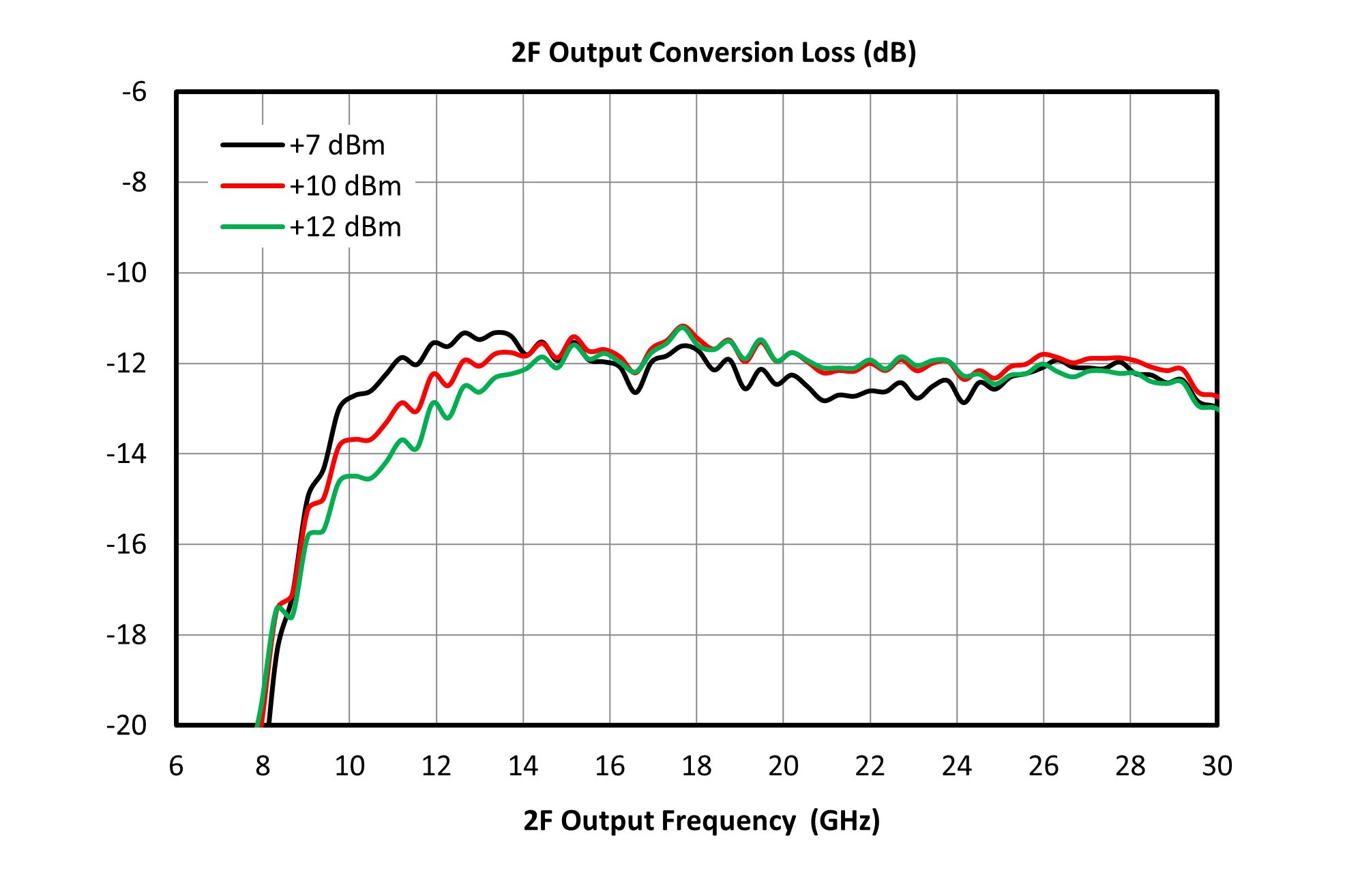

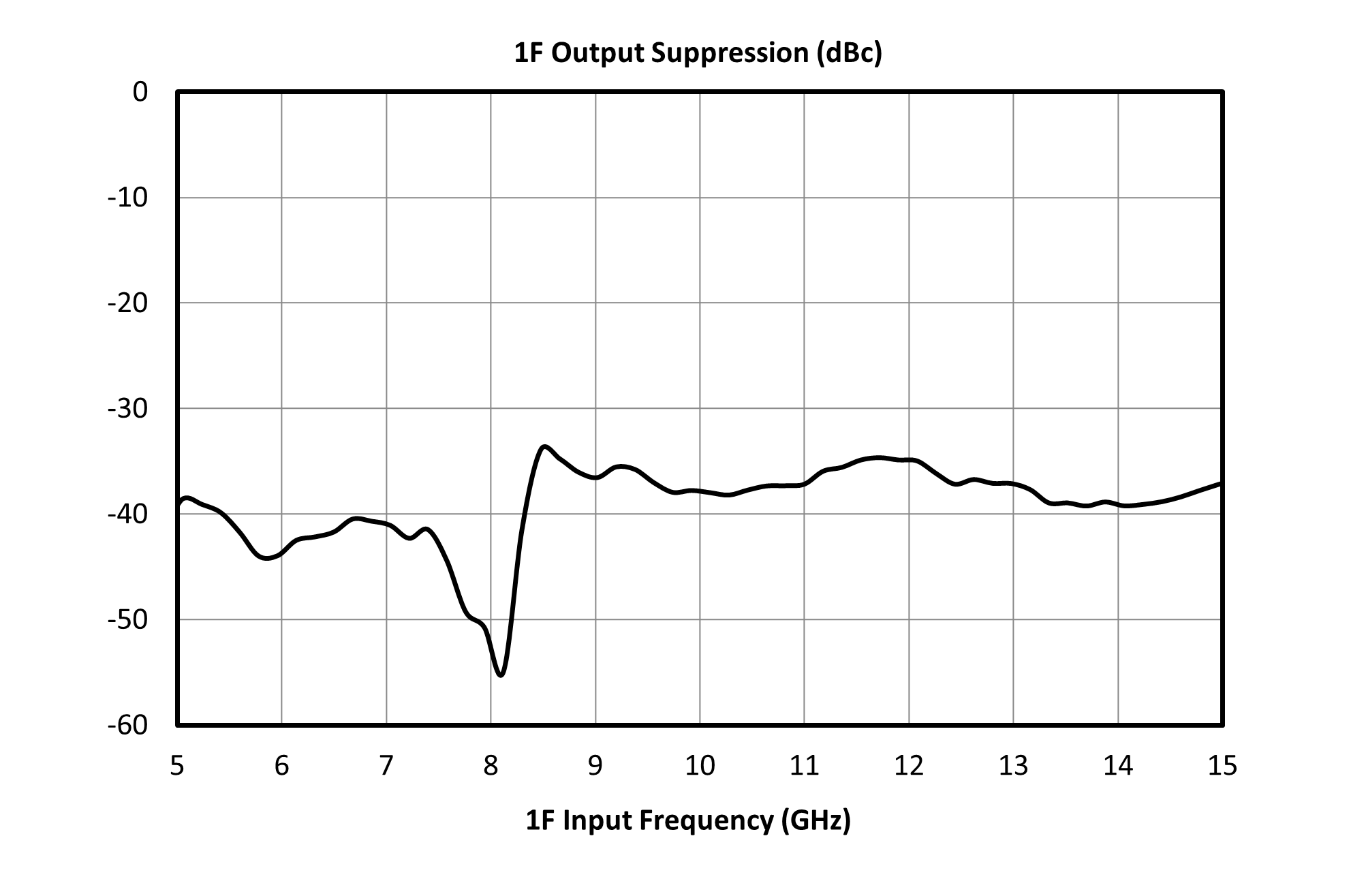

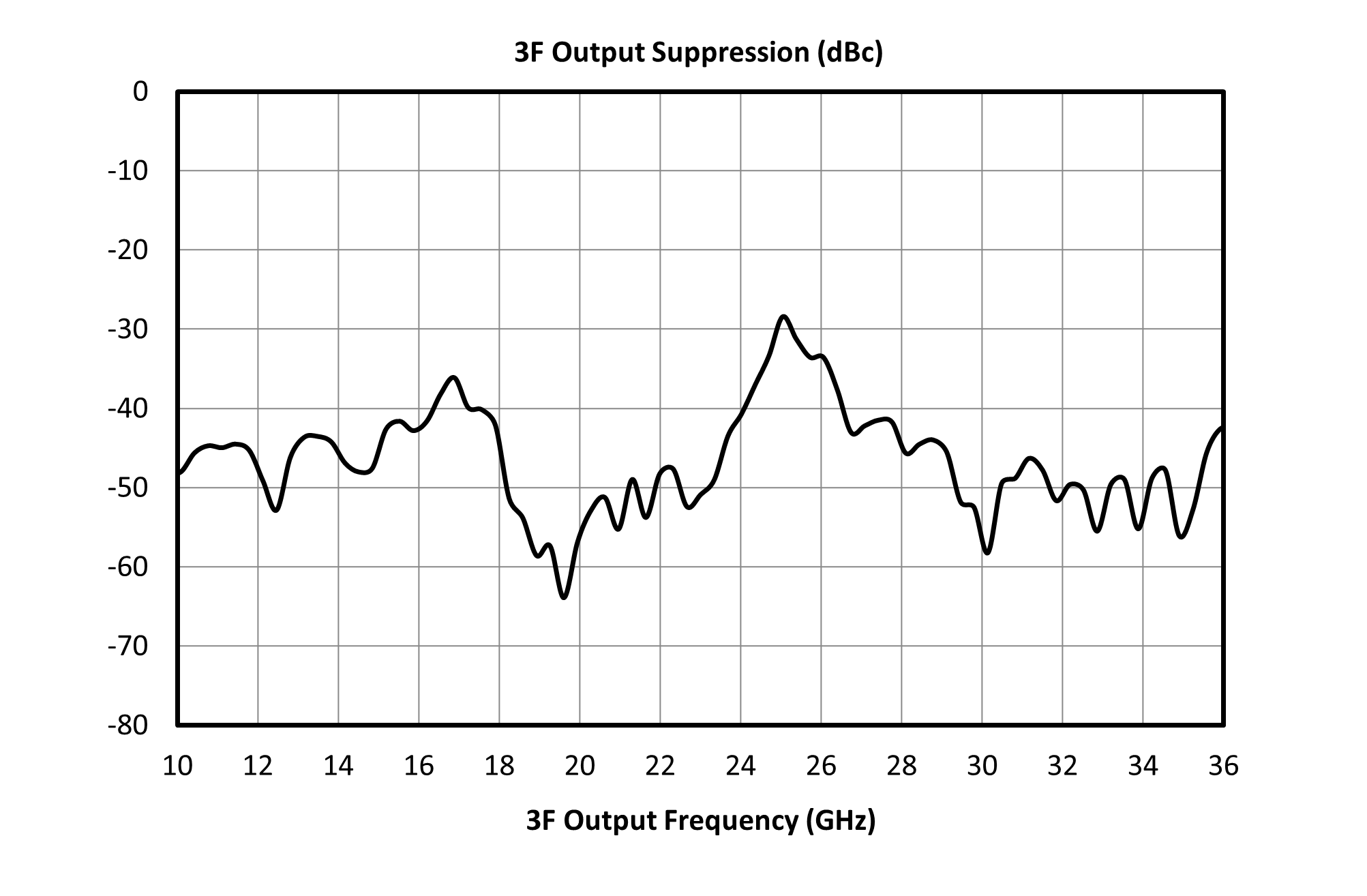

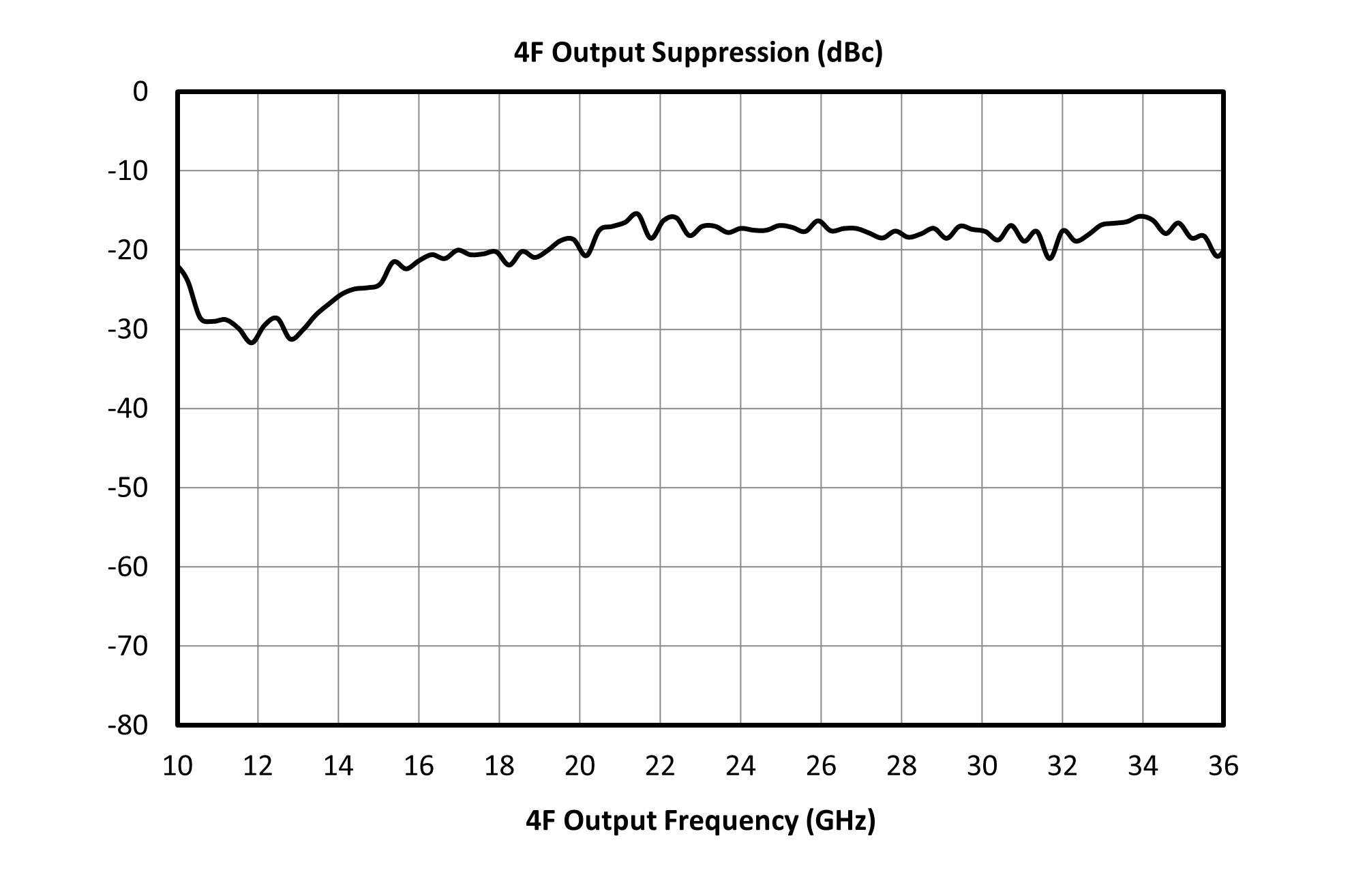

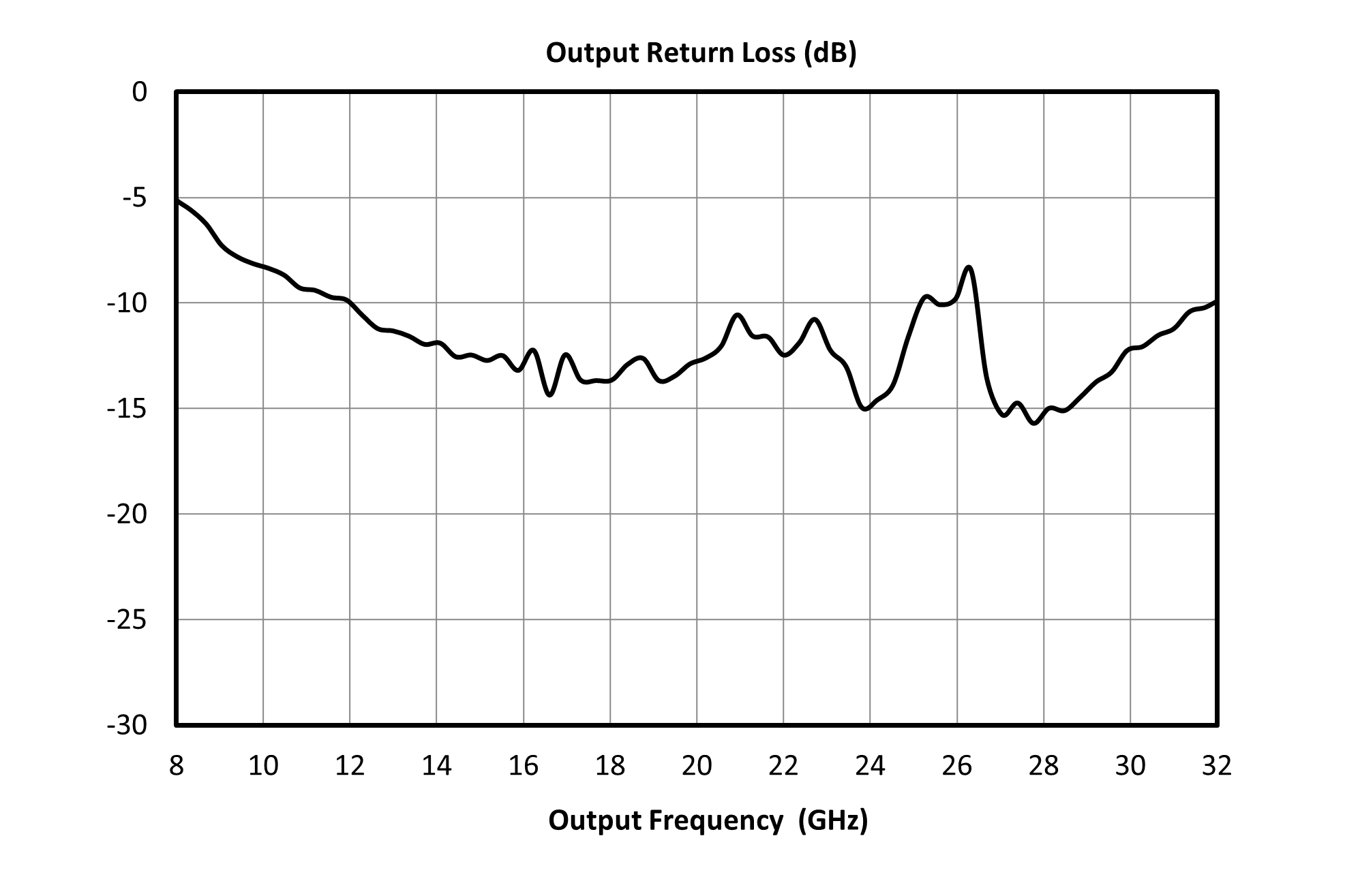

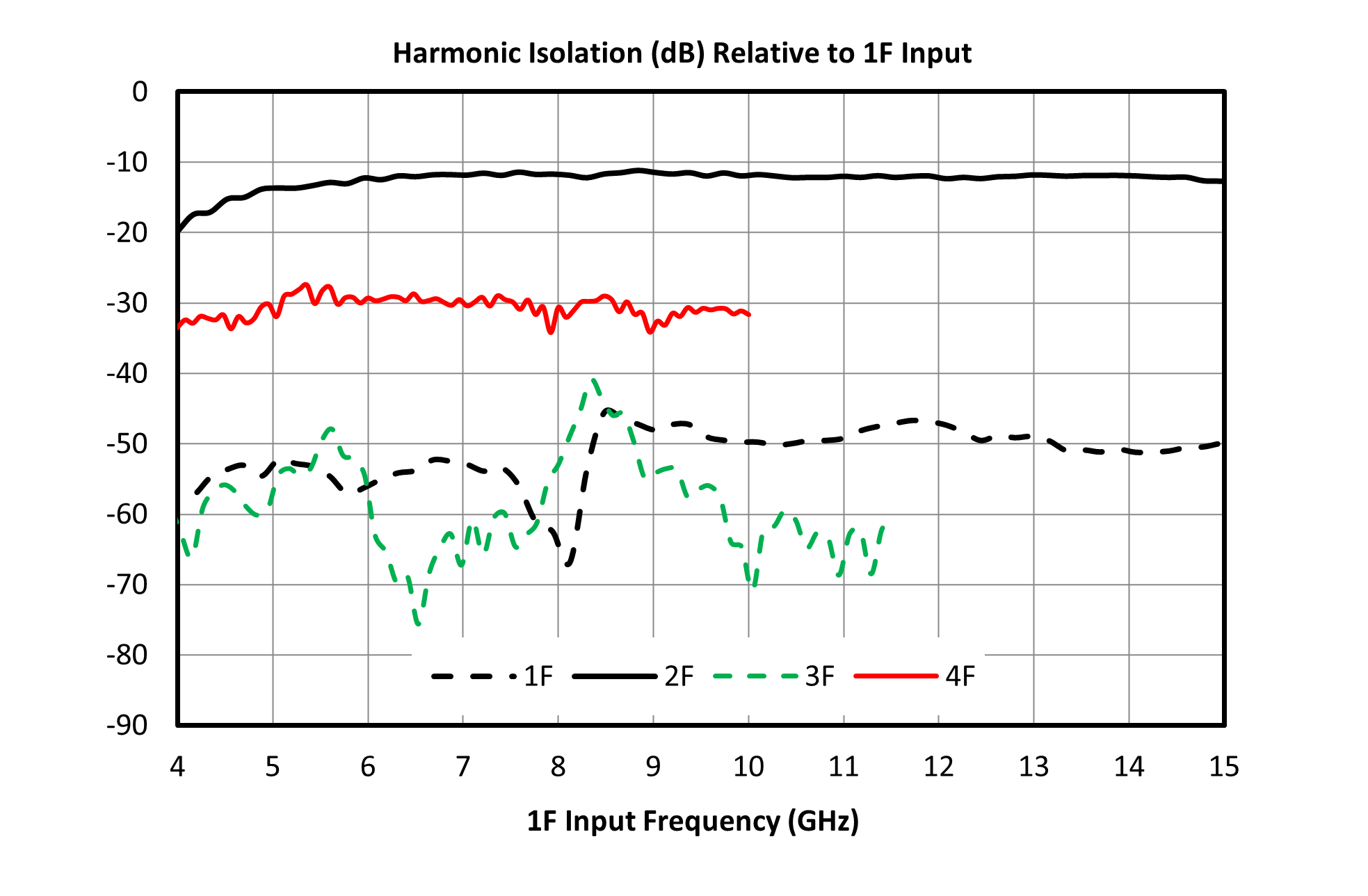

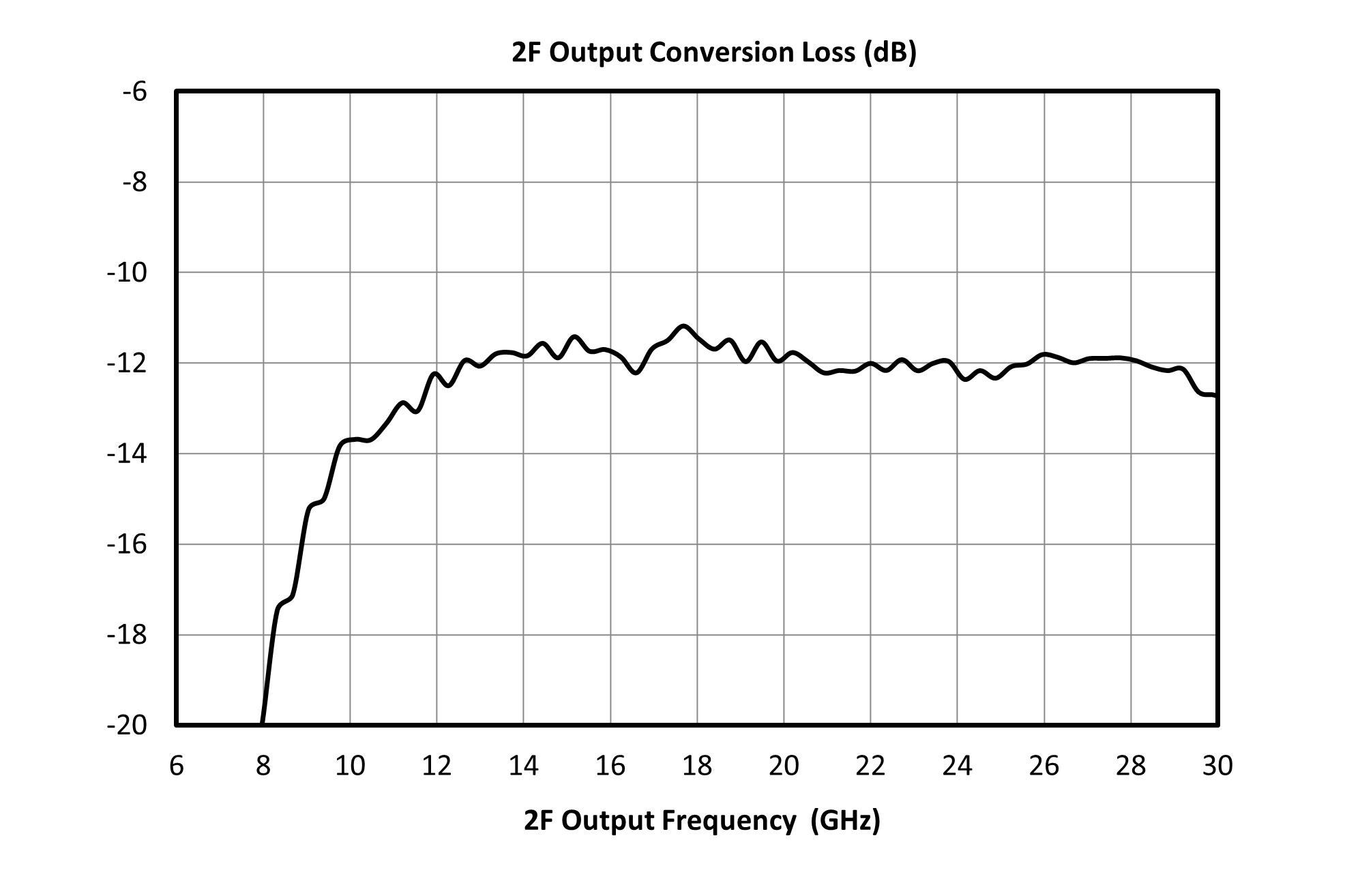

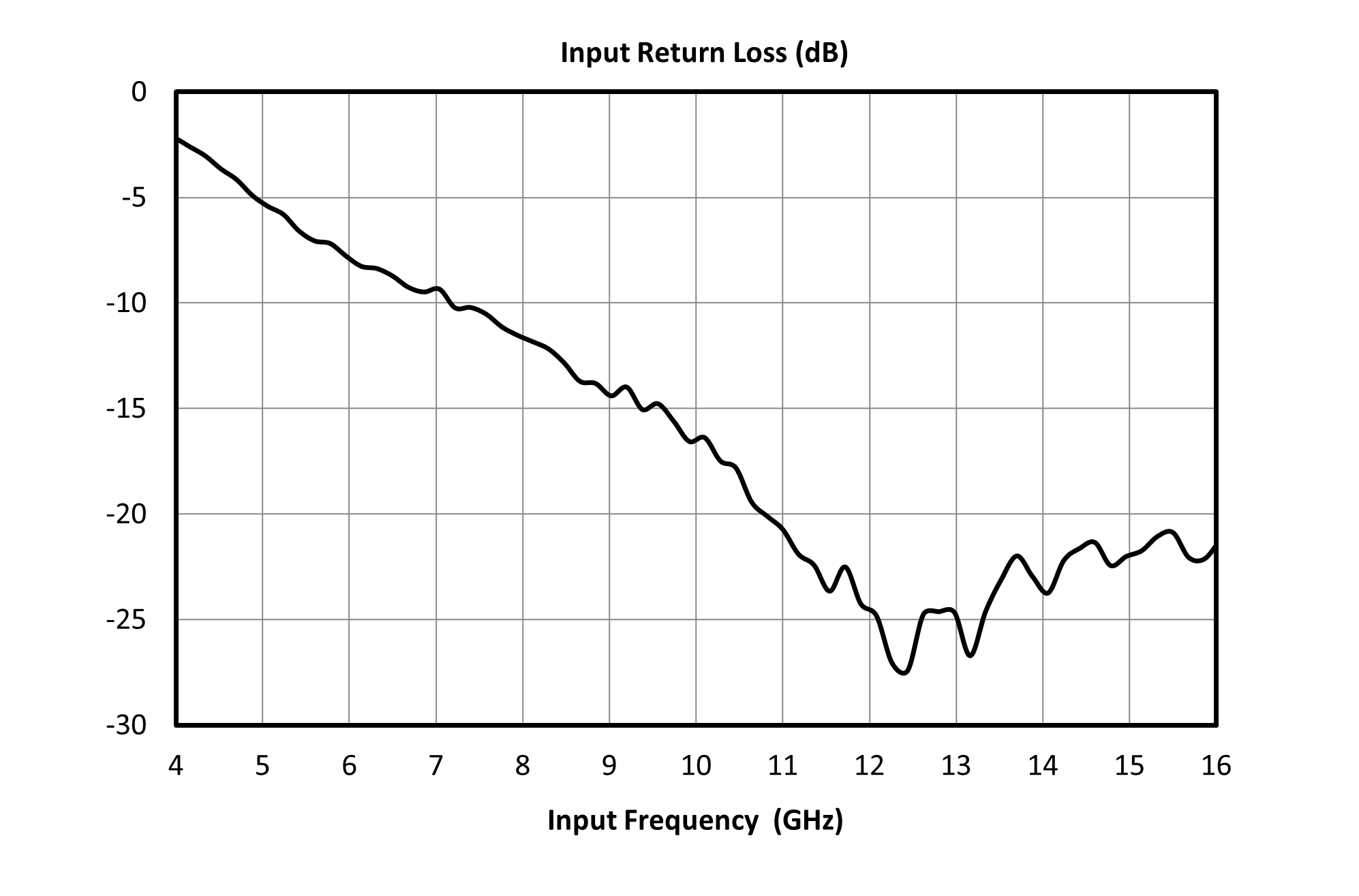

Typical Performance Plots
MMD-1030LBH
GaAs MMIC Doubler, 10 - 30 GHz Output Frequency
