MMD-0426LBH_GaAs MMIC Doubler 4 to 26 GHz Output Frequency

Device Overview

General Description

The MMD-0426L is a MMIC doubler fabricated with GaAs Schottky diodes. This part operates from a 2 to 13 GHz input frequency range or a doubled output frequency range of 4 to 26 GHz. It features excellent 12 dB typical conversion loss, high 50 dB 1F and 62 dB 3F isolations, and great harmonic suppressions across a broad bandwidth. It is available as a SMA connectorized inline bullet housing package and as a 2.29 x 3.86 mm DFN package.

Features

Low Input Power Requirement, +6 dBm Minimum
Low 2F Conversion Loss, 12 dB Typical
High 1F and 3F Isolations, 50 dB and 62 dB Typical

Applications

Test and Measurement Equipment
High frequency synthesis
LO signal chain

Functional Block Diagram

Part Ordering Options

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MMD-0426LBH	GaAs MMIC Doubler 4 to 26 GHz Output Frequency	BH	-	REACH RoHS	Released	EAR99

Part Number

Description

Package

Connectors

Green Status

Product Lifecycle

Export Classification

MMD-0426LBH

GaAs MMIC Doubler 4 to 26 GHz Output Frequency

REACH

RoHS

Released

EAR99

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MMD-0426LBH	GaAs MMIC Doubler 4 to 26 GHz Output Frequency	BH	-	REACH RoHS	Released	EAR99

Device Overview
Port Configuration and Functions
- Port Diagram
- Port Functions
Revision History
Specifications
Mechanical Data

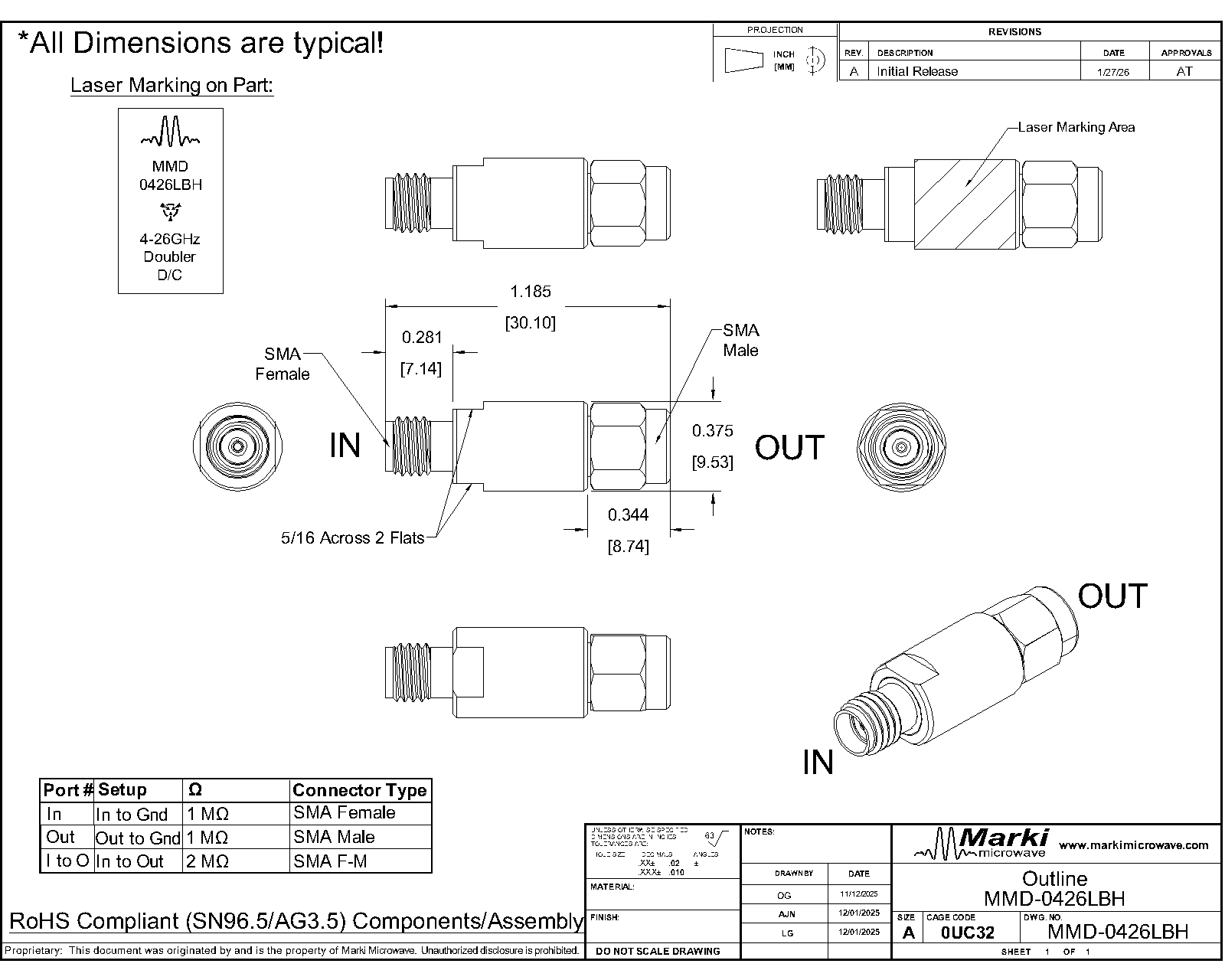

- Outline Drawing

Revision History

Revision Code	Revision Date	Comment
-	2026-03-27	Initial Release

Port Configuration and Functions

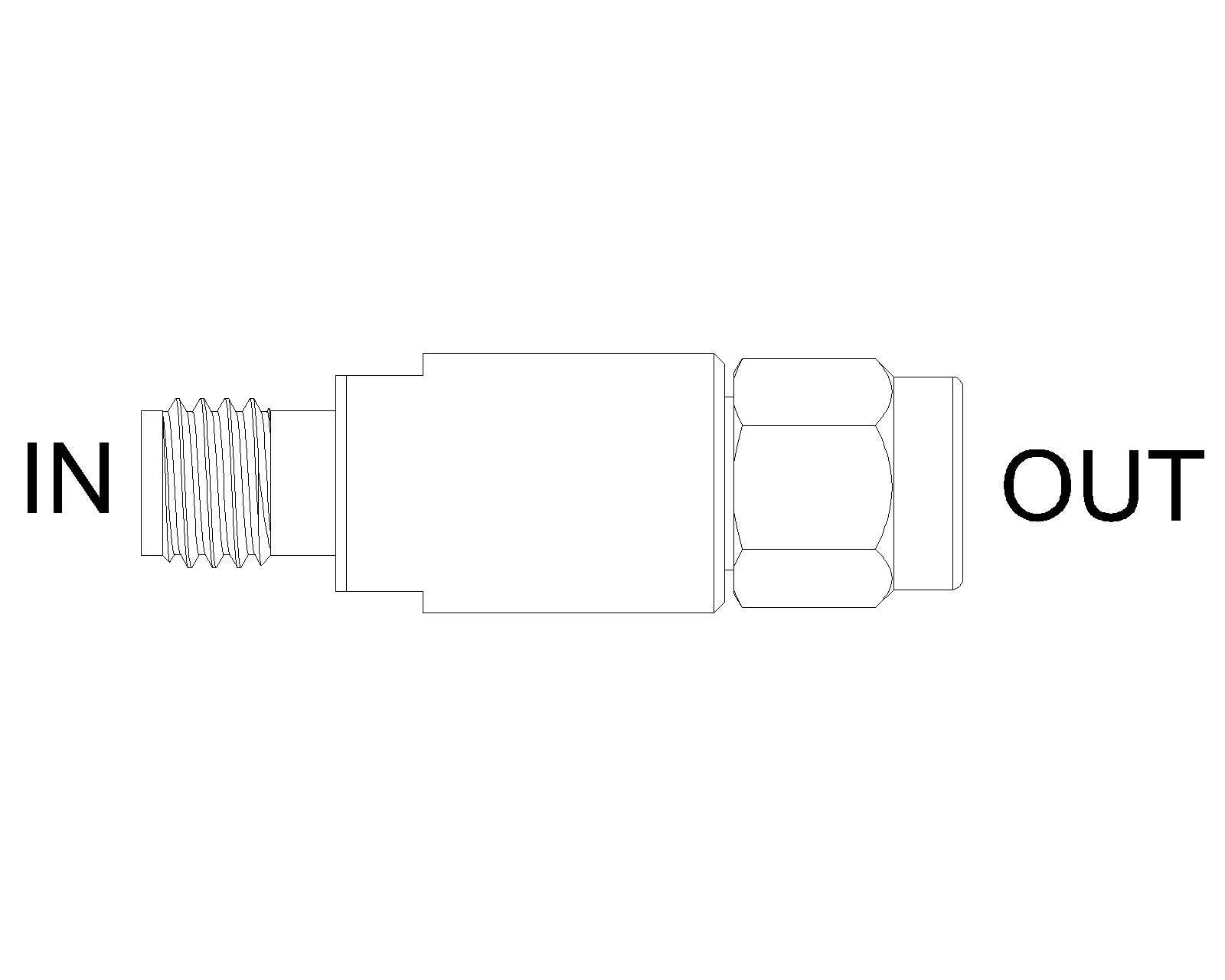

Port Diagram

A top-down view of the MMD-0426LBH’s package outline drawing is shown below. The MMD-0426LBH should only be used in the forward direction, with the input and output ports given in Port Functions.

Diagram of the port configuration for MMD-0426LBH

Port Functions

Port	Function	Connector Type	Description
GND	Ground	-	BH package ground provided through metal housing and outer coax conductor
Input	1F Input	SMAF	Input 1x Frequency input port. This pin is DC open for the BH package.
Output	2F Output	SMAM	Output 2x Frequency output port. This pin is DC open for the BH package.

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. All Absolute Maximum Ratings are individual and should not be met in parallel. If these limits are exceeded or multiple are met in parallel the device may be inoperable or have a reduced lifetime.

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
Power Handling, at any Port (25°C)	27	dBm

Package Information

Parameter	Details	Rating
ESD	250 to < 500 Volts	HBM Class 1A
Dimensions	-	30.1 x 9.5 mm

Recommended Operating Conditions

The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.

Parameter	Min	Nominal	Max	Unit
Ambient Temperature	-55	25	100	°C
Input Power	6	10	14	dBm

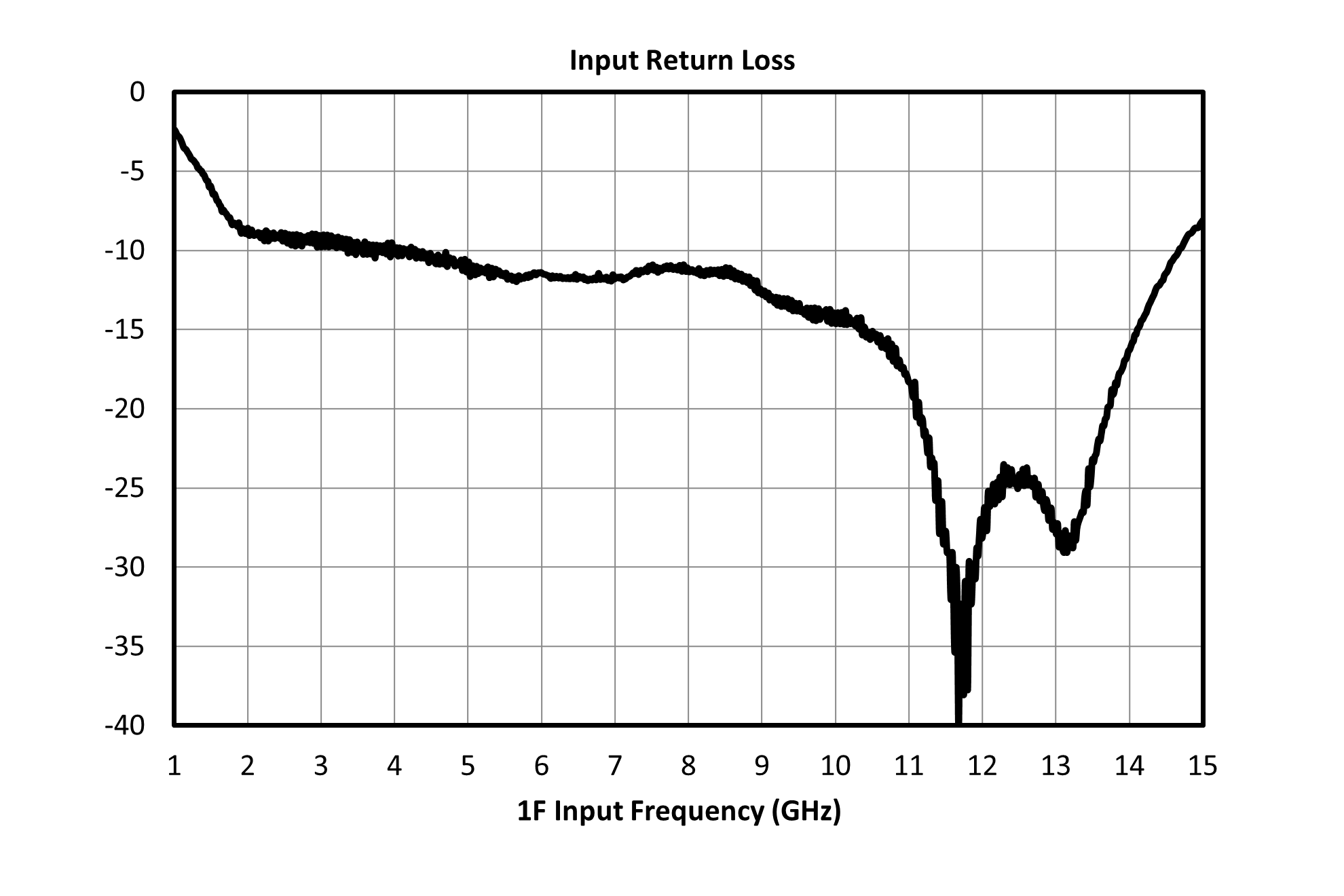

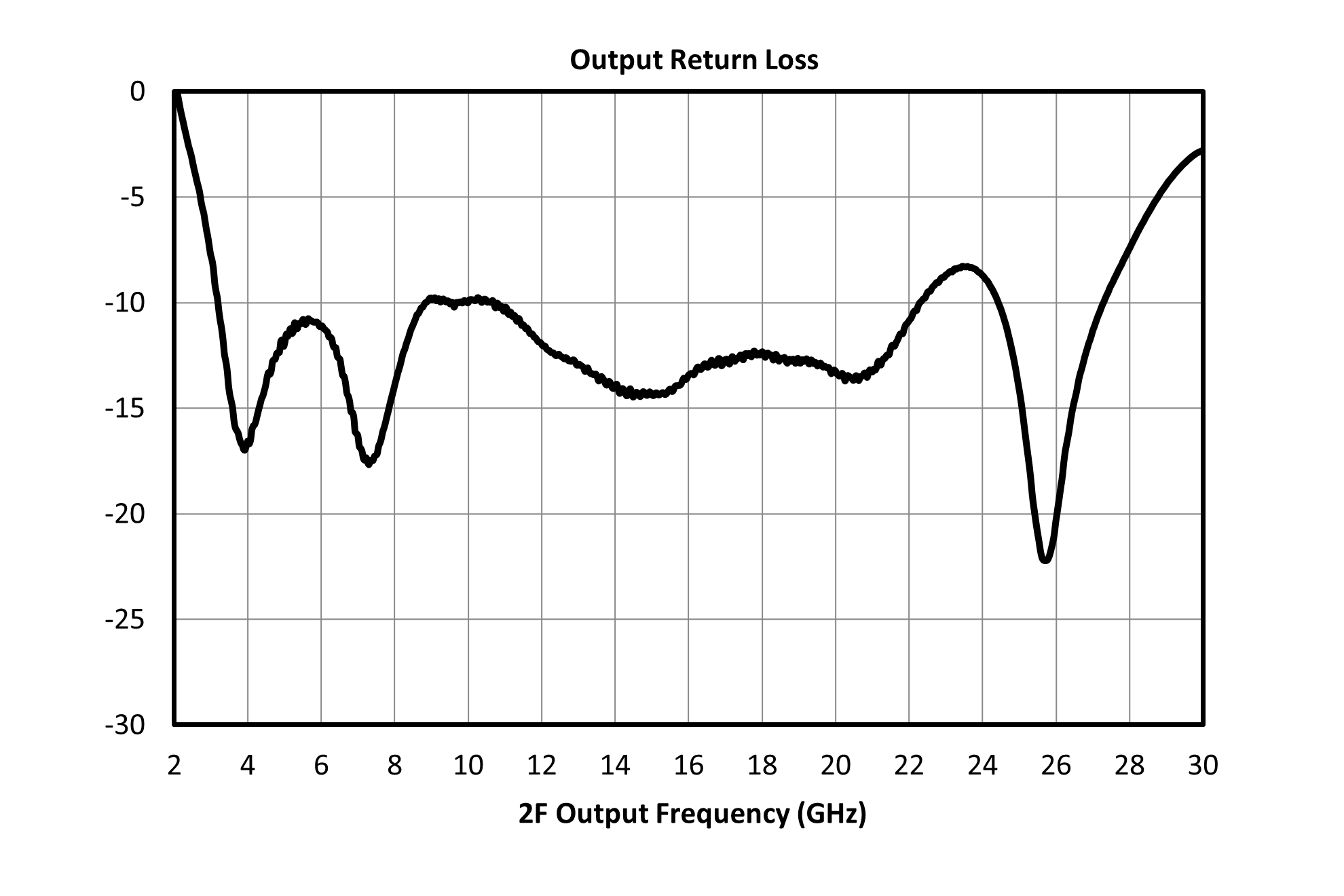

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the connectorized BH package doubler used in the forward direction with a +10 dBm sine wave input. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C.

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit

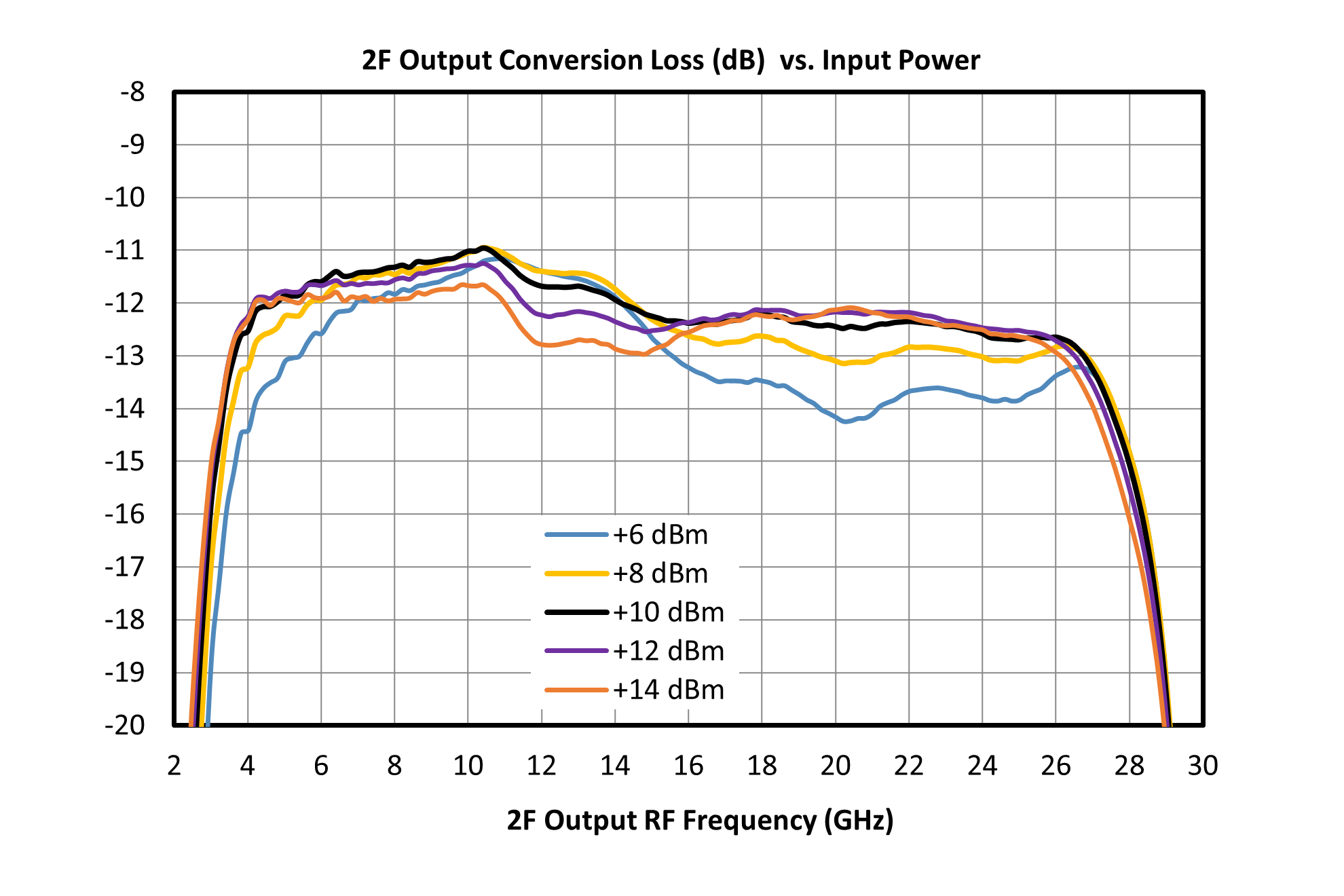

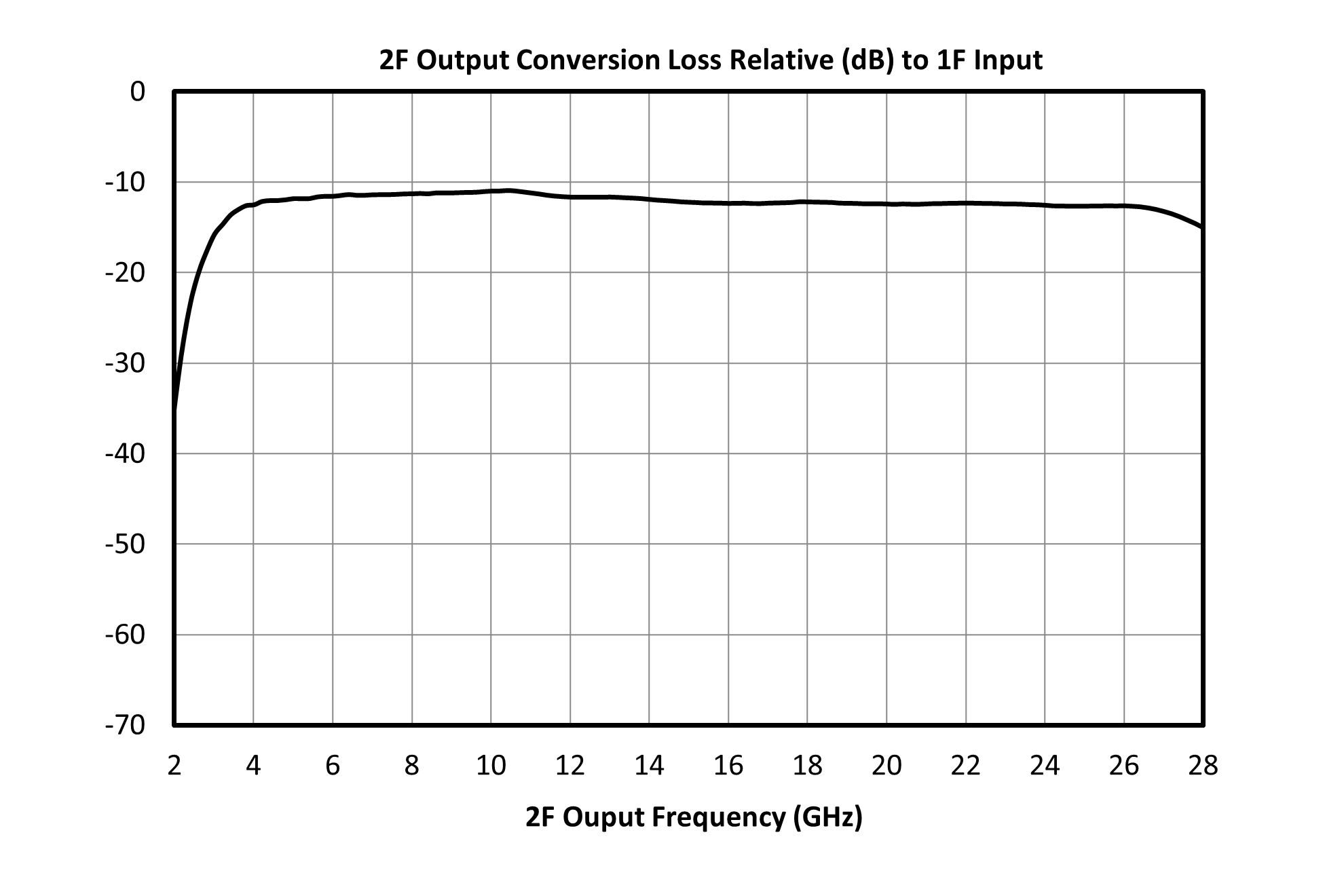

Conversion Loss ¹	Second Harmonic Output	4	26	-	12	-	dB
Input Frequency Range	-	-	-	2	-	13	GHz
Input Power	-	-	-	6	10	14	dBm

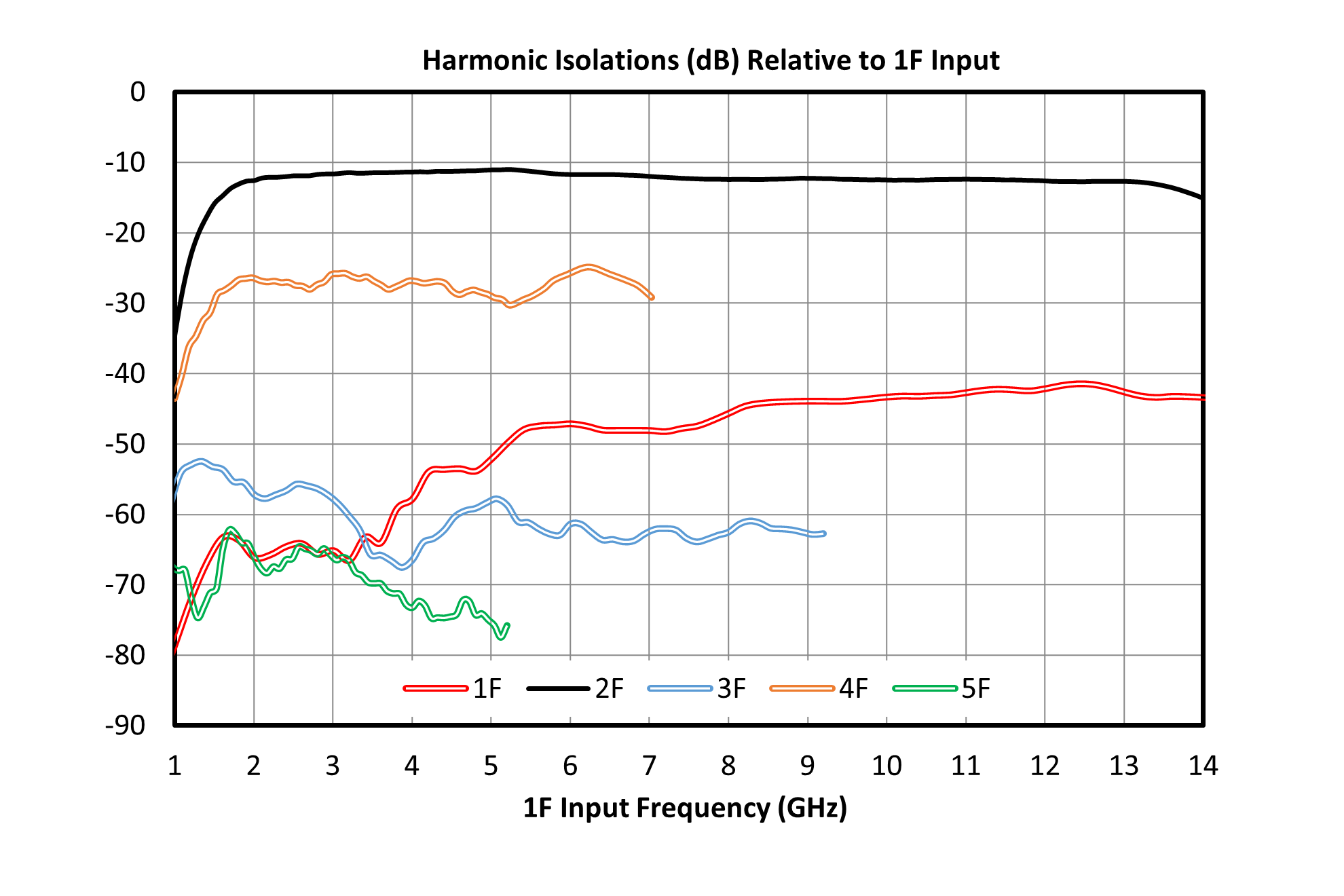

Isolation, 1F ²	Input = 2 – 13 GHz Output = 2-13 GHz	2	13	-	50	-	dB
Isolation, 3F ³	Input = 2 – 8.66 GHz Output = 6 - 26 GHz	6	26	-	62	-	dB
Isolation, 4F ⁴	Input = 2 – 6.5 GHz Output = 8 - 26 GHz	8	26	-	27	-	dB
Isolation, 5F ⁵	Input = 2 – 5.2 GHz Output = 10 - 26 GHz	10	26	-	70	-	dB
Output Frequency Range	-	-	-	4	-	26	GHz

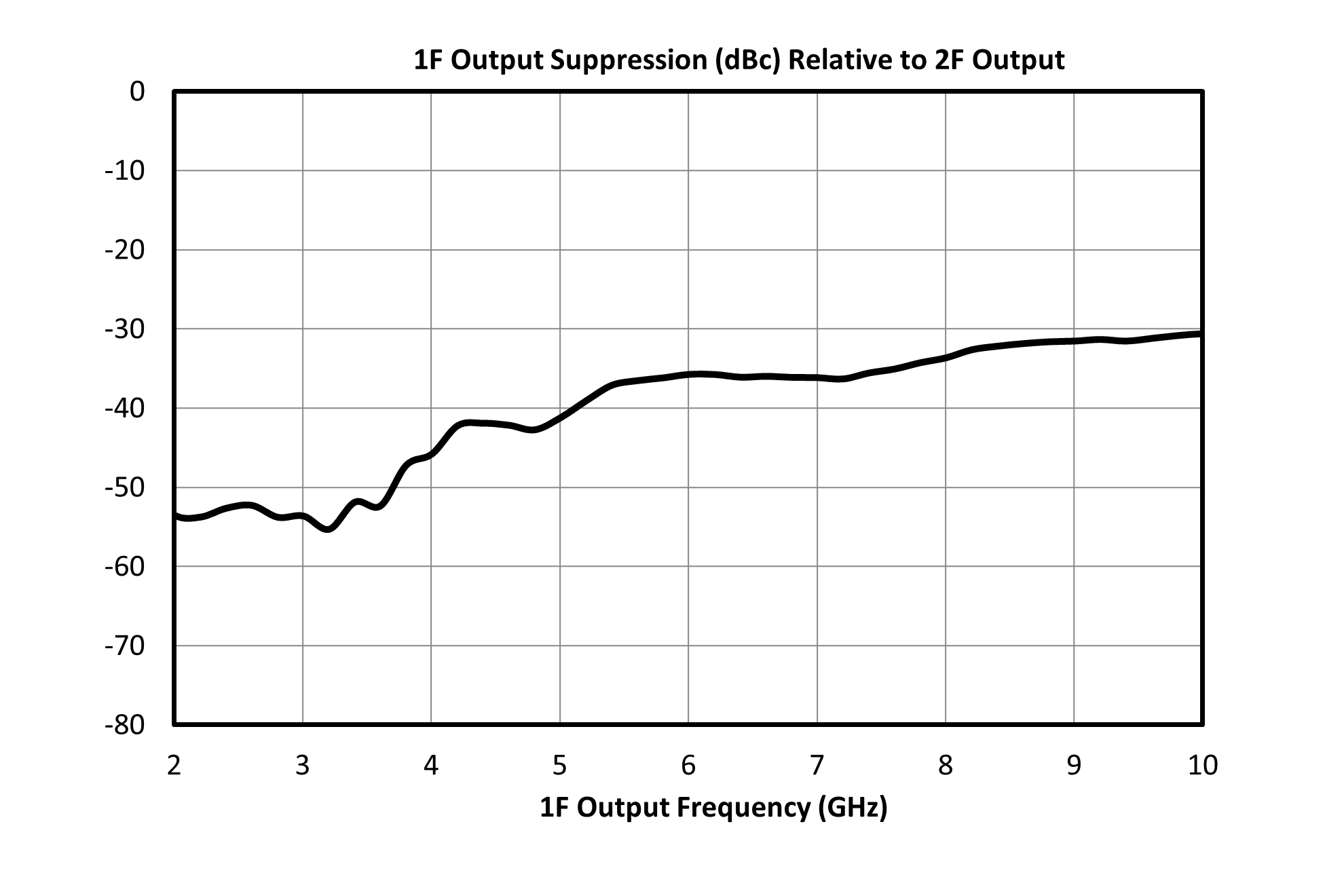

Suppression, 1F ⁶	Input = 2 – 13 GHz Output = 2 – 13 GHz	2	13	-	37	-	dBc

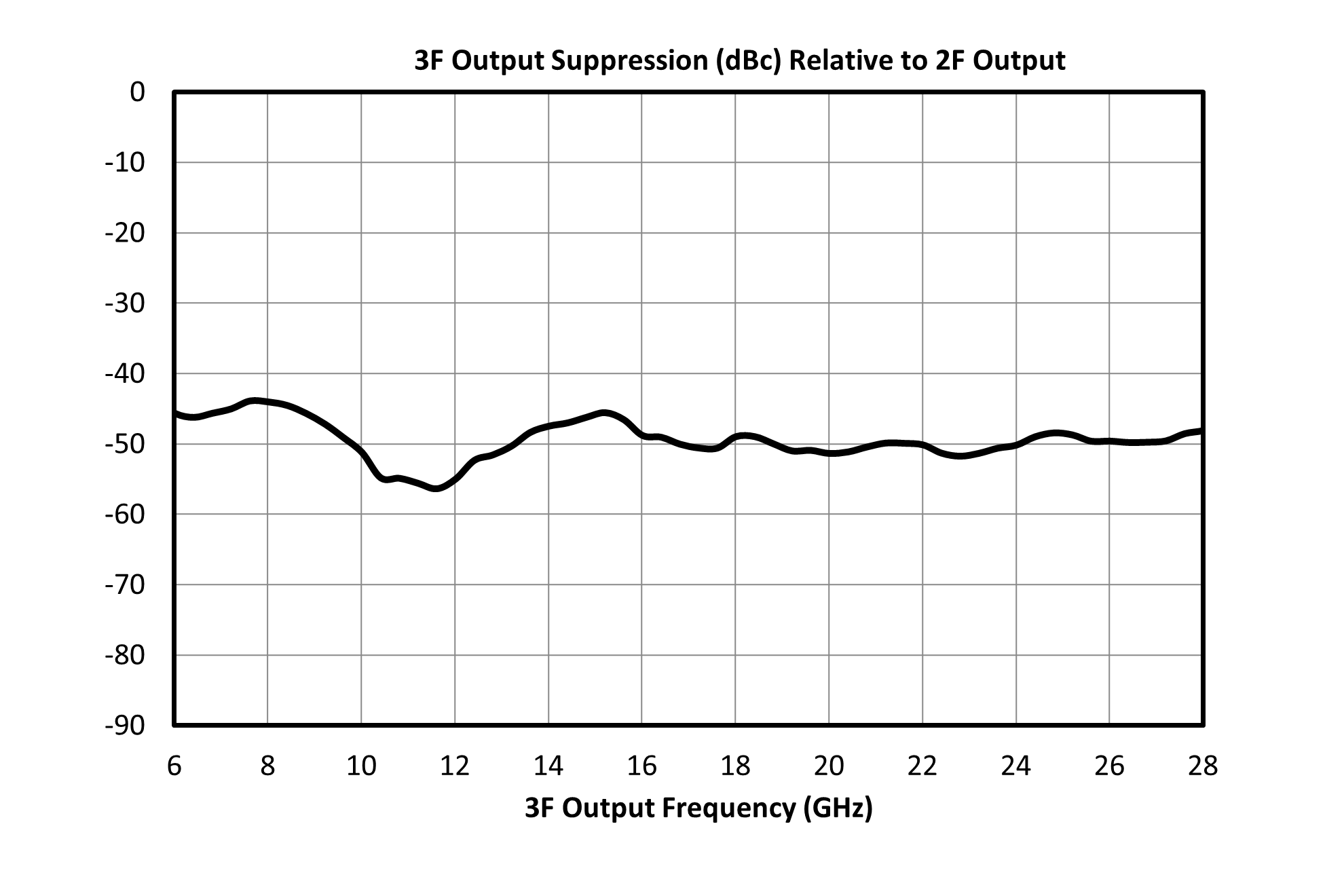

Suppression, 3F ⁷	Input = 2 – 8.66 GHz Output = 6 - 26 GHz	6	26	-	50	-	dBc

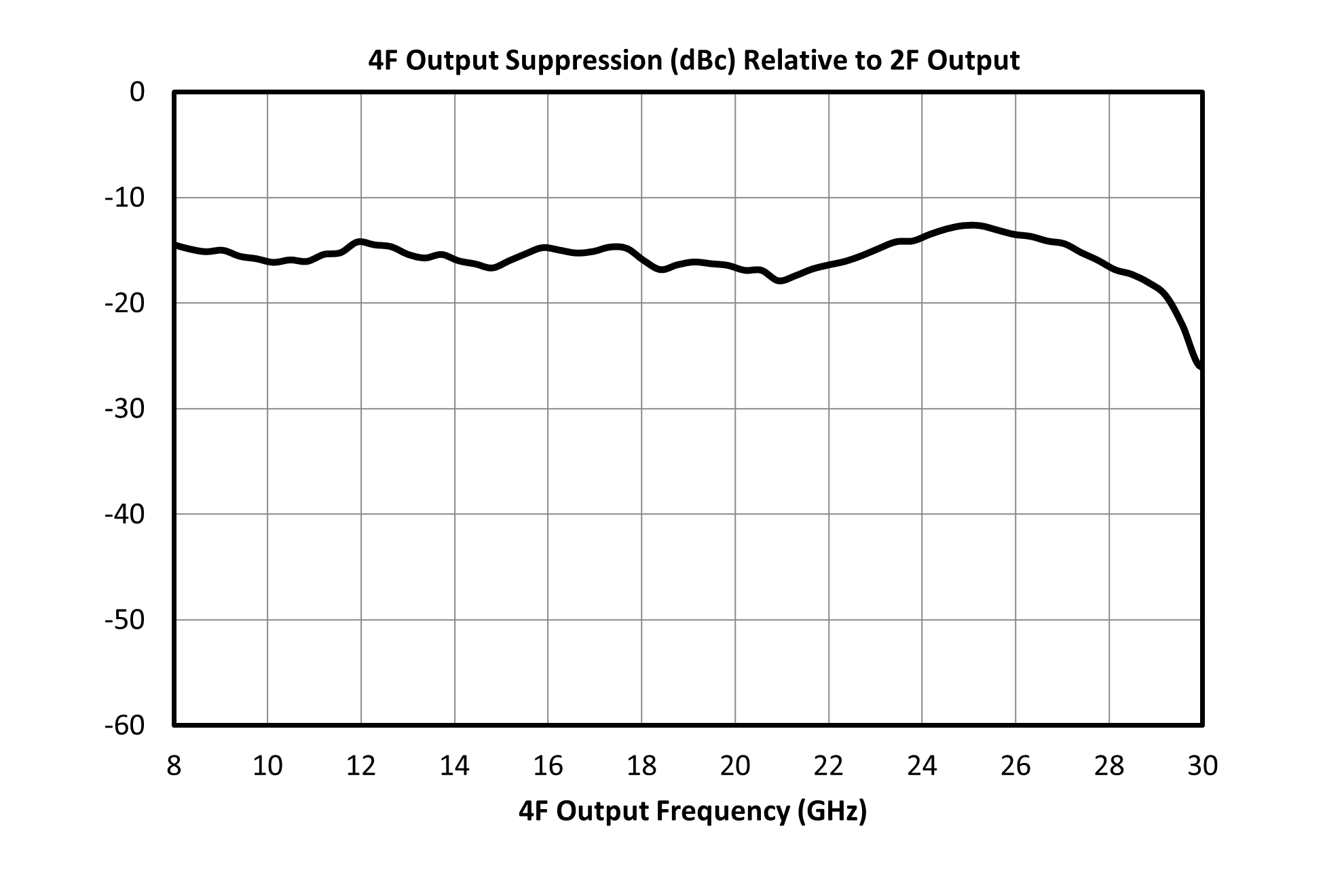

Suppression, 4F ⁸	Input = 2 – 6.5 GHz Output = 8 - 26 GHz	8	26	-	14	-	dBc

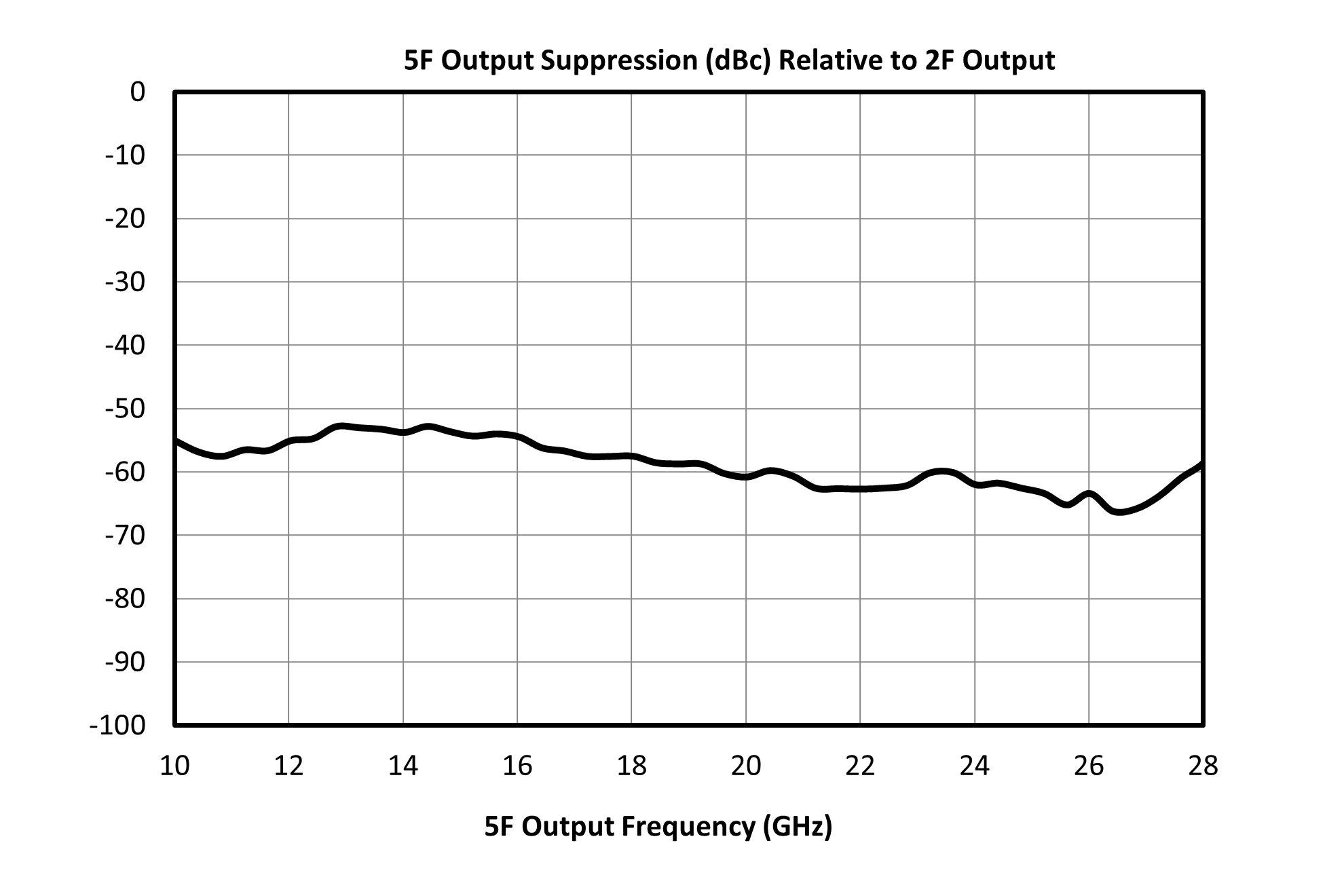

Suppression, 5F ⁹	Input = 2 – 5.2 GHz Output = 10 - 26 GHz	10	26	-	55	-	dBc

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Conversion Loss ¹	Second Harmonic Output	4	26	-	12	-	dB
Input Frequency Range	-	-	-	2	-	13	GHz
Input Power	-	-	-	6	10	14	dBm
Isolation, 1F ²	Input = 2 – 13 GHz Output = 2-13 GHz	2	13	-	50	-	dB
Isolation, 3F ³	Input = 2 – 8.66 GHz Output = 6 - 26 GHz	6	26	-	62	-	dB
Isolation, 4F ⁴	Input = 2 – 6.5 GHz Output = 8 - 26 GHz	8	26	-	27	-	dB
Isolation, 5F ⁵	Input = 2 – 5.2 GHz Output = 10 - 26 GHz	10	26	-	70	-	dB
Output Frequency Range	-	-	-	4	-	26	GHz
Suppression, 1F ⁶	Input = 2 – 13 GHz Output = 2 – 13 GHz	2	13	-	37	-	dBc
Suppression, 3F ⁷	Input = 2 – 8.66 GHz Output = 6 - 26 GHz	6	26	-	50	-	dBc
Suppression, 4F ⁸	Input = 2 – 6.5 GHz Output = 8 - 26 GHz	8	26	-	14	-	dBc
Suppression, 5F ⁹	Input = 2 – 5.2 GHz Output = 10 - 26 GHz	10	26	-	55	-	dBc

^[1] with +10 dBm RF Input

^[2]^[3]^[4]^[5] Isolation is defined as the harmonic power relative to the 1F fundamental input power.

^[6]^[7]^[8]^[9] Suppressions and isolations measured with an input source with >60dBc (relative to fundamental input) harmonic suppression. Suppression is defined as the harmonic power relative to the 2F doubled output power.
