Device Overview
General Description
The T3-1040G is a high performance mixer featuring LO/RF from 10 to 40 GHz and IF from 1 to 18 GHz. As with all T3 mixers, this mixer offers unparalleled nonlinear performance in terms of IIP3, P1dB, and spurious performance with a flexible LO drive requirement from +13 dBm to +25 dBm. The T3-1040G is offered in connectorized and drop-in style packaging, suitable for any type of system level integration. The T3-1040G is a form fit function replacement for the obsolete T3-1040, built with GaAs diodes instead of Si.
Features
- LO/RF 10.0 to 40.0 GHz
- IF 1.0 to 18.0 GHz
- 8 dB Typical Conversion Loss
- Ultra-Broadband RF, LO, and IF
- 2.92 mm Connectors
Applications
N/A
Functional Block Diagram
N/A
Part Ordering Options
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| T3-1040GLN | High-Linearity Triple-Balanced Mixers | N | Standard | Non-RoHS | Released | EAR99 |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| T3-1040GLN | High-Linearity Triple-Balanced Mixers | N | Standard | Non-RoHS | Released | EAR99 |
T3-1040GLN
High-Linearity Triple-Balanced Mixers
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications

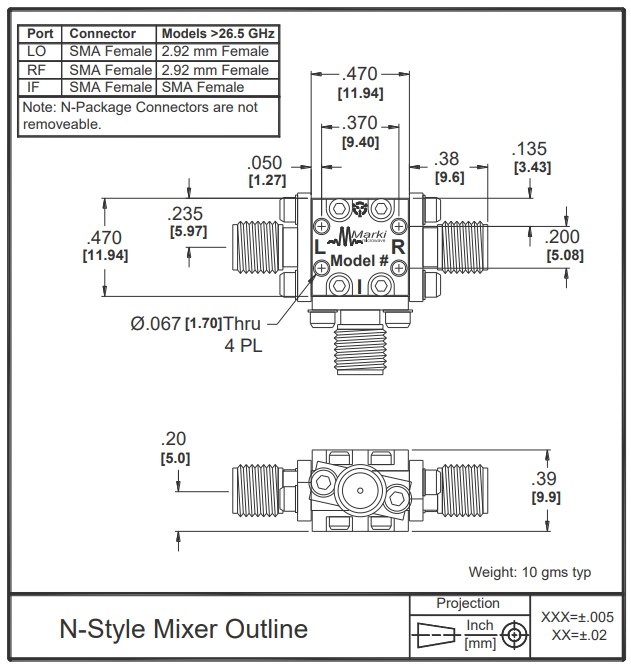

- Mechanical Data
- Notes
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2021-01-01 | Datasheet Initial Release |
T3-1040GLN
High-Linearity Triple-Balanced Mixers
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| IF | IF | SMAF | The IF port is DC coupled to the diodes and AC matched to 50 Ohms from 1.0 to 18 GHz. Blocking capacitor is optional. |  |
| LO | LO | 2.92F | The LO port is DC coupled to ground and AC matched to 50 Ohms from 10 to 40 GHz. Blocking capacitor is optional. |  |
| RF | RF | 2.92F | The RF port is DC coupled to ground and AC matched to 50 Ohms from 10 to 40 GHz. Blocking capacitor is optional. | |
T3-1040GLN
High-Linearity Triple-Balanced Mixers
Specifications
Absolute Maximum Ratings
| Parameter | Maximum Rating | Unit |
|---|---|---|
| IF DC Current | 50 | mA |
| LO DC Current | 1 | Amp |
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF DC Current | 1 | Amp |
| RF Power Handling (RF+LO), (L -Version) | 25 | dBm |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Weight | Package name: N | 10g |
| Dimensions | - | 11.94 x 11.94 mm |
Recommended Operating Conditions
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| LO Input Power | 13 | - | 25 | - |
T3-1040GLN
High-Linearity Triple-Balanced Mixers
Electrical Specifications
Specifications guaranteed from -55 to +100°C, measured in a 50-Ohm system.
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss | LO/RF=10-40GHz IF=1-15 | - | 8 | 15 | dB |
| Conversion Loss | LO/RF=10-40GHz IF=15-18 | - | 13 | 17 | dB |
| IF Frequency Range | - | 1 | - | 18 | GHz |
| LO Frequency Range | - | 10 | - | 40 | GHz |
| RF Frequency Range | - | 10 | - | 40 | GHz |
| Input IP3 | - | - | 25 | - | dBm |
| LO-RF Isolation | - | - | 32 | - | dB |
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss | LO/RF=10-40GHz IF=1-15 | - | 8 | 15 | dB |
| Conversion Loss | LO/RF=10-40GHz IF=15-18 | - | 13 | 17 | dB |
| IF Frequency Range | - | 1 | - | 18 | GHz |
| LO Frequency Range | - | 10 | - | 40 | GHz |
| RF Frequency Range | - | 10 | - | 40 | GHz |
| Input IP3 | - | - | 25 | - | dBm |
| LO-RF Isolation | - | - | 32 | - | dB |
T3-1040GLN
High-Linearity Triple-Balanced Mixers
Typical Performance
